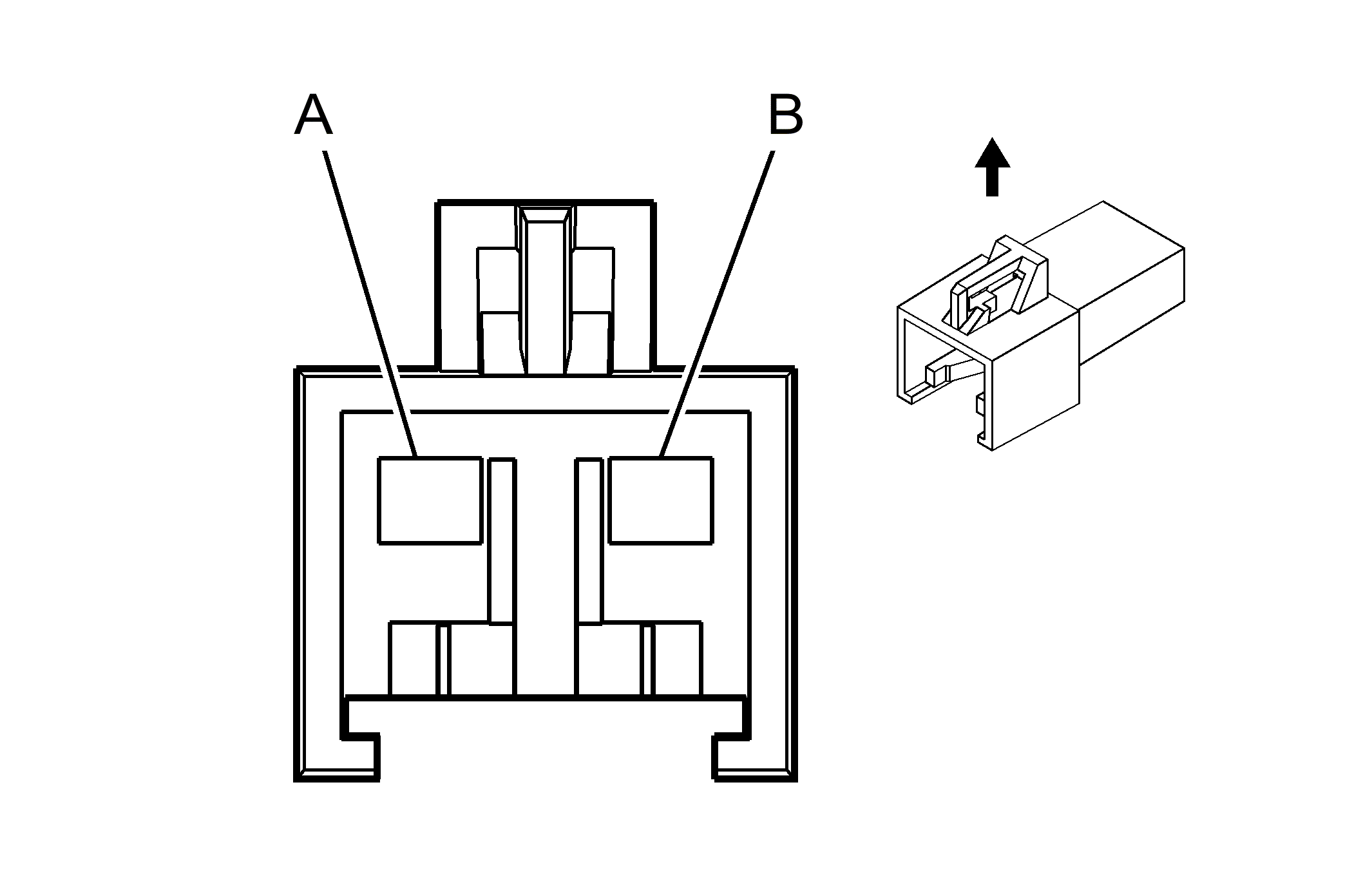

Inflatable Restraint Roof Rail Module - Driver
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Roof Rail Module - Driver
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 PU/WH |
5019 |
Roof Rail Module - Left - High Control |
| B |
0.35 PK |
5020 |
Roof Rail Module - Left - Low Control |
Connector Part Information
- OEM: 12186799
- Service: 15306012
- Service Caution: The connector at the Inflatable Restraint Module cannot be disconnected or removed without damage to the module. If the connector is removed from the module, the entire module with harness must be replaced.
- Description: 2-Way M Metri-Pack 280 Series (YE)
|
Terminal Part Information
- Terminal/Tray: 12066337/18
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094429/J-35616-5 (PU)
|
