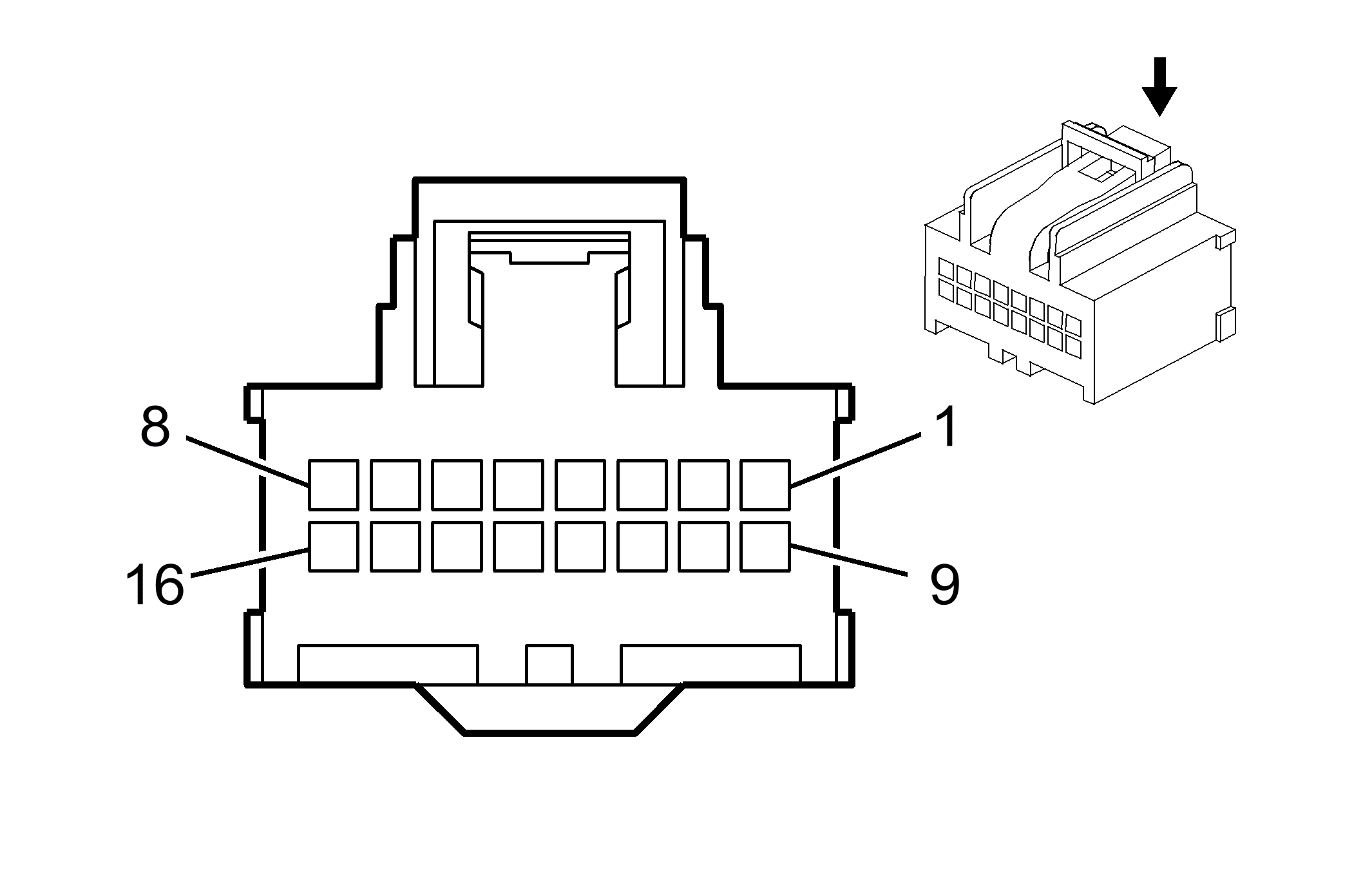

HVAC Control Module X2 (CJ2)
Courtesy of GENERAL MOTORS CORP. HVAC Control Module X2 (CJ2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD/WH |
4540 |
Battery Positive Voltage |
| 2-3 |
- |
- |
Not Used |
| 4 |
0.35 L-GN/BK |
735 |
Ambient Air Temperature Sensor Signal |
| 5 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 6-7 |
- |
- |
Not Used |
| 8 |
0.35 BK/WH |
1551 |
Ground |
| 9 |
0.35 OG |
300 |
Power Mode |
| 10 |
0.35 WH |
193 |
Rear Defog Relay Control |
| 11-15 |
- |
- |
Not Used |
| 16 |
0.35 YE |
61 |
Low Reference |
Connector Part Information
- OEM: 7283-9076-30
- Service: See Catalog
- Description: 16-Way F Kaizen 0.64 Series (BK)
|
Terminal Part Information
- Terminal/Tray: 7116-4618-02/14
- Core/Insulation Crimp: P/P
- Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
|
