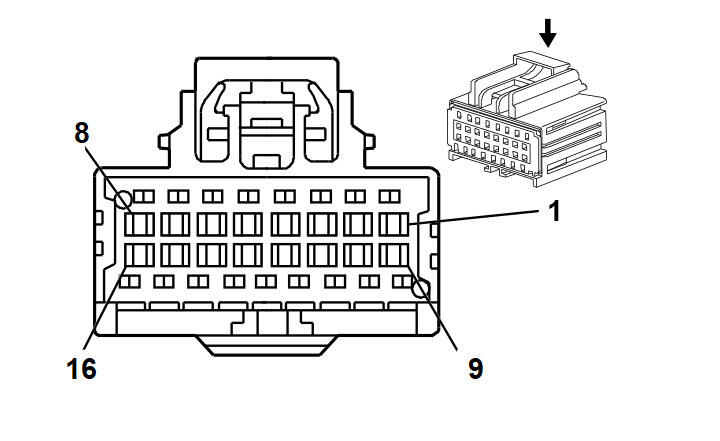

Driver Door Module (DDM) X2 (AXC or AXE)
Courtesy of GENERAL MOTORS CORP. Driver Door Module (DDM) X2 (AXC or AXE)
| Pin |
Wire |
Circuit |
Function |
| 1-2 |
- |
- |
Not Used |
| 3 |
0.35 BN |
6132 |
Linear Interconnect Network Bus |
| 4 |
- |
- |
Not Used |
| 5 |
0.5 YE |
5942 |
Low Reference |
| 6 |
- |
- |
Not Used |
| 7 |
0.5 GY |
295 |
Door Lock Actuator Lock Control |
| 8 |
0.5 TN |
294 |
Door Lock Actuator Unlock Control |
| 9 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 10-12 |
- |
- |
Not Used |
| 13 |
0.5 GY/BK |
745 |
Left Front Door Ajar Switch Signal |
| 14-16 |
- |
- |
Not Used |
Connector Part Information
- OEM: 7283-9078-80
- Service: See Catalog
- Description: 16-Way F Kaizen 0.64 Series (BN)
|
Terminal Part Information
- Terminal/Tray: 7116-4618-02/14
- Core/Insulation Crimp: P/P
- Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
|
