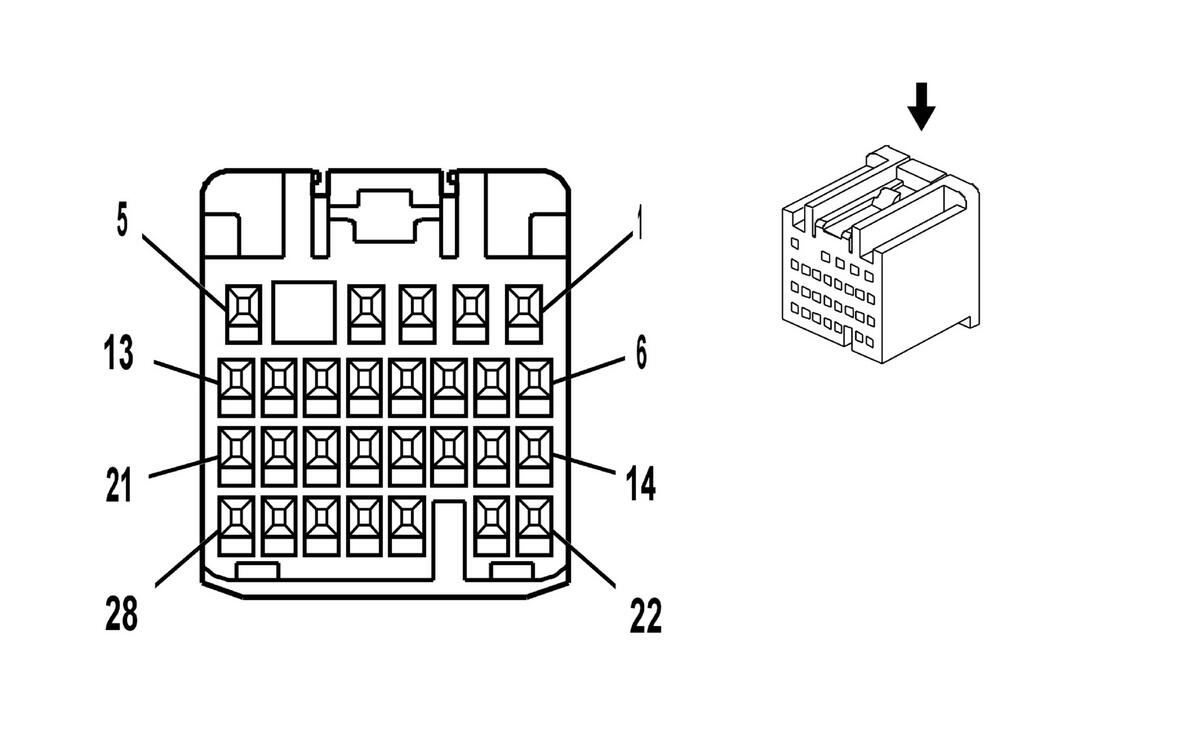

Body Control Module (BCM) X7
Courtesy of GENERAL MOTORS CORP. Body Control Module (BCM) X7
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.35 YE |
43 |
Ignition Voltage |
| 3-5 |
- |
- |
Not Used |
| 6 |
0.35 YE |
356 |
Driver Door Lock Relay Unlock Control (without AXC or AXE) |
| 7 |
0.35 L-GN |
1391 |
Driver Door Unlock Relay Control |
| 8 |
0.35 D-BU |
545 |
DRL Voltage (TVD with Z88) |
| 9 |
0.35 L-BU |
5921 |
Driver Door Unlock Relay Control |
| 10 |
- |
- |
Not Used |
| 11 |
0.35 OG/BK |
781 |
Driver Door Lock Switch Unlock Signal (without AXC or AXE) |
| 12 |
0.35 PK/BK |
780 |
Driver Door Lock Switch Lock Signal (without AXC or AXE) |
| 13 |
0.35 D-BU |
38 |
Backup Lamp Relay Control (V92) |
| 14-17 |
- |
- |
Not Used |
| 18 |
0.35 L-GN |
170 |
Power Window Master Switch Right Rear Up Signal (AXC or AXE) |
| 19 |
0.35 PU |
169 |
Power Window Master Switch Left Rear Down Signal (AXC or AXE) |
| 20 |
- |
- |
Not Used |
| 21 |
0.35 D-BU |
1307 |
Power Window Master Switch Lockout Signal (AXC or AXE) |
| 22-24 |
- |
- |
Not Used |
| 25 |
0.35 PU/WH |
6816 |
Heated Seat Indicator Dimming (KA1 without A45) |
| 26 |
0.35 PU |
171 |
Power Window Master Switch Right Rear Down Signal (AXC or AXE) |
| 27 |
0.35 L-BU/WH |
280 |
Power Window Master Switch Lockout Right Rear Signal (AXC or AXE) |
| 28 |
0.35 D-GN |
168 |
Power Window Master Switch Left Rear Up Signal (AXC or AXE) |
Connector Part Information
- OEM: 15466053
- Service: 88988806
- Description: 28-Way F HIT Series (GY)
|
Terminal Part Information
- Terminal/Tray: SNAC3-A021T-M0.64/20
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
