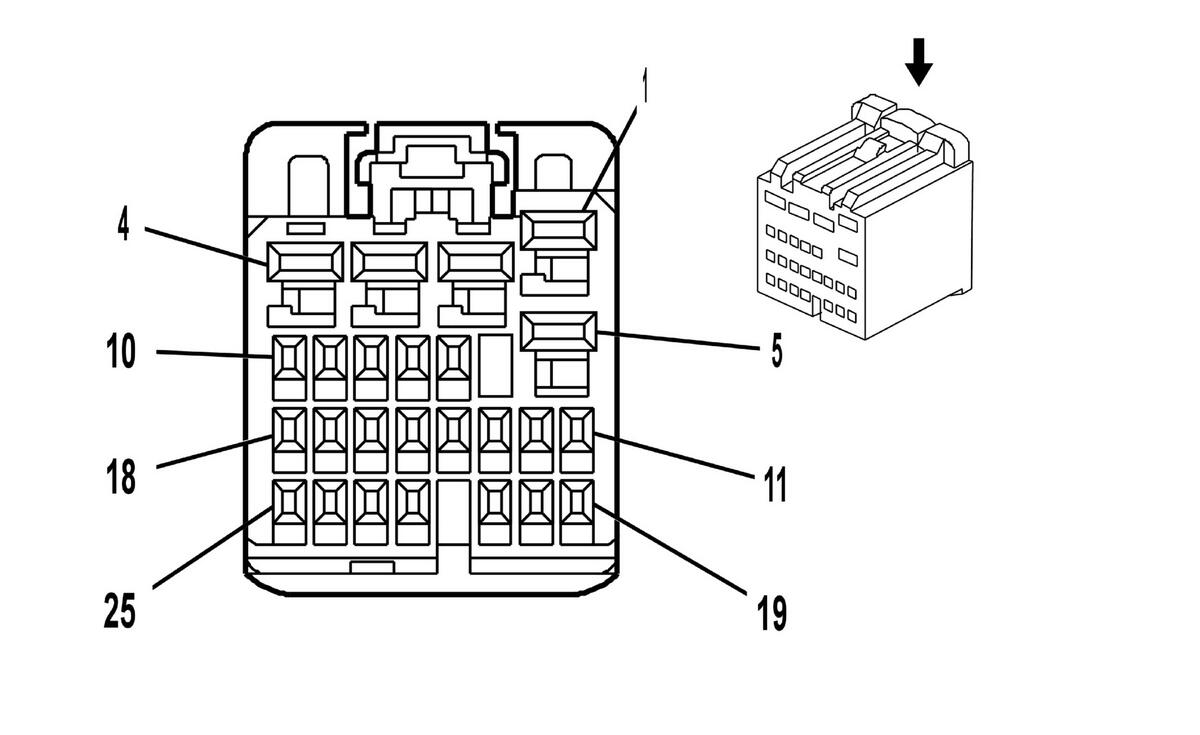

Body Control Module (BCM) X6
Courtesy of GENERAL MOTORS CORP. Body Control Module (BCM) X6
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.8 L-GN |
24 |
Backup Lamp Voltage |
| 3 |
0.8 GY |
8 |
Instrument Panel Lamp Voltage |
| 4-7 |
- |
- |
Not Used |
| 8 |
0.35 TN/WH |
746 |
Right Front Door Ajar Switch Signal (without AXC or AXE) |
| 9 |
0.35 D-BU |
245 |
Passenger Door Lock Switch Unlock (without AXC or AXE) |
| 10 |
0.35 GY/BK |
745 |
Left Front Door Ajar Switch Signal (without AXC or AXE) |
| 11 |
- |
- |
Not Used |
| 12 |
0.35 PK/BK |
1303 |
Liftgate Ajar Switch Signal (TB4) |
| 13 |
- |
- |
Not Used |
| 14 |
0.35 L-GN/BK |
748 |
Right Rear Door Ajar Switch Signal |
| 15 |
0.35 L-BU/BK |
747 |
Left Rear Door Ajar Switch Signal |
| 16-17 |
- |
- |
Not Used |
| 18 |
0.35 L-BU |
244 |
Passenger Door Lock Switch Lock (without AXC or AXE) |
| 19-20 |
- |
- |
Not Used |
| 21 |
0.35 PU/WH |
1382 |
LED Dimming Signal |
| 22 |
0.35 L-GN |
5926 |
Rear Access Open Switch Signal (TB4) |
| 23 |
0.35 GY |
5797 |
Rear Closure Handle Switch Open Signal (TB4) |
| 24-25 |
- |
- |
Not Used |
Connector Part Information
- OEM: 15482793
- Service: 88988842
- Description: 25-Way F Receptacle 0.64 2.8 (PK)
|
Terminal Part Information
- Pins: 1-3
- Terminal/Tray: SNAC-A061T-M2.8/20
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094429/J-35616-4A (PU)
- Pins: 8-10, 12, 14-16, 18, 20-23
- Terminal/Tray: SNAC3-A021T-M0.64/20
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
