Automatic Transmission Manual Shift Switch

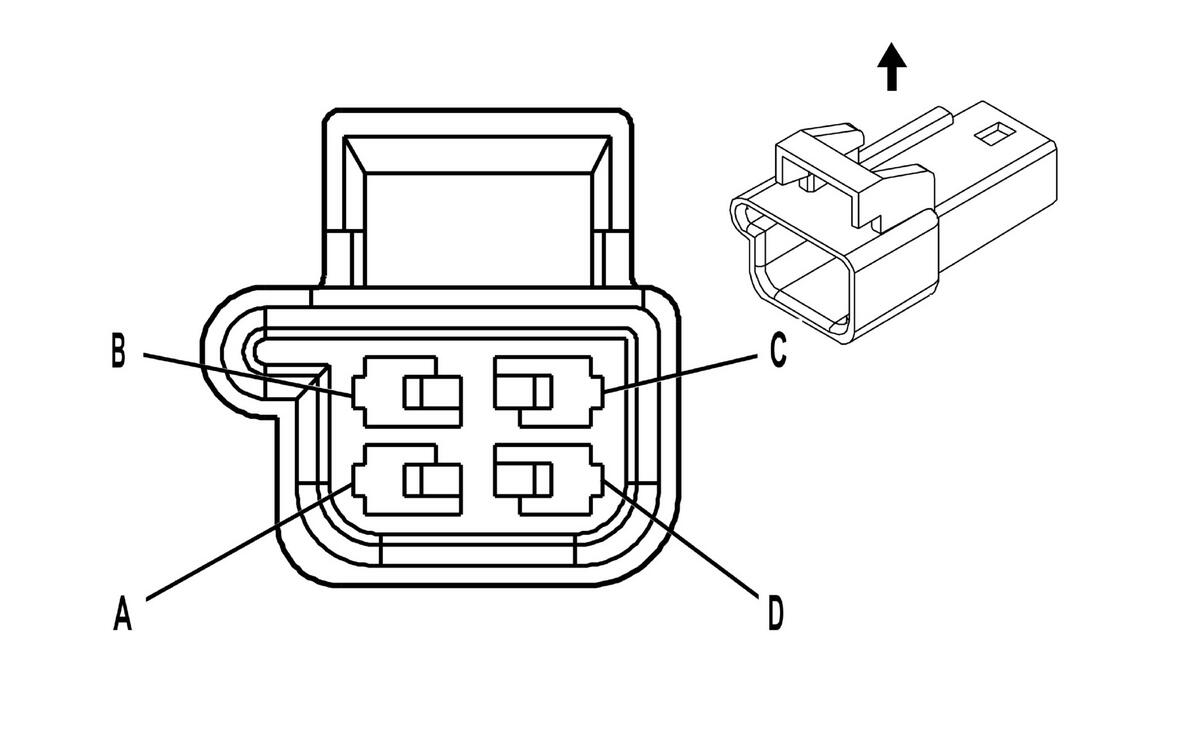

Fig 1: Automatic Transmission Manual Shift Switch Connector End View
GM40399Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Manual Shift Switch

Pin Wire Circuit Function
A GN - Ignition Voltage
B GN - Tap Up/Tap Down Switch Signal
C-D - - Not Used
Connector Part Information
  • OEM: 12064761
  • Service: 12064761
  • Description: 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
