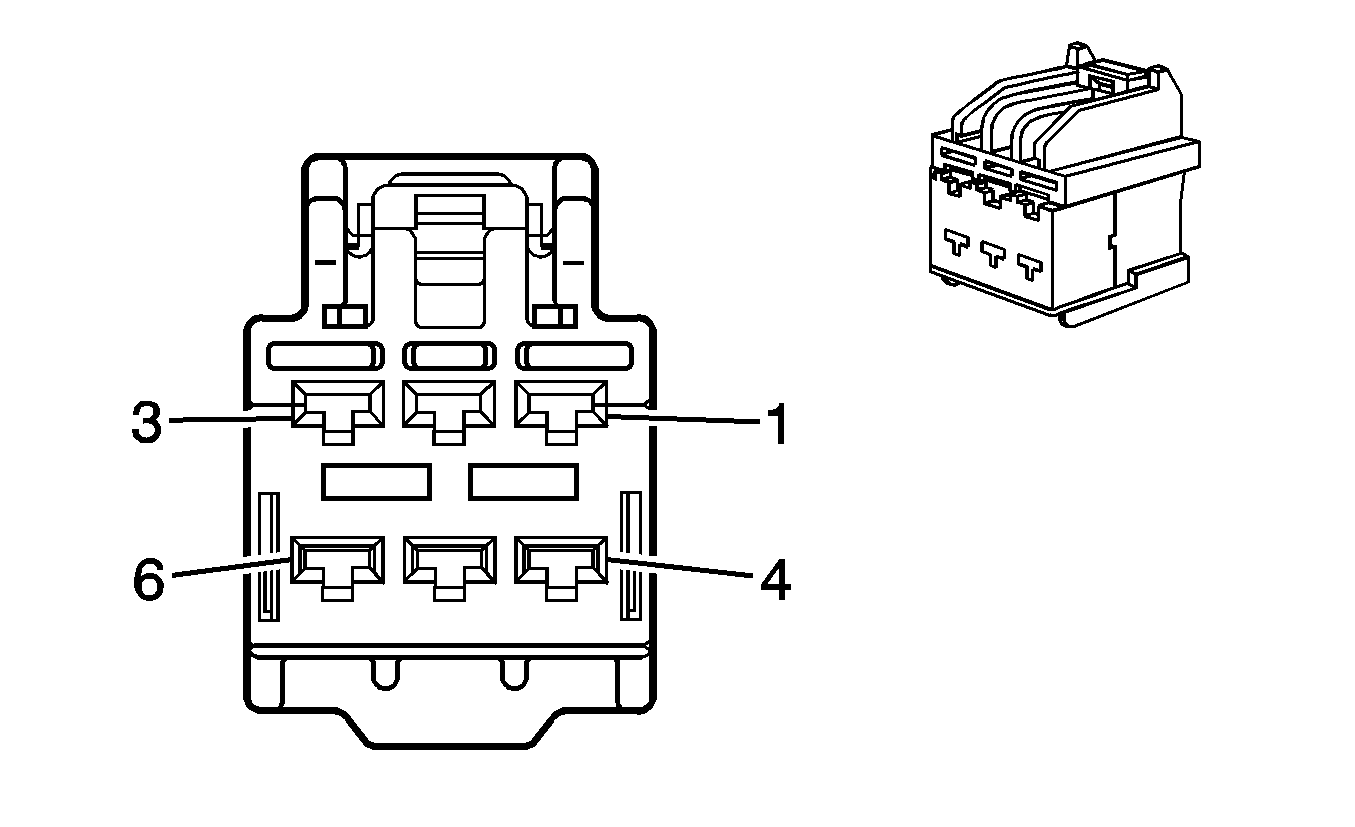

Accessory AC/DC Power Control Module X1 (KV1)
Courtesy of GENERAL MOTORS CORP. Accessory AC/DC Power Control Module X1 (KV1)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.8 D-BU |
6807 |
120 VAC Inverter Control |
| 3 |
- |
- |
Not Used |
| 4 |
0.8 RD |
5684 |
120 VAC Phase B |
| 5 |
- |
- |
Not Used |
| 6 |
0.8 BK |
5683 |
120 VAC Phase A |
Connector Part Information
- OEM: 6098-4542
- Service: See Catalog
- Description: 6-Way F 2.8 Series (OG)
|
Terminal Part Information
- Terminal/Tray: 8100-4444/22
- Core/Insulation Crimp: 2/A
- Release Tool/Test Probe: 15315247/J-35616-35 (VT)
|
