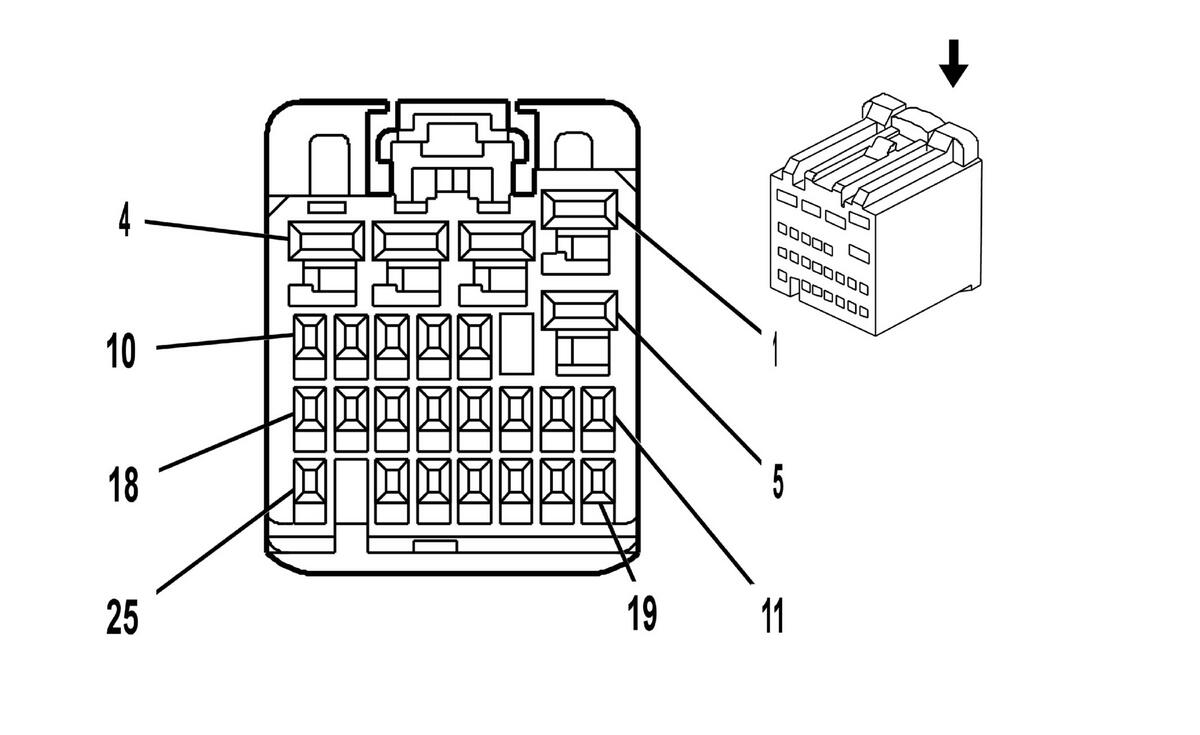

Body Control Module (BCM) X4
Courtesy of GENERAL MOTORS CORP. Body Control Module (BCM) X4
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 RD/WH |
340 |
Battery Positive Voltage (Z88 or W49) |
| 1 RD/WH |
340 |
Battery Positive Voltage (WDA) |
| 2 |
1 RD/WH |
240 |
Battery Positive Voltage |
| 3 |
1 RD/WH |
440 |
Battery Positive Voltage |
| 4 |
0.8 RD/WH |
2140 |
Battery Positive Voltage |
| 5 |
1 D-BU/WH |
1315 |
Right Turn Signal Indicator Lamp Voltage |
| 6 |
- |
- |
Not Used |
| 7 |
0.35 YE |
196 |
Windshield Wiper Motor Park Switch Signal |
| 8 |
- |
- |
Not Used |
| 9 |
0.35 BK |
50 |
Ground |
| 10 |
0.35 RD/WH |
2440 |
Battery Positive Voltage |
| 11 |
0.35 D-GN/WH |
1317 |
Fog Lamp Relay Control (T96) |
| 12 |
0.5 YE |
5187 |
Right Trailer Turn Signal Lamp (V92) |
| 13 |
0.5 OG |
5186 |
Left Trailer Turn Signal Lamp (V92) |
| 14 |
- |
- |
Not Used |
| 15 |
0.35 OG |
2268 |
Windshield Washer Relay Control |
| 16 |
0.35 TN/WH |
1969 |
Headlamp Relay Control (W49 or WDA or Z88 with TVD) |
| 17 |
0.35 PK/BK |
109 |
Hood Ajar Switch Signal (BTV) |
| 18 |
- |
- |
Not Used |
| 19 |
0.35 D-BU |
5985 |
Ignition Voltage |
| 20 |
- |
- |
Not Used |
| 21 |
0.35 PK |
1439 |
Ignition Voltage |
| 22 |
0.35 YE |
5704 |
Liftgate Latch Relay Coil Control (TB4) |
| 23 |
0.35 PU |
544 |
Headlamp Low Beam Voltage (W49 or WDA or Z88 with TVD) |
| 24-25 |
- |
- |
Not Used |
Connector Part Information
- OEM: 15482792
- Service: 88988841
- Description: 25-Way F HIT Series (BK)
|
Terminal Part Information
- Pins: 7, 9-13, 15-17, 19, 21-23
- Terminal/Tray: SNAC3-A021T-M0.64/20
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
- Pins: 1-5
- Terminal/Tray: SNAC-A061T-M2.8/20
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094429/J-35616-4A (PU)
|
