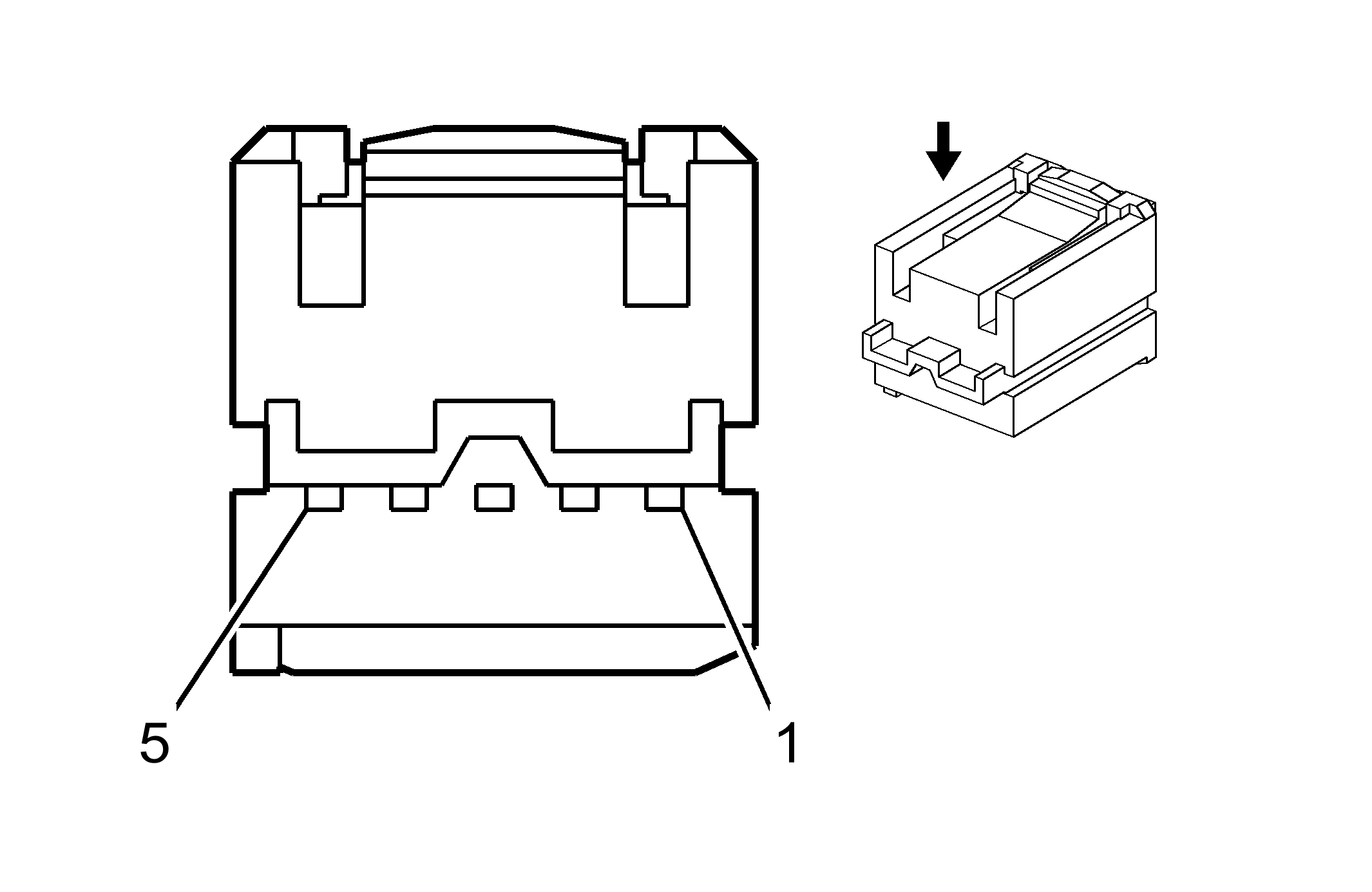

Inflatable Restraint I/P Module
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint I/P Module
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
3025 |
I/P Module - Stage 1 - High Control |
| 2 |
0.35 OG |
3024 |
I/P Module - Stage 1 - Low Control |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 GY |
3027 |
I/P Module - Stage 2 - High Control |
| 5 |
0.35 PU |
3026 |
I/P Module - Stage 2 - Low Control |
Connector Part Information
- OEM: SNAPB-05UN-1FYS
- Service: 19153434
- Service Caution: The connector at the Inflatable Restraint Module cannot be disconnected or removed without damage to the module. If the connector is removed from the module, the entire module with harness must be replaced.
- Description: 5-Way F 0.64 Series Unsealed (YE)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
