Trailer Connector/Provision Schematics

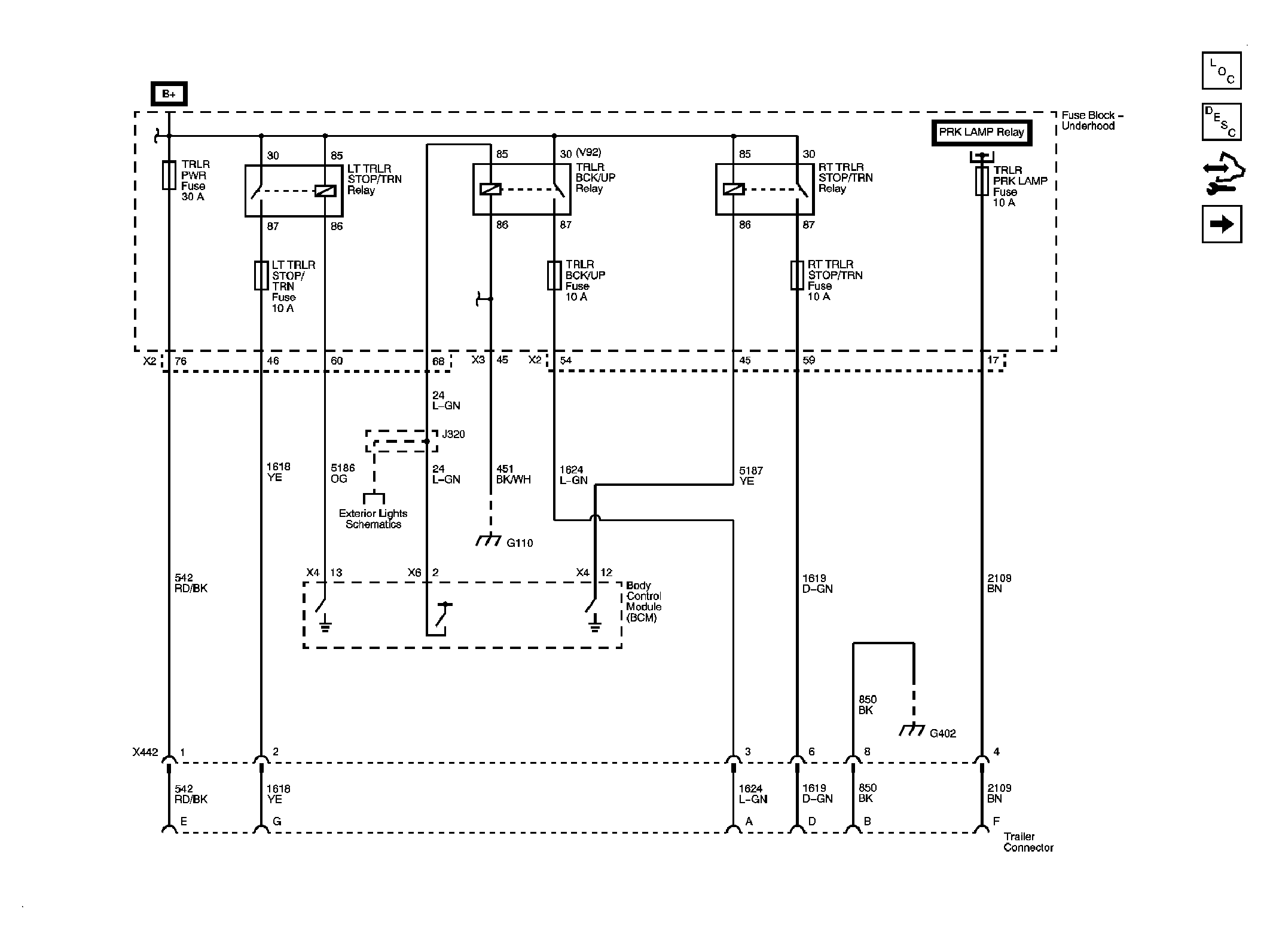

Fig 1: Trailer Connector Circuit Schematic

GM2078183

Courtesy of GENERAL MOTORS CORP.

Fig 2: Blunt Cuts Circuit Schematic

GM2078187

Courtesy of GENERAL MOTORS CORP.
