Remote Function Schematics

Fig 1: Keyless Entry Circuit Schematic - AP8

GM2078163

Courtesy of GENERAL MOTORS CORP.

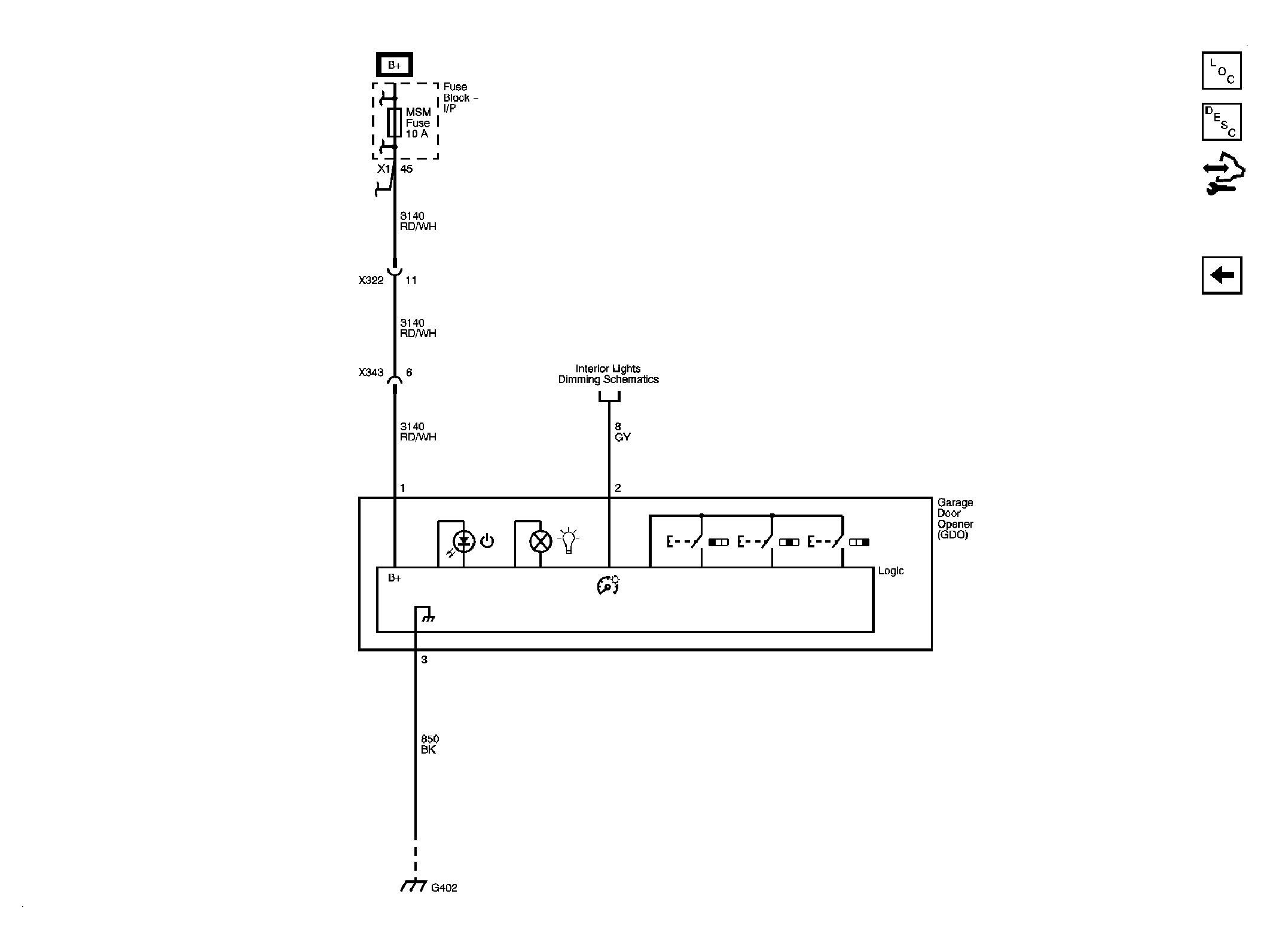

Fig 2: Garage Door Opener Circuit Schematic - UG1

GM2078164

Courtesy of GENERAL MOTORS CORP.
