Steering Wheel Secondary/Configurable Control Schematics

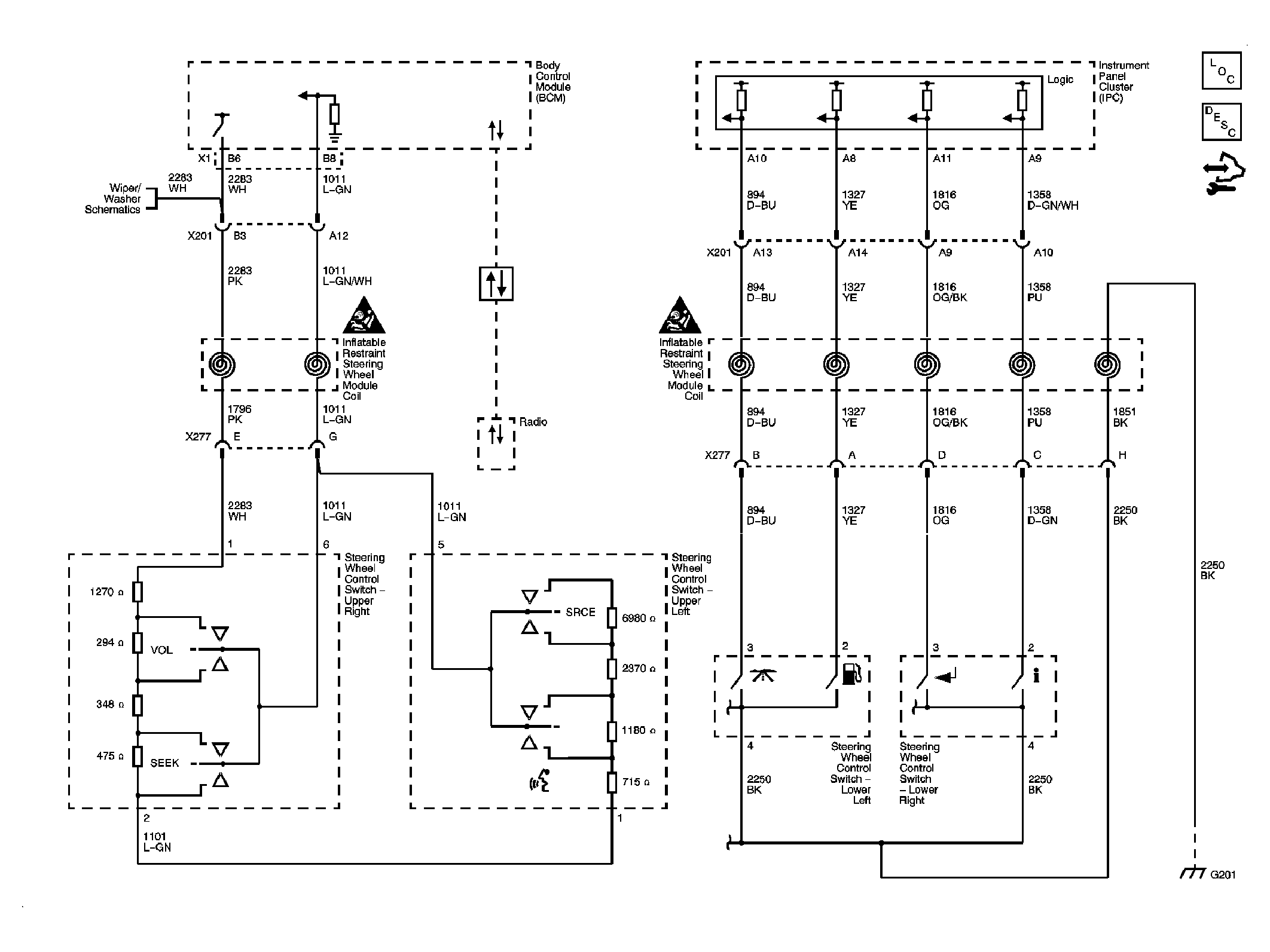

Fig 1: Steering Wheel Secondary/Configurable Control

GM2081637

Courtesy of GENERAL MOTORS CORP.
