Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

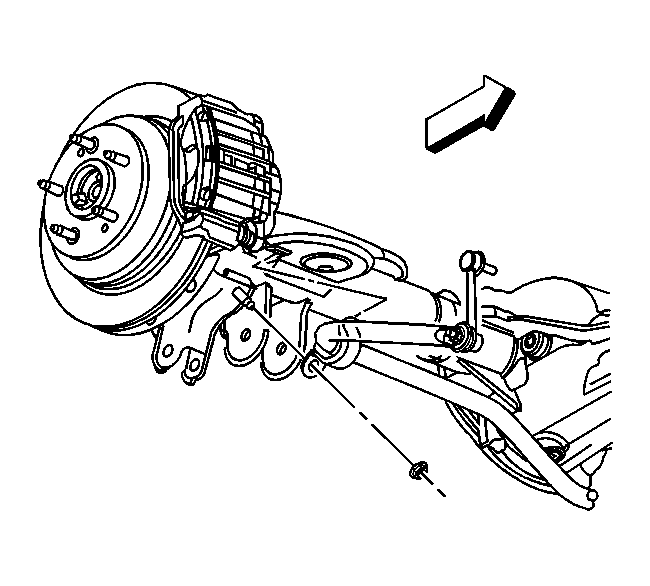

    Fig 1: View Of Stabilizer Shaft Links & Stabilizer Shaft
    GM731629Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer shaft insulators.
  2. Install the stabilizer shaft.
    3. NOTE: Refer to Fastener Notice .
  3. Install the stabilizer shaft insulator clamp mounting nuts.

    Tighten:  Tighten the stabilizer shaft insulator clamp mounting nuts to 75 N.m (55 lb ft).

    4. Fig 2: View Of Stabilizer Shaft Links & Stabilizer Shaft
    GM744889Courtesy of GENERAL MOTORS CORP.
  4. Connect the stabilizer shaft links to the stabilizer shaft. Hand tighten only.
  5. Install the stabilizer shaft links to stabilizer shaft retaining nuts.

    Tighten:  Tighten the stabilizer shaft links to stabilizer shaft retaining nuts to 90 N.m (66 lb ft).

  6. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
