Moveable Window Schematics

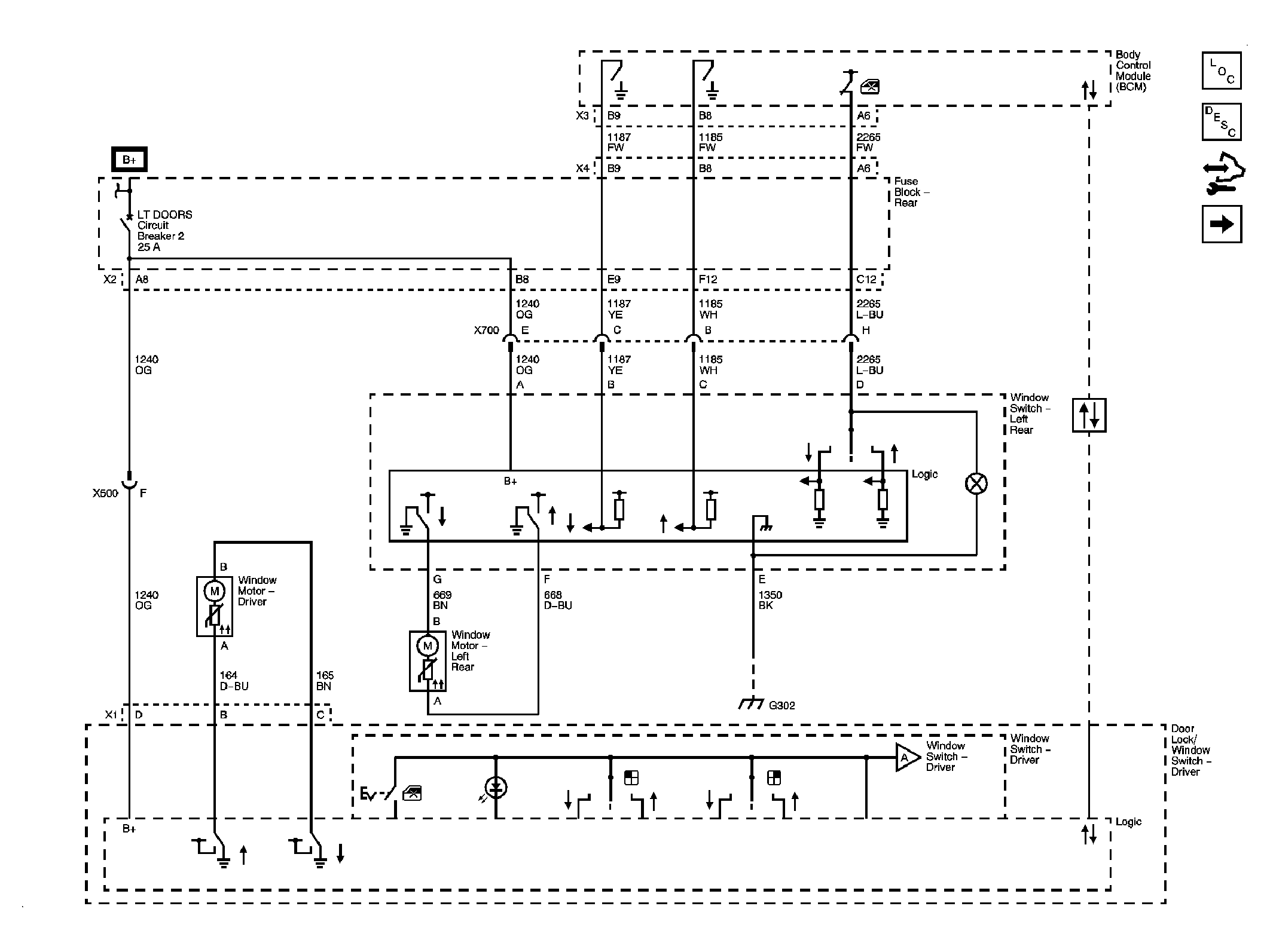

Fig 1: Power Windows - Left

GM2081369

Courtesy of GENERAL MOTORS CORP.

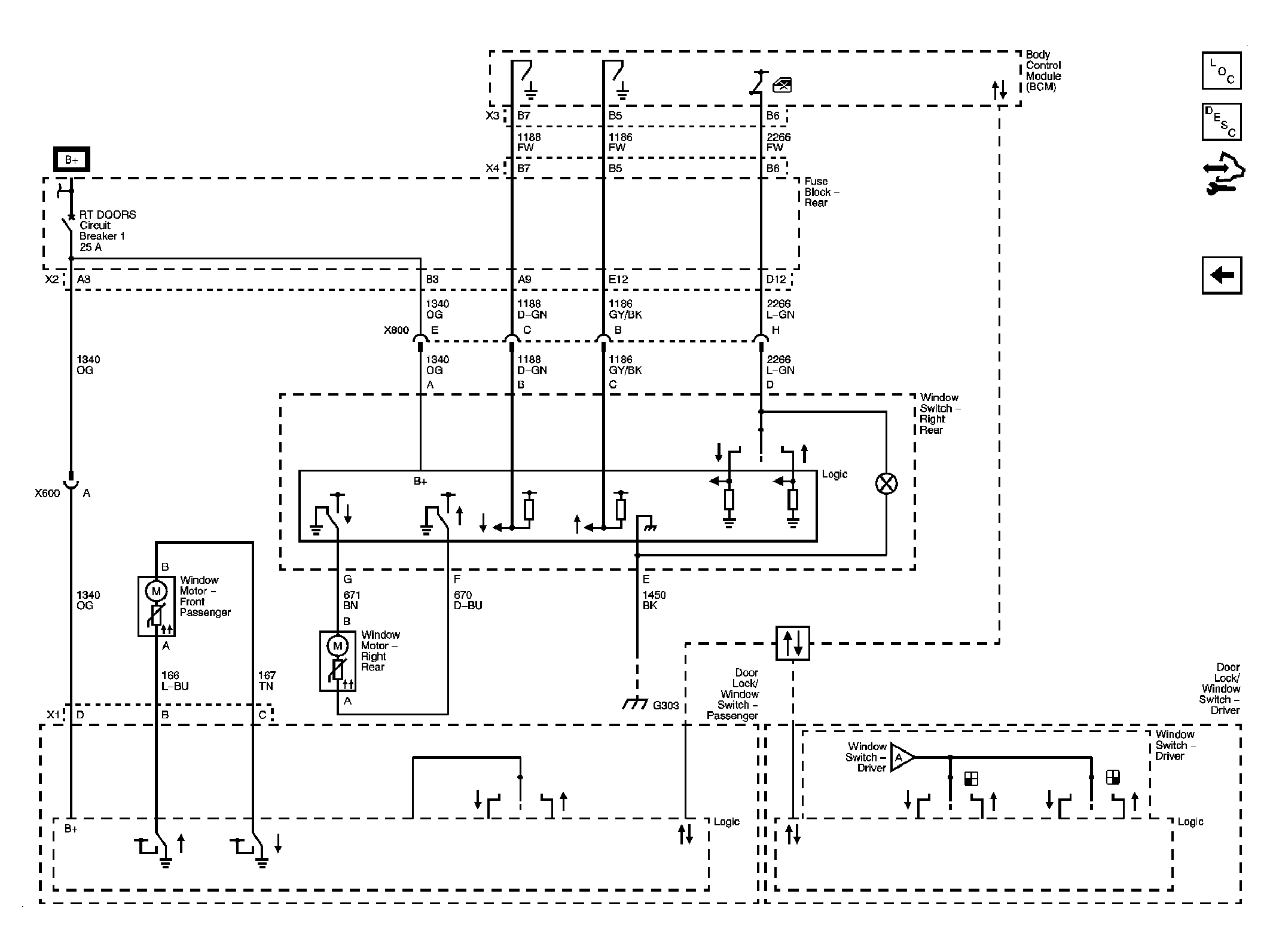

Fig 2: Power Windows - Right

GM2081373

Courtesy of GENERAL MOTORS CORP.
