Installation Procedure

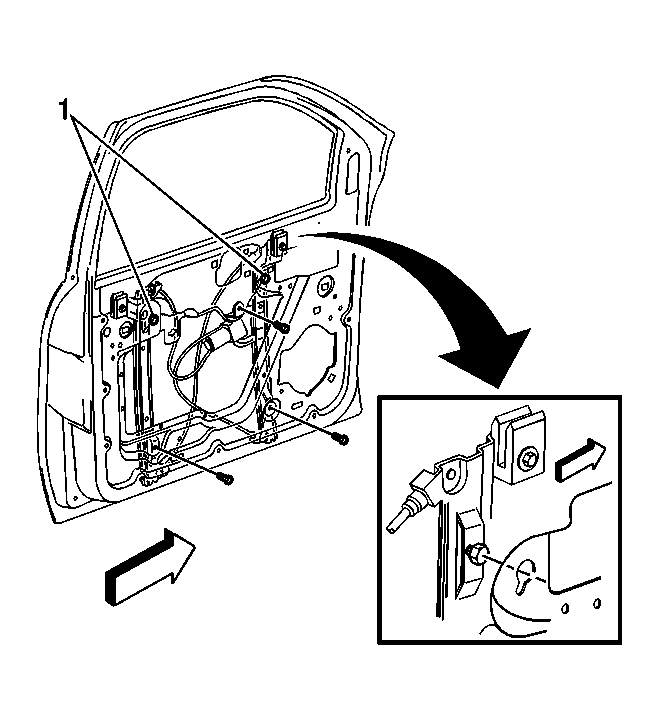

- Partially install the upper 2 bolts to the regulator assembly.
- Beginning with the upper portion, install the regulator assembly through the door opening in a semi-horizontal position.
- Position the regulator assembly fully forward into the door cavity.
- Rotate the regulator assembly to a vertical position.
- Lower and hang the regulator assembly onto the door sheet metal using the upper 2 bolts that were previously installed.
- Install the bolt that retains the motor to the door.
Tighten: Tighten bolts to 9 N.m (80 lb in).
- Install the remaining bolts that retain the regulator assembly to the door.
Tighten: Tighten bolts to 10 N.m (88 lb in).
- Connect the electrical connector to the regulator motor.
- Remove the window support and lower the window onto the regulator window carrier.
- Loosely tighten the regulator window carrier bolts.
- Operate the window upward to the full up position, ensuring the window remains in the run channels.
Tighten: Tighten the regulator window carrier bolts (1) to 10 N.m (88 lb in).
- Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
- Install the speaker. Refer to Radio Front Side Door Speaker Replacement .
- Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
CAUTION:
Refer to Fastener Caution
.
