Installation Procedure

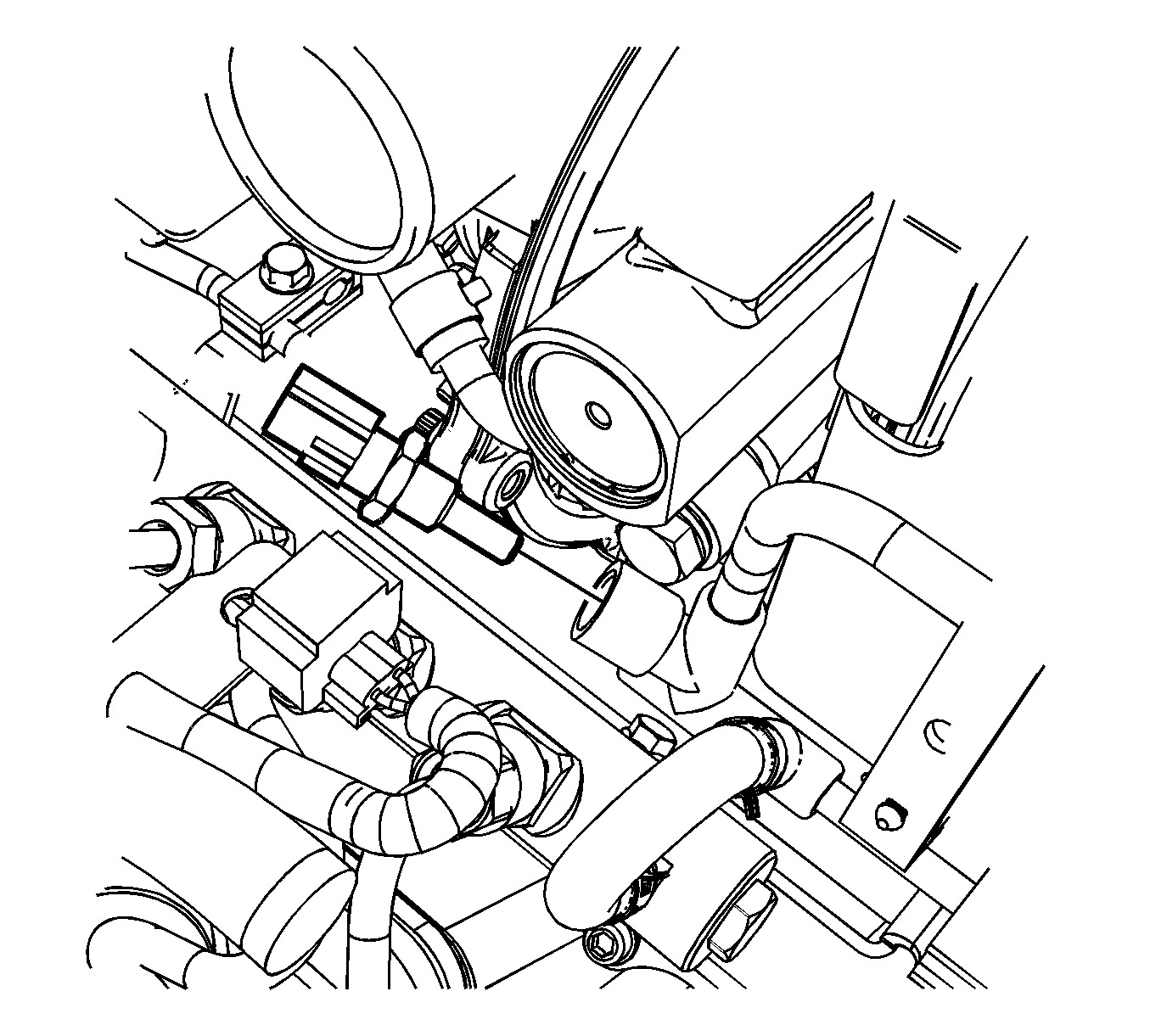

    Fig 1: Identifying FRT Sensor
    GM1732315Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the FRT sensor electrical connector and tighten to 22 N.m (16 lb ft).

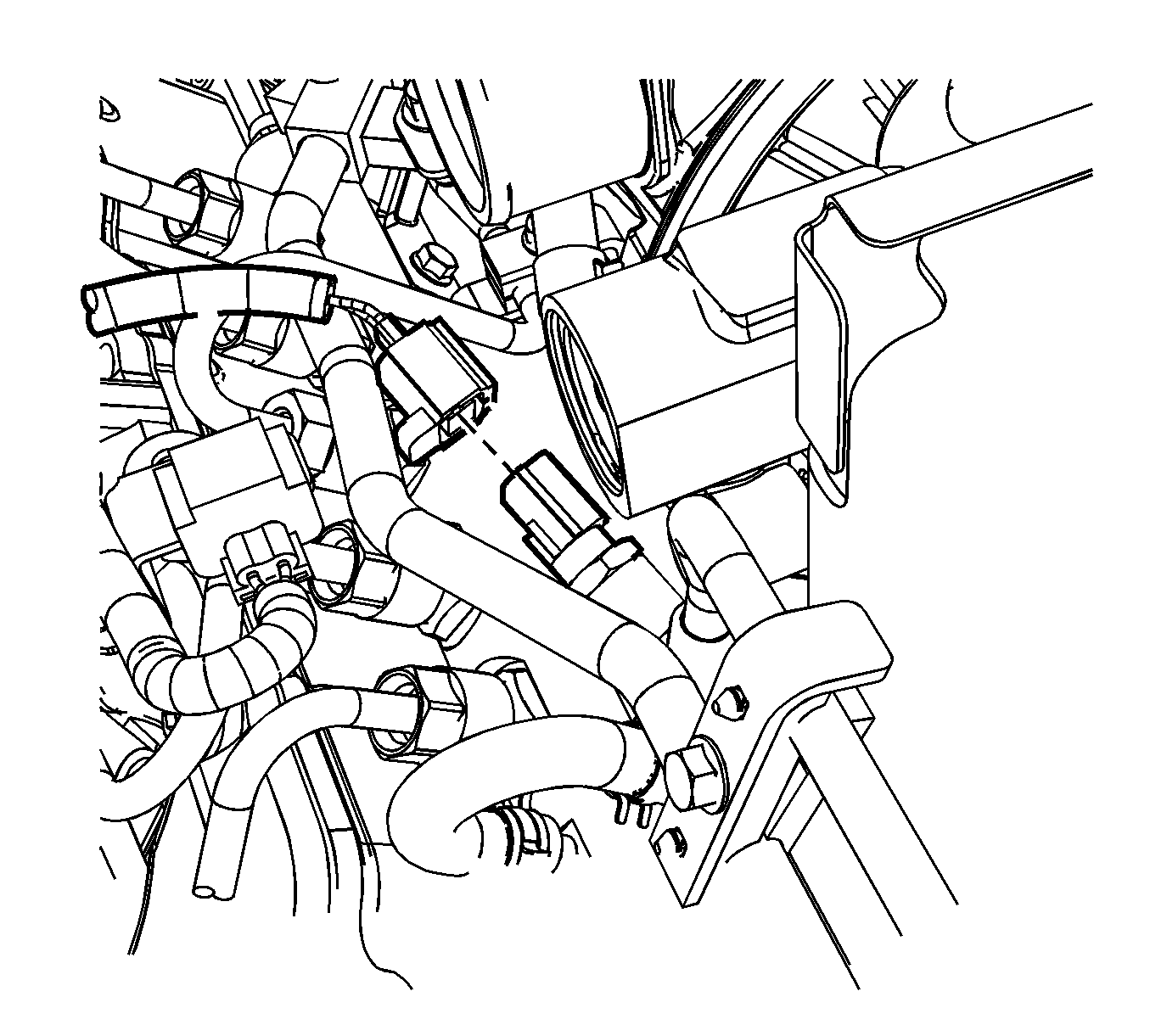

    2. Fig 2: Identifying intake air temperature sensor
    GM1732300Courtesy of GENERAL MOTORS CORP.
  2. Connect the FRT sensor electrical connector.
  3. Install the fuel line retainer center of engine.
  4. Install the rear fuel line retainer.
  5. Install the charged air inlet tube. Refer to Charged Air Cooler Hoses/Pipes Replacement (Inlet) or Charged Air Cooler Hoses/Pipes Replacement (Outlet)
  6. Install the glow plug module and bracket. Refer to Glow Plug Control Module Replacement .
  7. Prime the fuel system. Refer to Fuel System Priming .
  8. Once engine starts, inspect for leaks.
  9. Install the engine cover. Refer to Engine Cover Replacement .
