Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

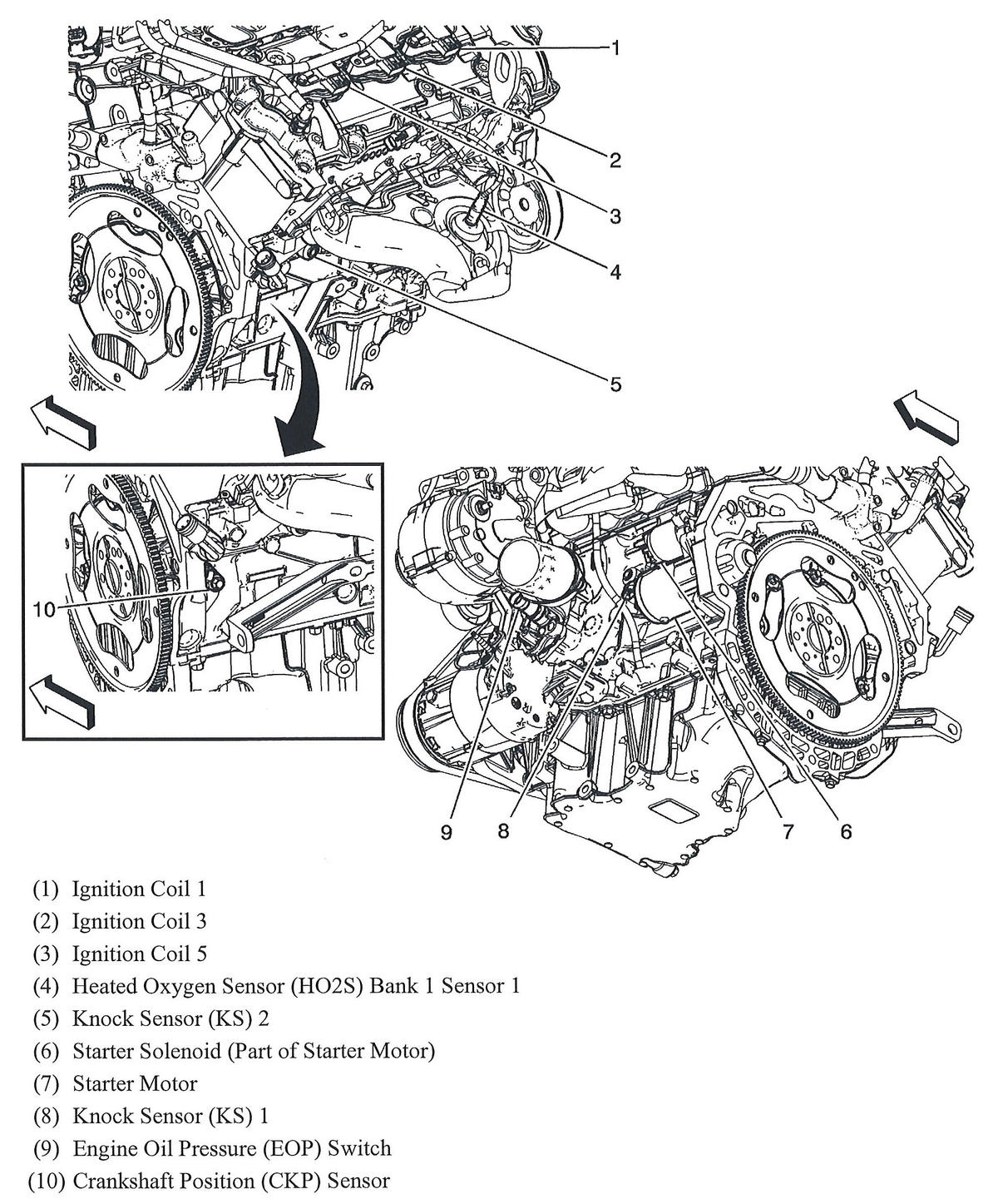

Fig 1: Left & Right Rear Of Engine (3.6L)

G00470261

Courtesy of GENERAL MOTORS CORP.

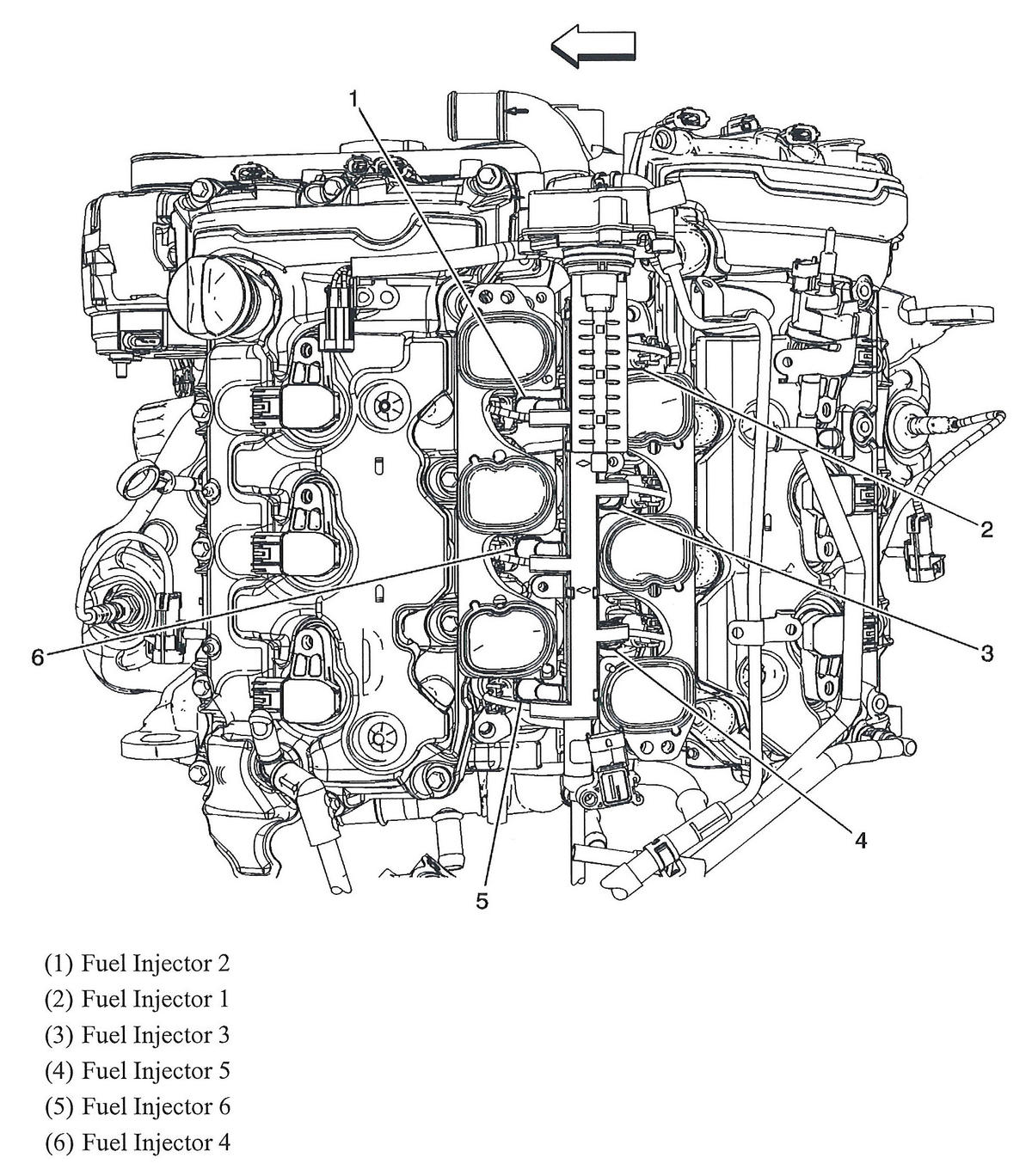

Fig 2: Top Of Engine (3.6L)

G00470262

Courtesy of GENERAL MOTORS CORP.

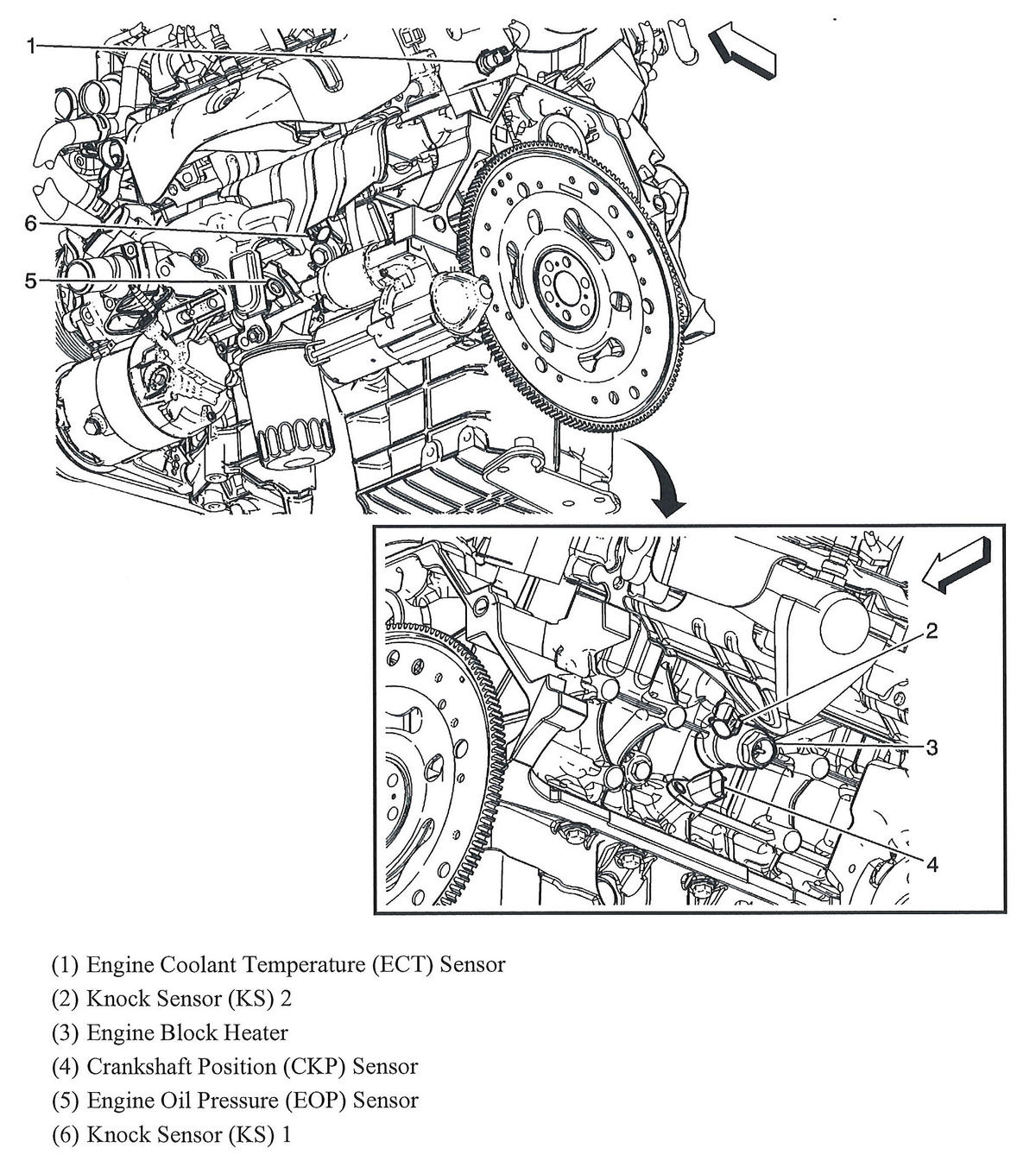

Fig 3: Rear Of Engine (3.5L)

G00470264

Courtesy of GENERAL MOTORS CORP.

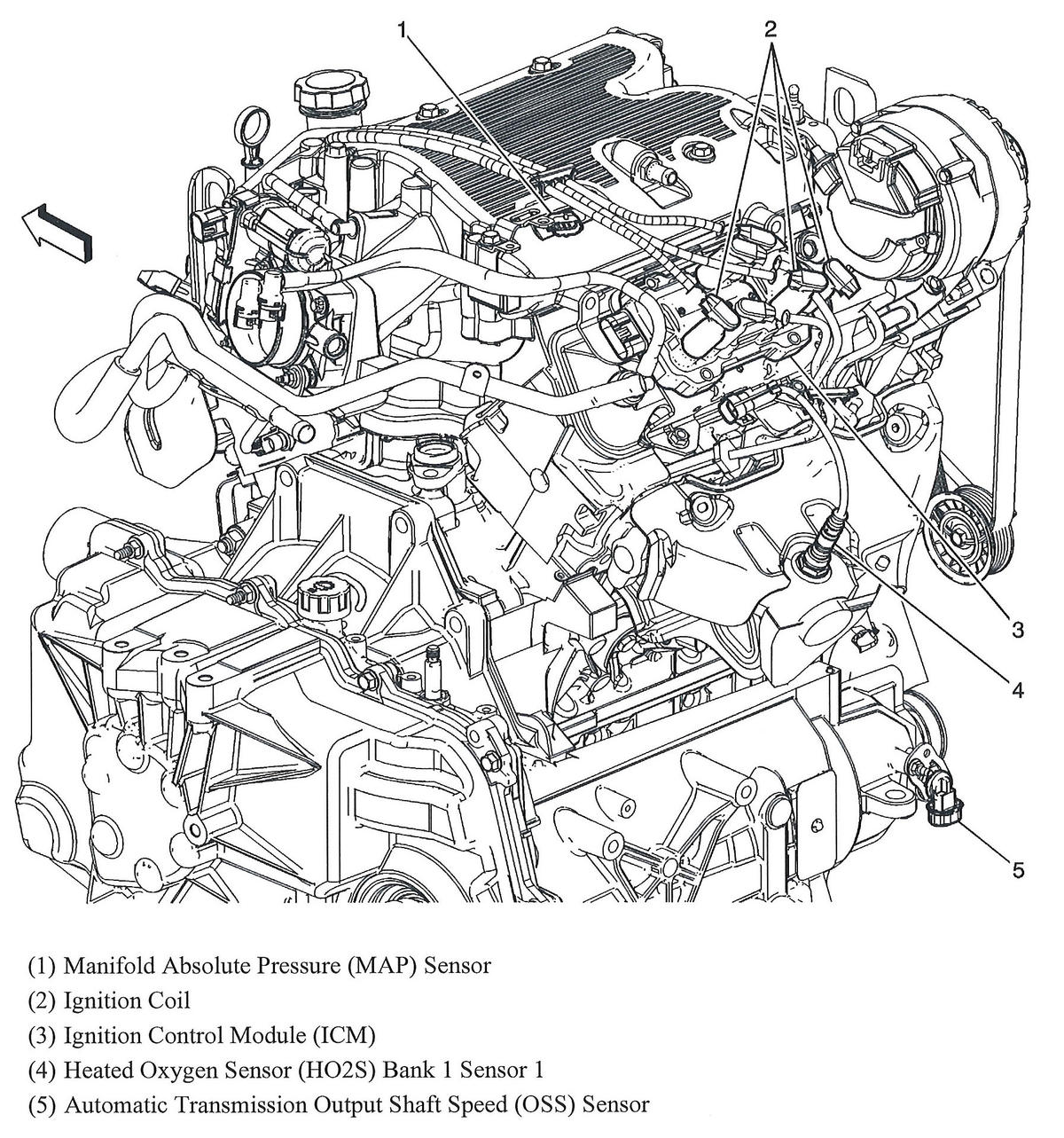

Fig 4: Right Side Of Engine (3.5L)

G00470267

Courtesy of GENERAL MOTORS CORP.

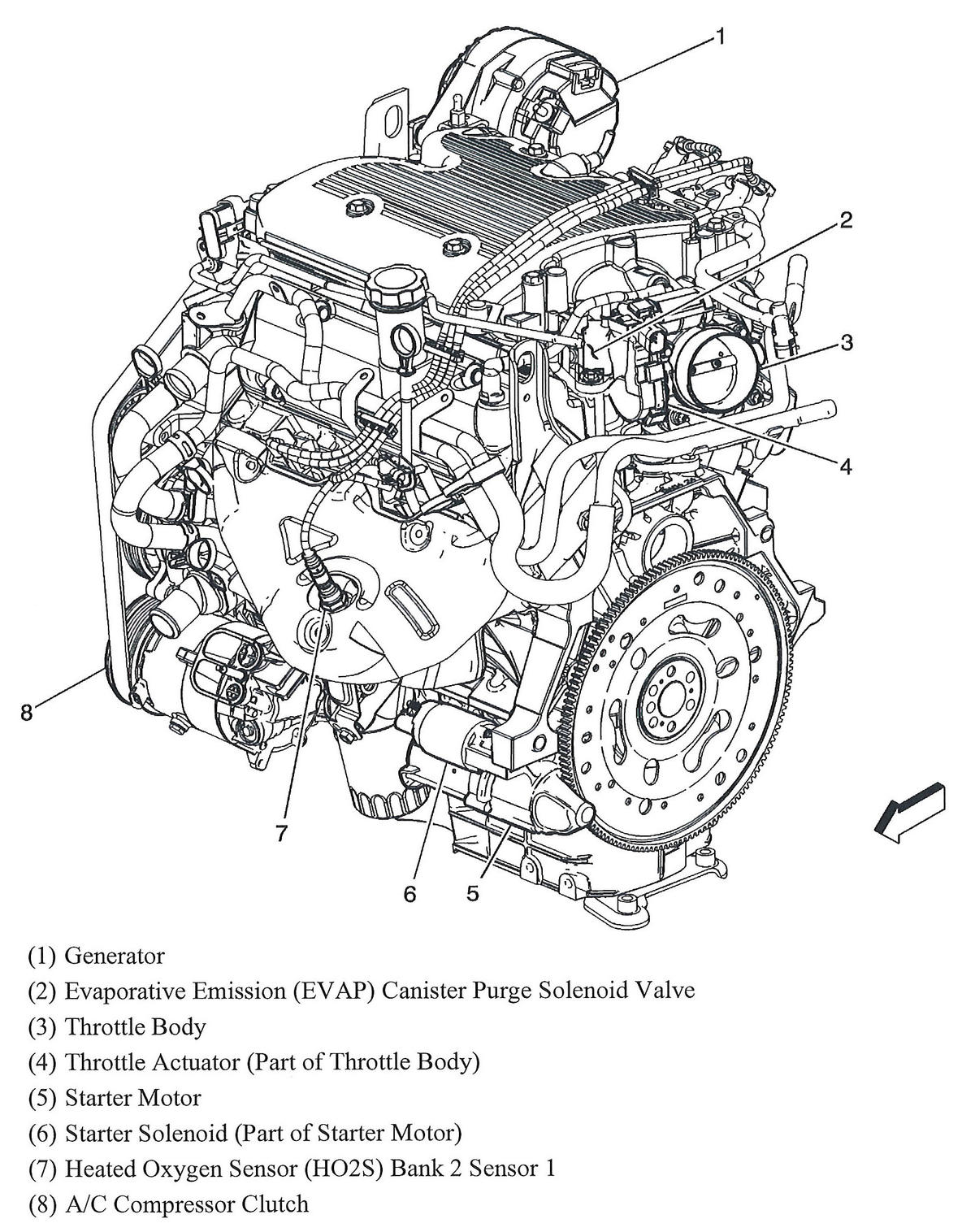

Fig 5: Rear & Left Side Of Engine (3.5L)

G00470265

Courtesy of GENERAL MOTORS CORP.

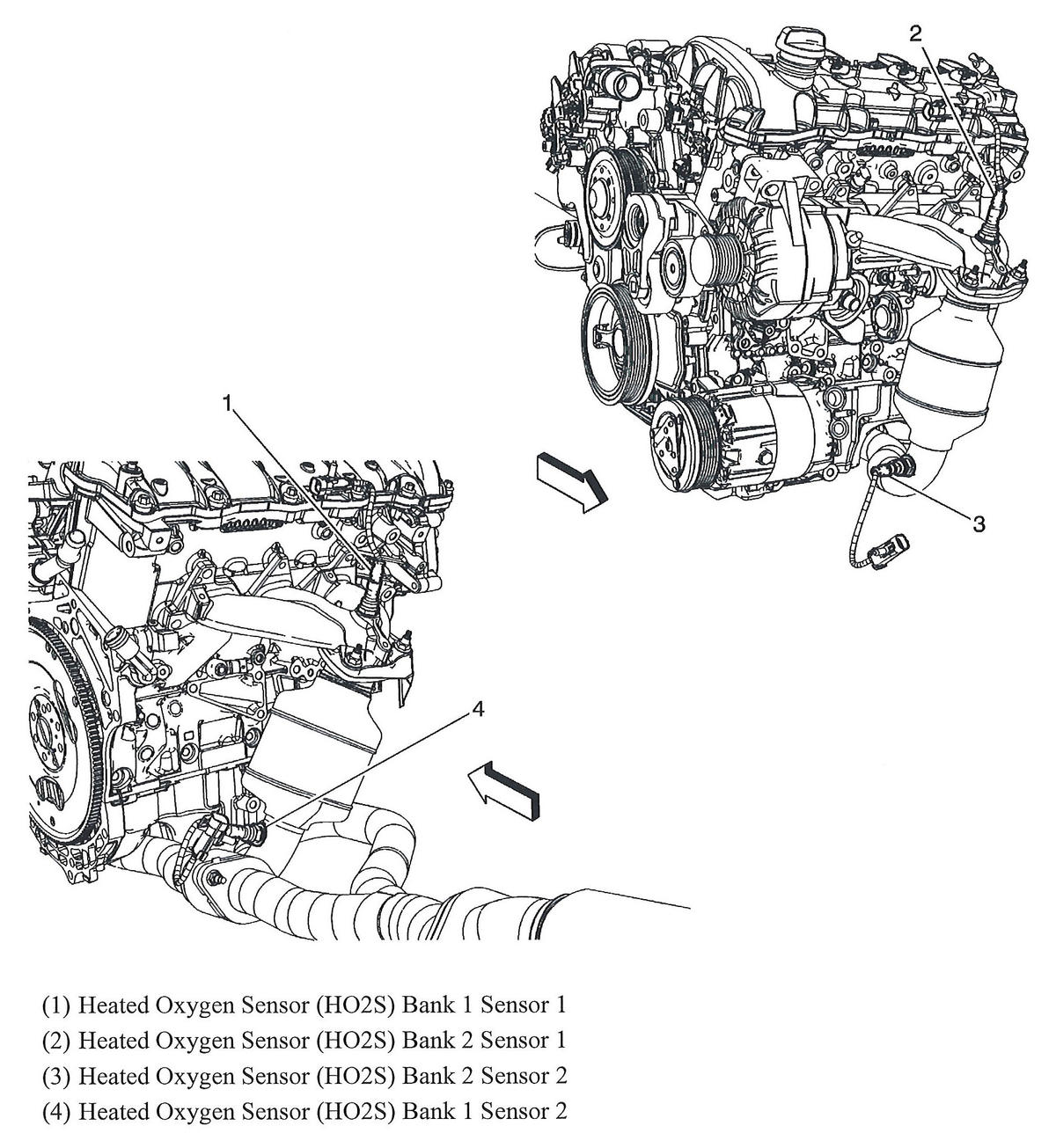

Fig 6: Engine (3.6L)

G00470266

Courtesy of GENERAL MOTORS CORP.

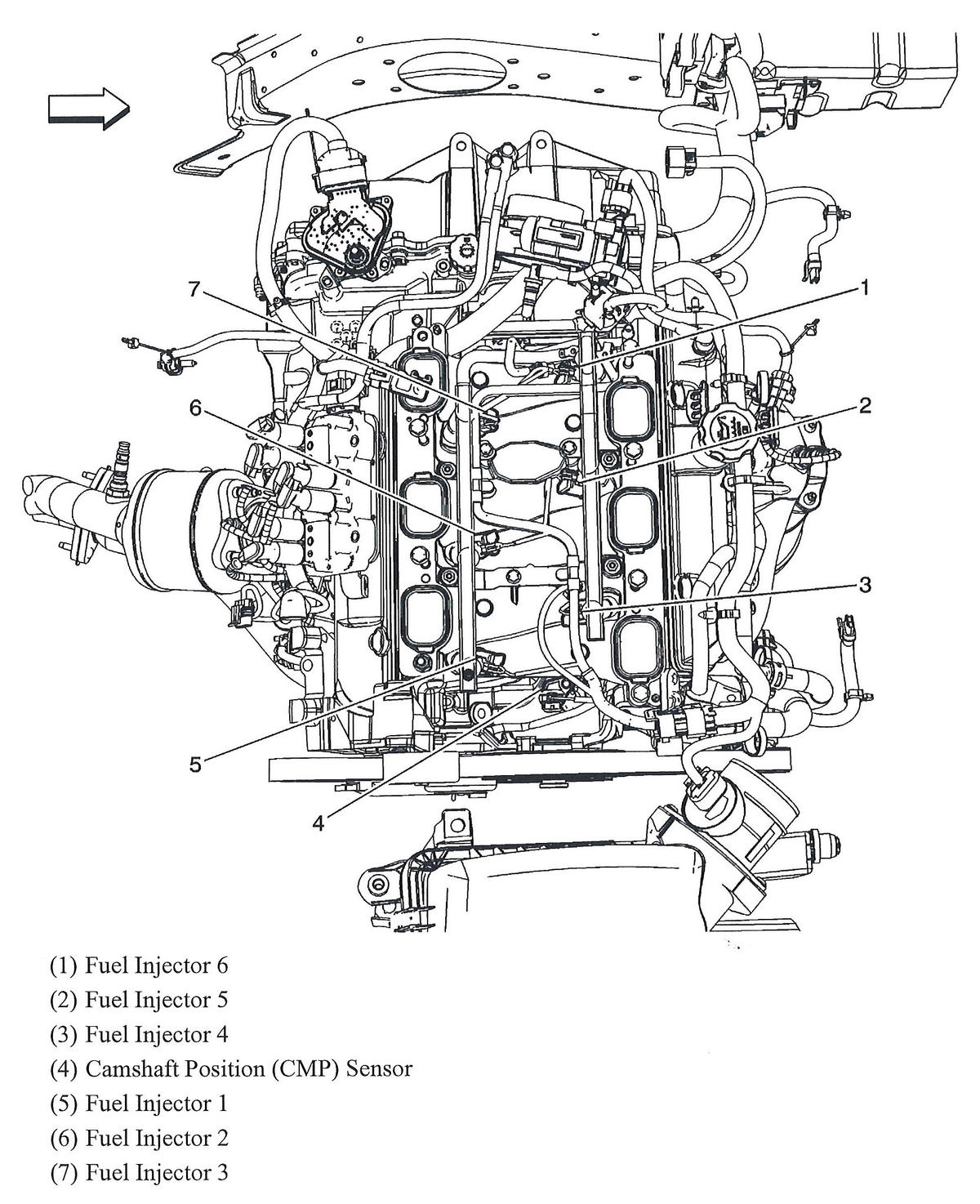

Fig 7: Top Of Engine (3.5L)

G00470268

Courtesy of GENERAL MOTORS CORP.

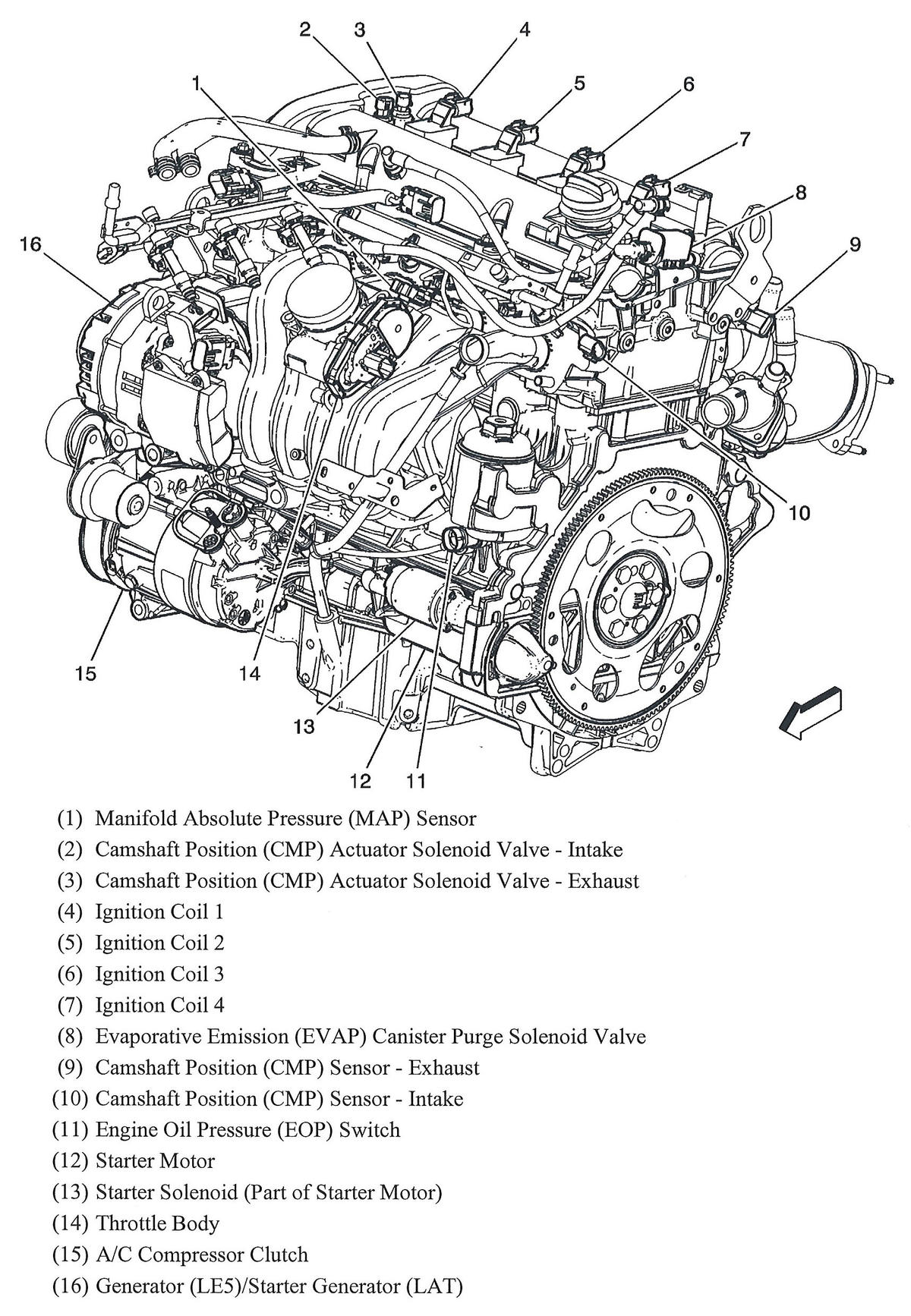

Fig 8: Rear & Left Side Of Engine (2.4L)

G00470257

Courtesy of GENERAL MOTORS CORP.

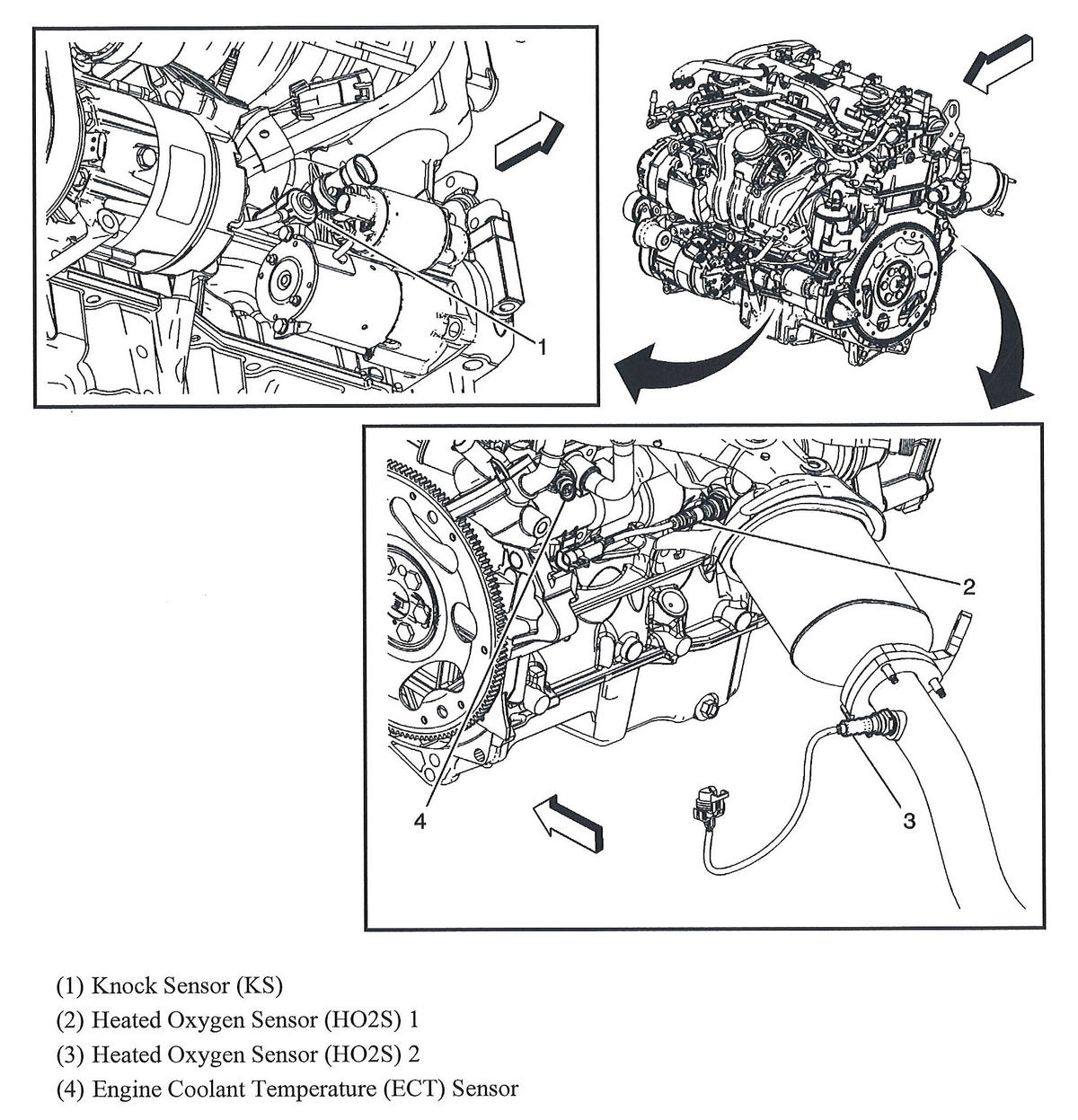

Fig 9: Left Side & Rear Of Engine (2.4L)

G00470258

Courtesy of GENERAL MOTORS CORP.

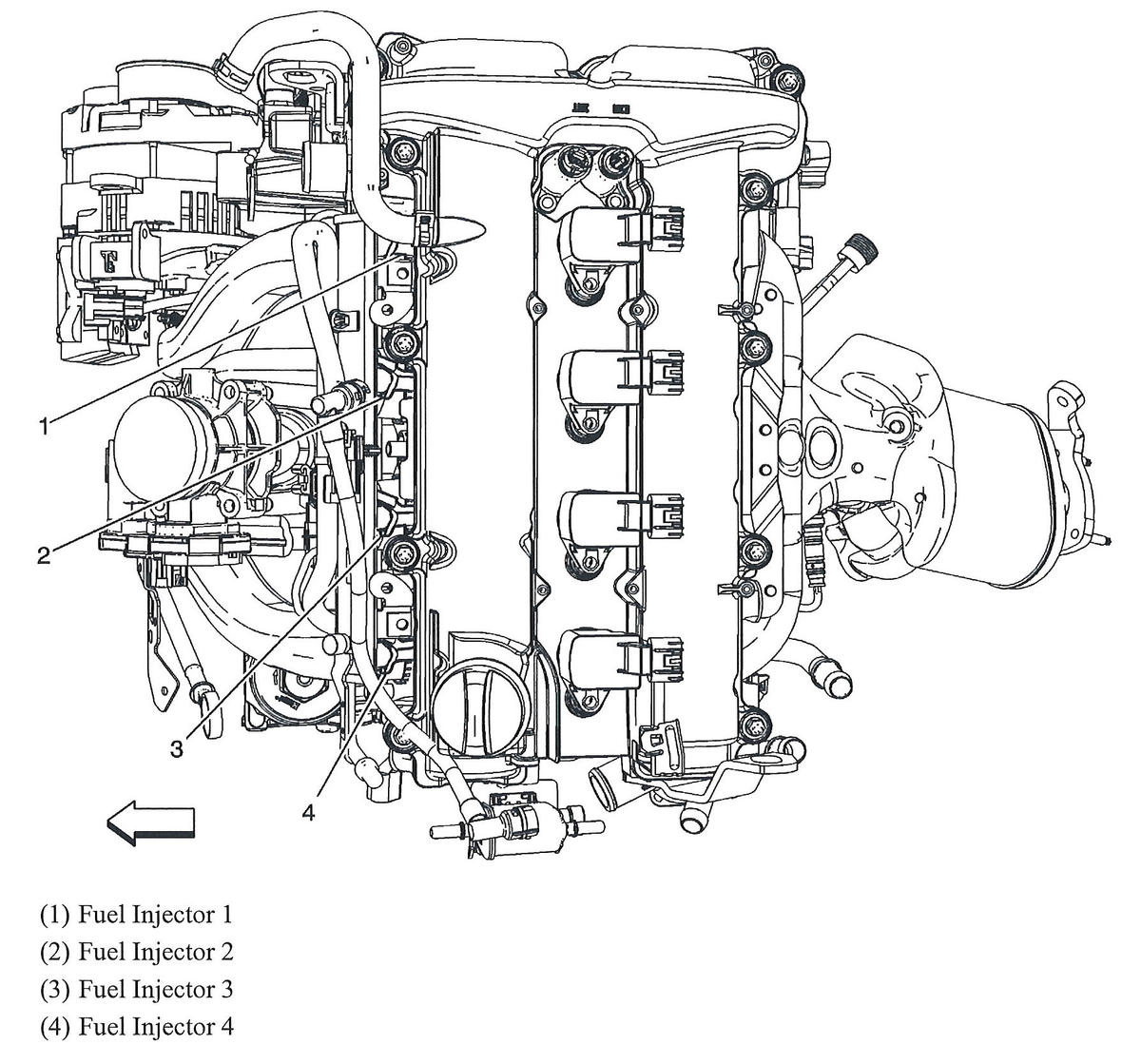

Fig 10: Top Of Engine (2.4L)

G00470259

Courtesy of GENERAL MOTORS CORP.

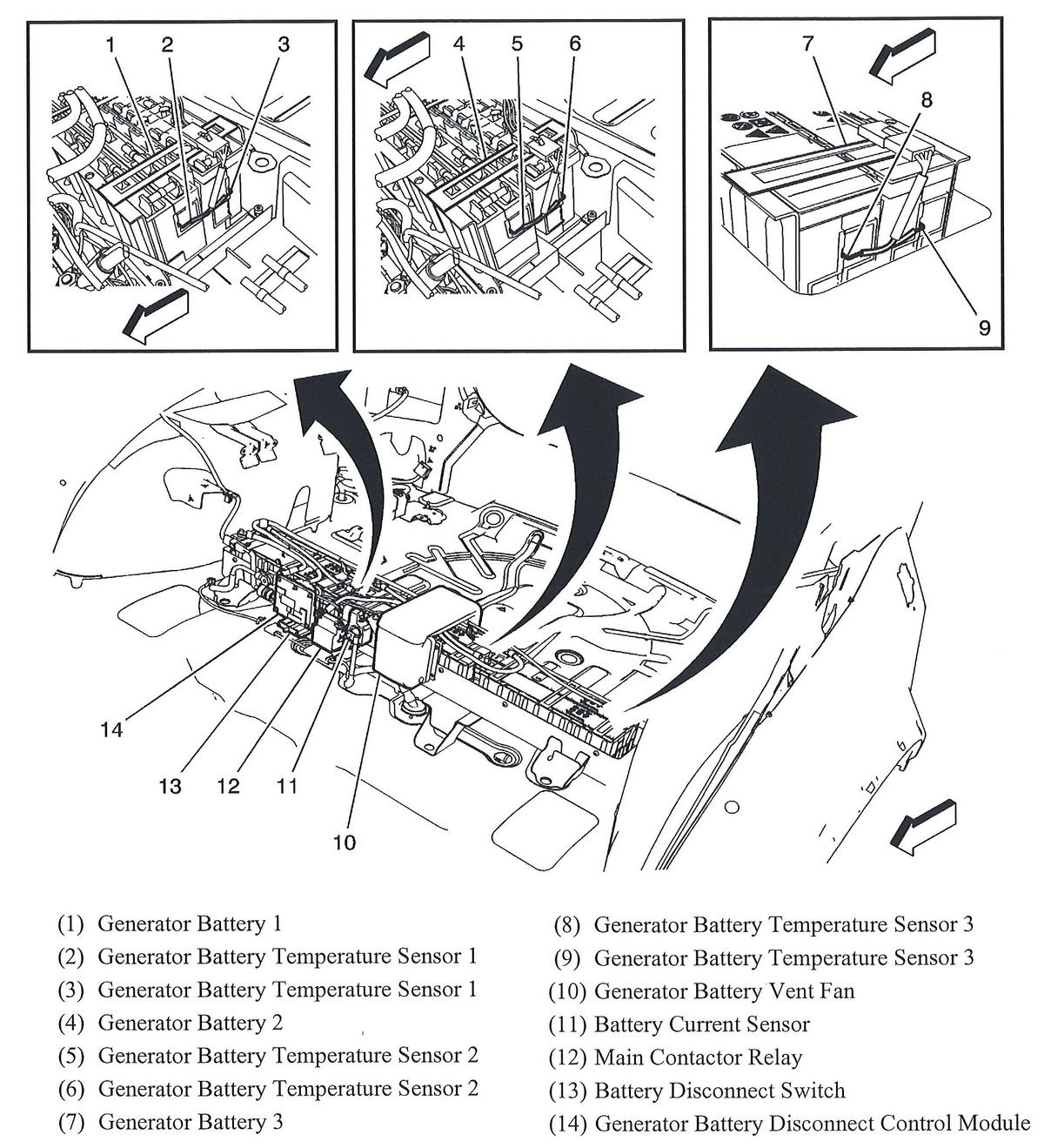

Fig 11: Rear Of Vehicle (Hybrid)

G00470295

Courtesy of GENERAL MOTORS CORP.

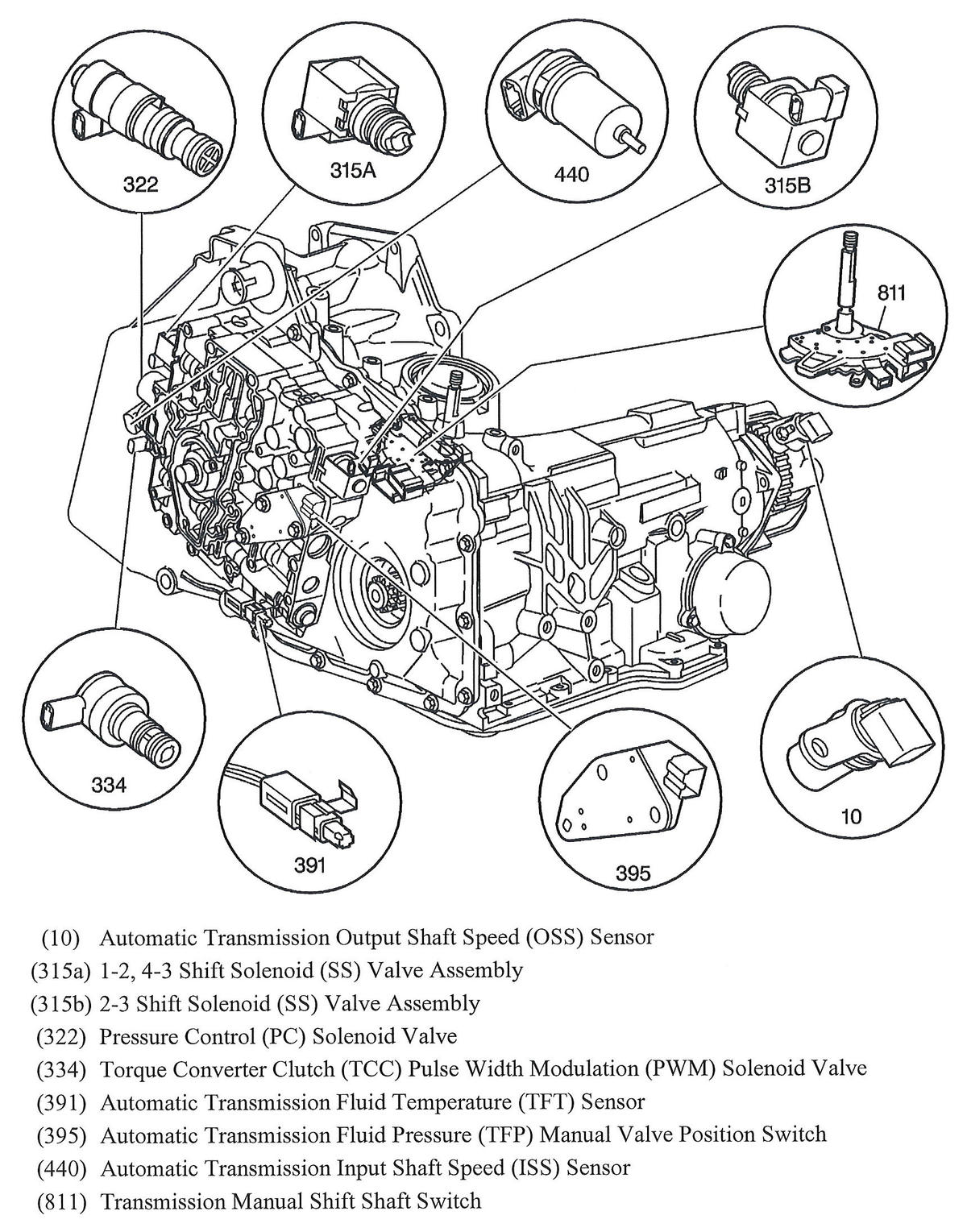

Fig 12: Automatic Transmission (4 Speed)

G00470269

Courtesy of GENERAL MOTORS CORP.

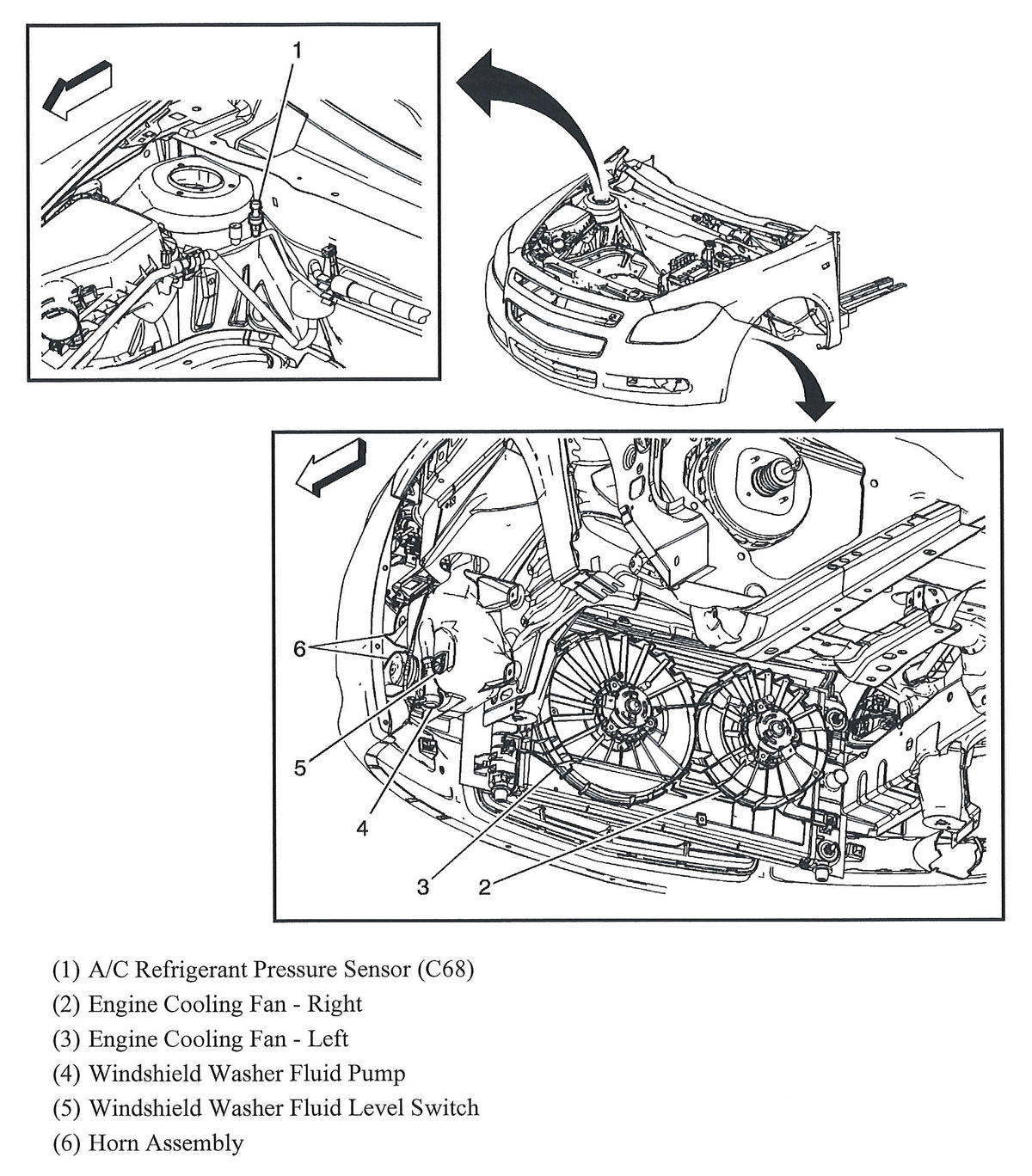

Fig 13: Engine Compartment

G00470272

Courtesy of GENERAL MOTORS CORP.

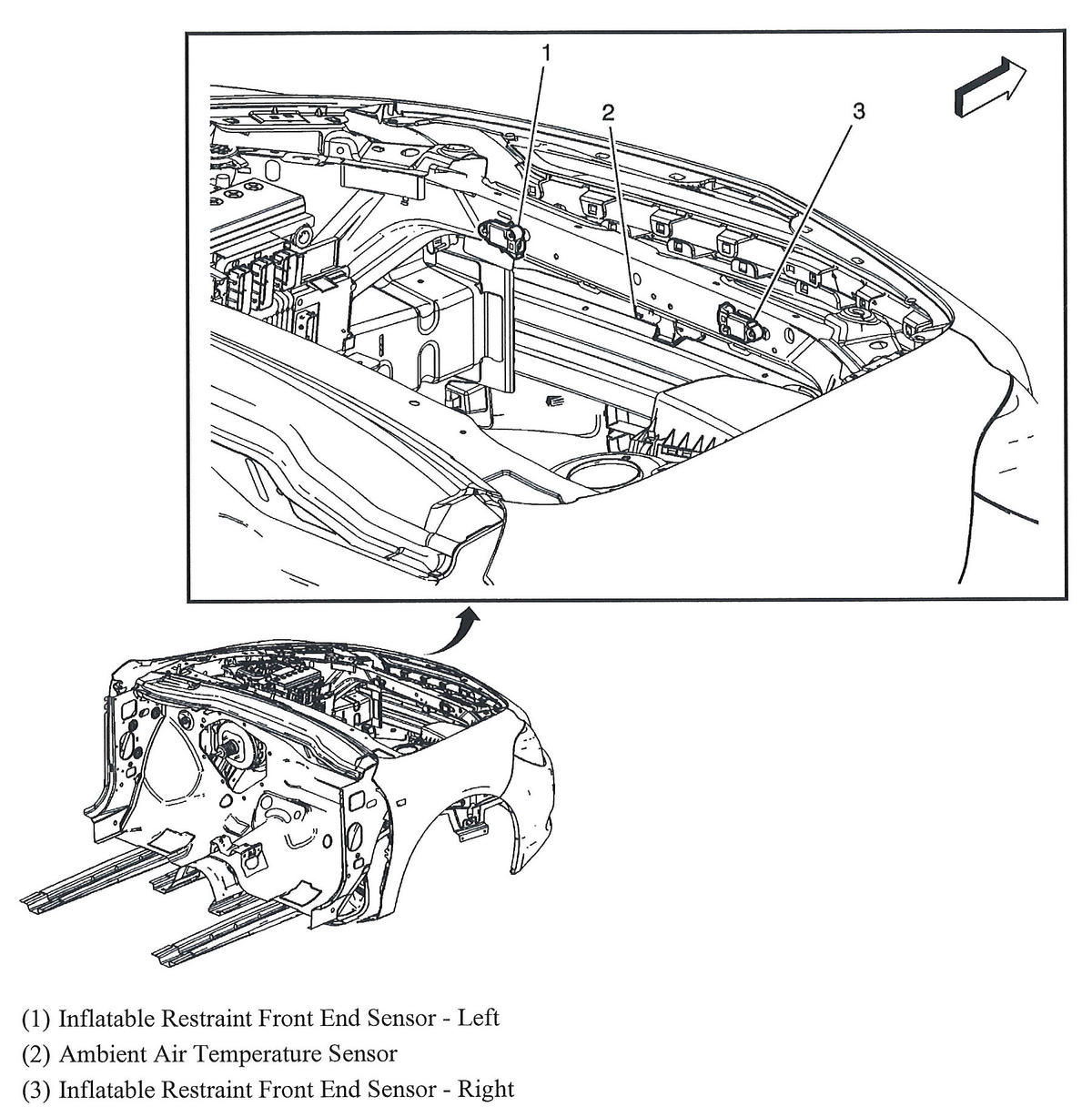

Fig 14: Engine Compartment

G00470274

Courtesy of GENERAL MOTORS CORP.

Fig 15: Engine Compartment (2.4L HO, 3.5L, 3.6L)

G00470275

Courtesy of GENERAL MOTORS CORP.

Fig 16: Engine Compartment (2.4L Hybrid)

G00470276

Courtesy of GENERAL MOTORS CORP.

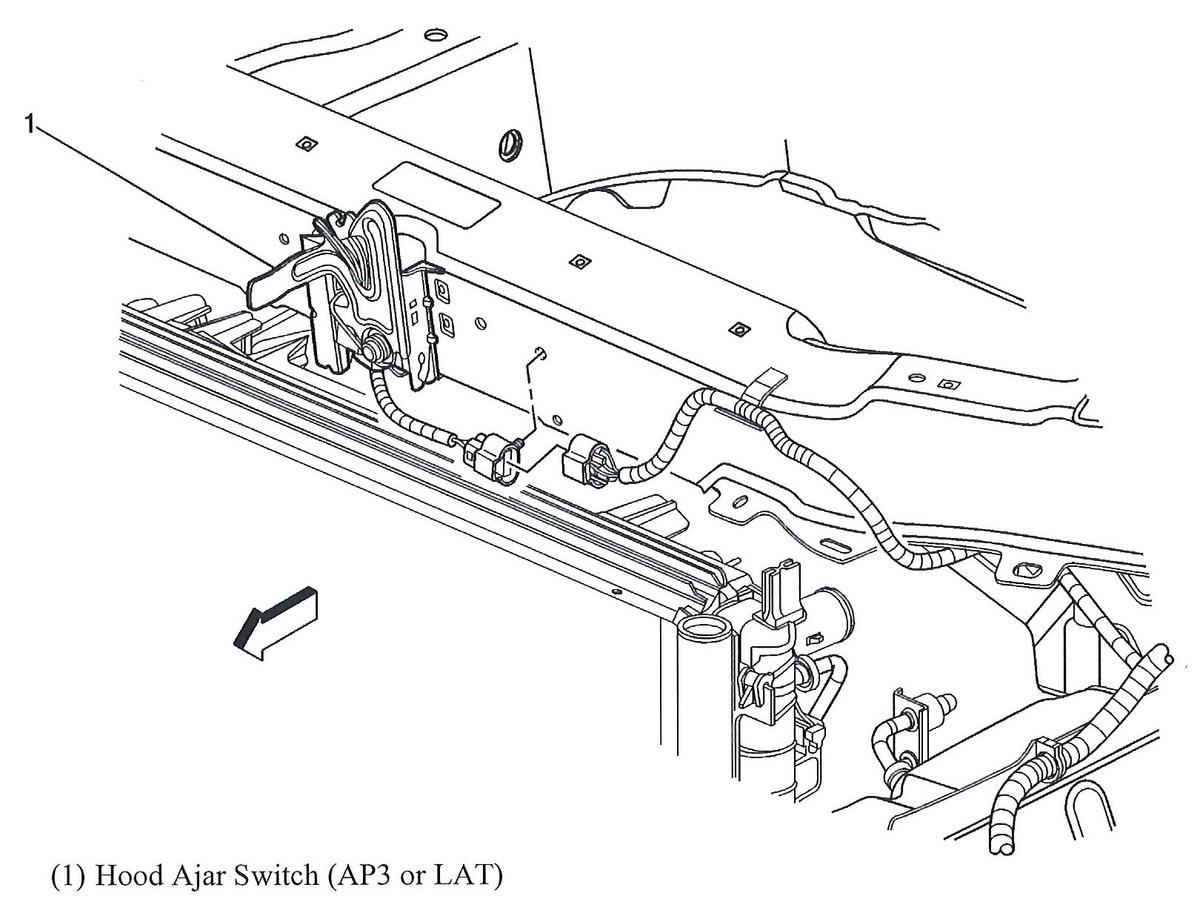

Fig 17: Front Of Engine Compartment

G00470277

Courtesy of GENERAL MOTORS CORP.

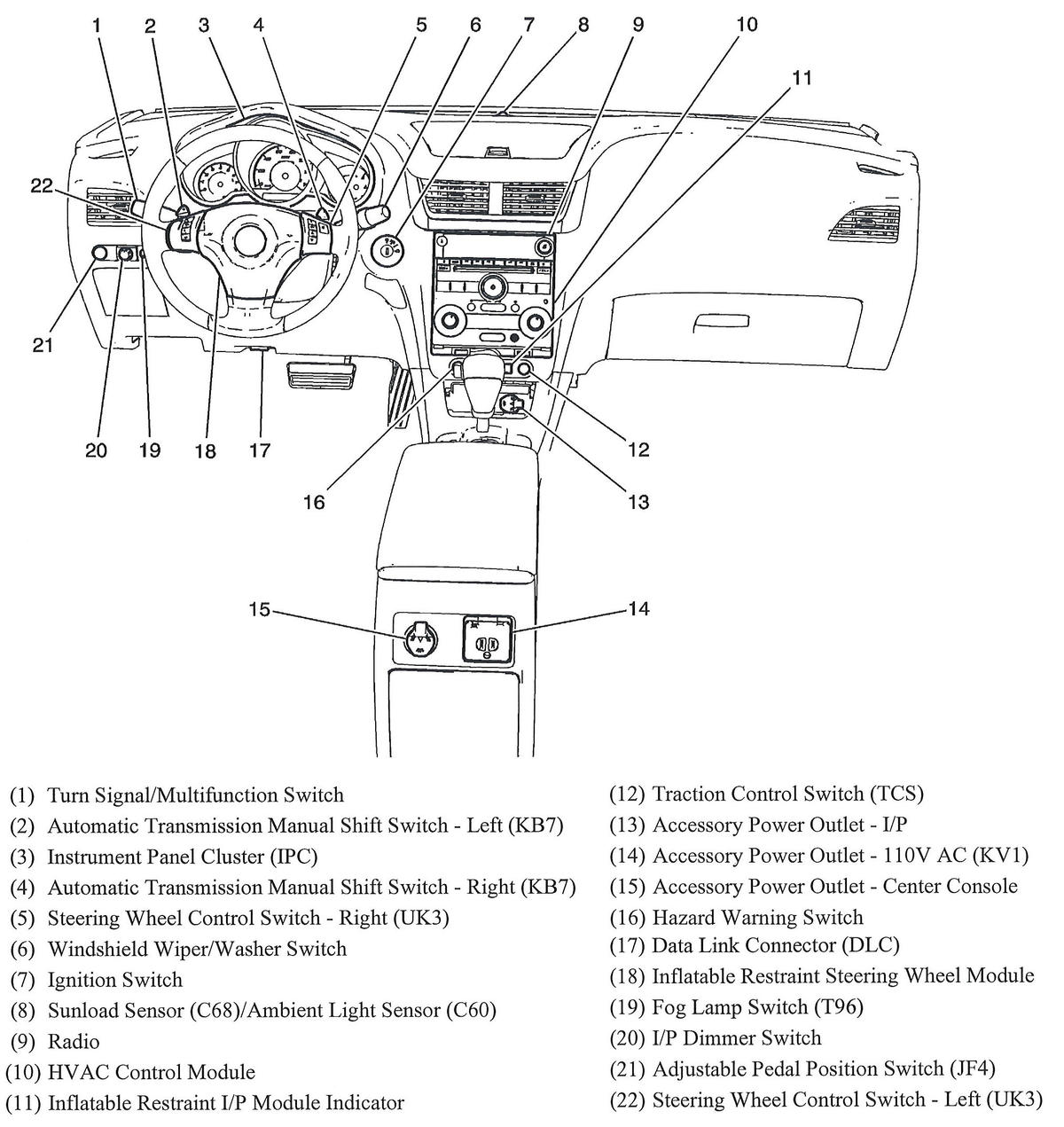

Fig 18: Dash & Center Console

G00470279

Courtesy of GENERAL MOTORS CORP.

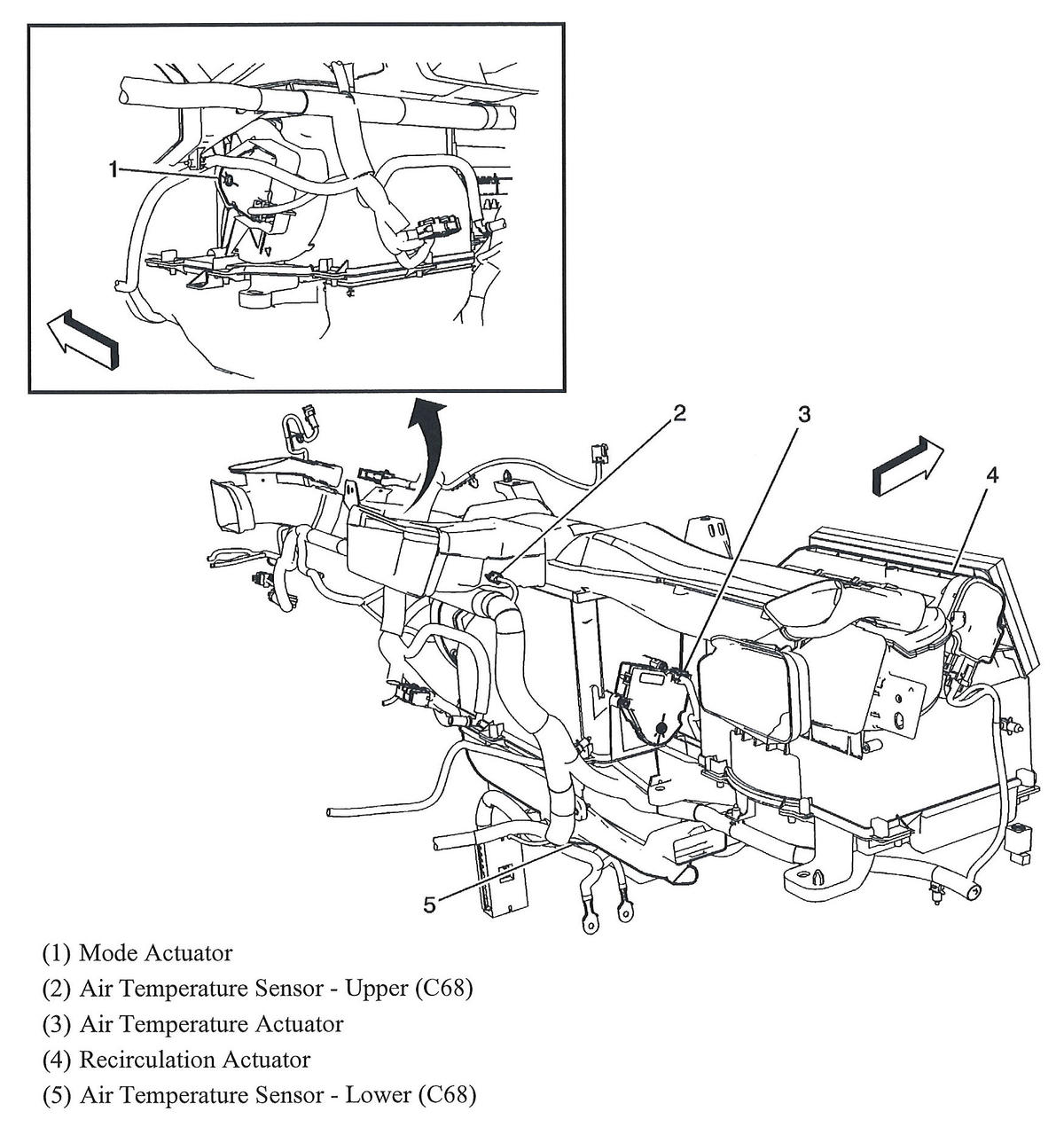

Fig 19: HVAC Module

G00470281

Courtesy of GENERAL MOTORS CORP.

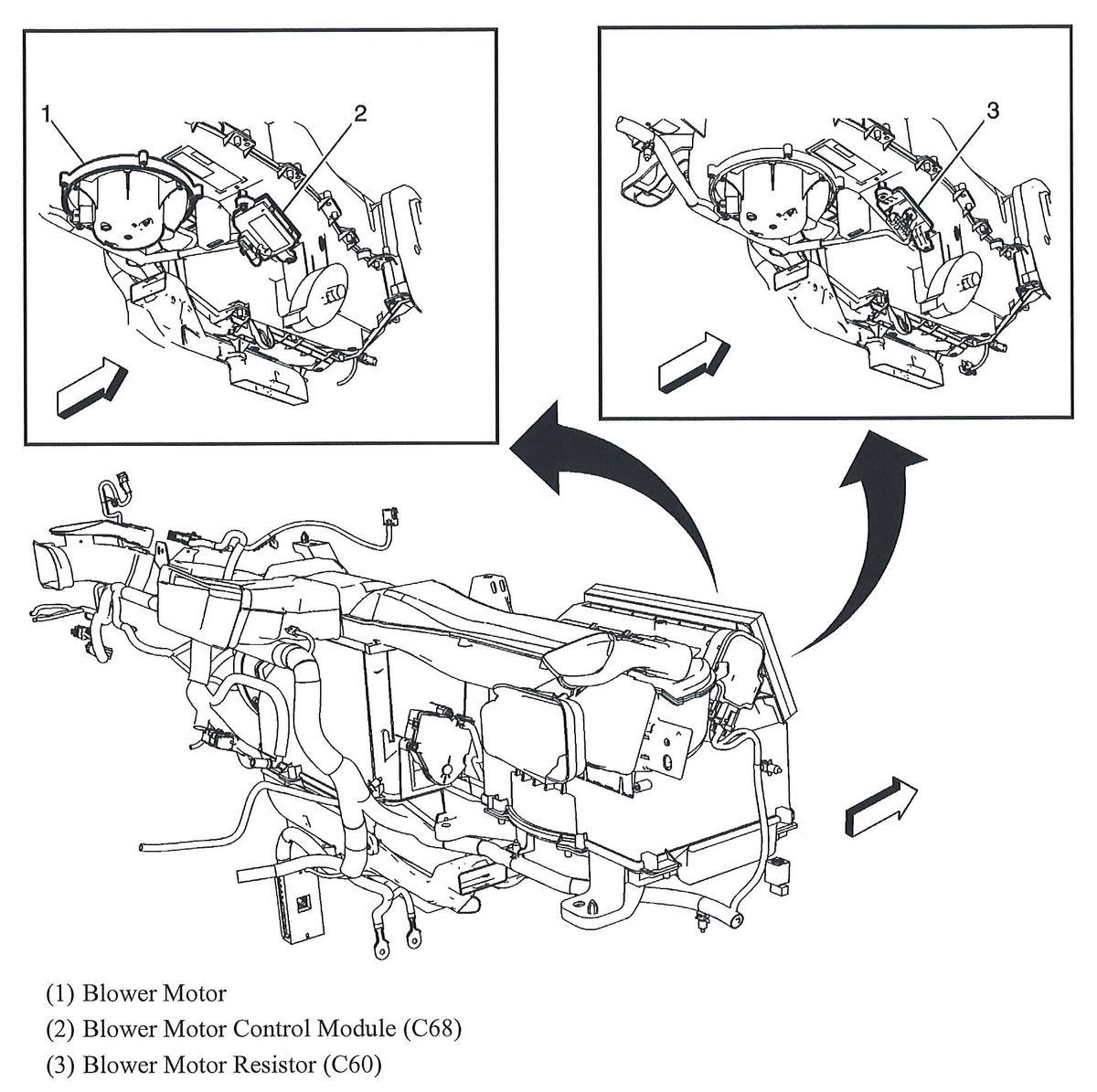

Fig 20: HVAC Module

G00470282

Courtesy of GENERAL MOTORS CORP.

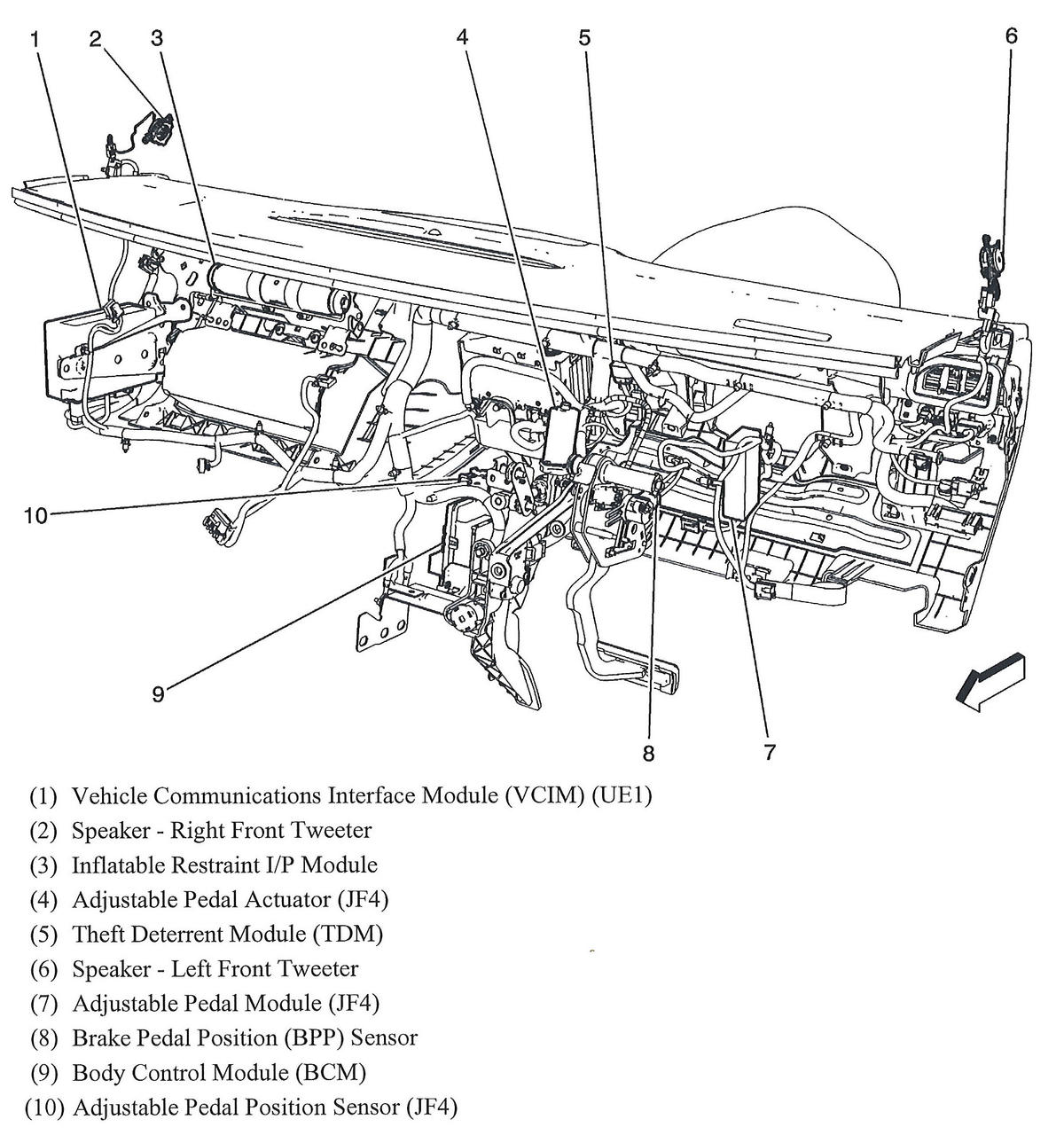

Fig 21: Dash

G00470283

Courtesy of GENERAL MOTORS CORP.

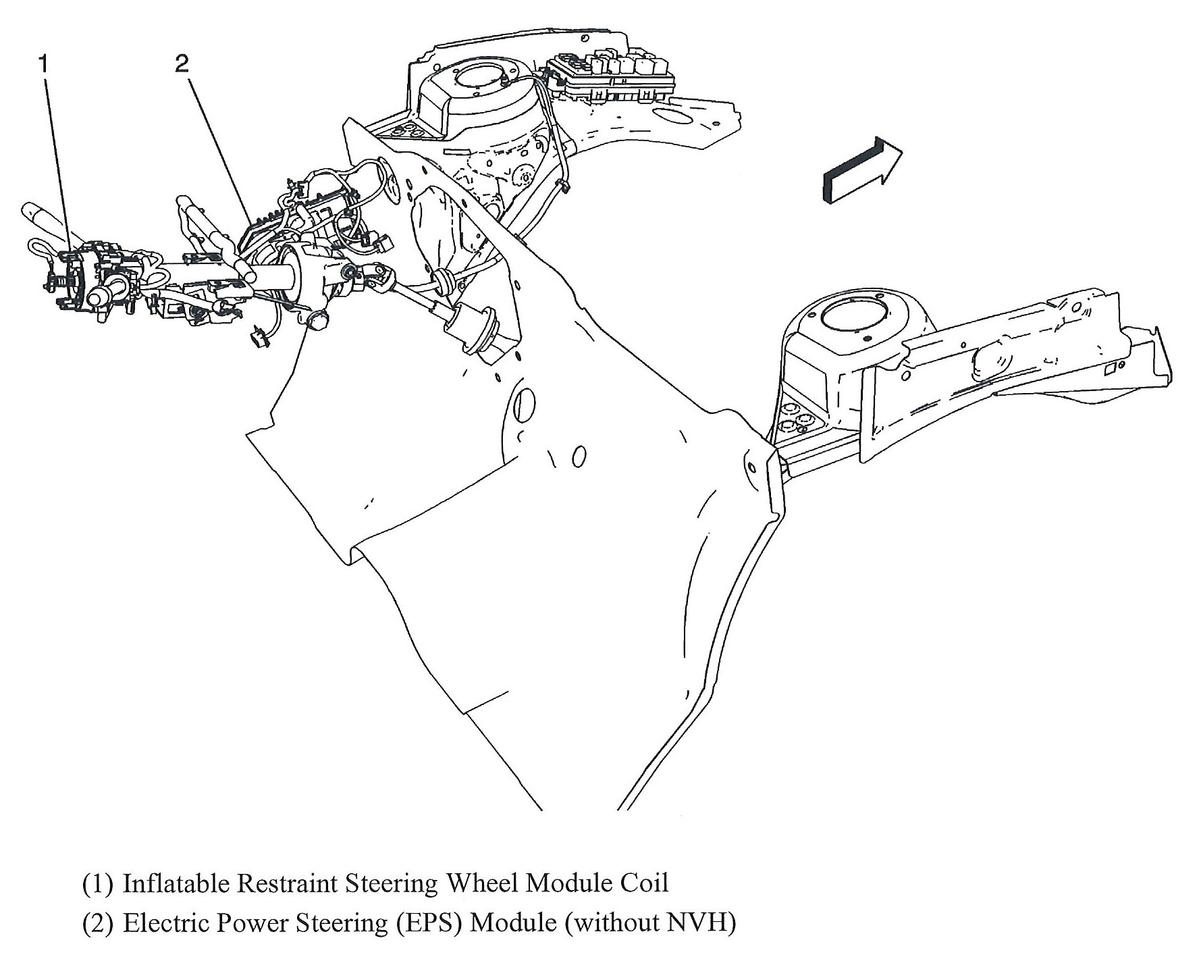

Fig 22: Steering Column

G00470284

Courtesy of GENERAL MOTORS CORP.

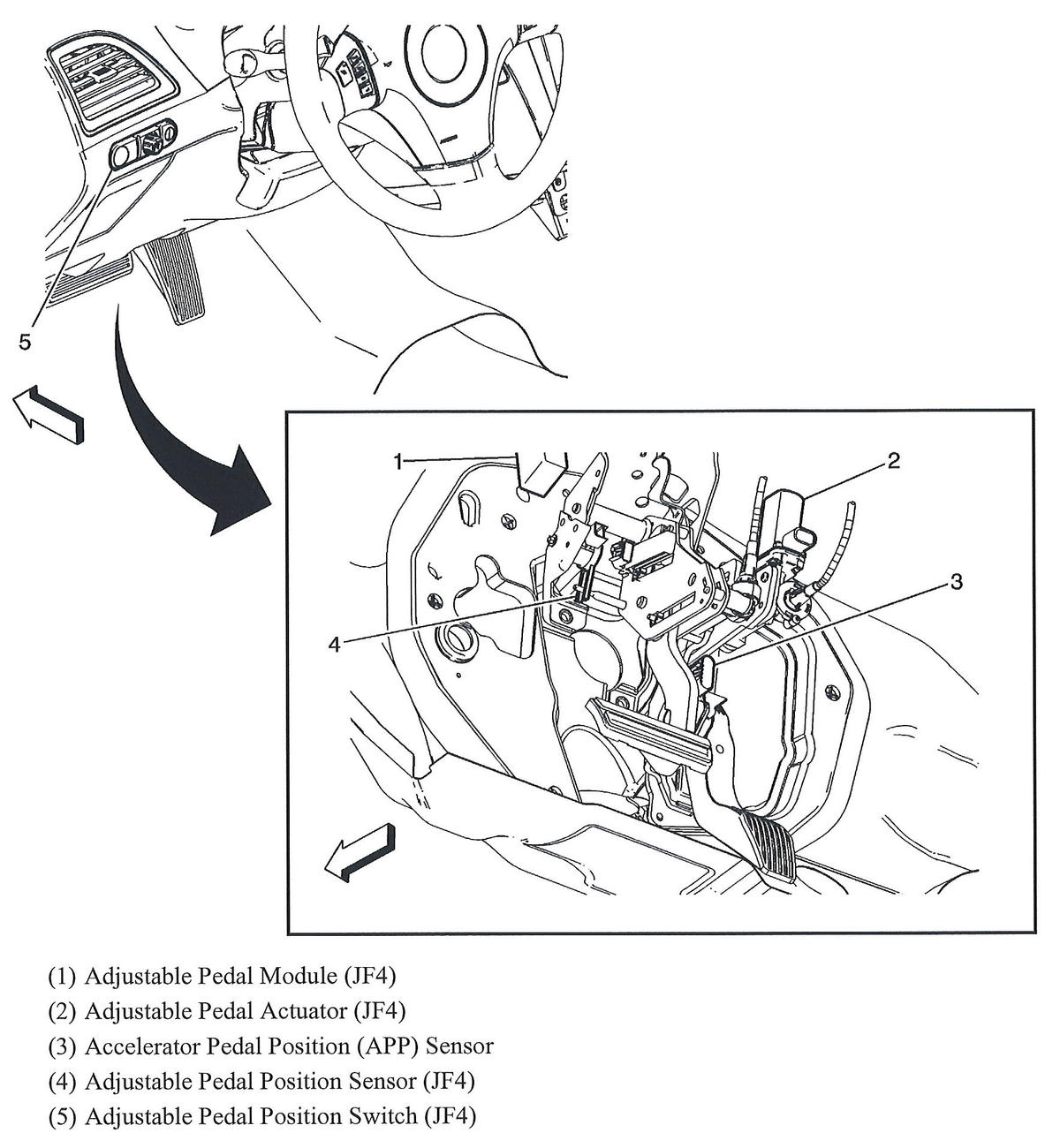

Fig 23: Left Side Of Dash

G00470285

Courtesy of GENERAL MOTORS CORP.

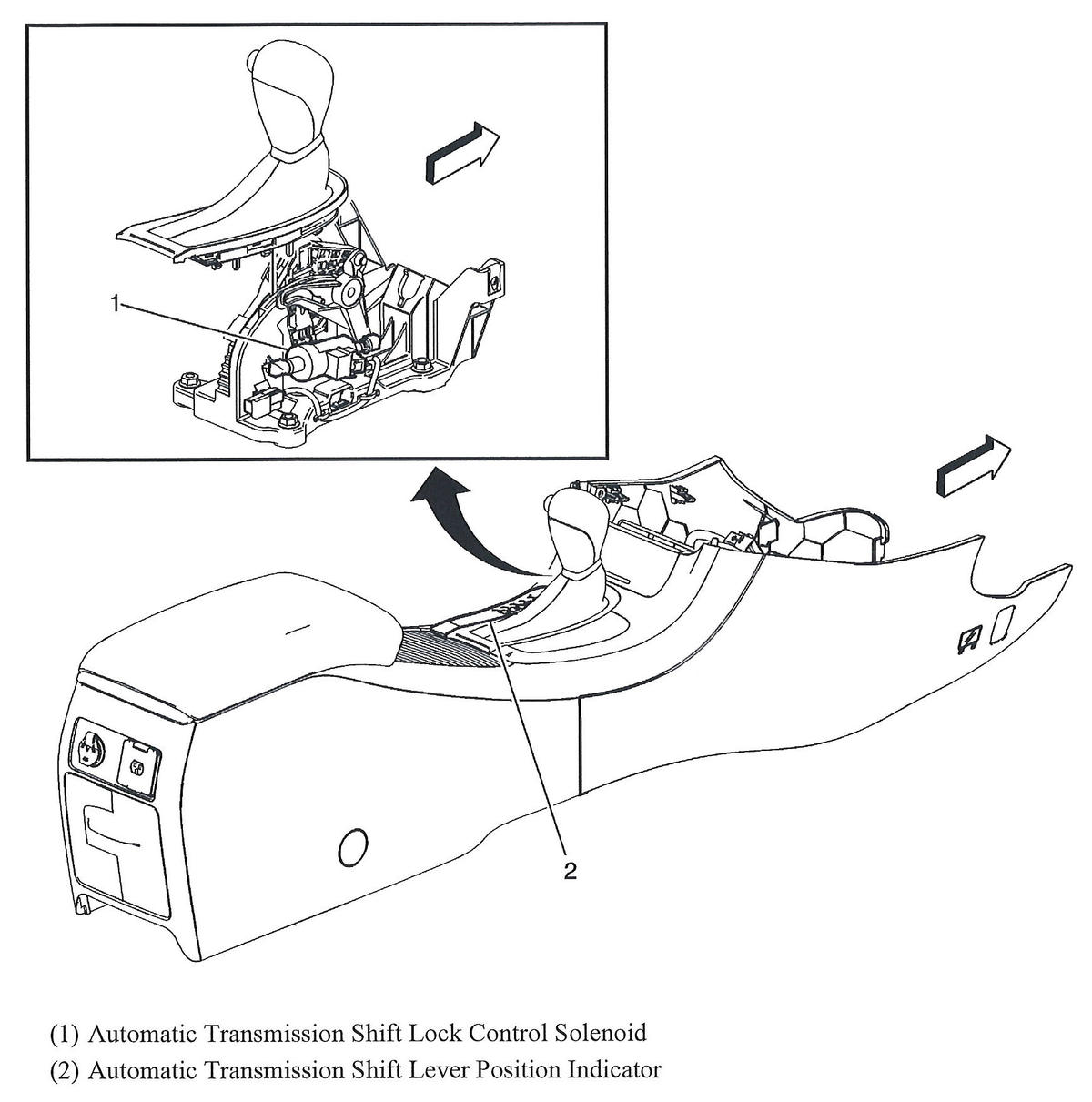

Fig 24: Console Shifter

G00470286

Courtesy of GENERAL MOTORS CORP.

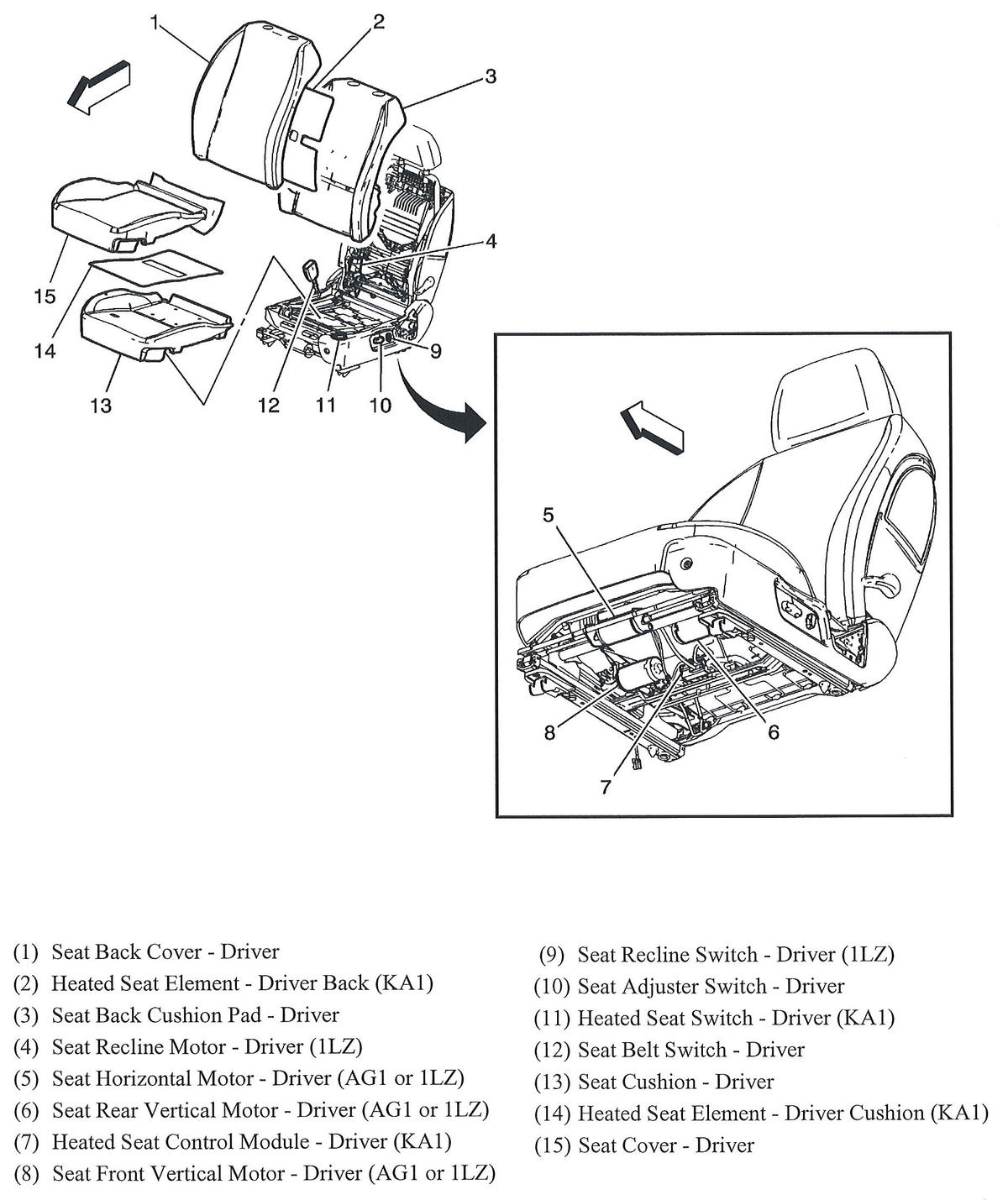

Fig 25: Driver's Heated Seat

G00470291

Courtesy of GENERAL MOTORS CORP.

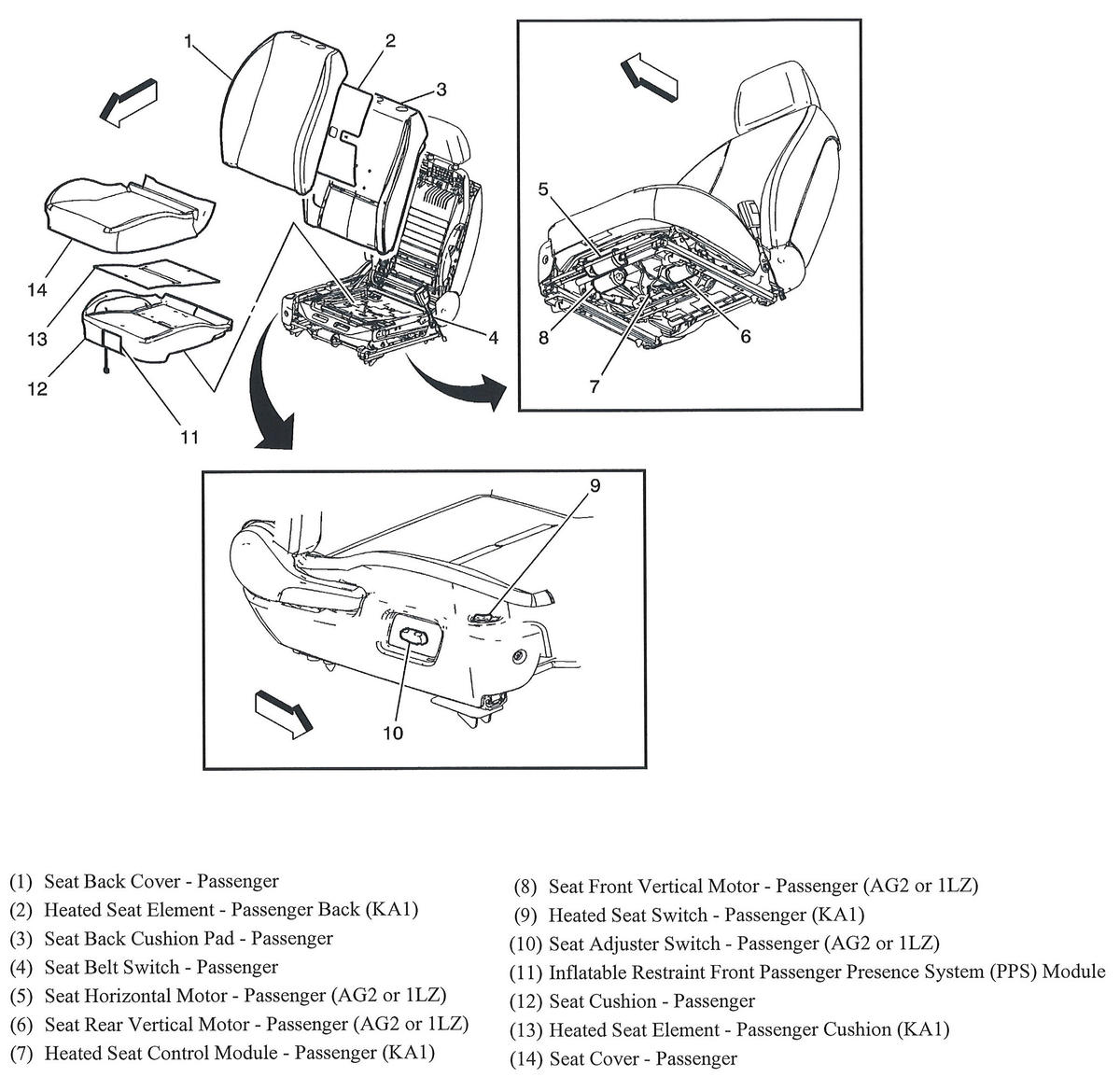

Fig 26: Front Passenger's Heated Seat

G00470292

Courtesy of GENERAL MOTORS CORP.

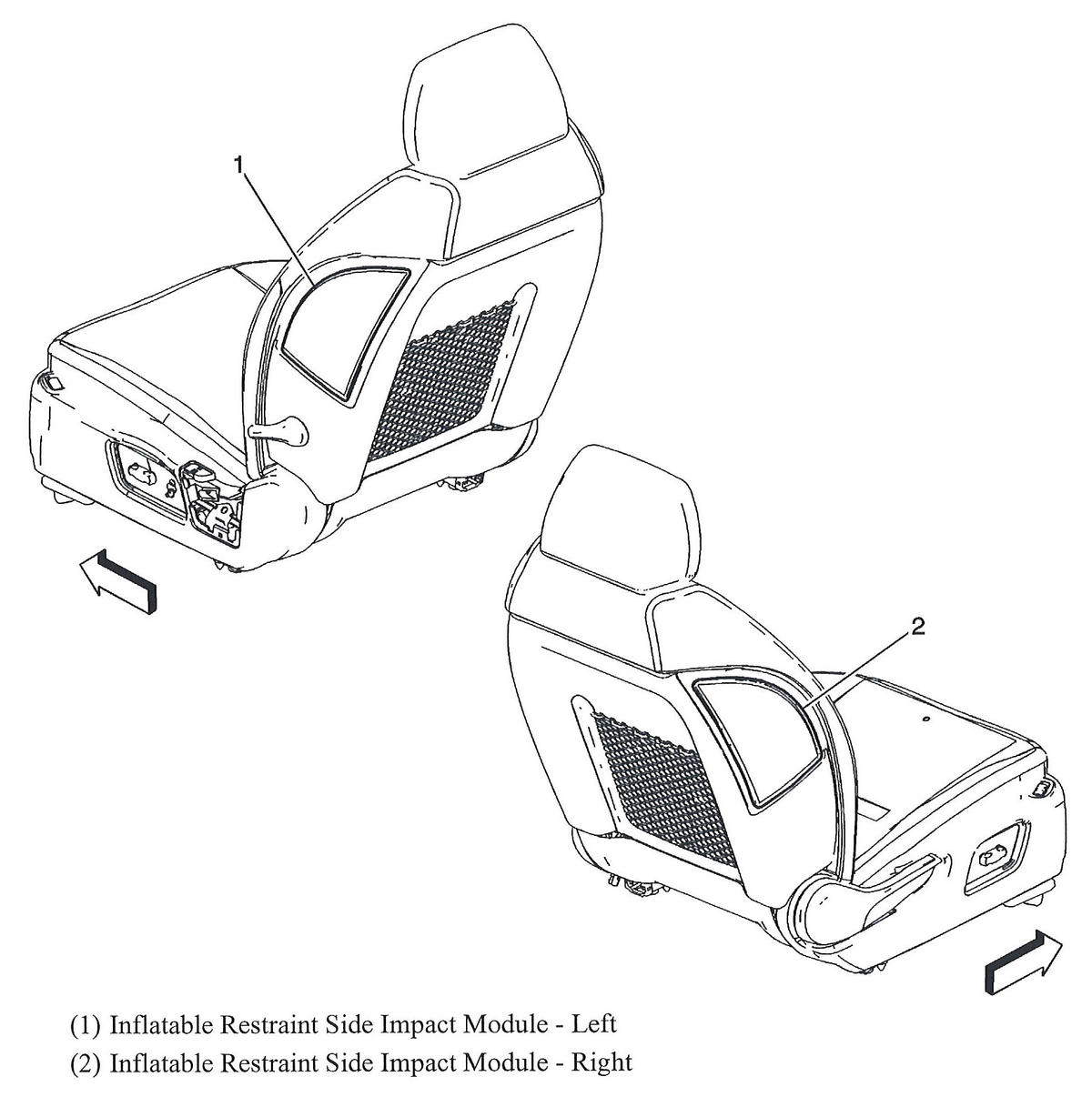

Fig 27: Front Seats

G00470293

Courtesy of GENERAL MOTORS CORP.

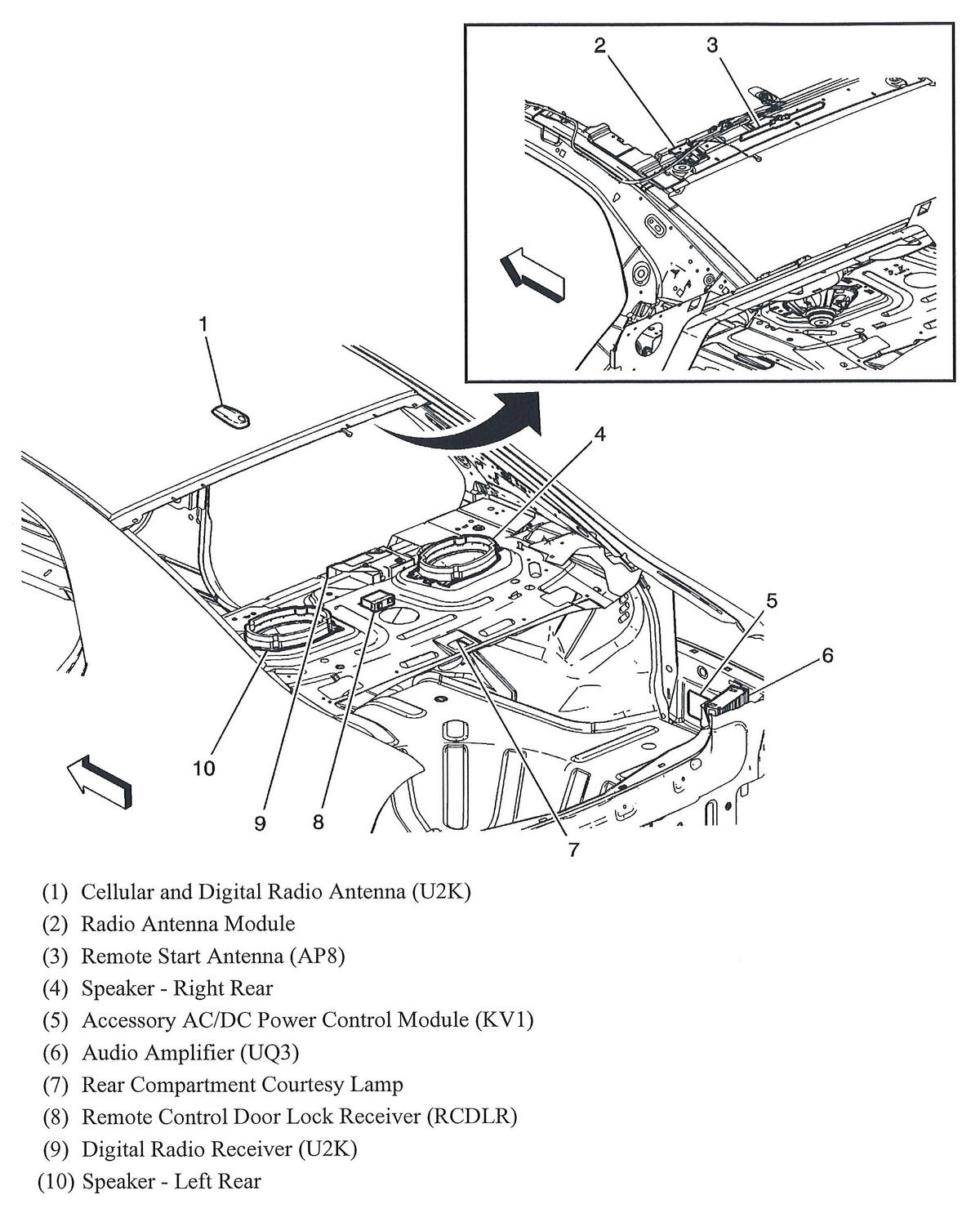

Fig 28: Rear Of Vehicle

G00470290

Courtesy of GENERAL MOTORS CORP.

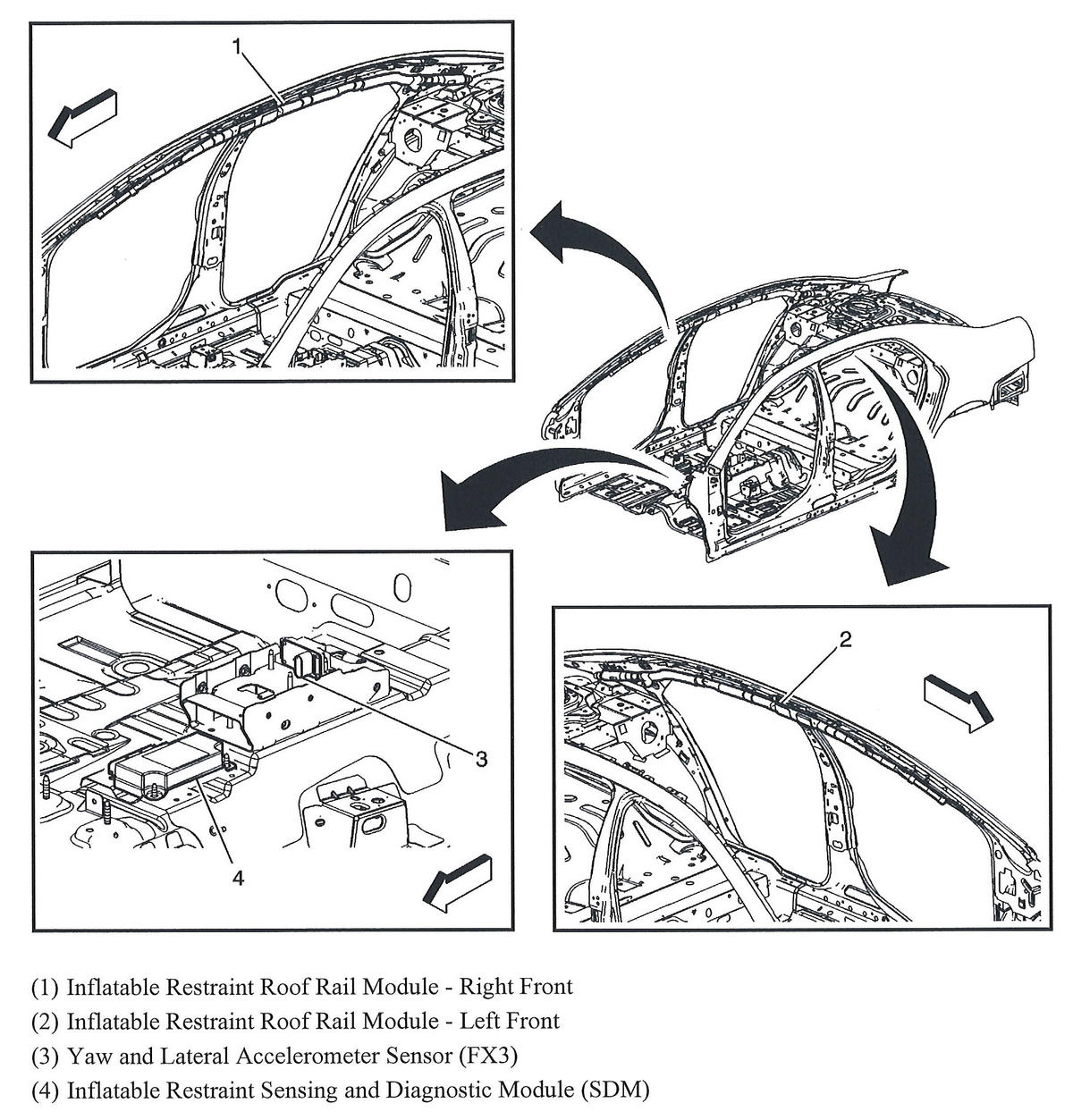

Fig 29: Vehicle Overview (Inflatable Restraints)

G00470296

Courtesy of GENERAL MOTORS CORP.

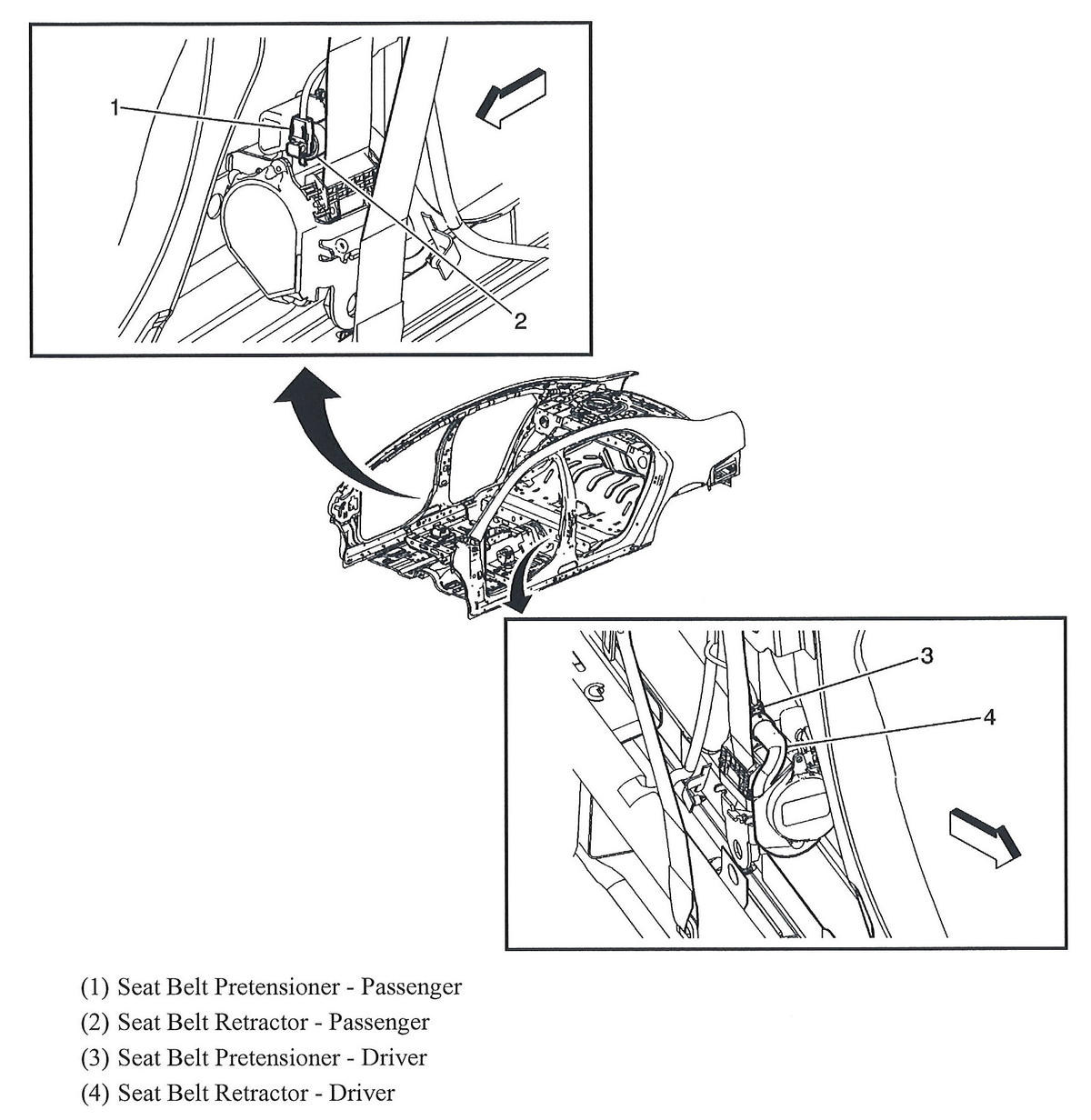

Fig 30: Left & Right "B" Pillars

G00470297

Courtesy of GENERAL MOTORS CORP.

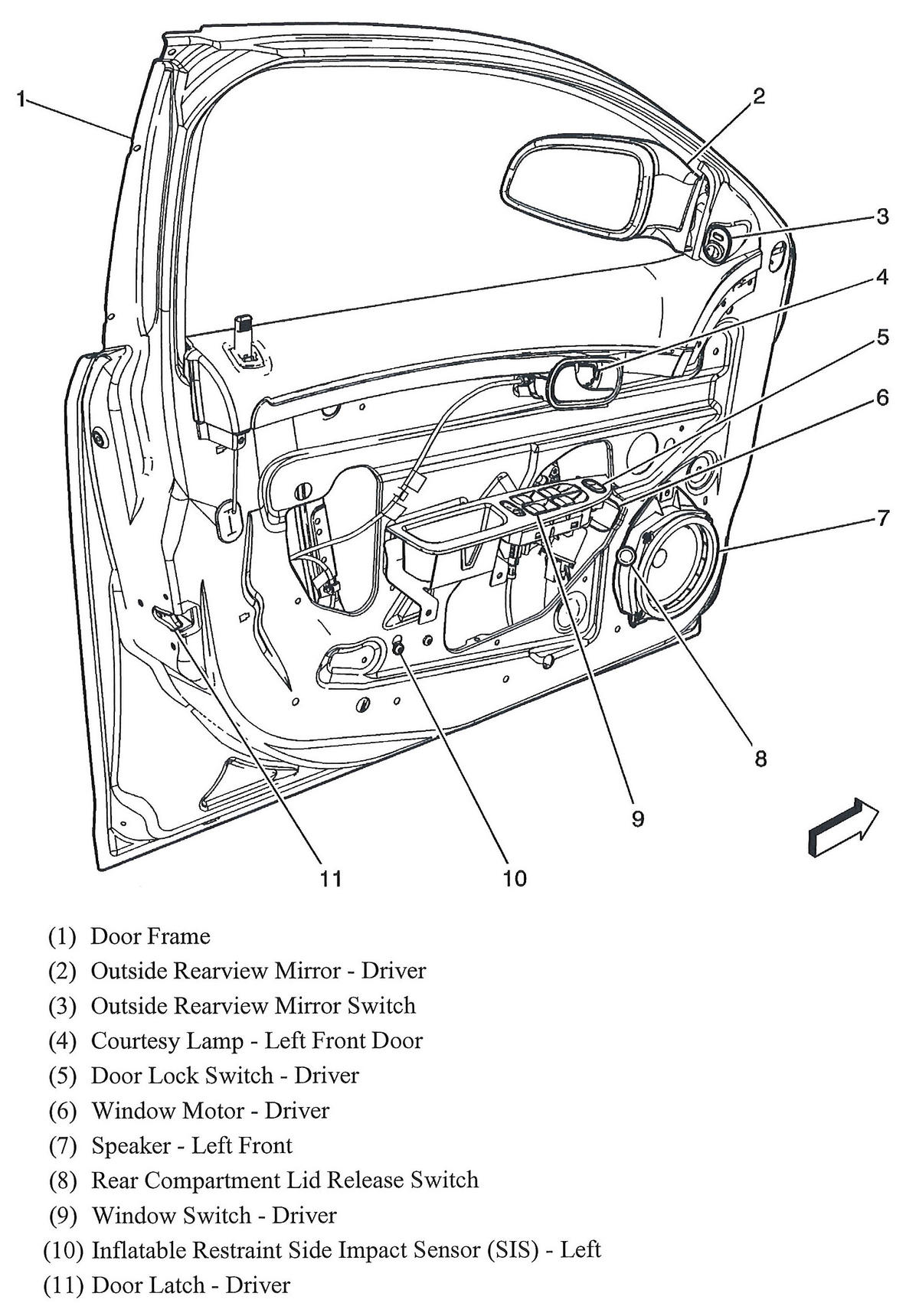

Fig 31: Driver's Door

G00470298

Courtesy of GENERAL MOTORS CORP.

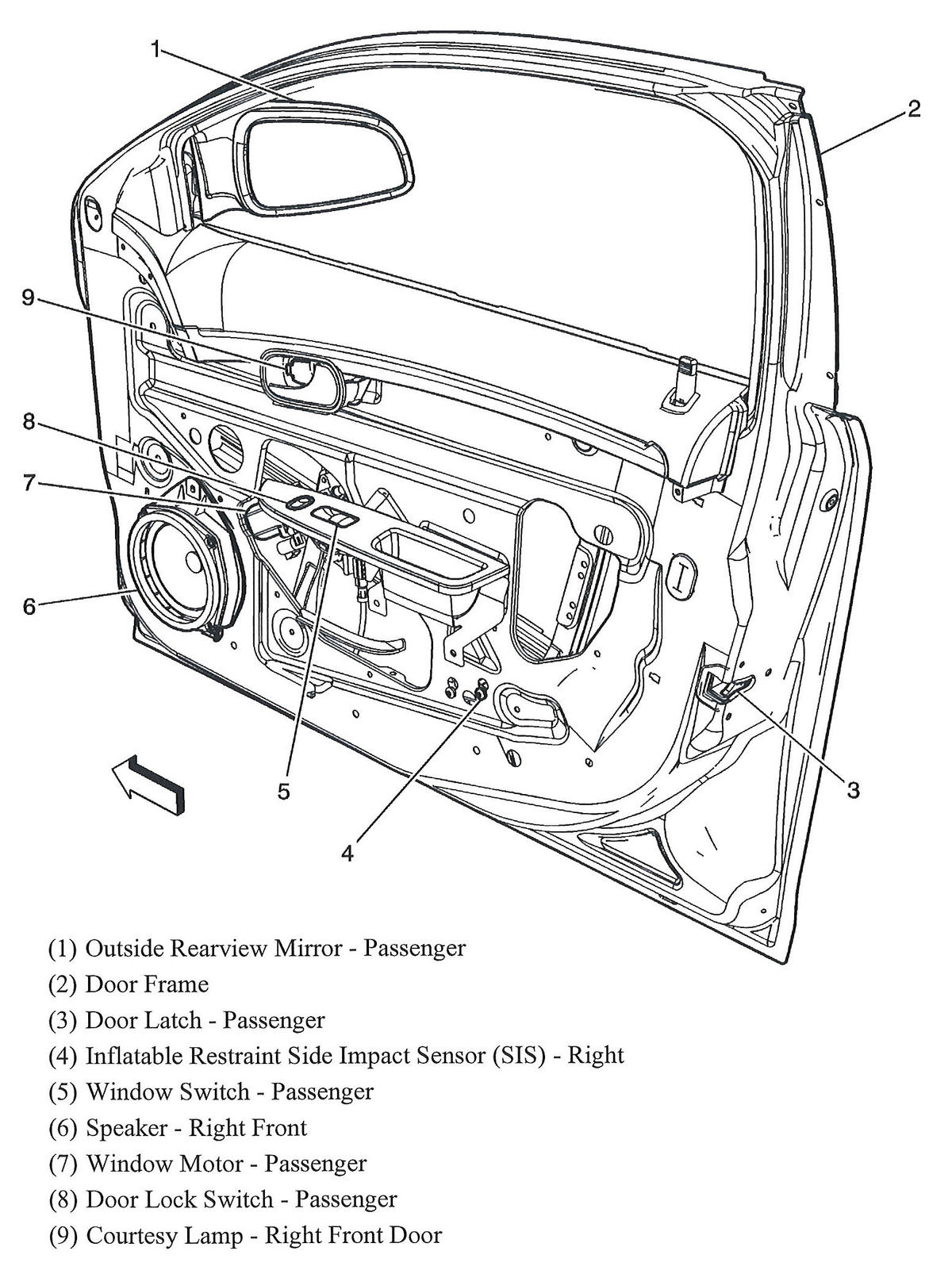

Fig 32: Front Passenger's Door

G00470299

Courtesy of GENERAL MOTORS CORP.

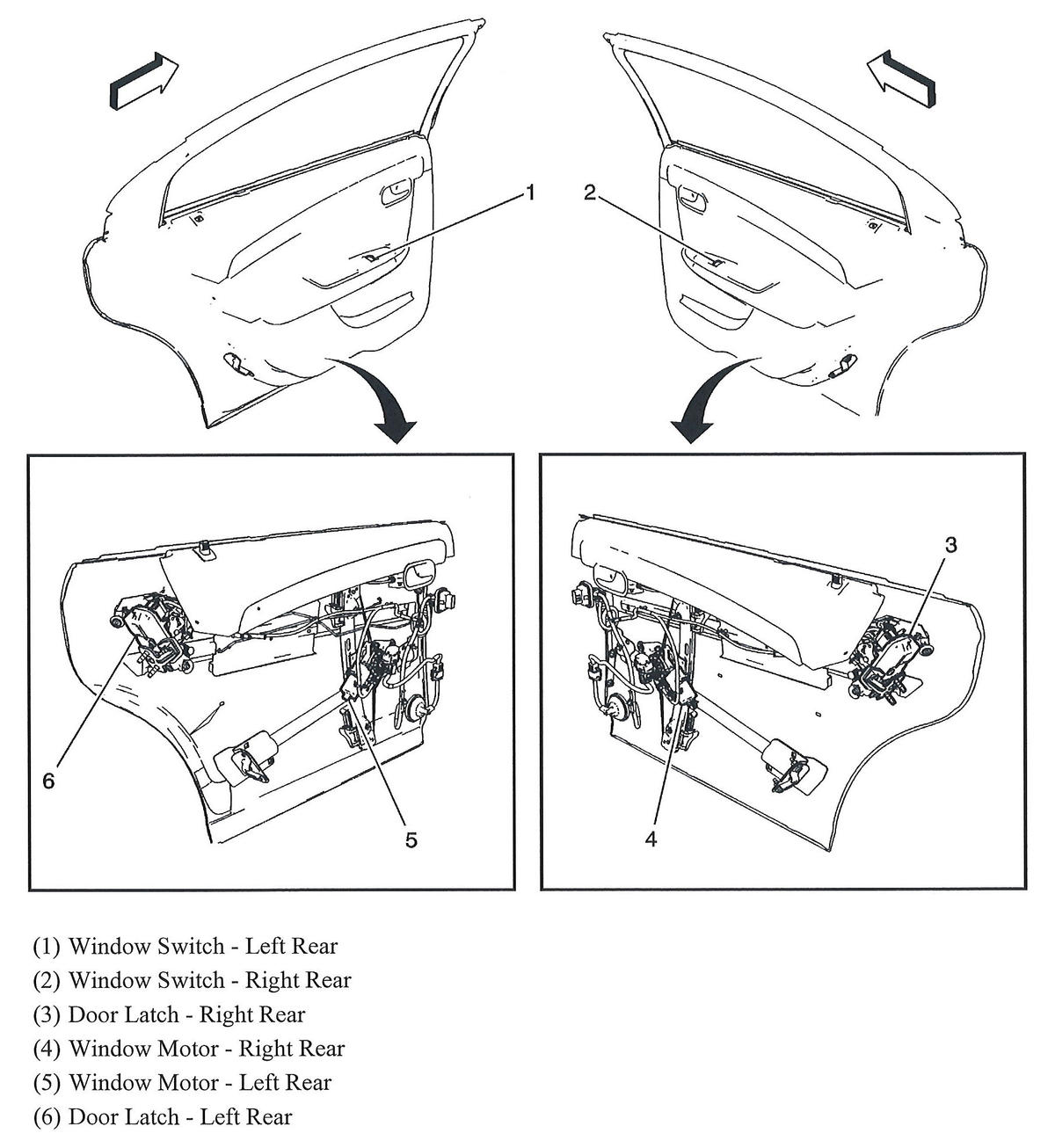

Fig 33: Rear Doors

G00470300

Courtesy of GENERAL MOTORS CORP.

Fig 34: Front & Rear Wheel Hub Assemblies

G00470301

Courtesy of GENERAL MOTORS CORP.

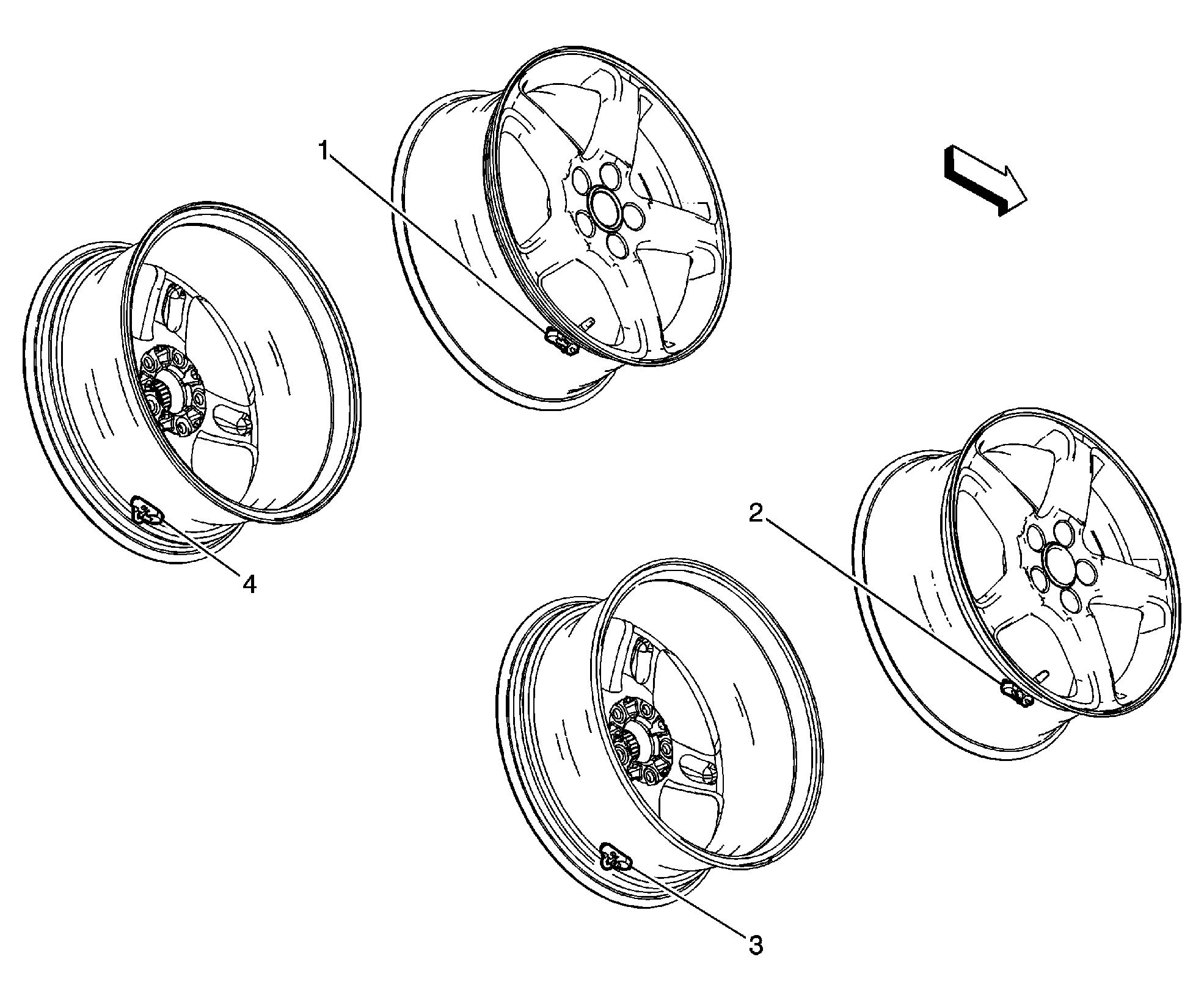

Fig 35: Tire Pressure Sensors

G00457441

Courtesy of GENERAL MOTORS CORP.

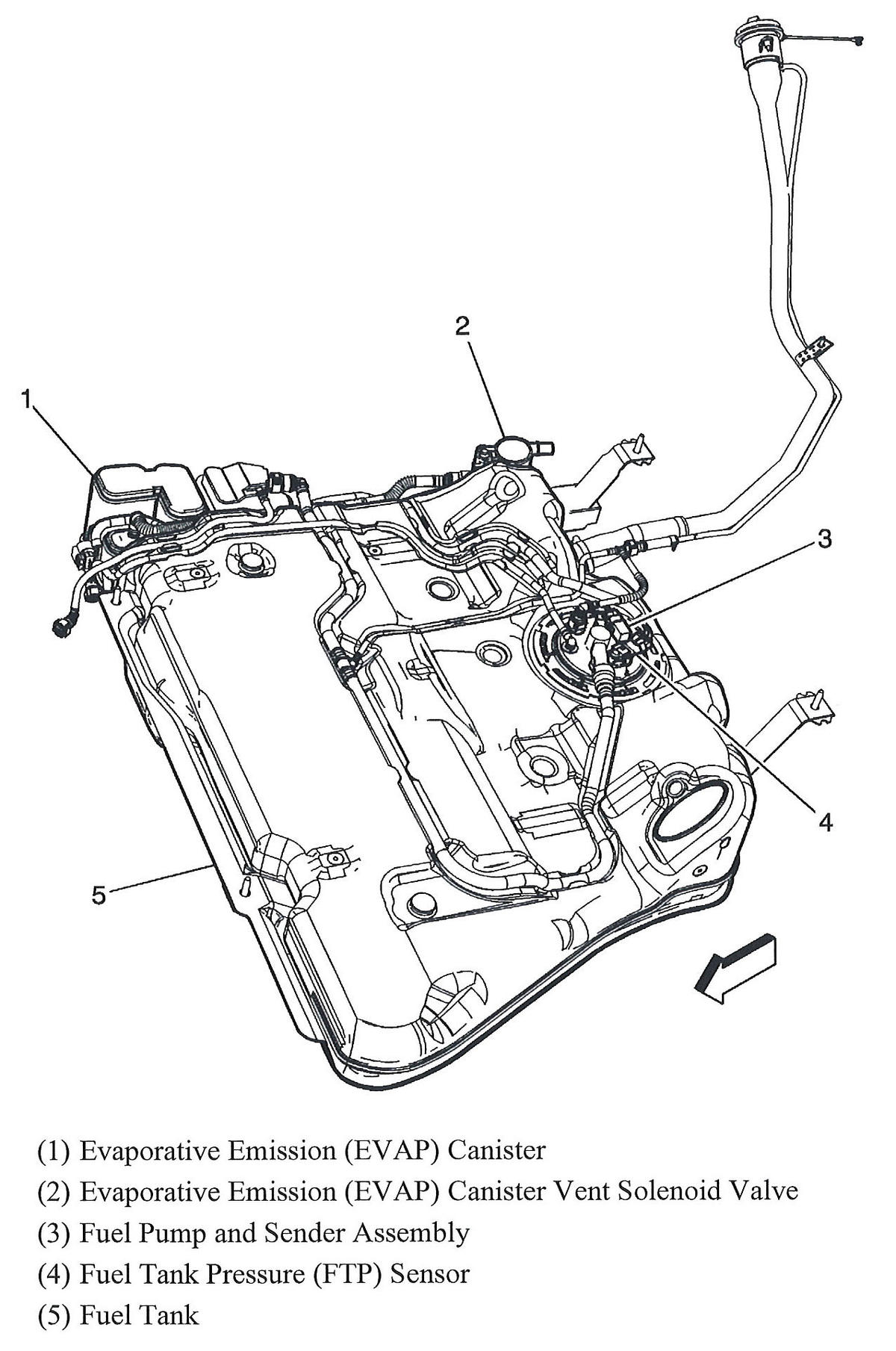

Fig 36: Fuel Tank

G00470302

Courtesy of GENERAL MOTORS CORP.

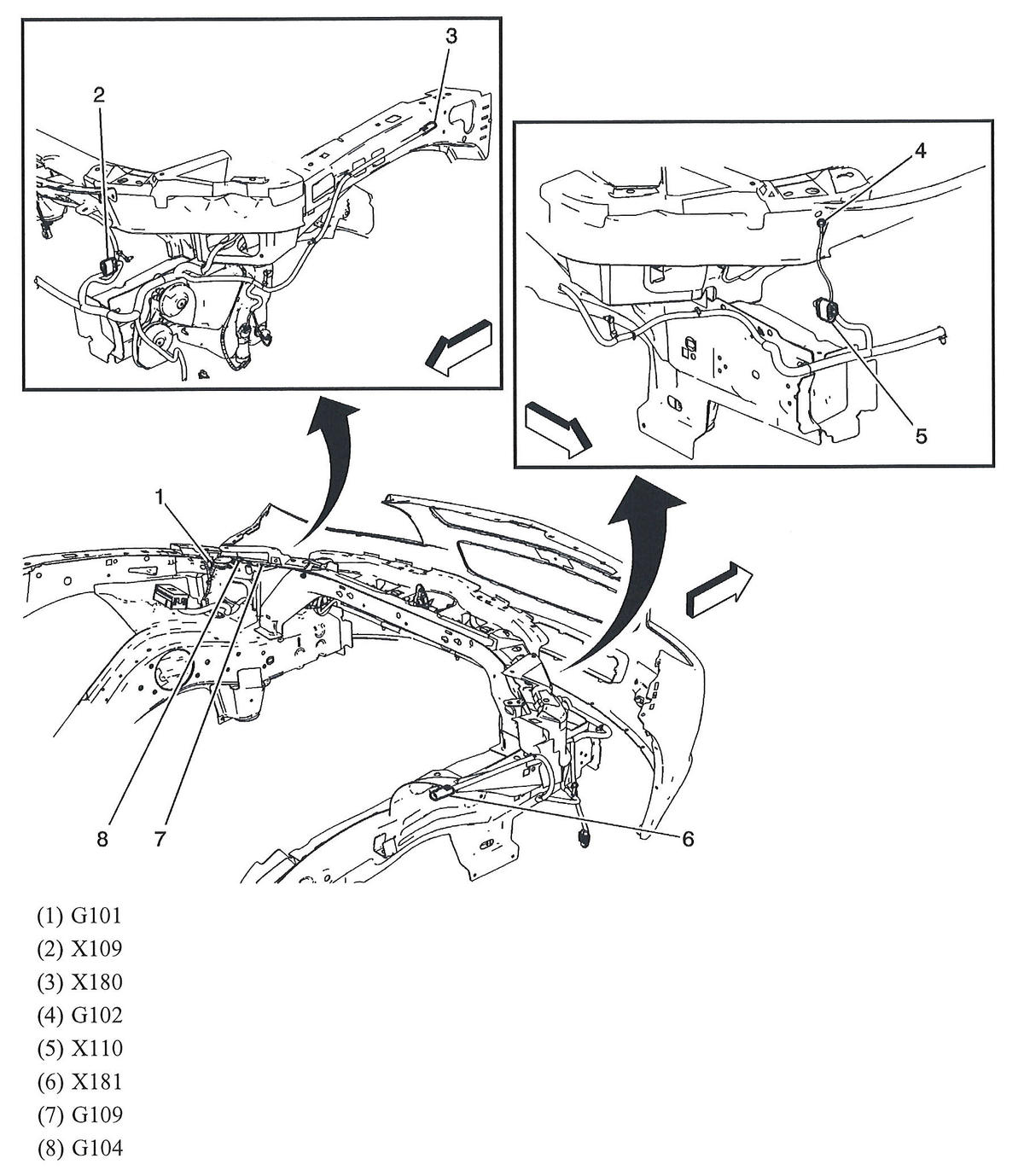

Fig 37: Engine Compartment

G00470303

Courtesy of GENERAL MOTORS CORP.

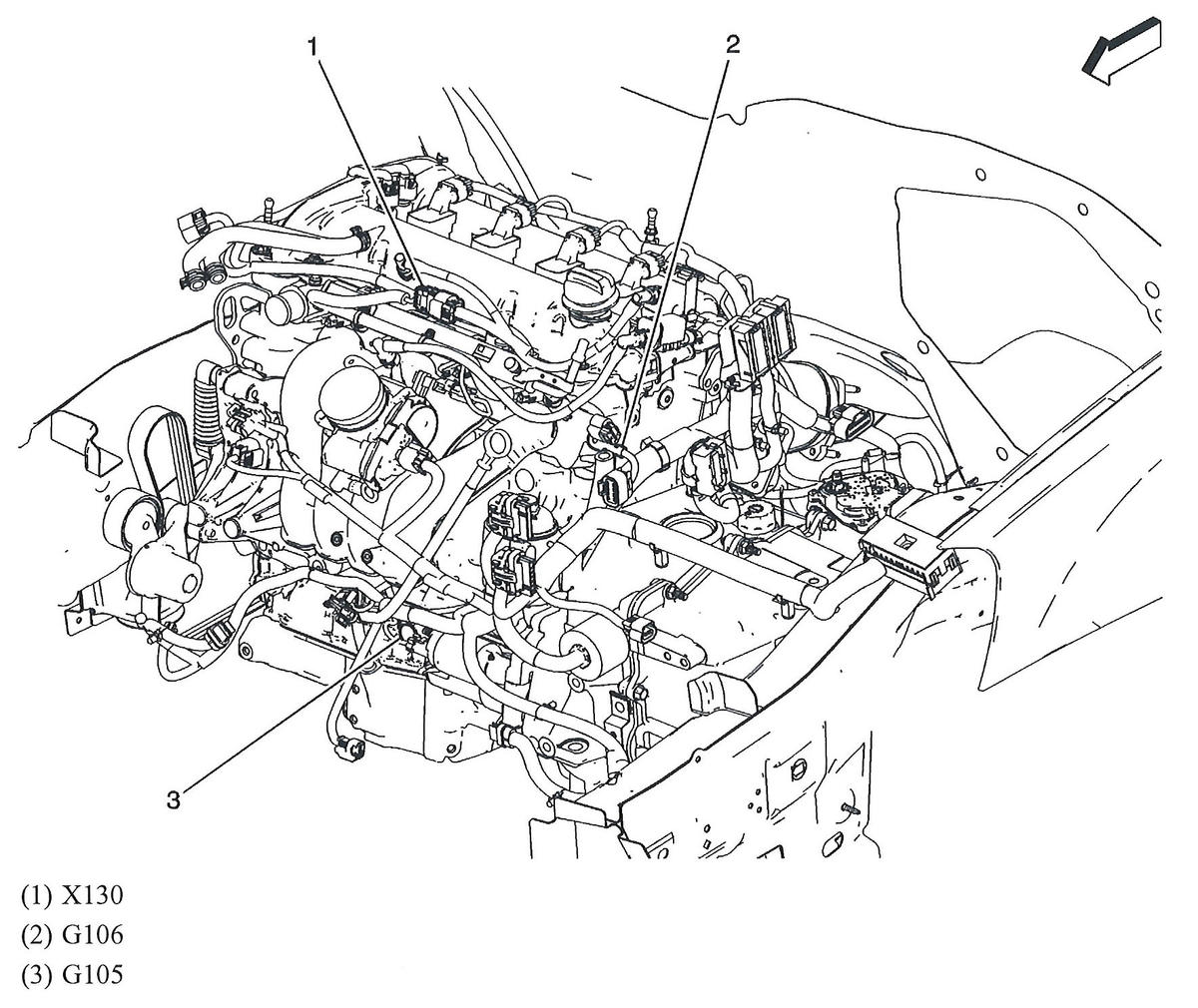

Fig 38: Engine Compartment (2.4L BAS)

G00470304

Courtesy of GENERAL MOTORS CORP.

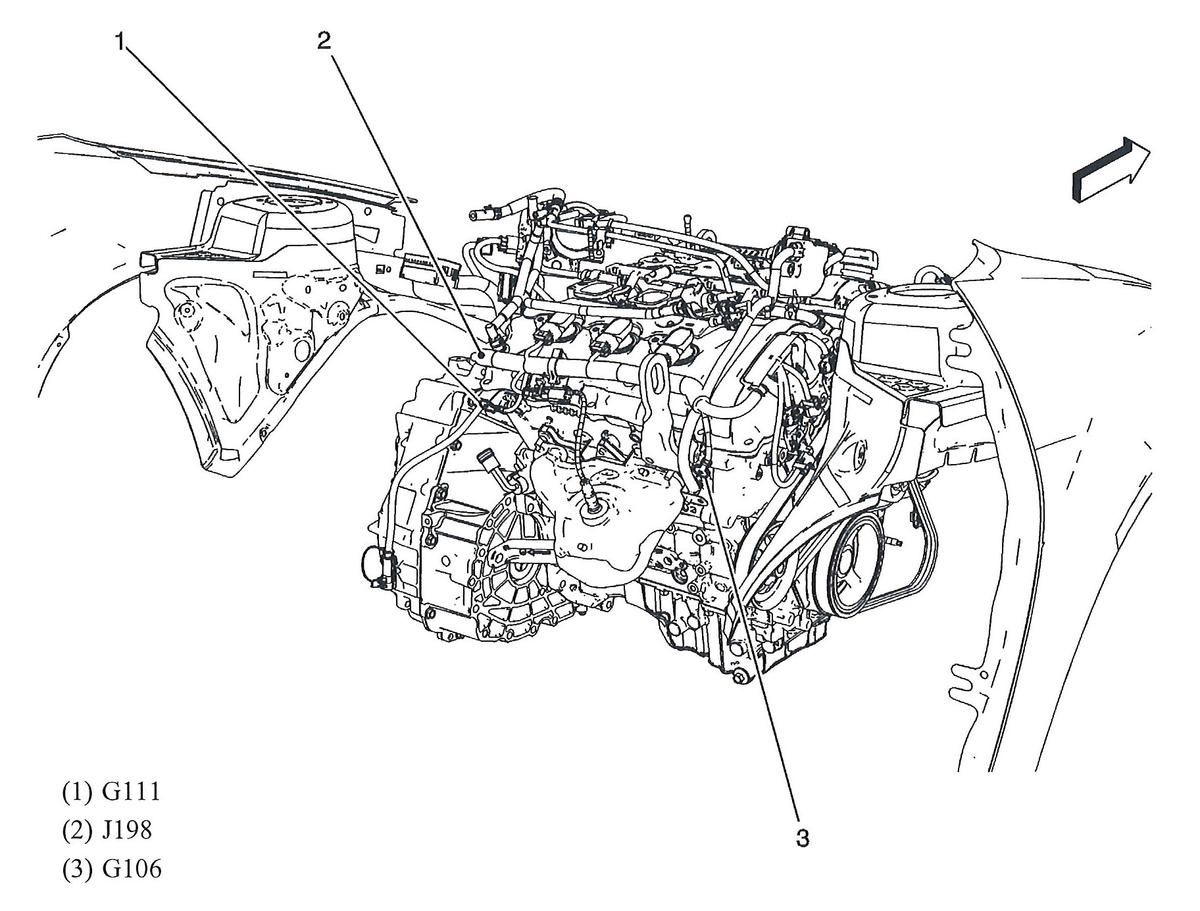

Fig 39: Right Side Of Engine (3.6L)

G00470308

Courtesy of GENERAL MOTORS CORP.

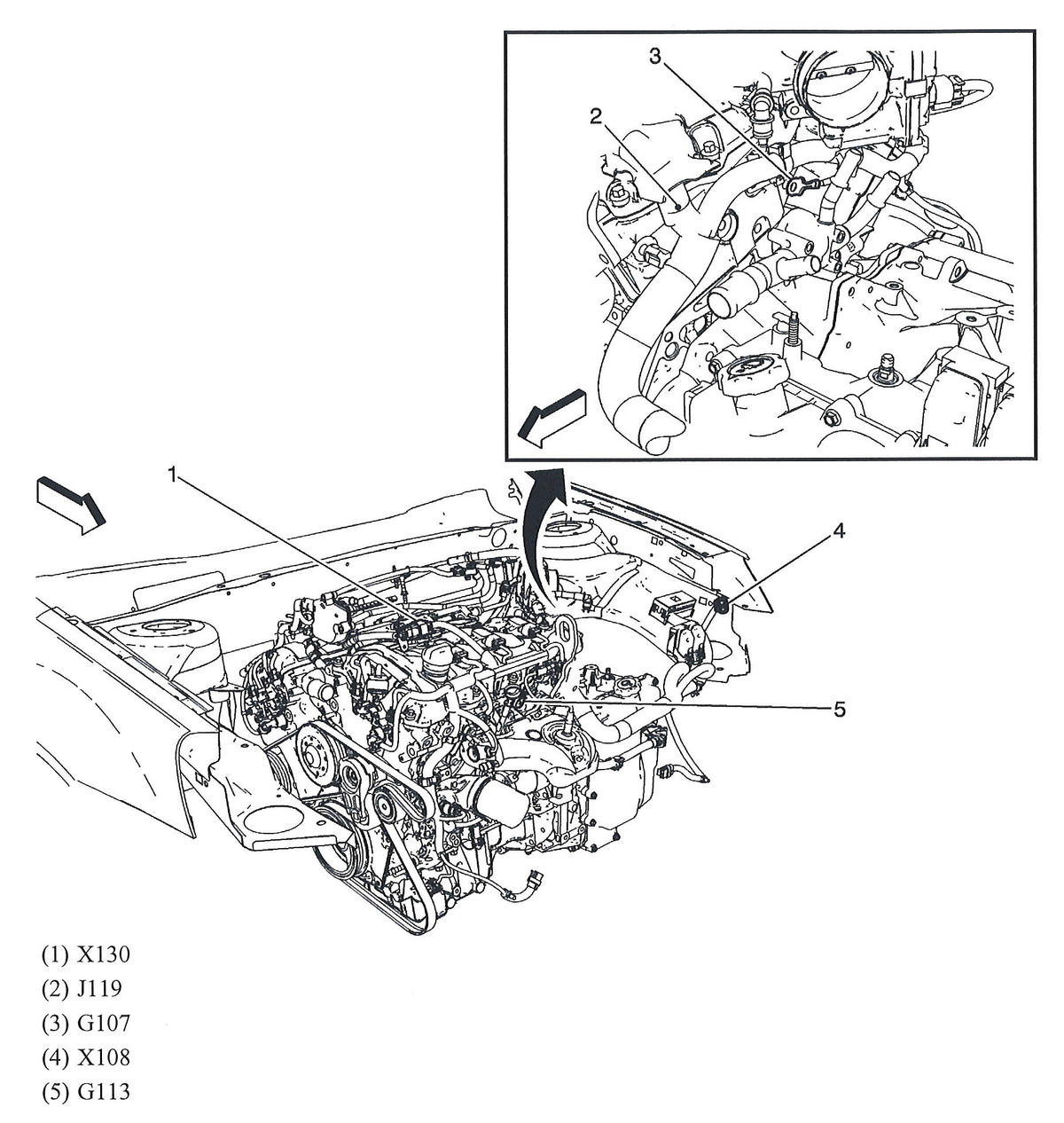

Fig 40: Engine (3.6L)

G00470307

Courtesy of GENERAL MOTORS CORP.

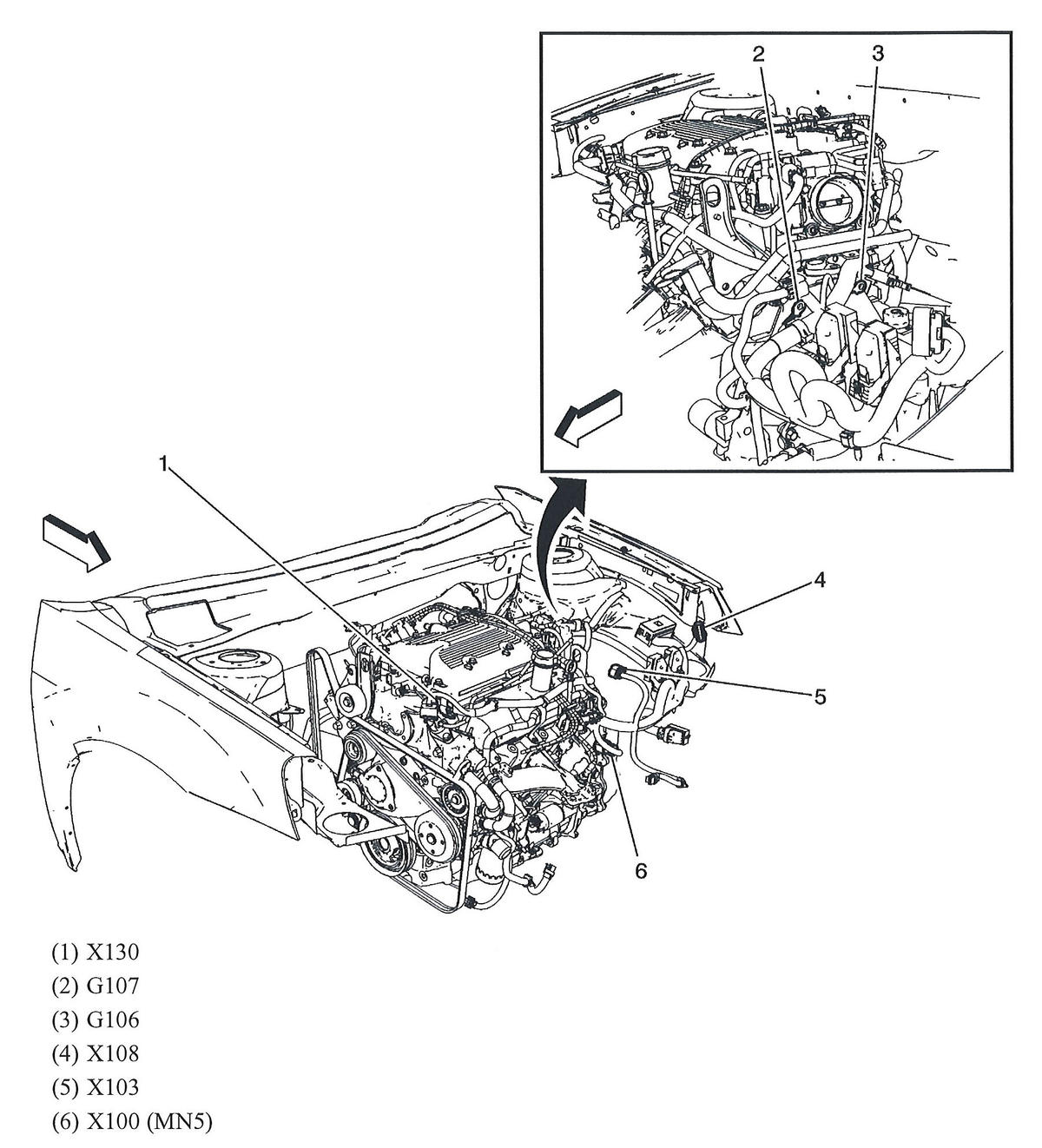

Fig 41: Engine (3.5L VVT)

G00470309

Courtesy of GENERAL MOTORS CORP.

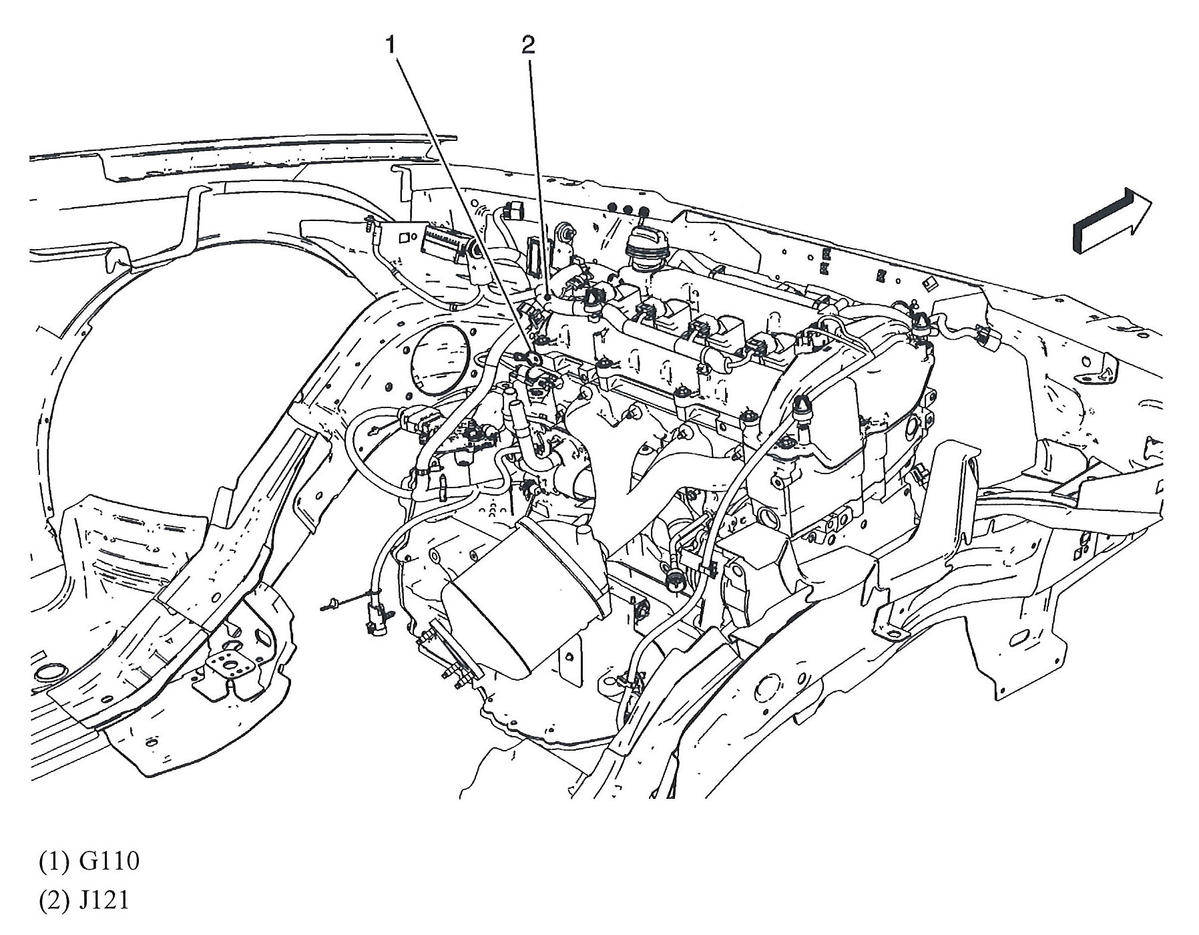

Fig 42: Right Side Of Engine (2.4L HO)

G00470310

Courtesy of GENERAL MOTORS CORP.

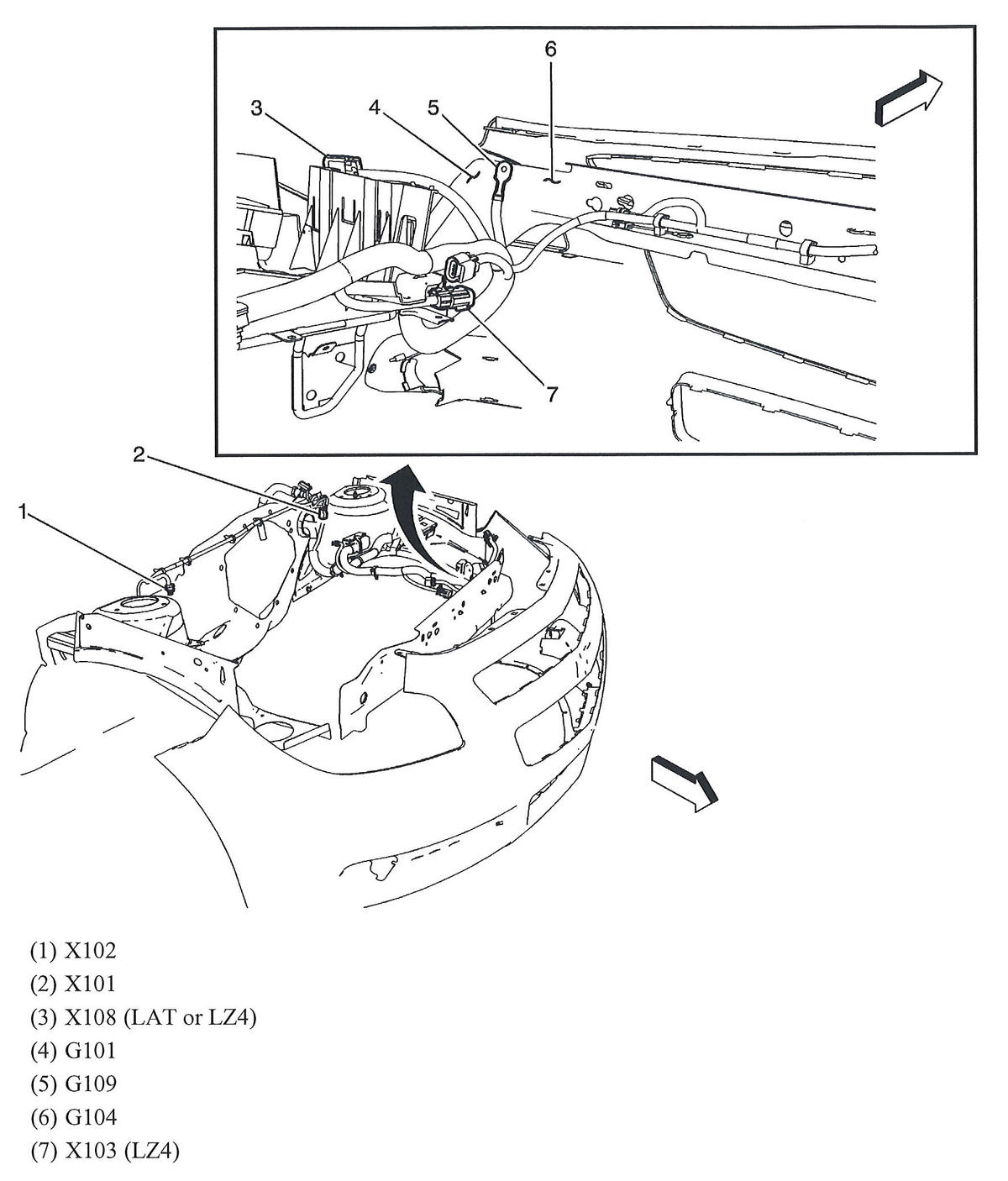

Fig 43: Engine Compartment

G00470313

Courtesy of GENERAL MOTORS CORP.

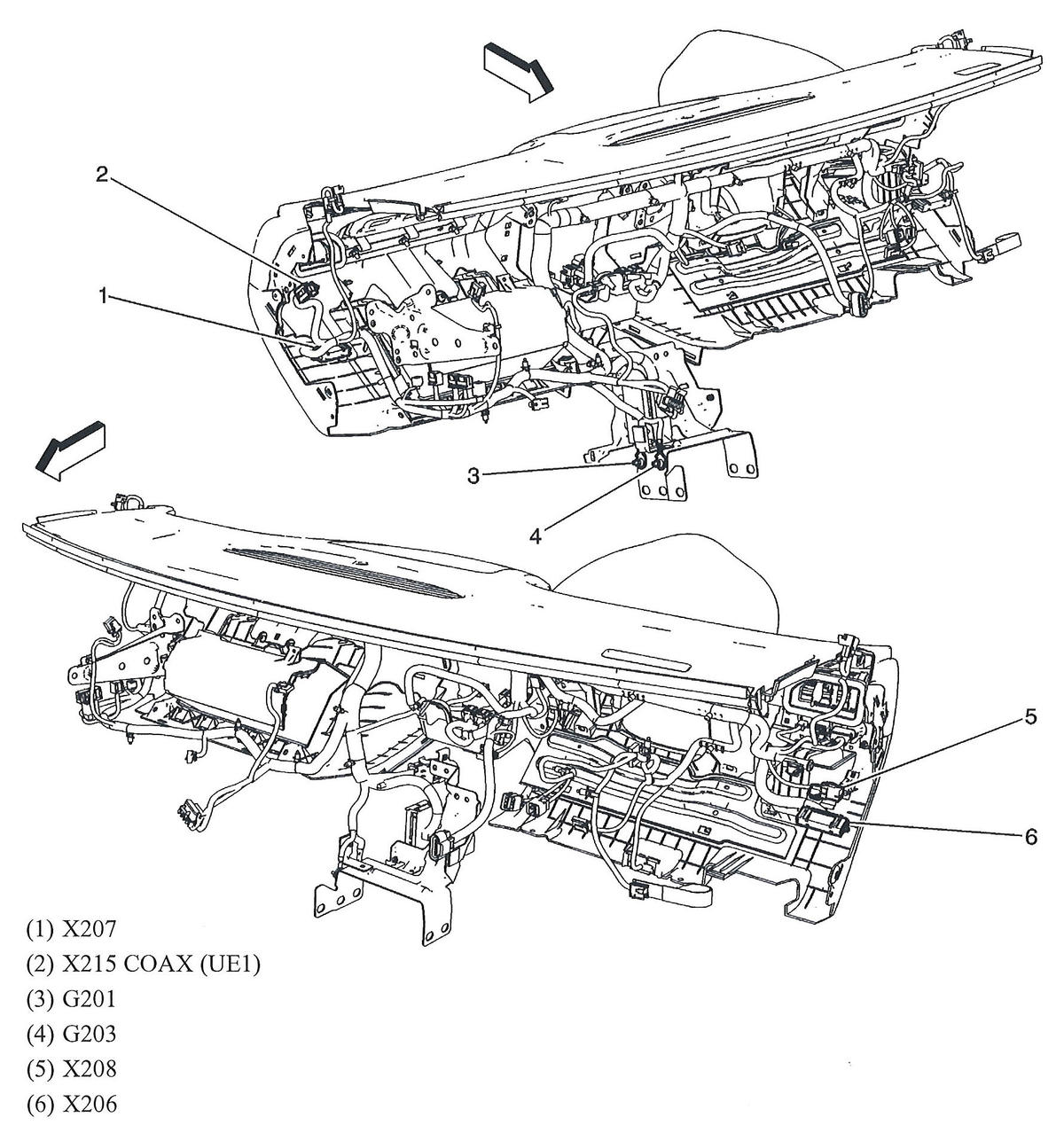

Fig 44: Dash & Center Console

G00470314

Courtesy of GENERAL MOTORS CORP.

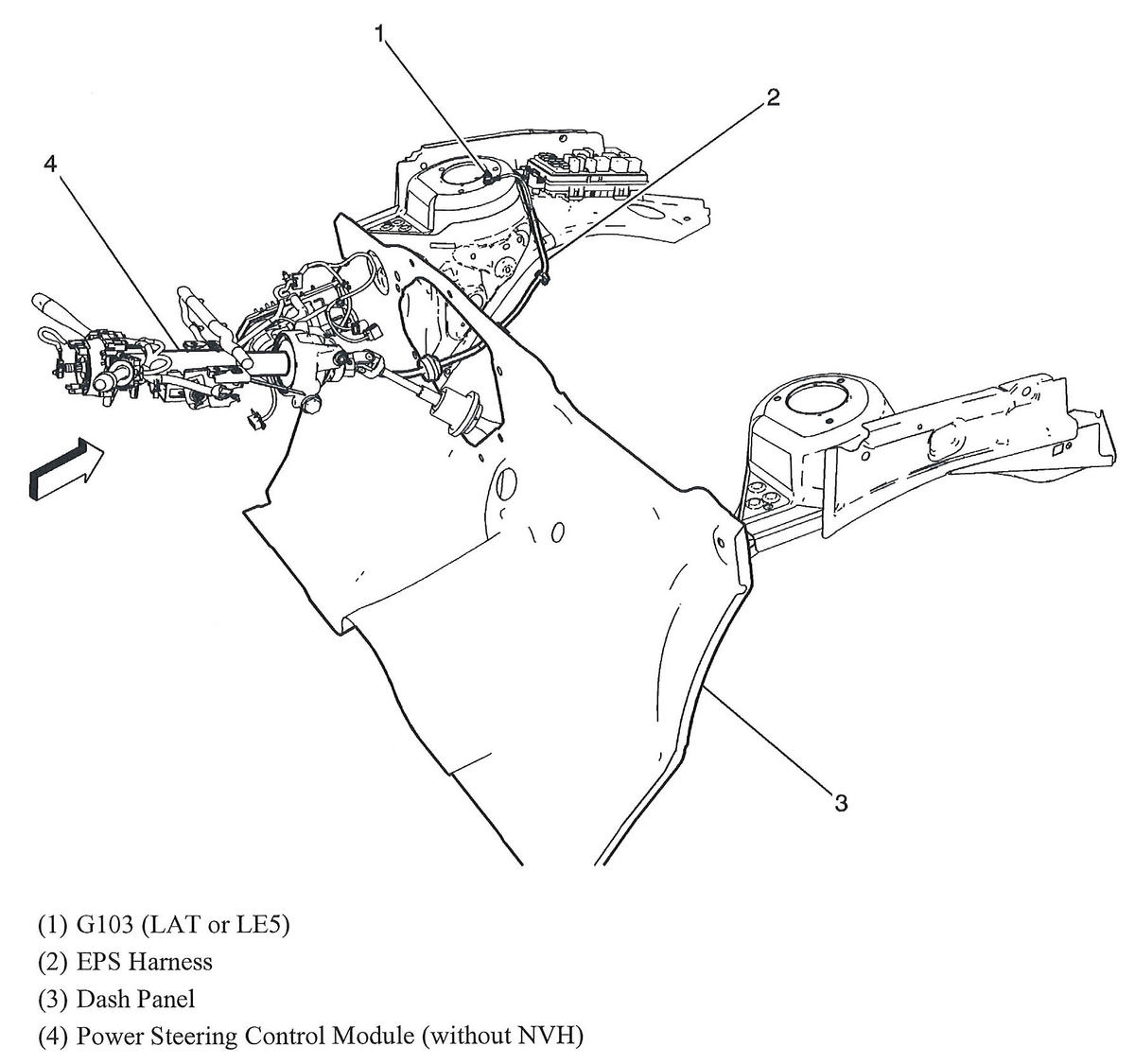

Fig 45: Steering Column

G00470315

Courtesy of GENERAL MOTORS CORP.

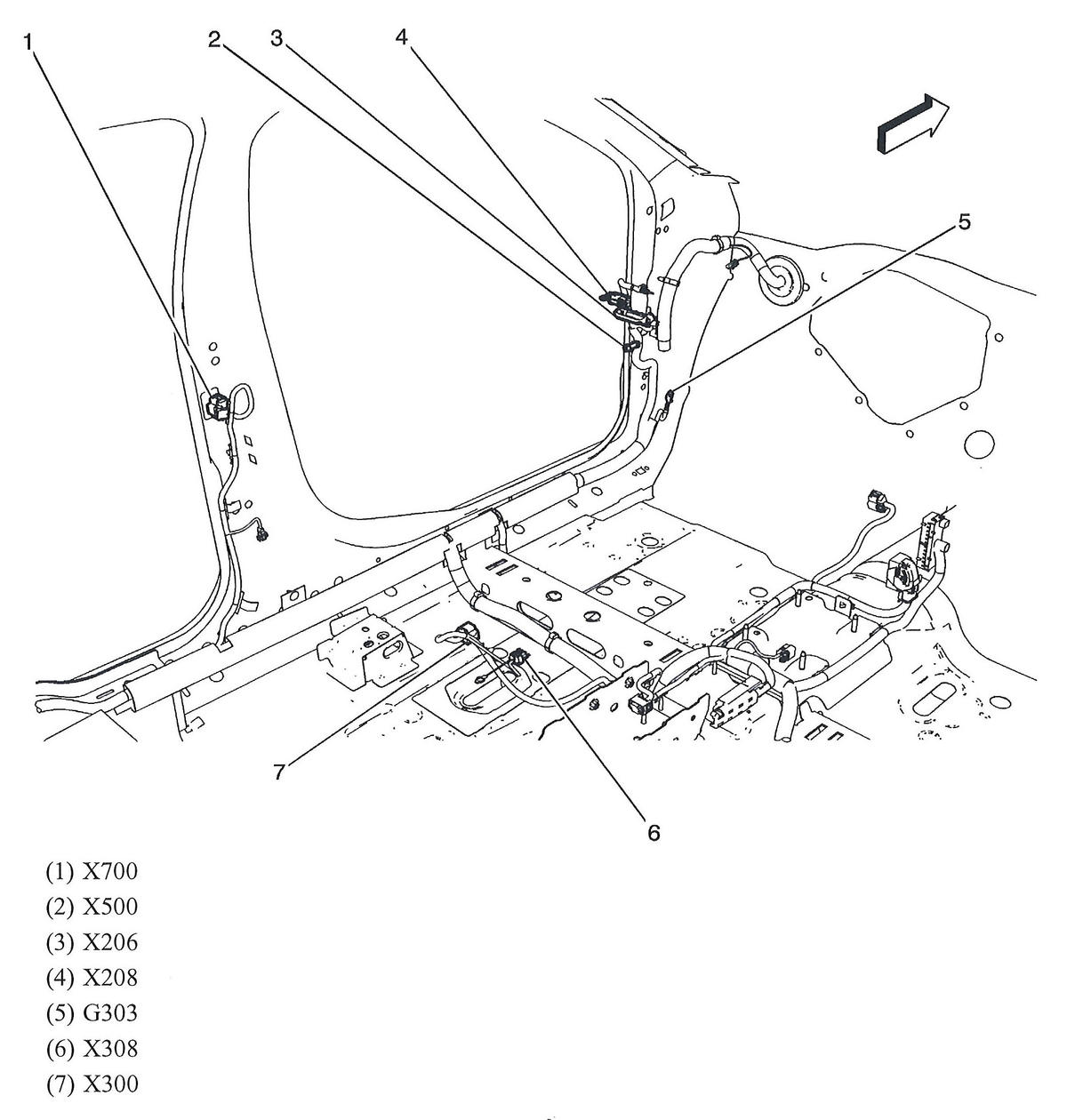

Fig 46: Left Front Of Passenger Compartment

G00470316

Courtesy of GENERAL MOTORS CORP.

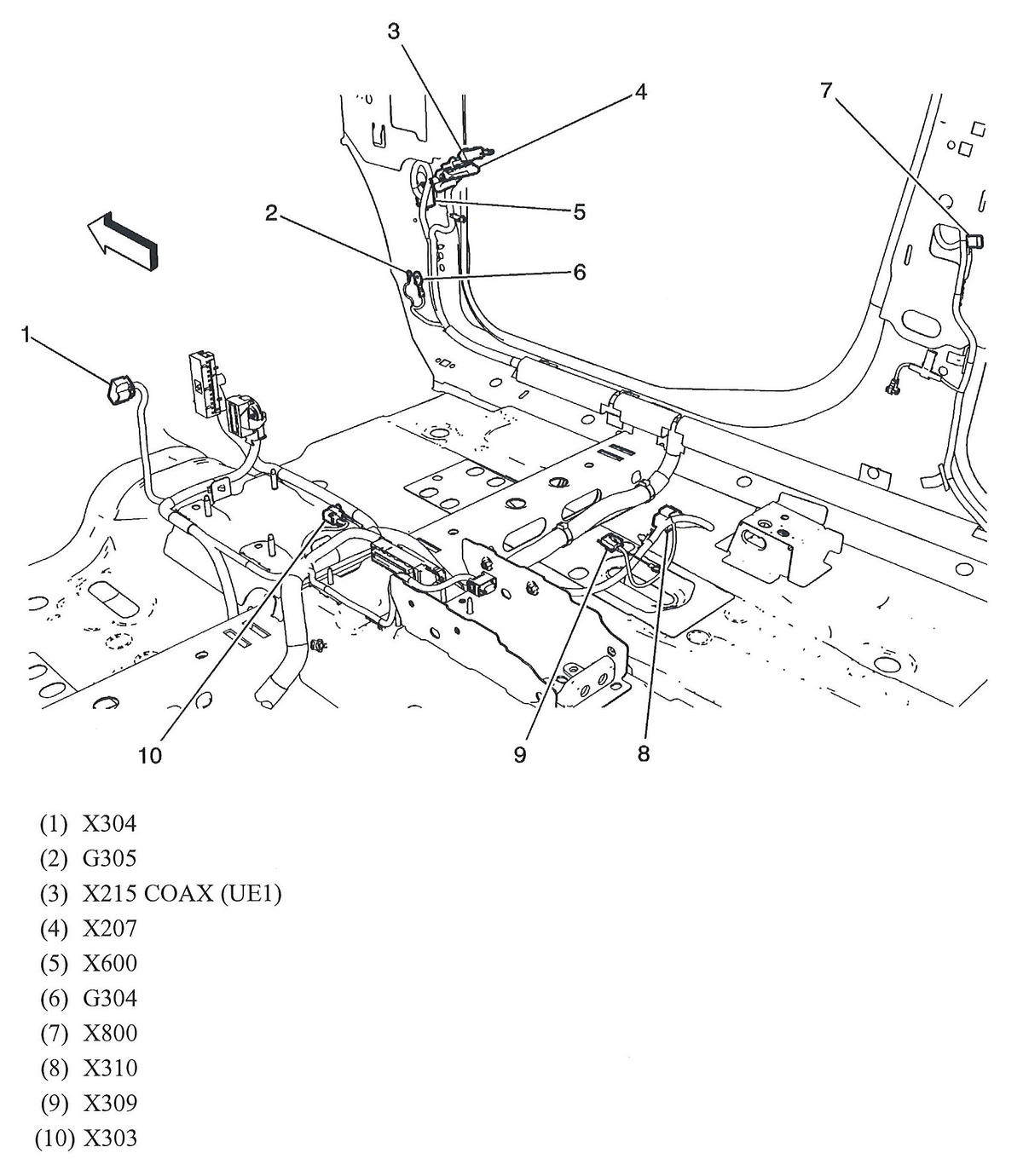

Fig 47: Right Front Of Passenger Compartment

G00470317

Courtesy of GENERAL MOTORS CORP.

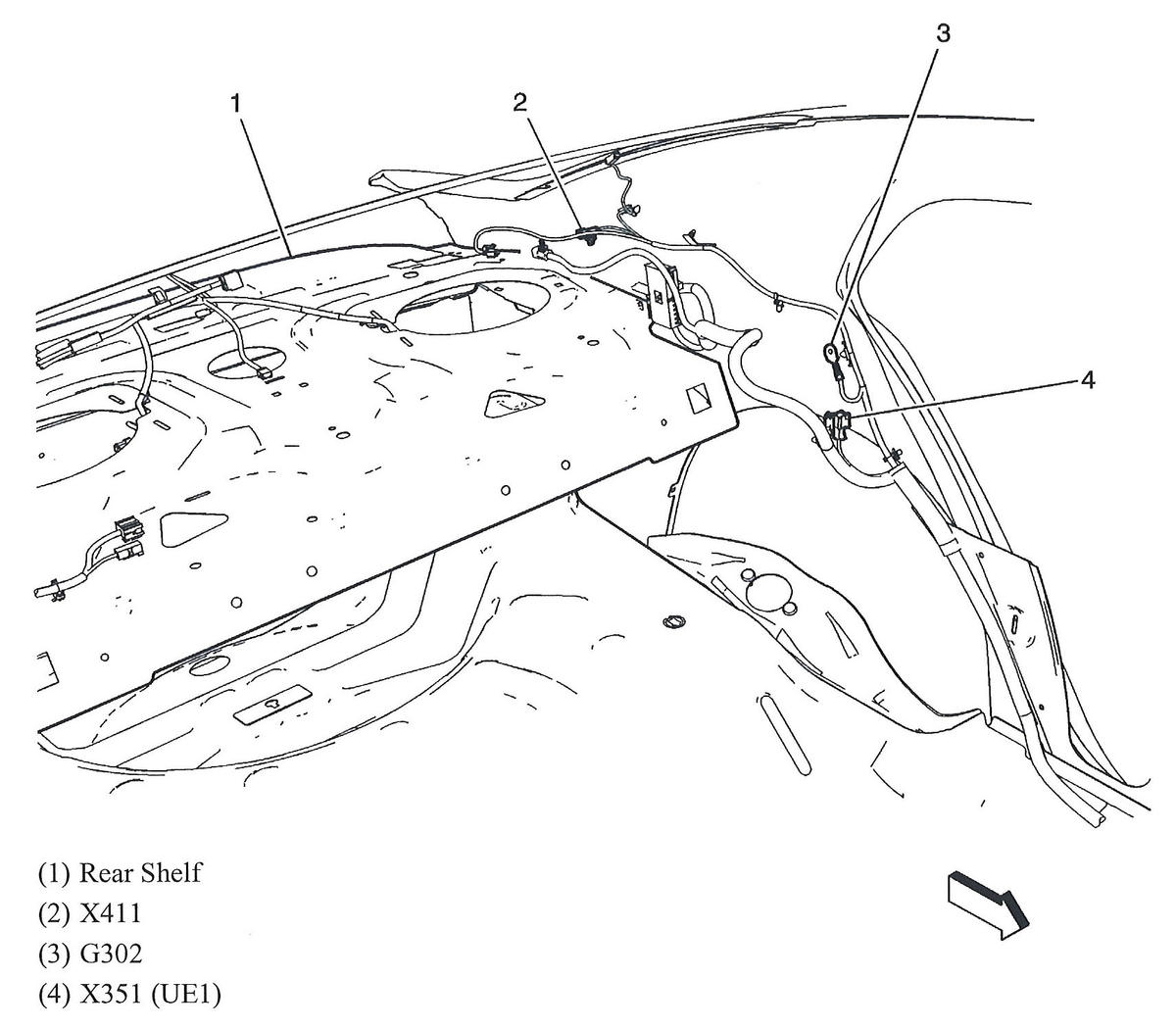

Fig 48: Left Rear Of Passenger Compartment

G00470318

Courtesy of GENERAL MOTORS CORP.

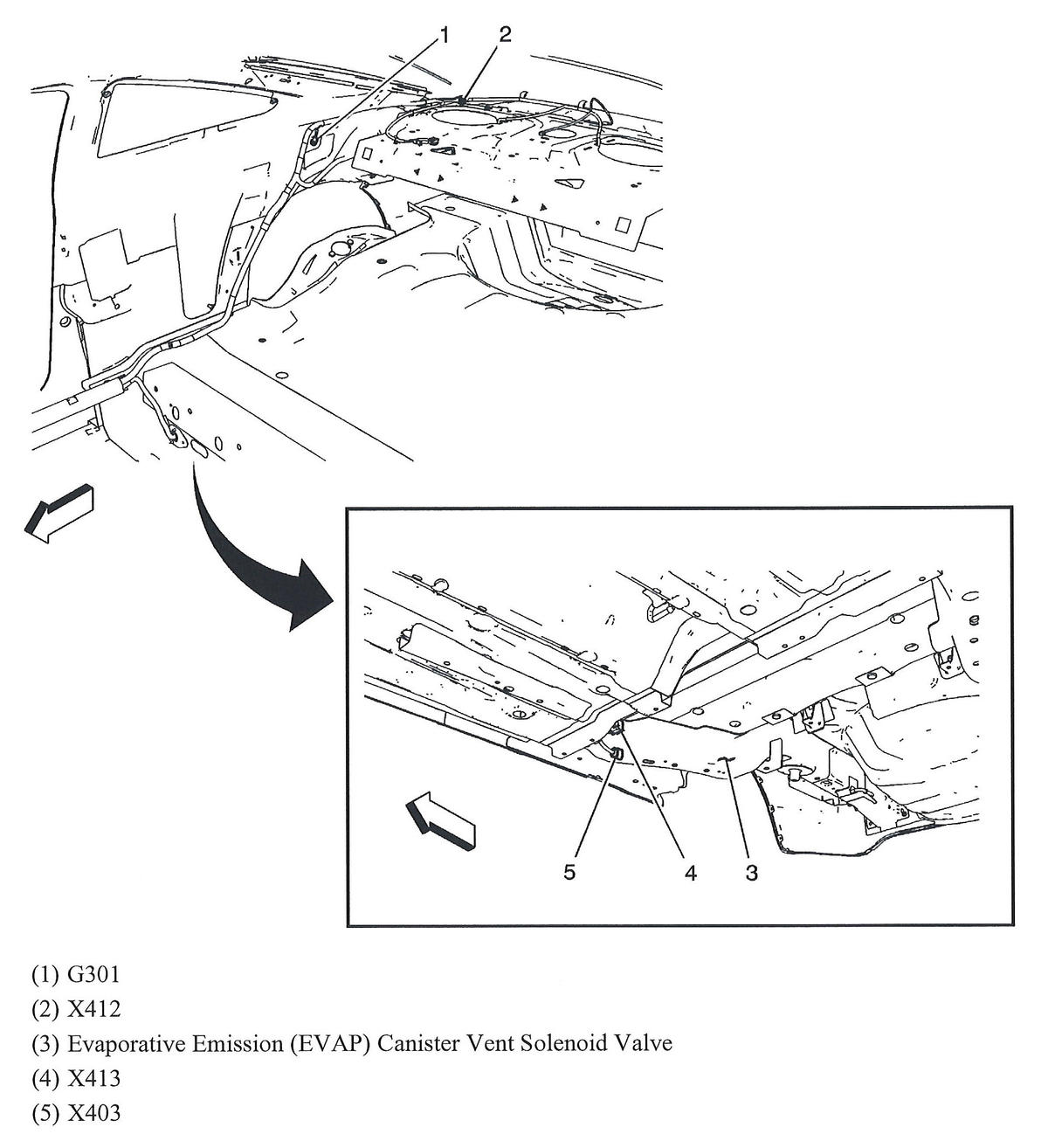

Fig 49: Right Rear Of Passenger Compartment

G00470319

Courtesy of GENERAL MOTORS CORP.

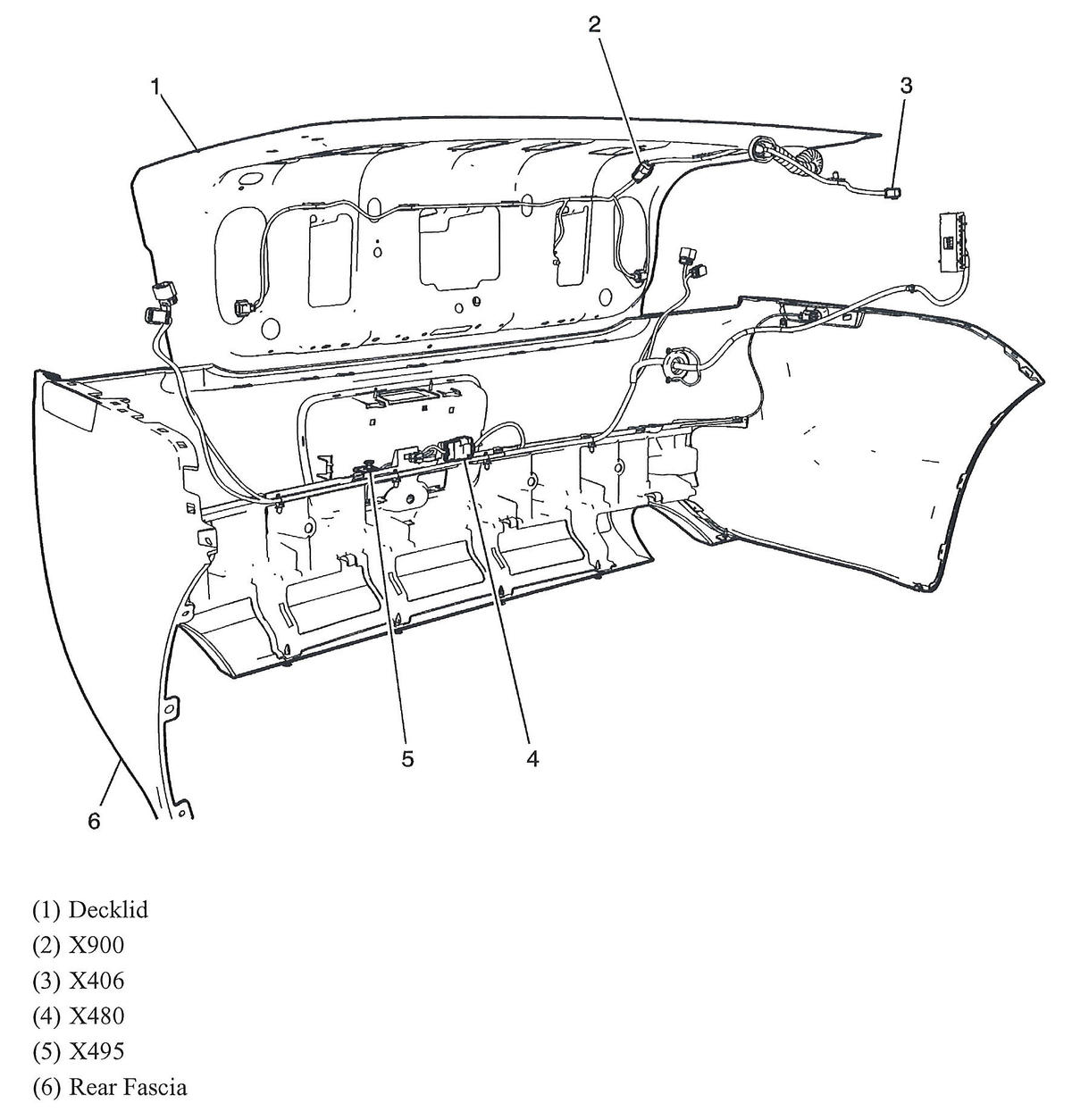

Fig 50: Rear Fascia & Trunk Lid

G00470320

Courtesy of GENERAL MOTORS CORP.

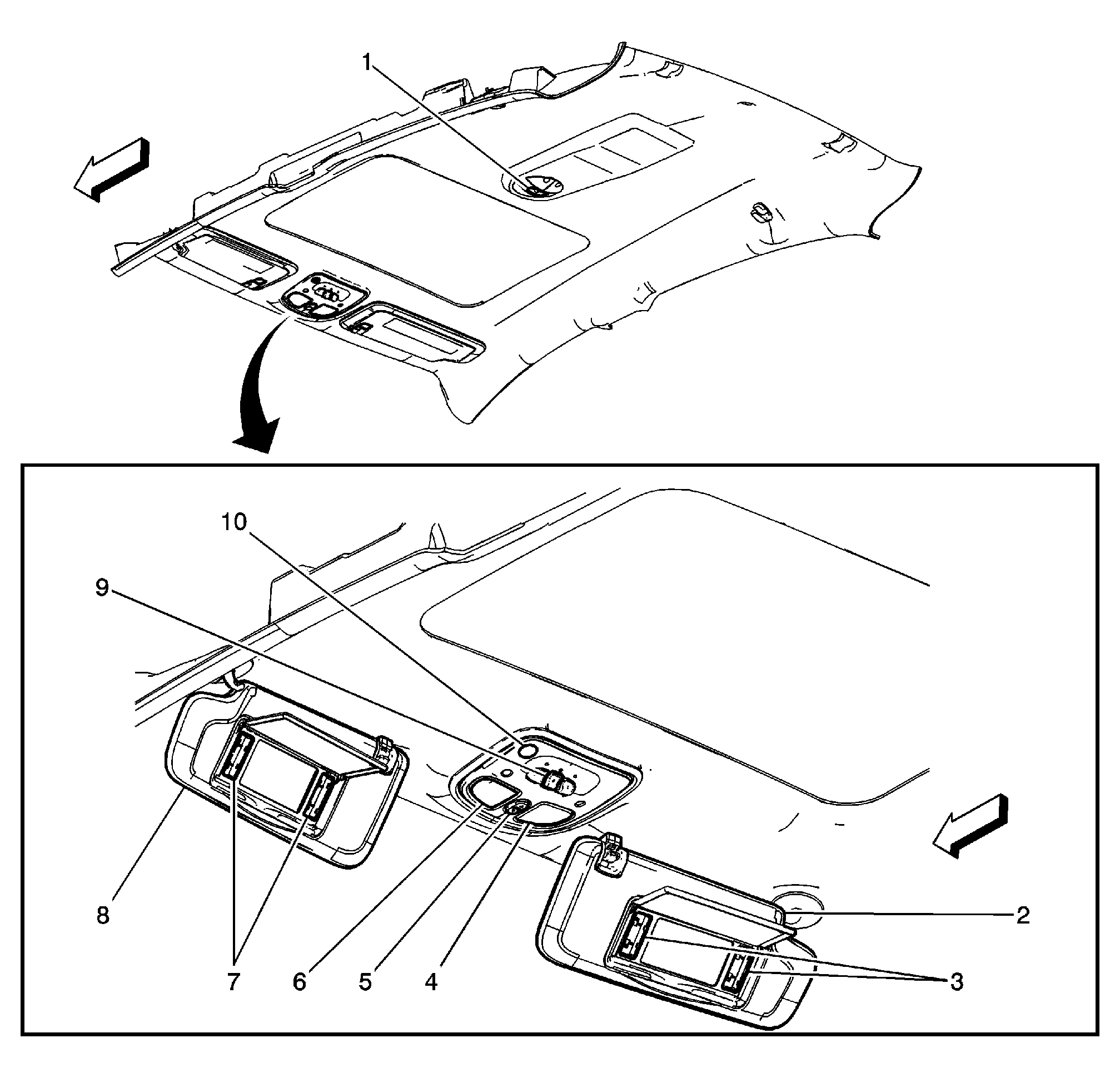

Fig 51: Roof

G00457459

Courtesy of GENERAL MOTORS CORP.

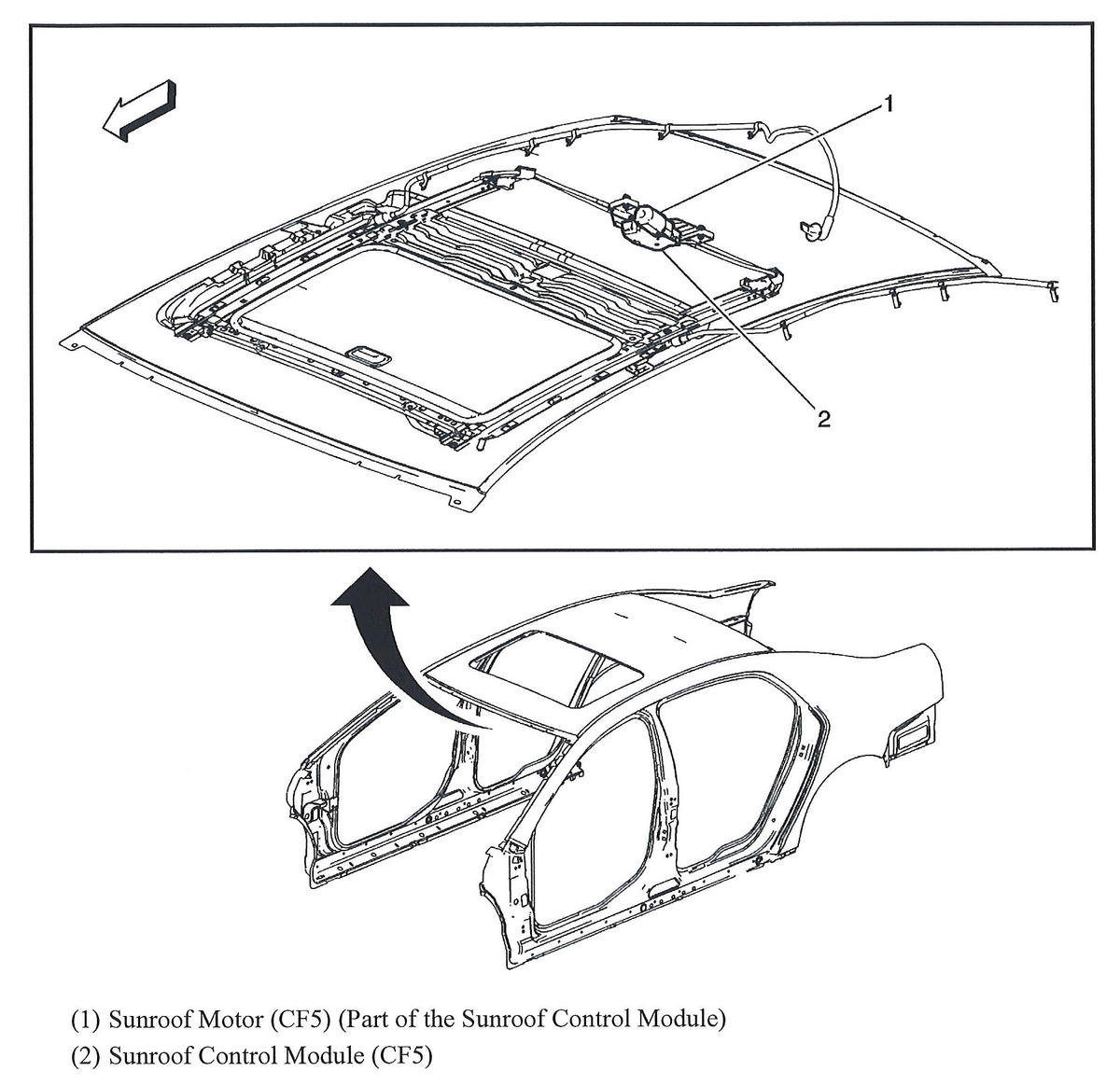

Fig 52: Sunroof

G00470294

Courtesy of GENERAL MOTORS CORP.

Fig 53: Trunk

G00470289

Courtesy of GENERAL MOTORS CORP.

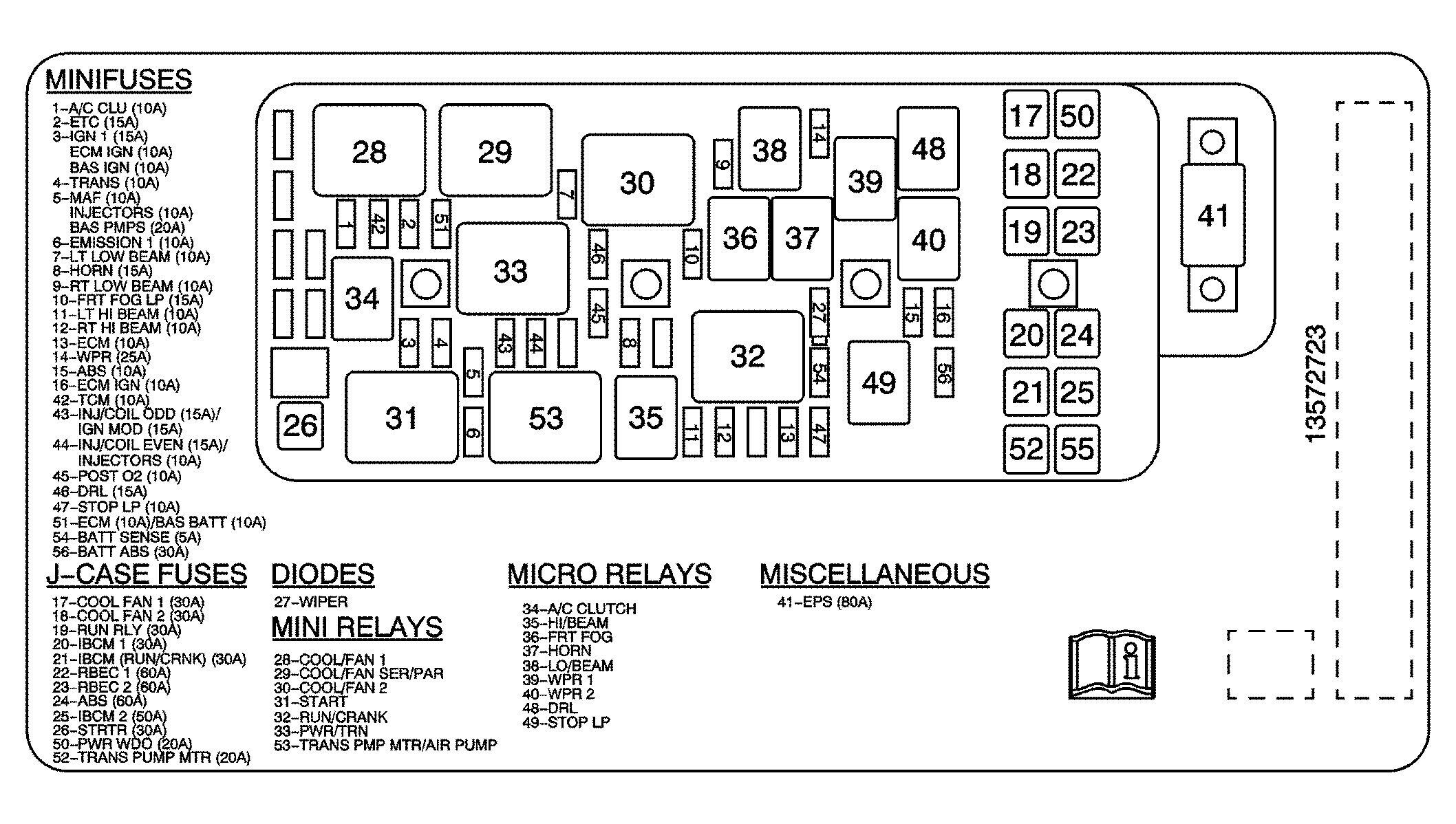

Fig 54: Underhood Fuse Block

G00441716

Courtesy of GENERAL MOTORS CORP.

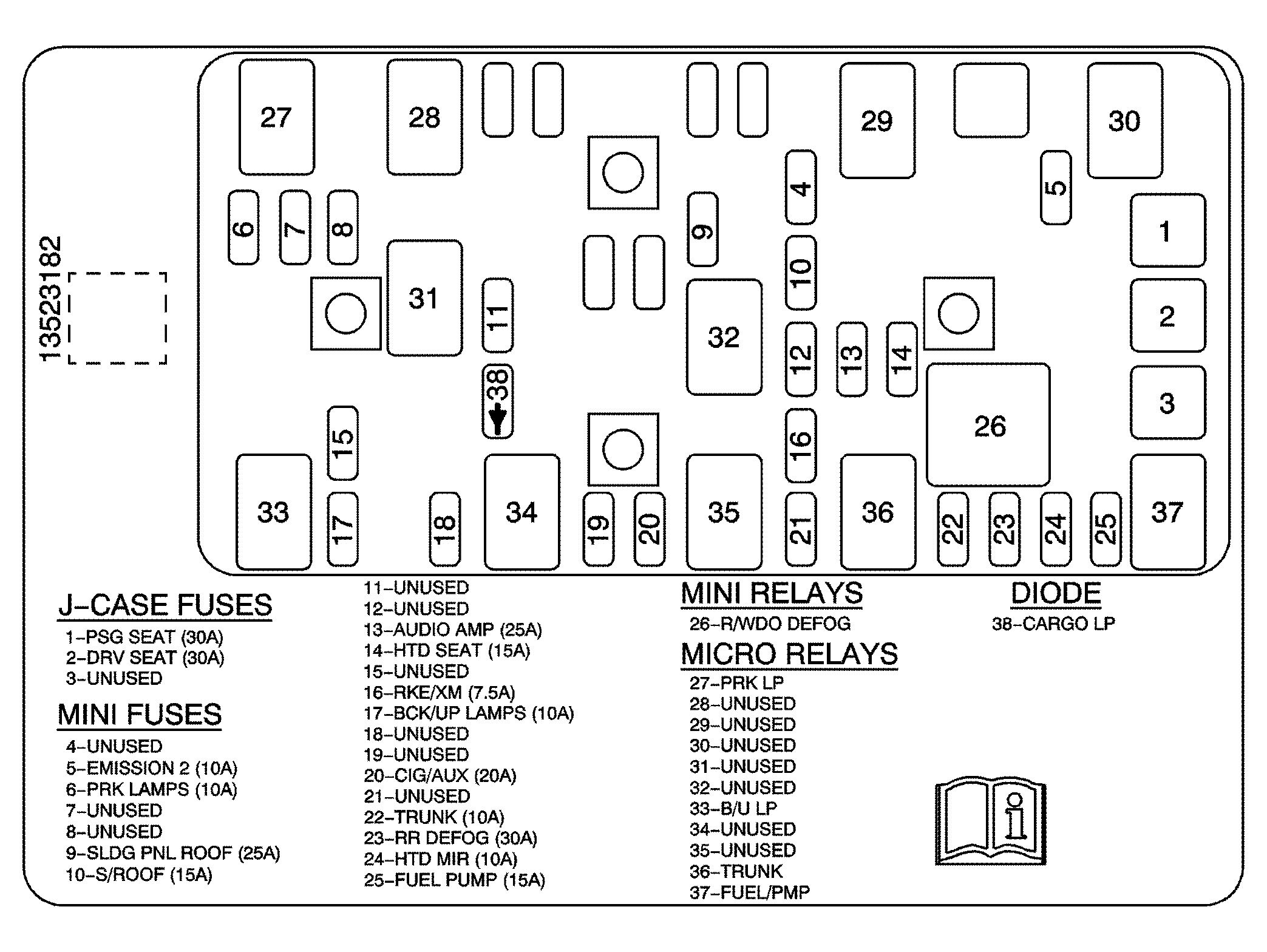

Fig 55: Rear Fuse Block

G00441717

Courtesy of GENERAL MOTORS CORP.

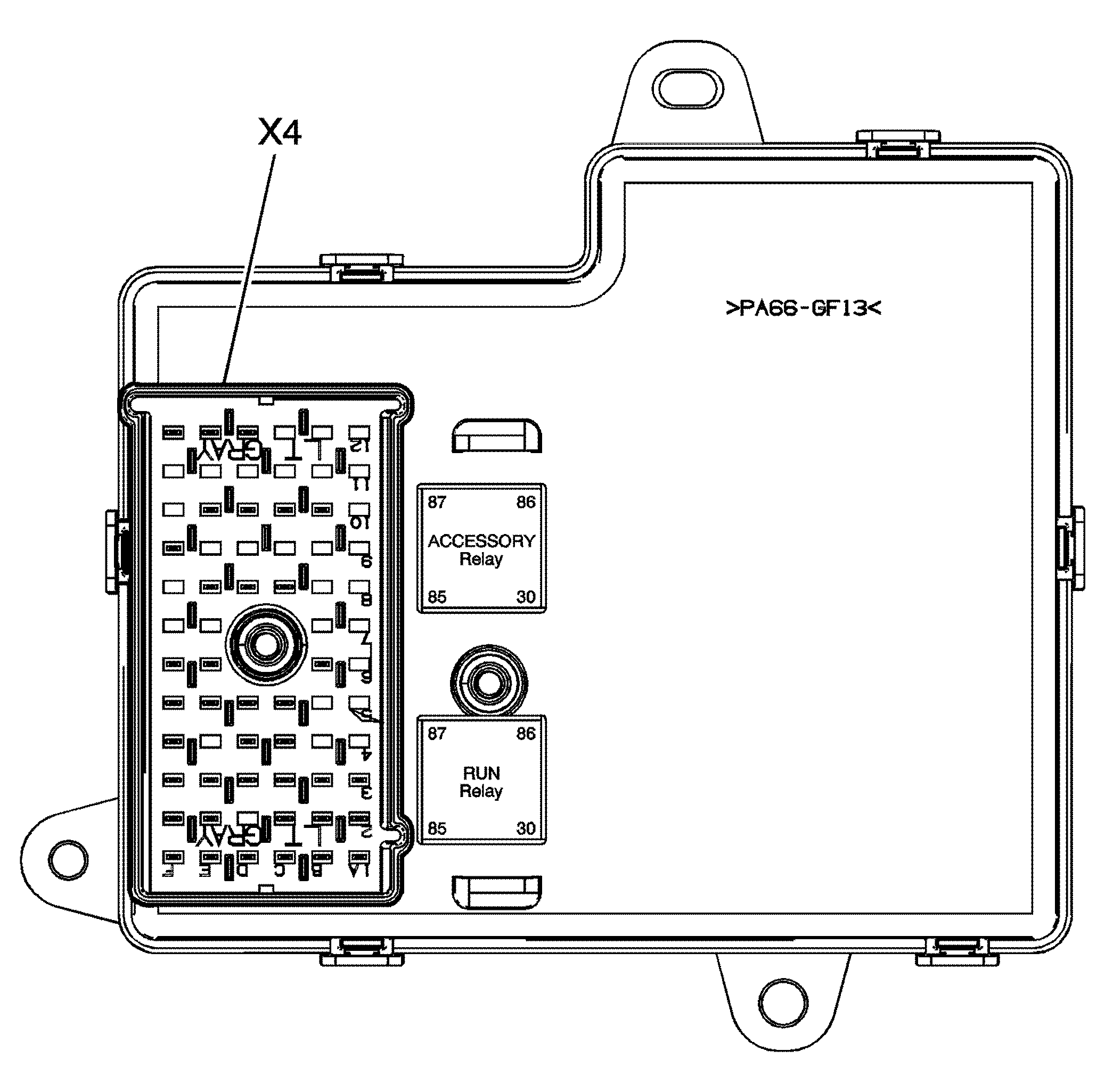

Fig 56: Body Control Module (BCM) (Bottom View)

G00441718

Courtesy of GENERAL MOTORS CORP.

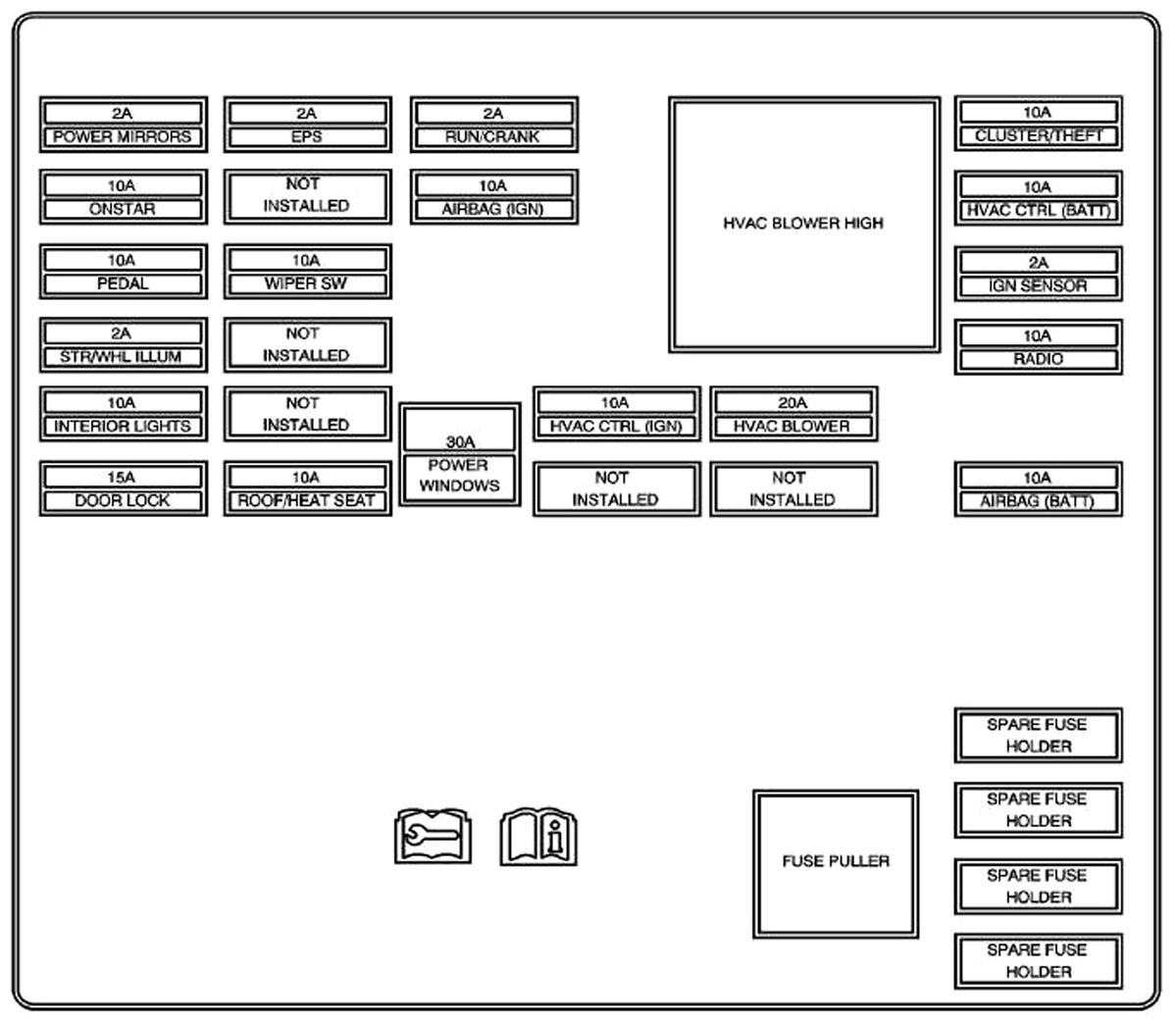

Fig 57: Body Control Module (BCM)

G00470328

Courtesy of GENERAL MOTORS CORP.

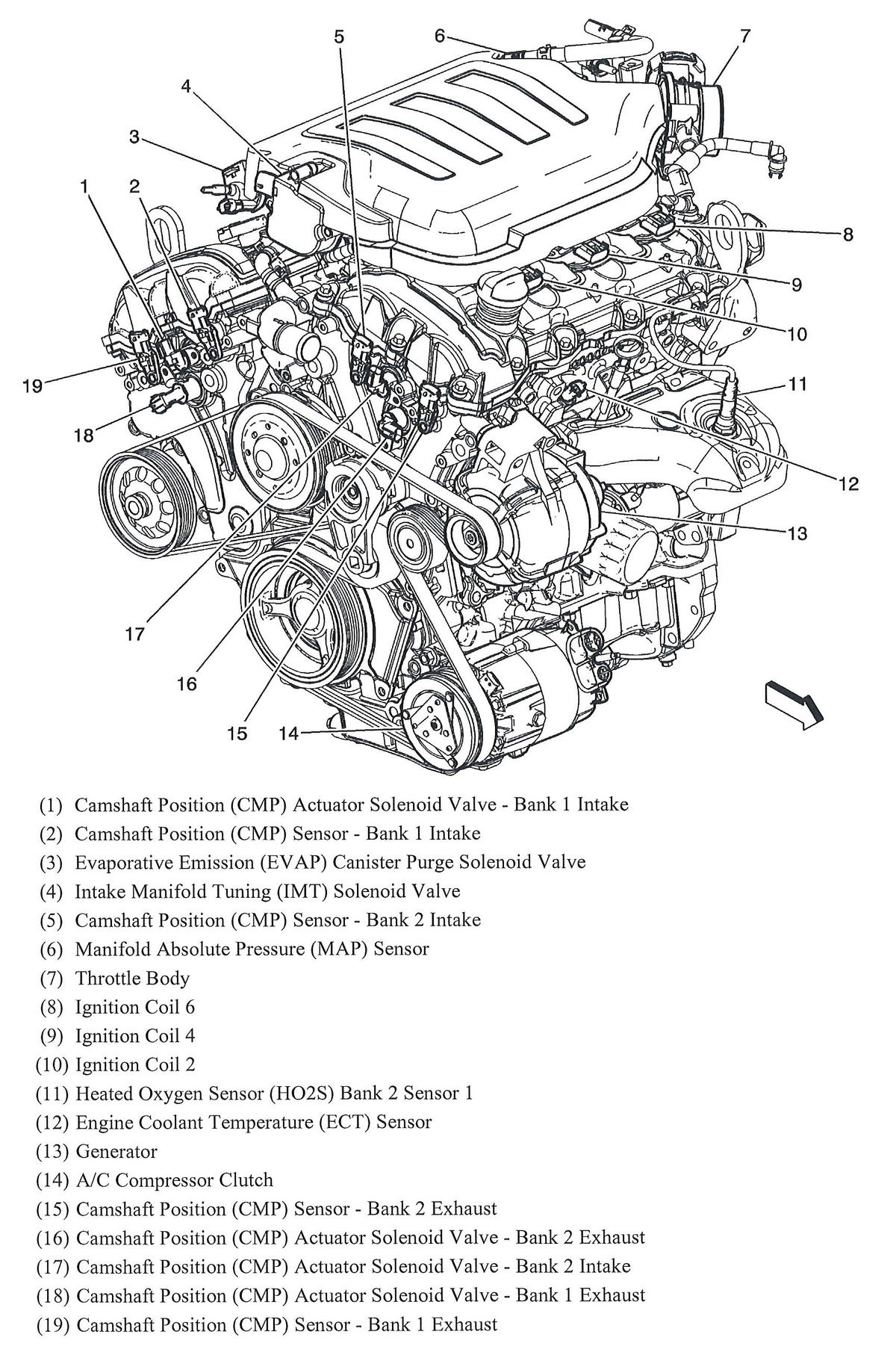

Fig 58: Front & Left Side Of Engine (3.6L)

G00470260

Courtesy of GENERAL MOTORS CORP.

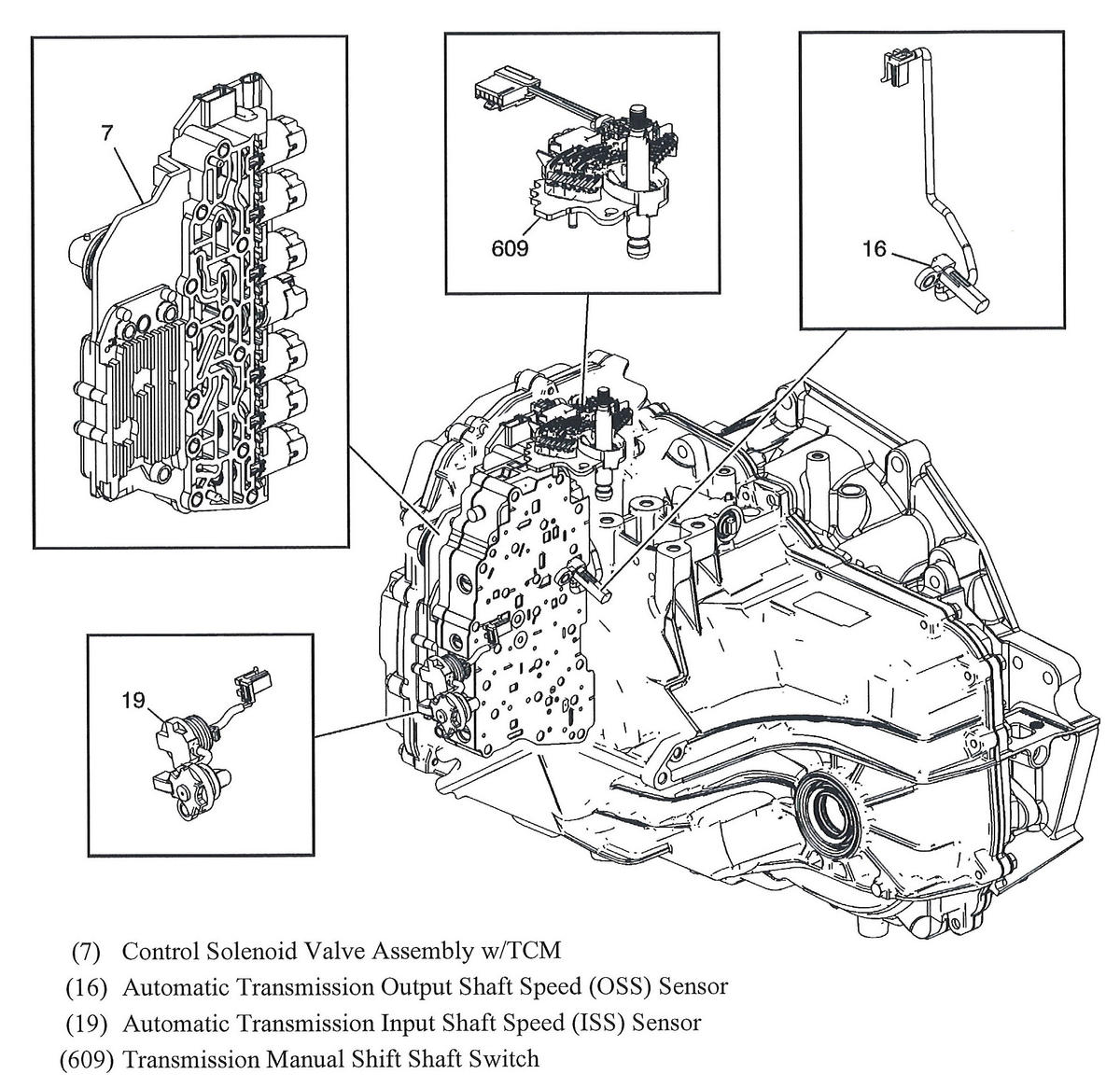

Fig 59: Automatic Transmission (6 Speed)

G00470270

Courtesy of GENERAL MOTORS CORP.

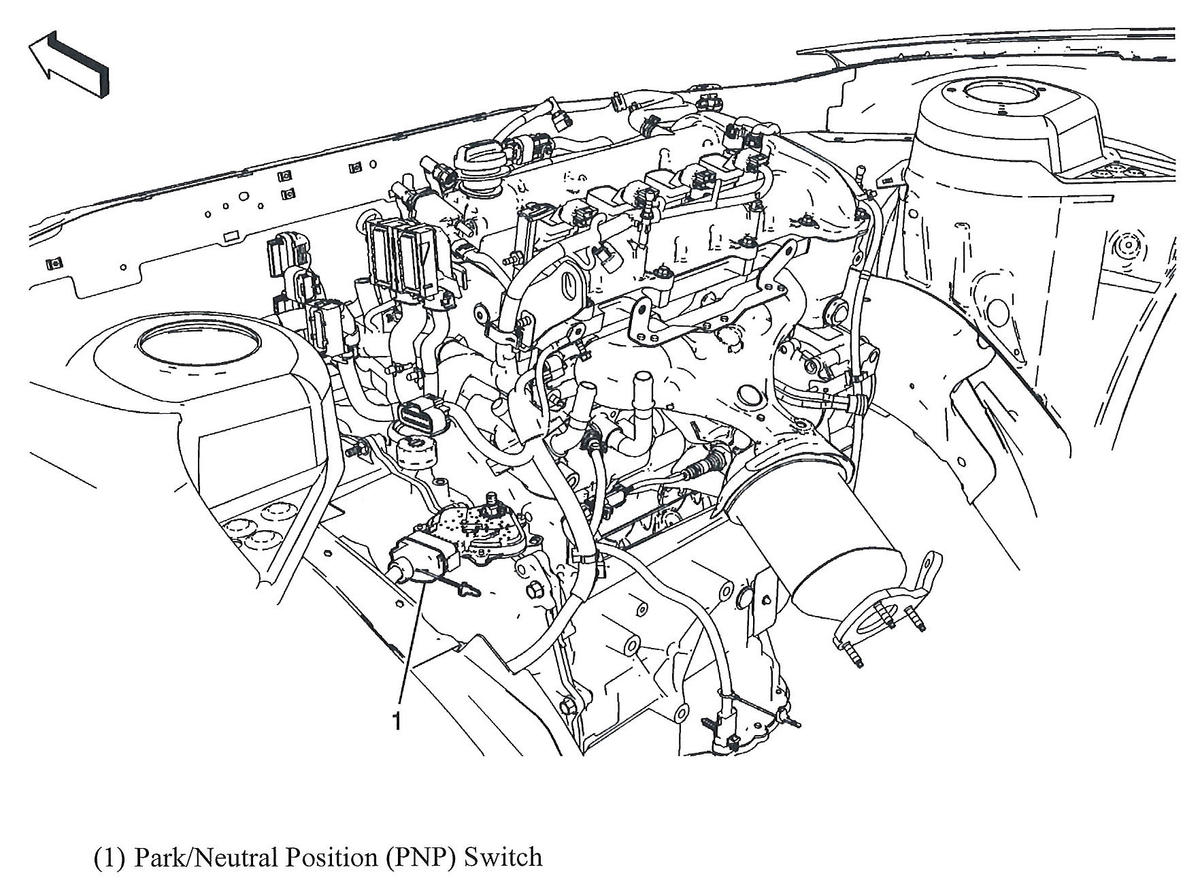

Fig 60: Left Rear Of Engine Compartment

G00470271

Courtesy of GENERAL MOTORS CORP.

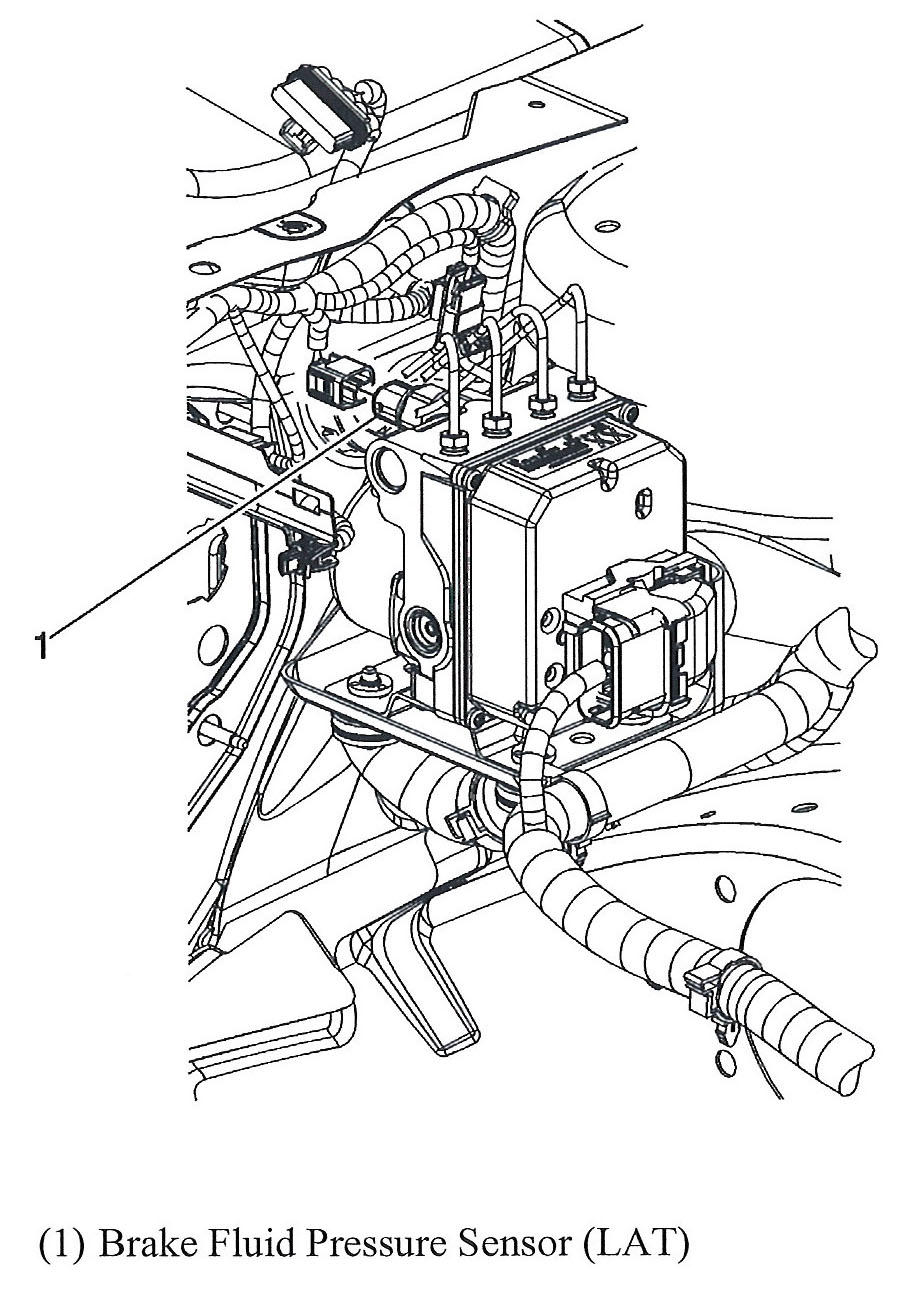

Fig 61: Left Rear Of Engine Compartment

G00470278

Courtesy of GENERAL MOTORS CORP.

Fig 62: Left Kick Panel

G00470287

Courtesy of GENERAL MOTORS CORP.

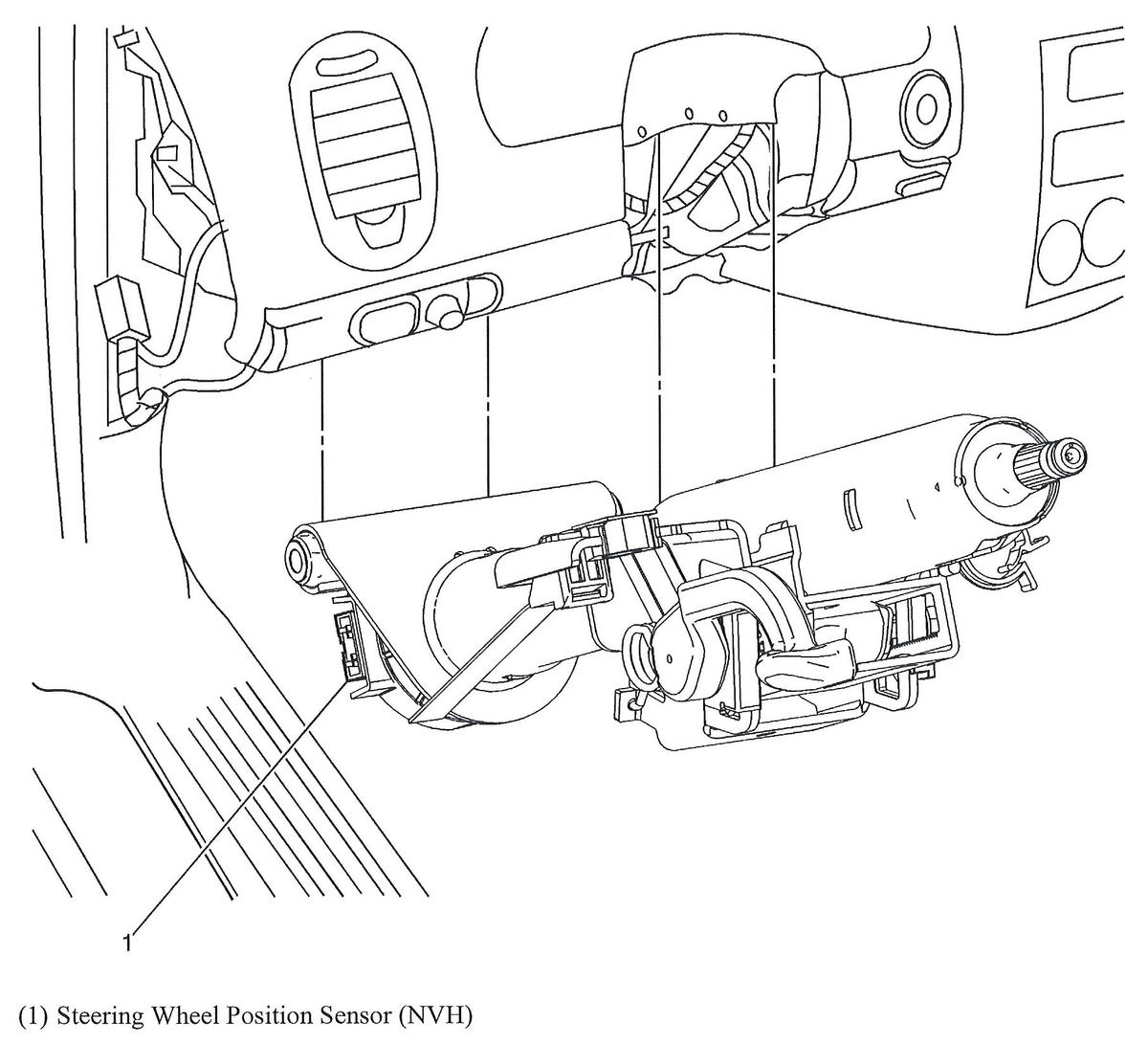

Fig 63: Steering Column

G00470288

Courtesy of GENERAL MOTORS CORP.

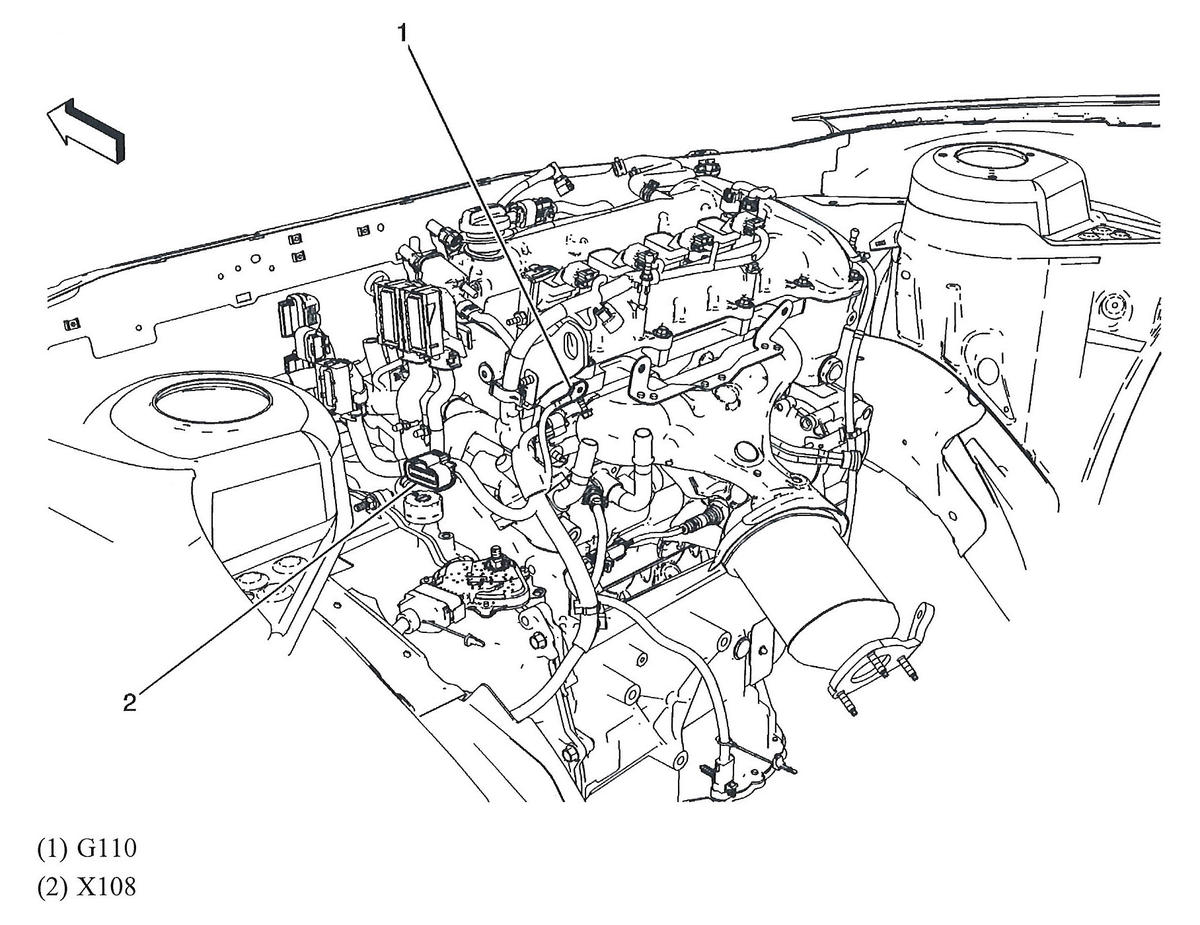

Fig 64: Engine Compartment (2.4L BAS)

G00470305

Courtesy of GENERAL MOTORS CORP.

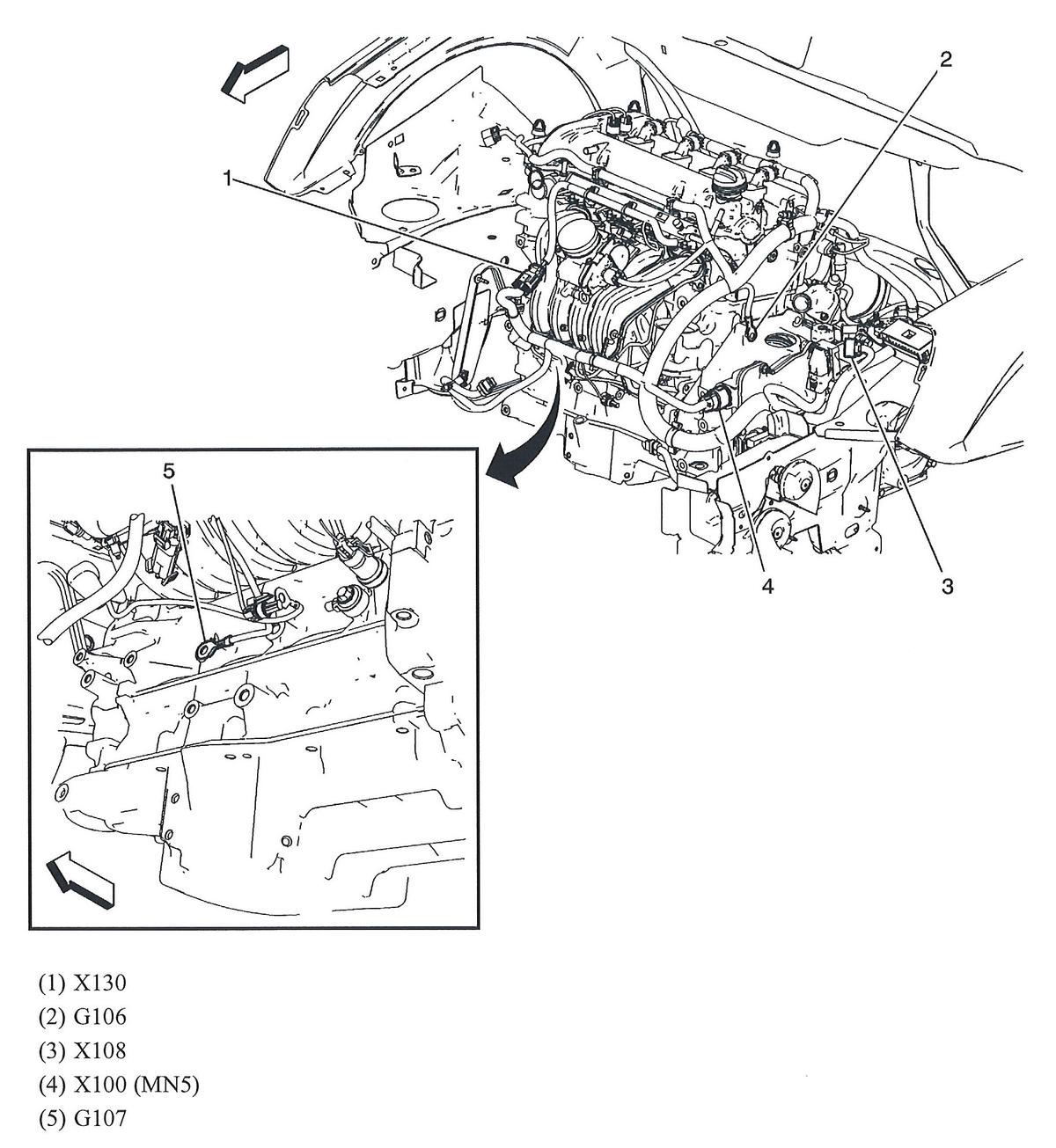

Fig 65: Engine (2.4L HO)

G00470311

Courtesy of GENERAL MOTORS CORP.

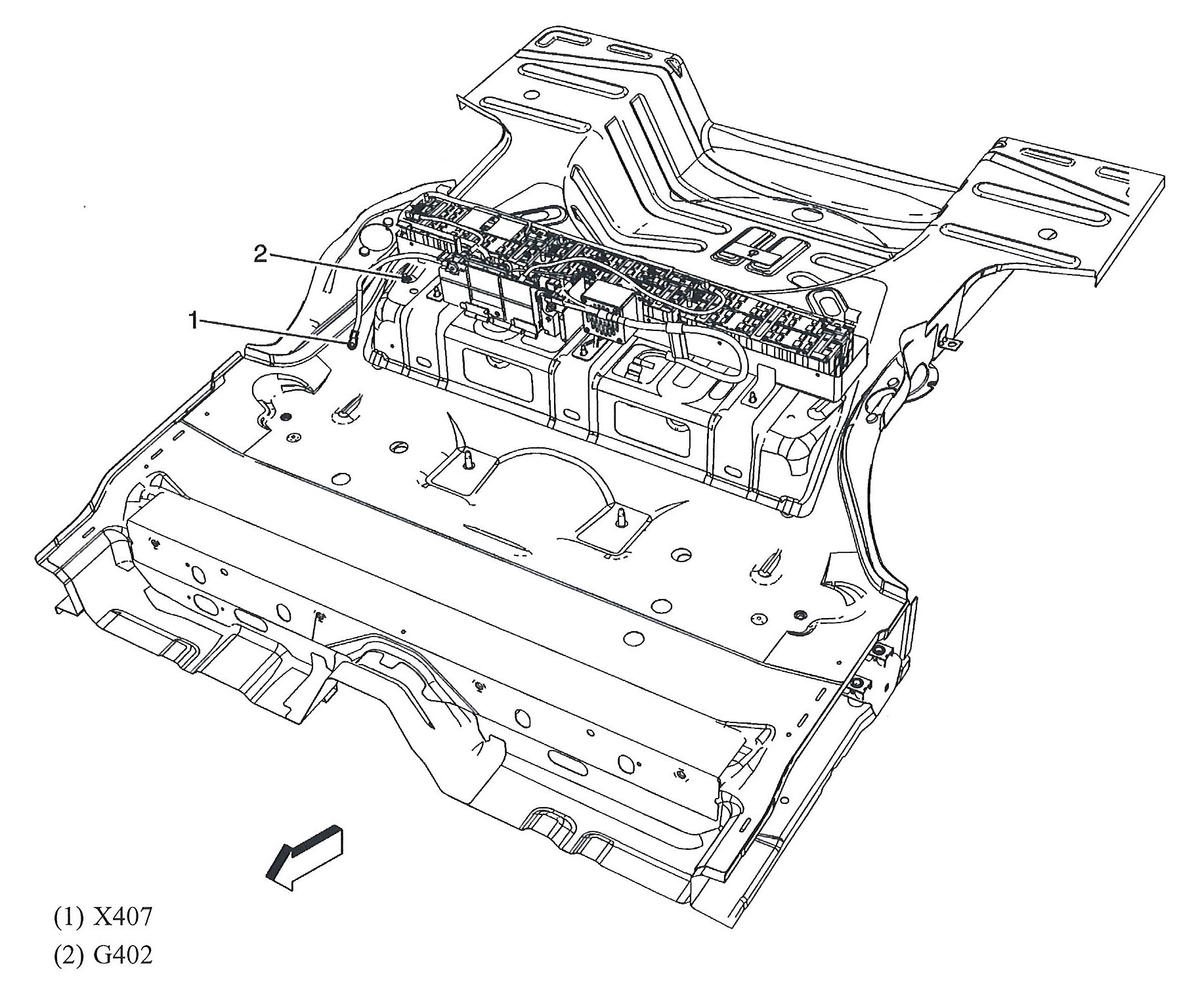

Fig 66: Hybrid Battery Storage Compartment

G00470321

Courtesy of GENERAL MOTORS CORP.

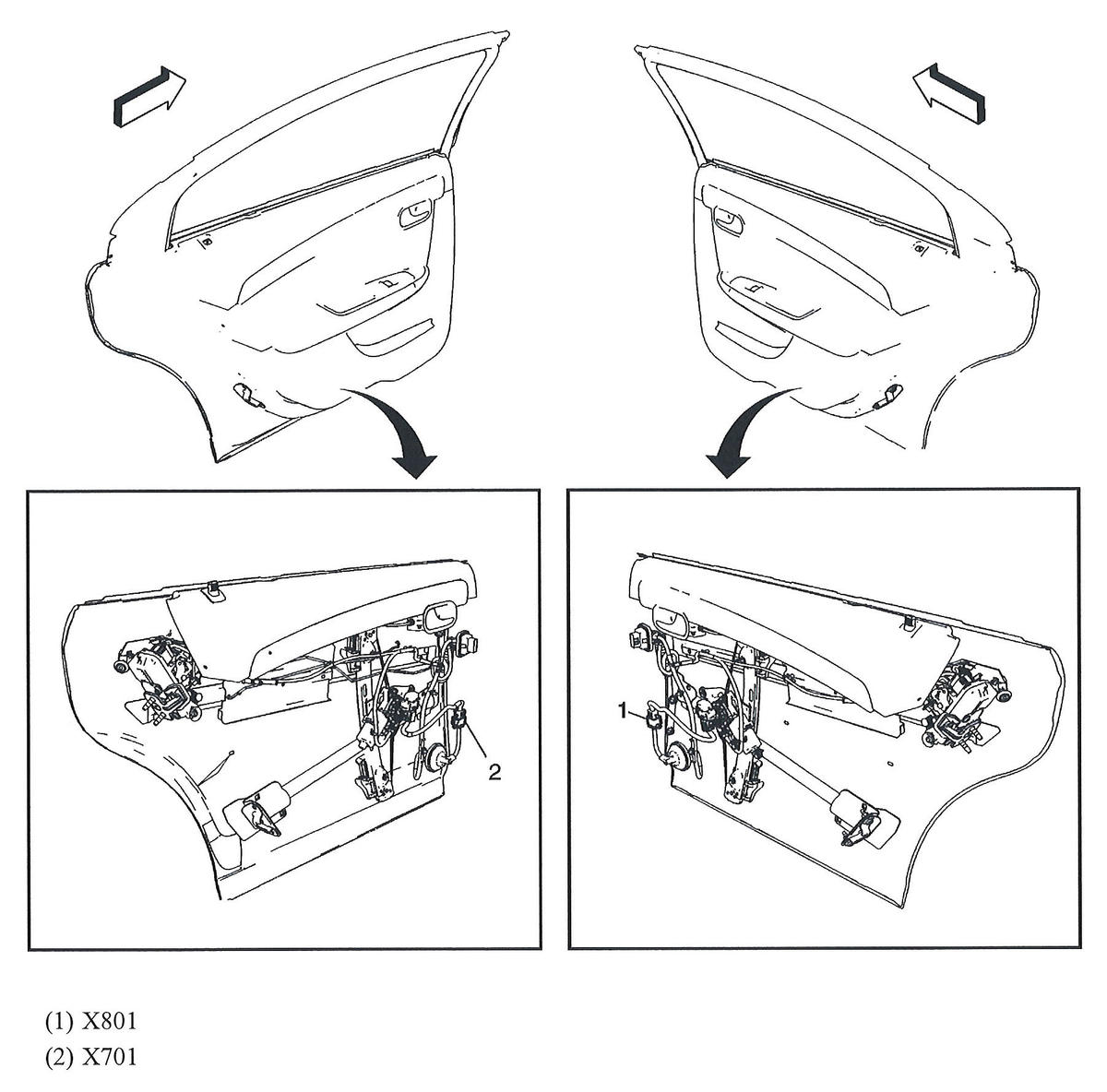

Fig 67: Rear Doors

G00470322

Courtesy of GENERAL MOTORS CORP.

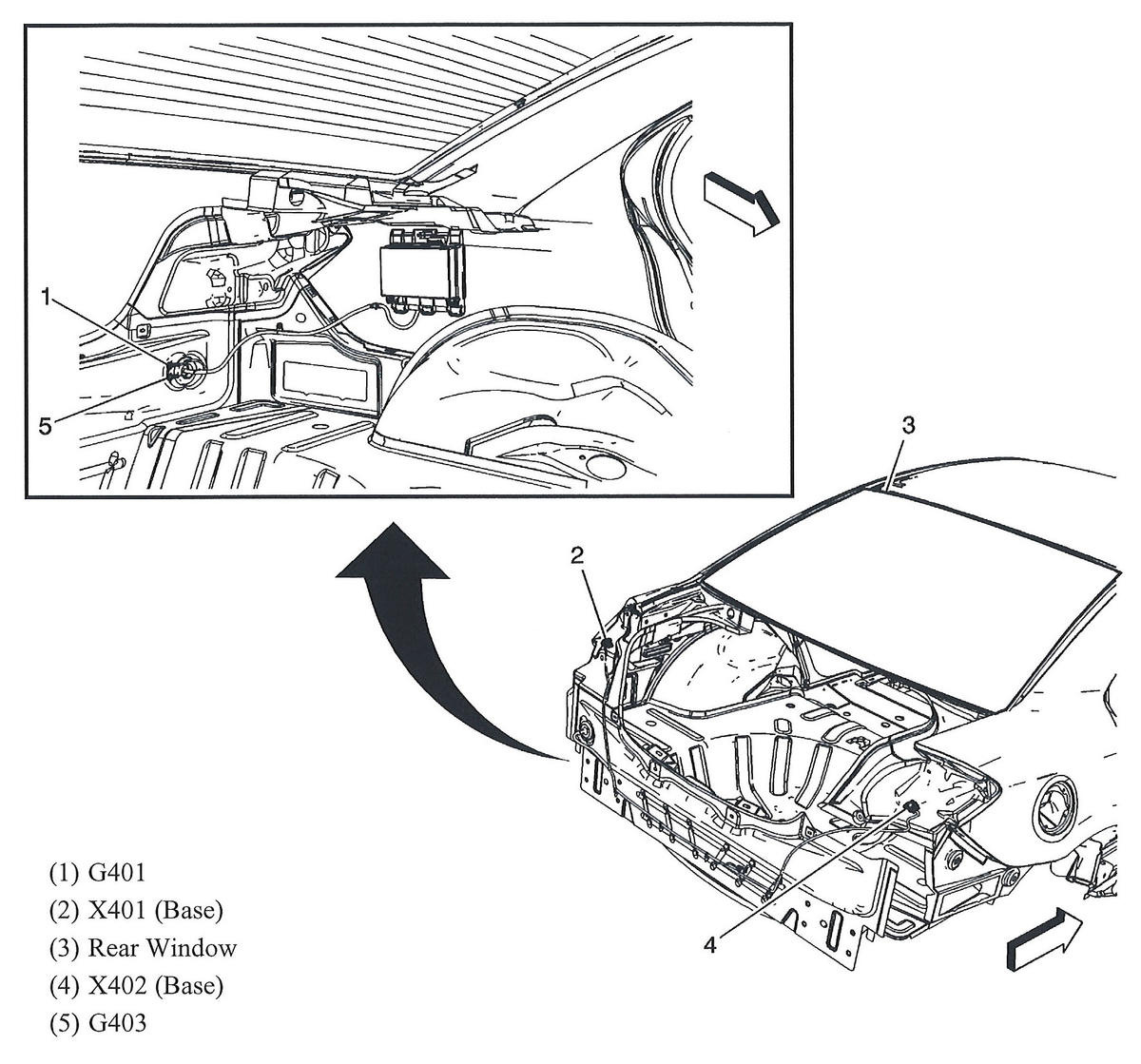

Fig 68: Trunk

G00470325

Courtesy of GENERAL MOTORS CORP.
