Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

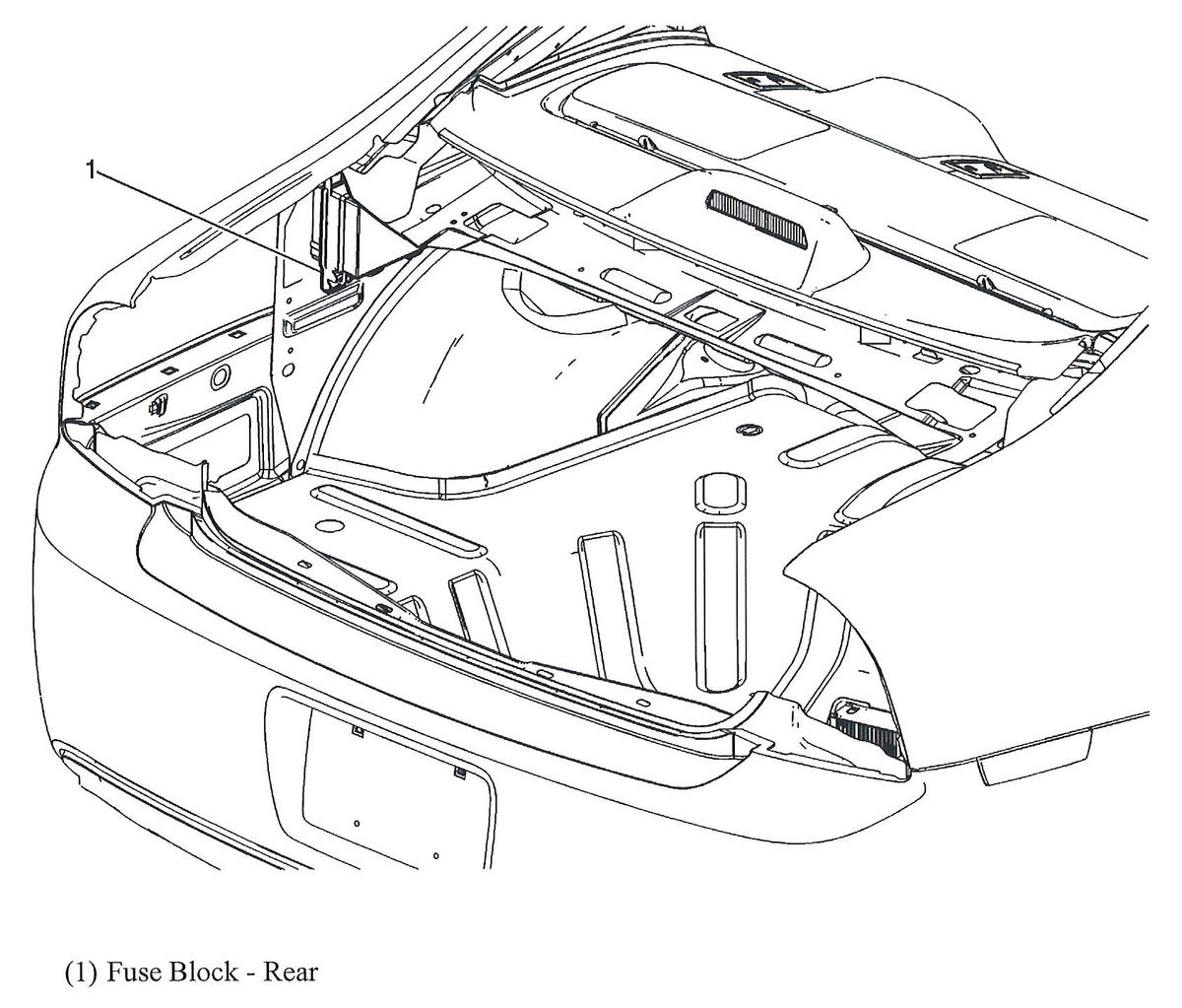

Fuse Block - Rear Left side of trunk. See Figure.

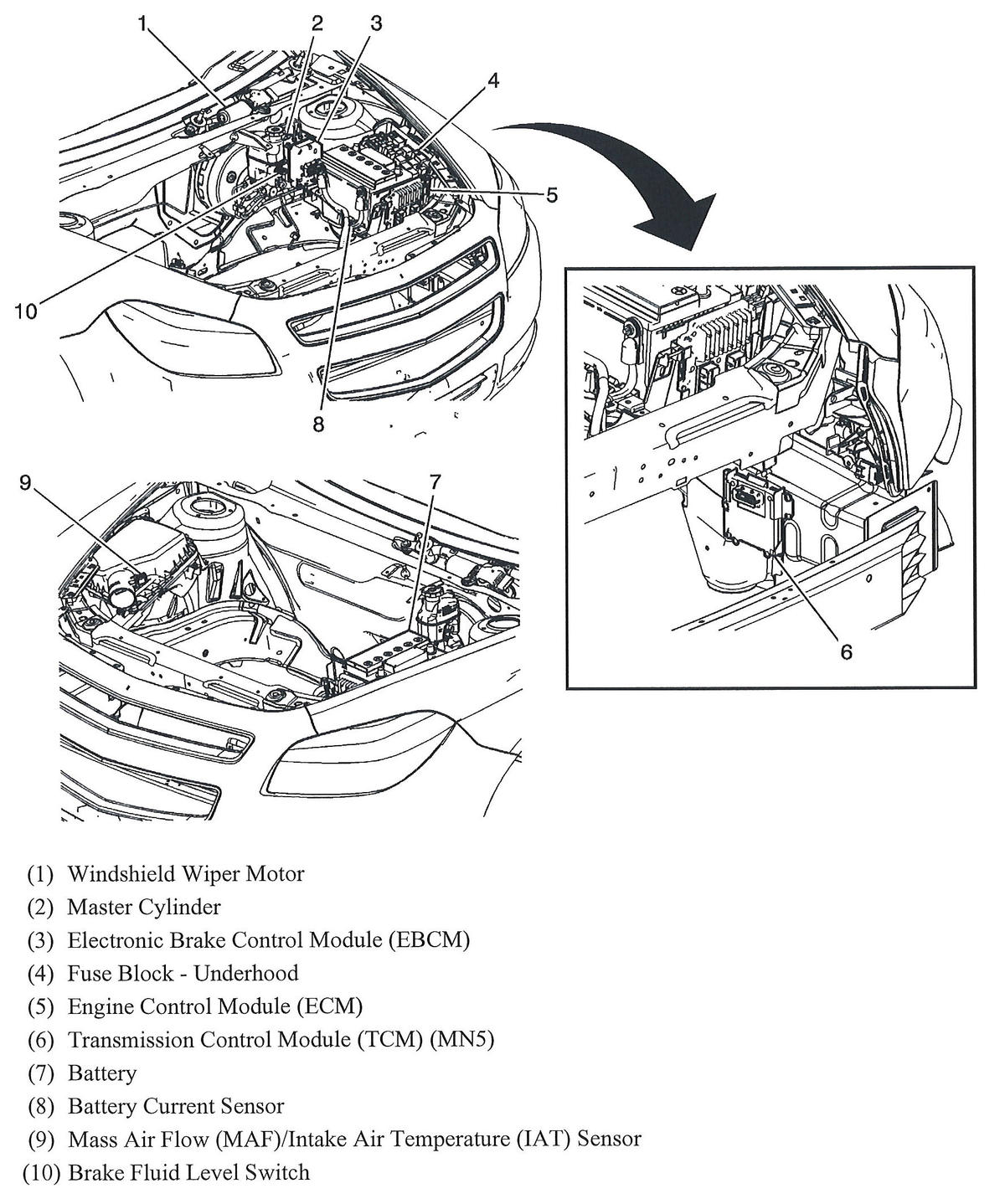

Fuse Block - Underhood (2.4L HO, 3.5L, 3.6L) Left side of engine compartment. See Figure.

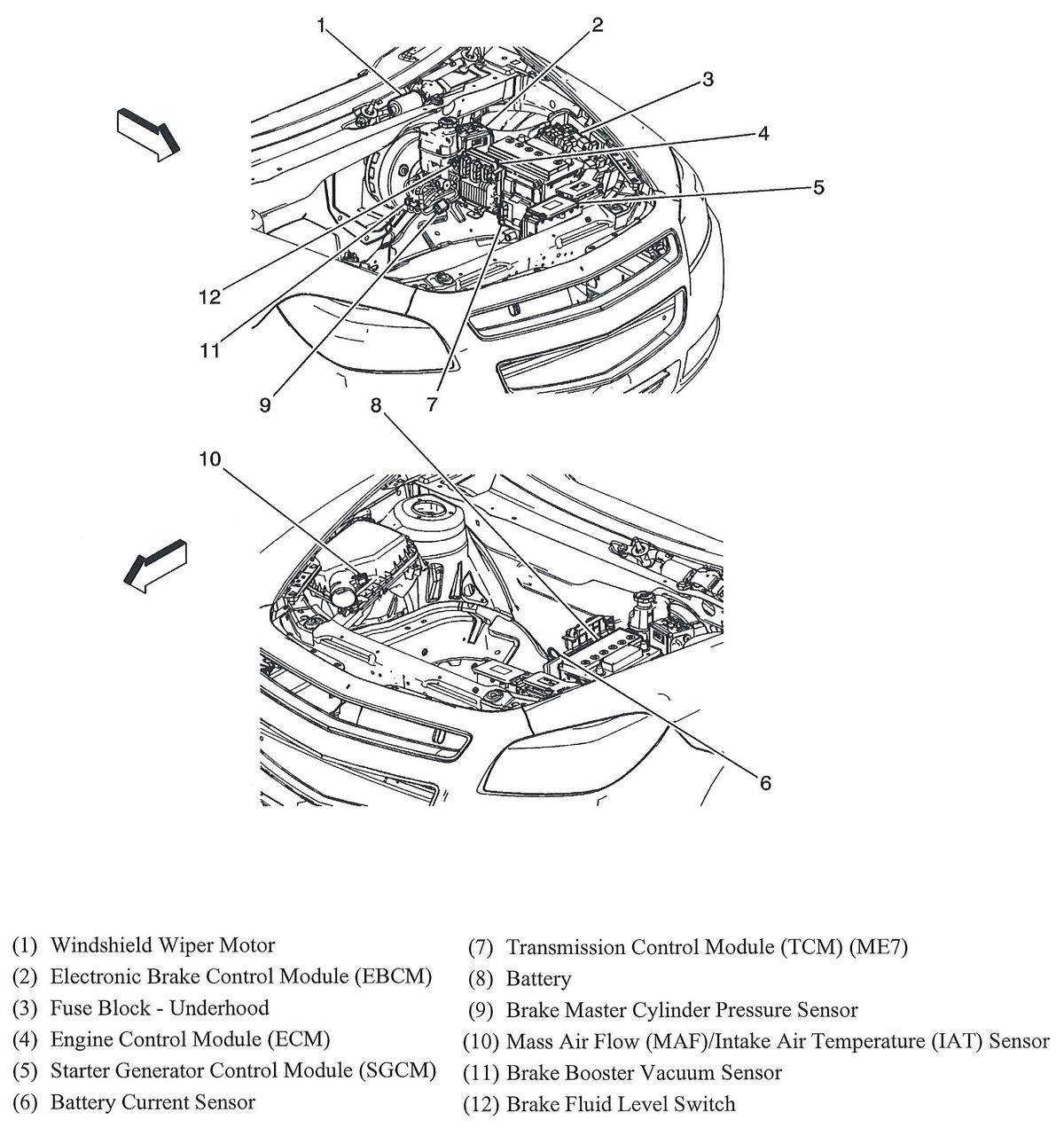

Fuse Block - Underhood (2.4L Hybrid) Left side of engine compartment. See Figure.
Fusible Link Lower left rear of engine.
