Removal Procedure

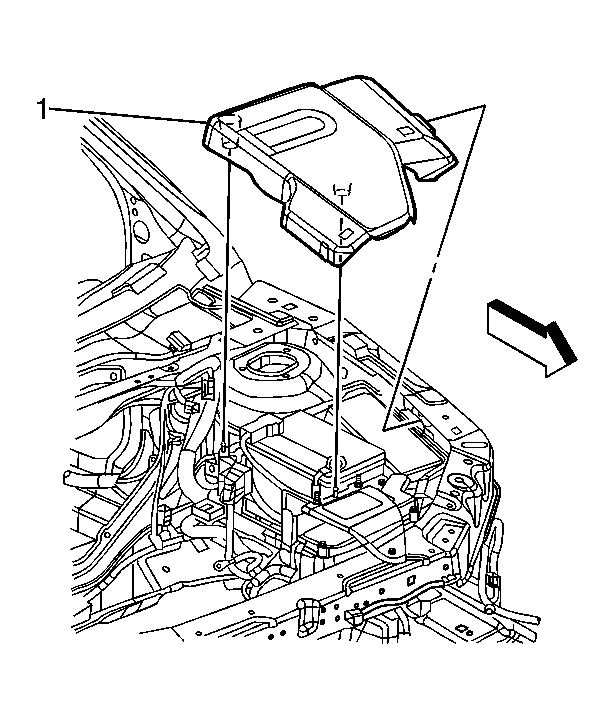

    Fig 1: View Of Generator Control Module Cover
    GM1891201Courtesy of GENERAL MOTORS CORP.
  1. Open the hood.
  2. Grasp the generator control module cover by the left side and lift up in order to disengage the cover from the ball studs.
  3. Remove the generator control module cover tab from the battery tray slot.
  4. Remove the generator control module cover (1).
