Generator Control Module Bracket Reinforcement Replacement

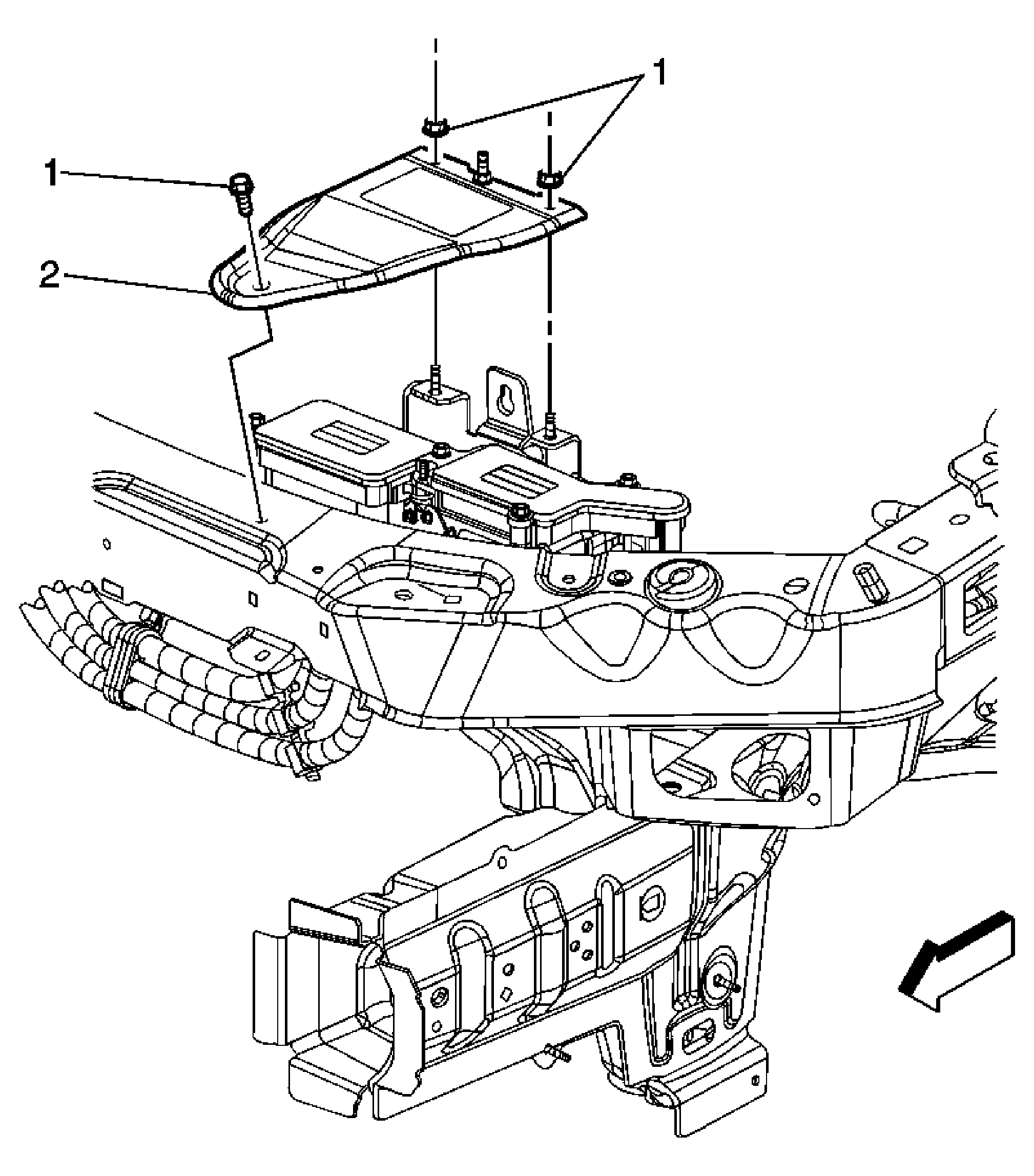

Fig 1: View of Generator Control Module Bracket Reinforcement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the generator control module cover. Refer to Generator Control Module Cover Replacement
1	Generator Control Module Bracket Reinforcement Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m(89 lb in).
2	Generator Control Module Bracket Reinforcement
