Body Control System Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

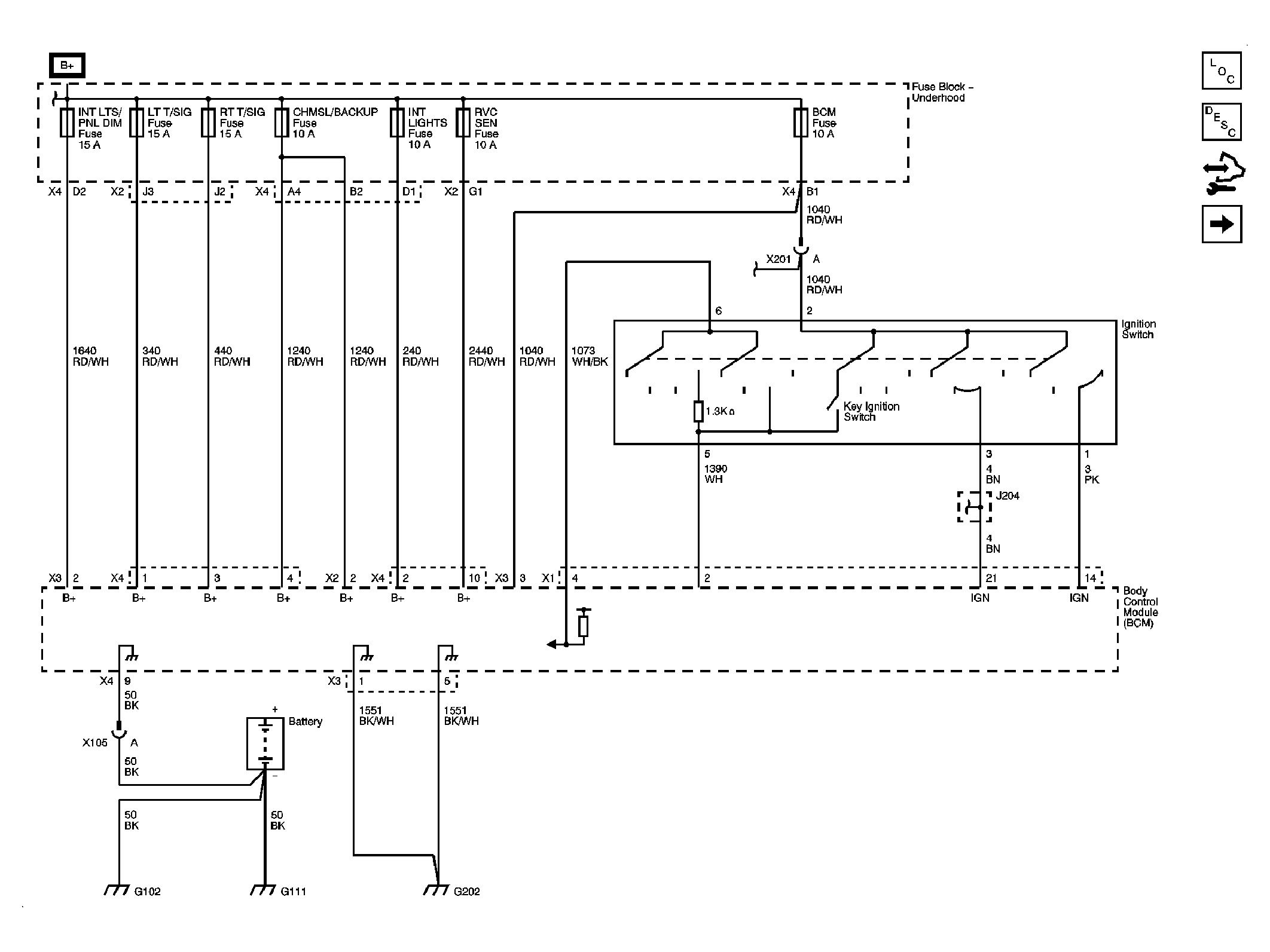

Fig 1: Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

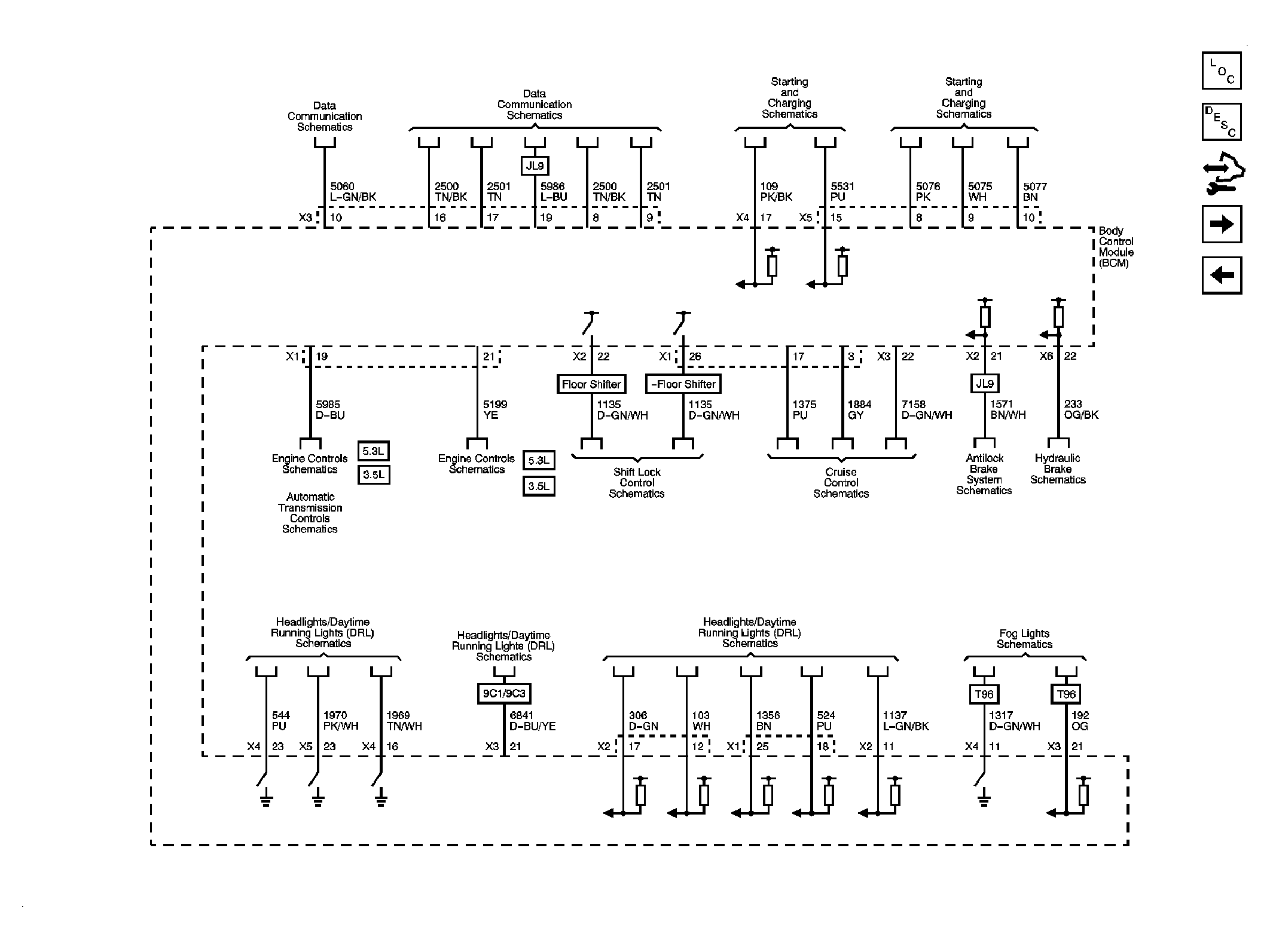

Fig 2: Data Link, Starting and Charging, Engine Controls, AT Shift Lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL, and Fog Lights References Schematic

Courtesy of GENERAL MOTORS CORP.

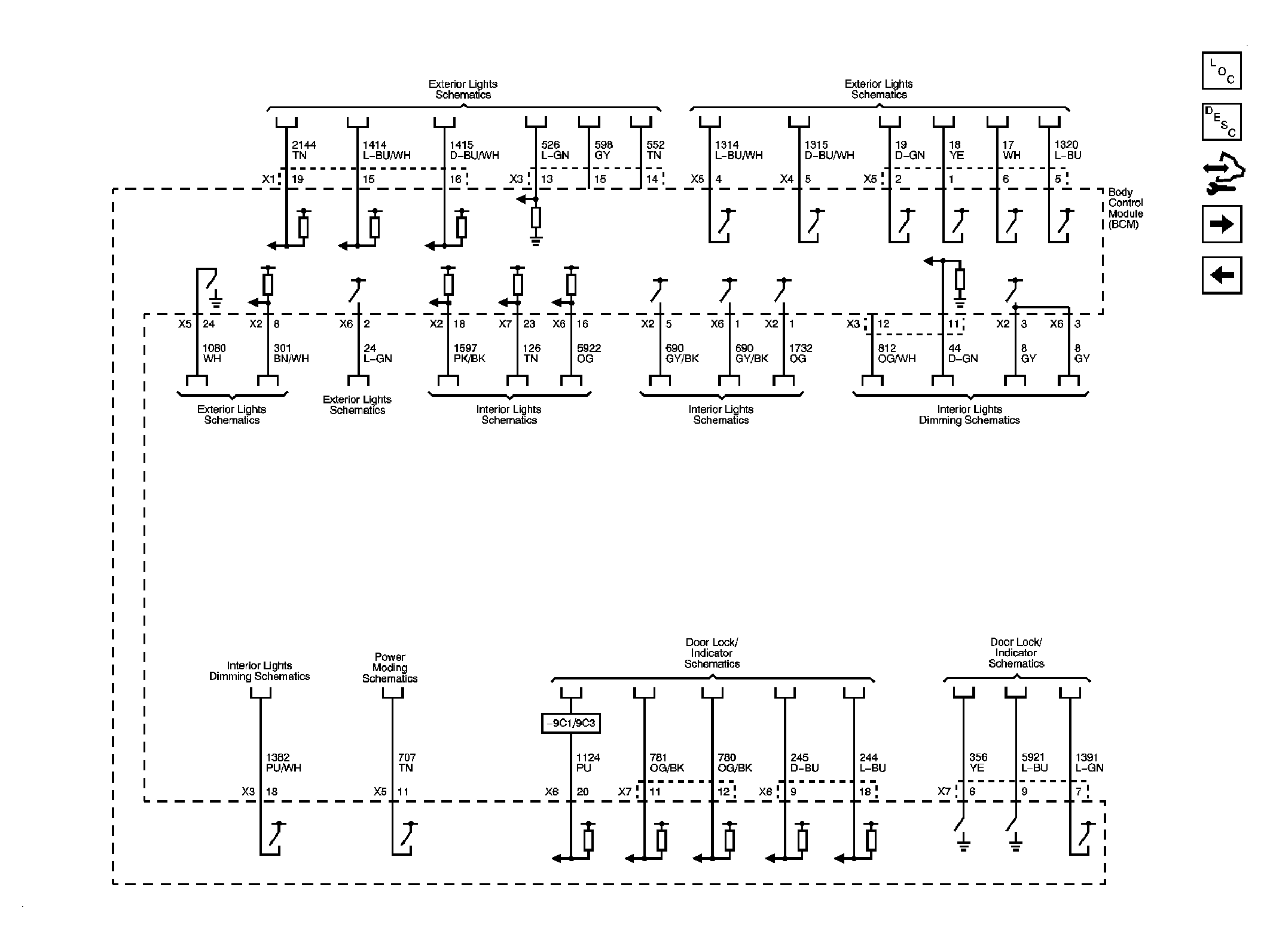

Fig 3: Exterior Lights, Interior Lights, Interior Lights Dimming, Power Moding, and Door Lock/Indicator References Schematic

Courtesy of GENERAL MOTORS CORP.

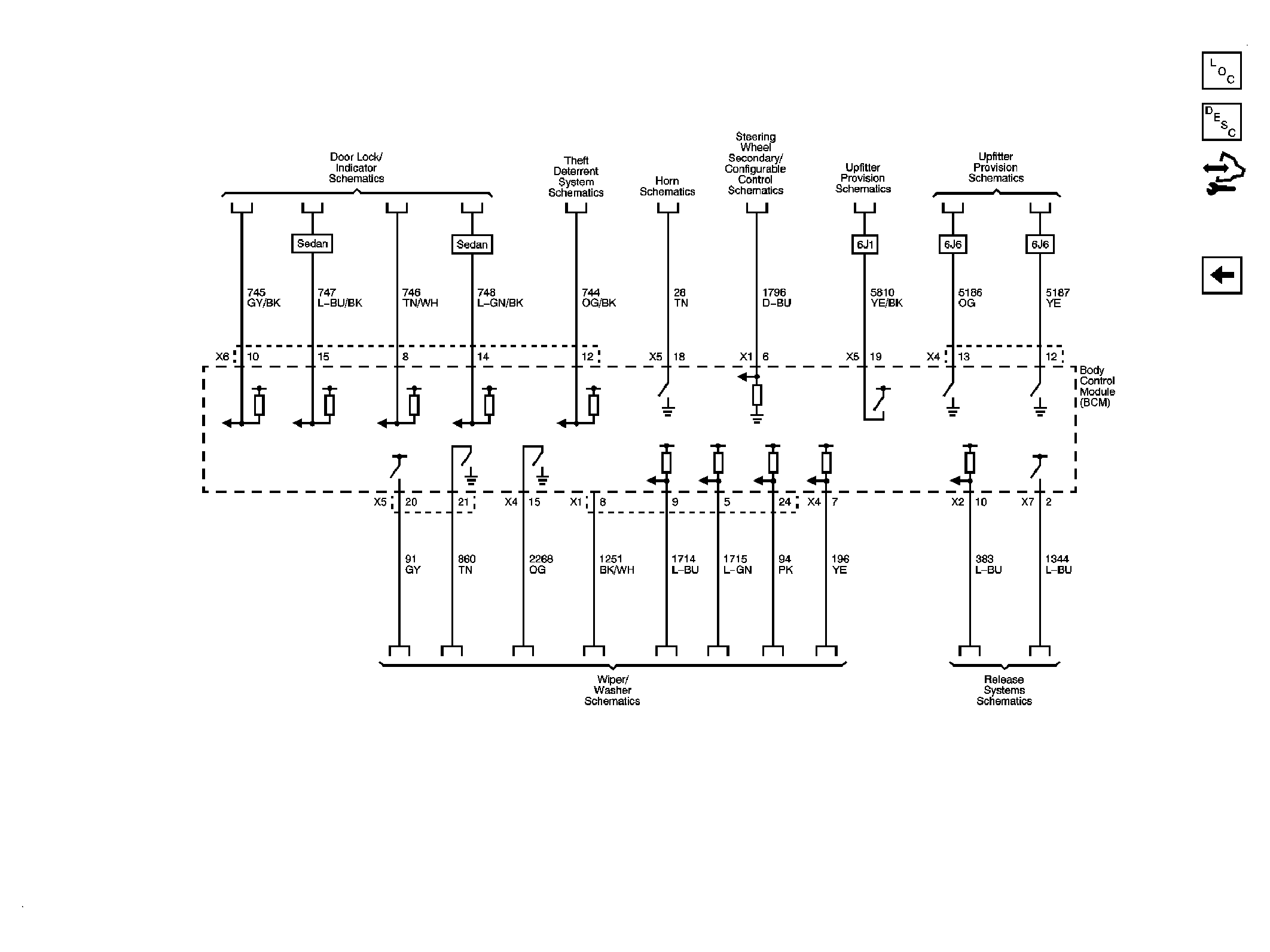

Fig 4: Door Lock/Indicator Cont, Theft Deterrent, Horns, Steering Wheel, Upfitter Provisions, Wiper/Washer, and Release System References Schematic

Courtesy of GENERAL MOTORS CORP.
