WARNING: This page is about a different car, the 2008 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power, Ground, and Brake Pressure Modulator Valves Schematic
Courtesy of GENERAL MOTORS CORP.

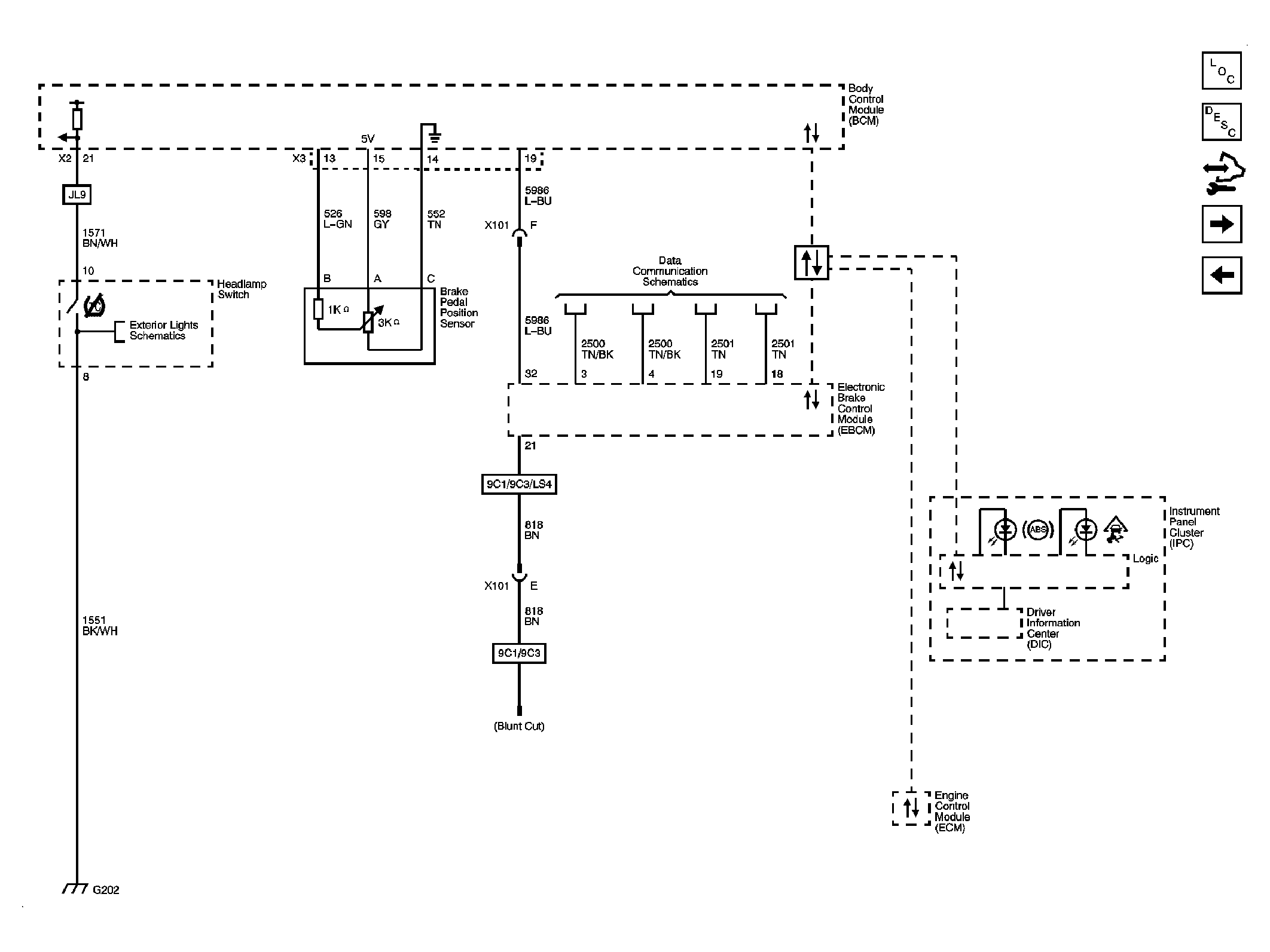

Fig 2: Indicators, ABS, and Traction Control Schematic
