Speaker Replacement - Front Lower

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

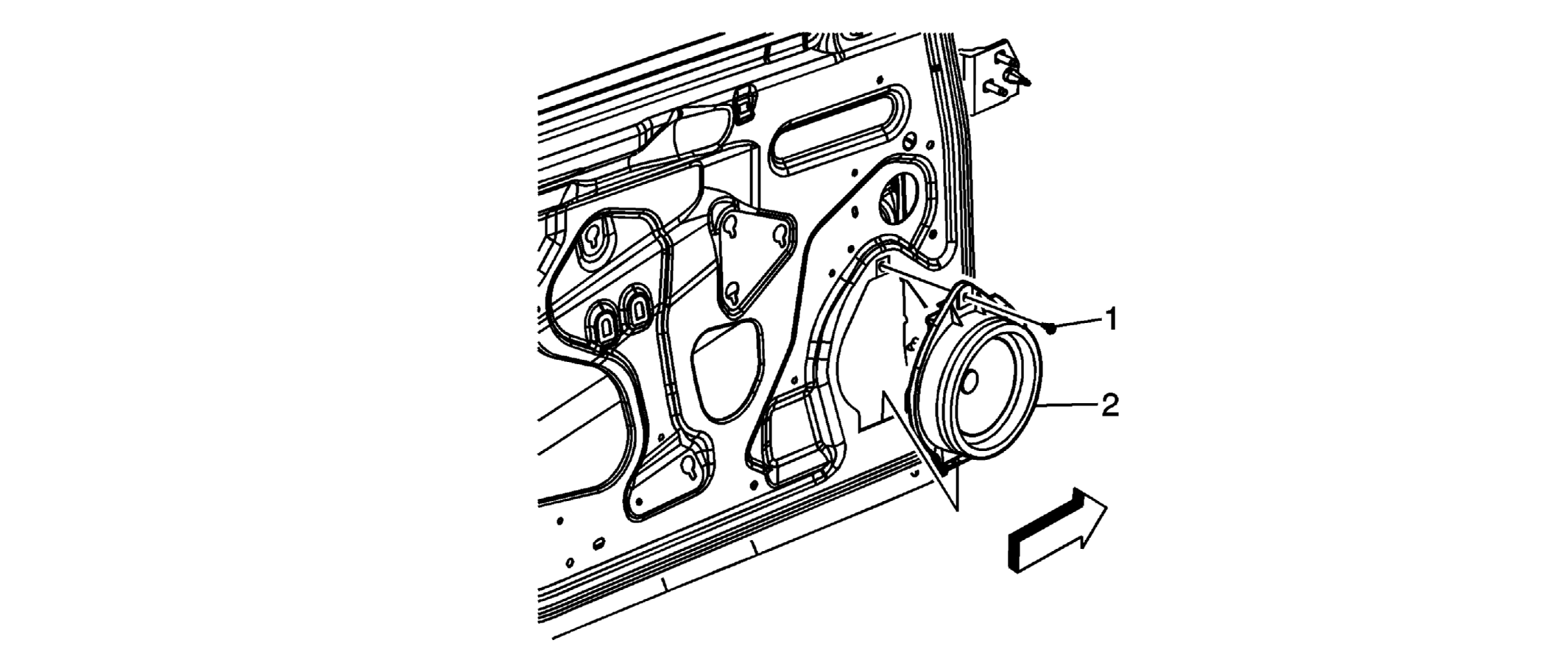

Fig 1: Removing/Installing Radio Front Side Door Lower Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Bolt/Screw, Radio Front Side Door Speaker Housing Tighten: 2 N.m (18 lb in)
2	Speaker Assembly, Radio Front Side Door
