Interior Lights Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

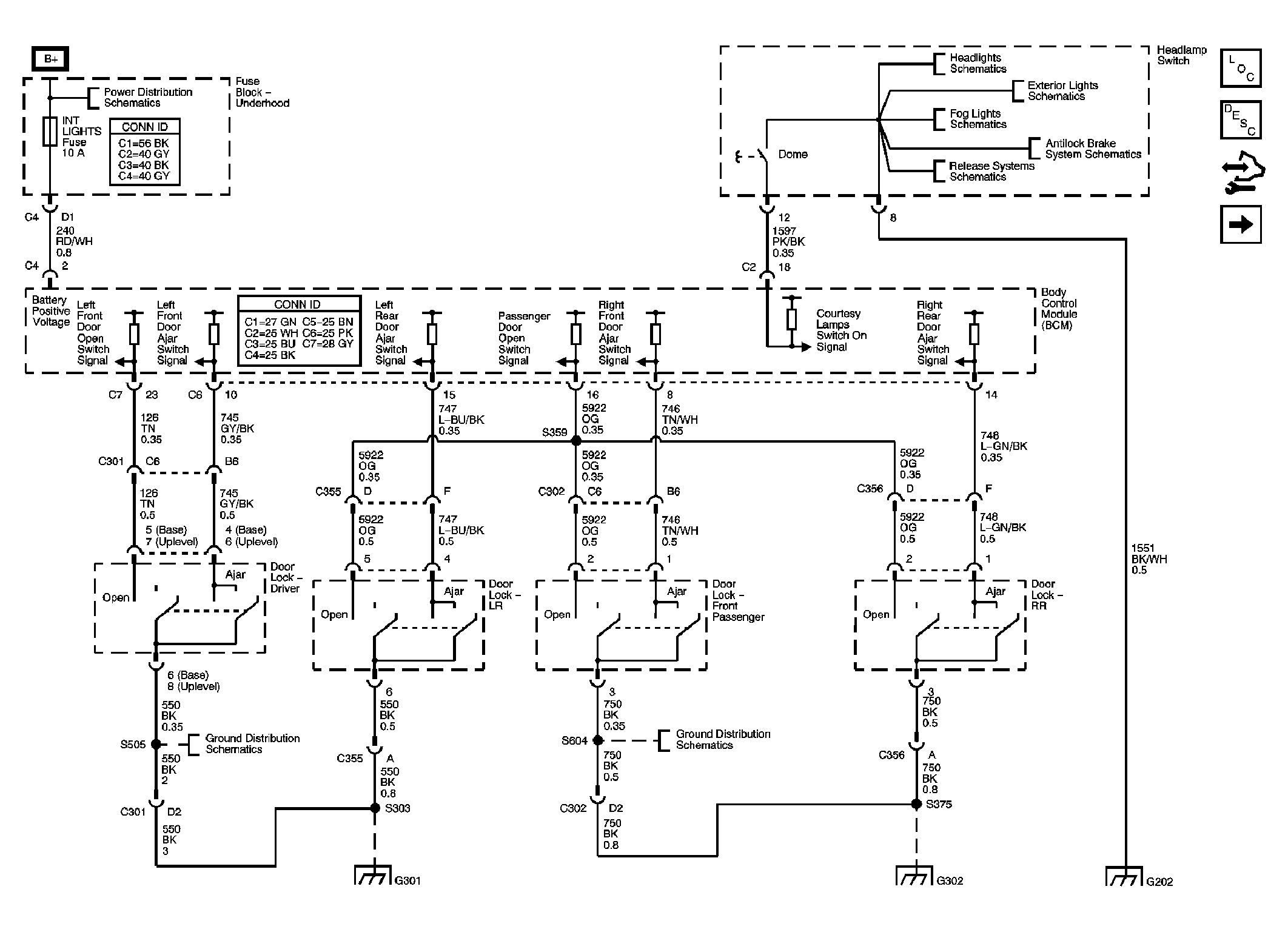

Fig 1: Switches (Sedan)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Switches (Coupe)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Passenger Compartment Lights

Courtesy of GENERAL MOTORS CORP.

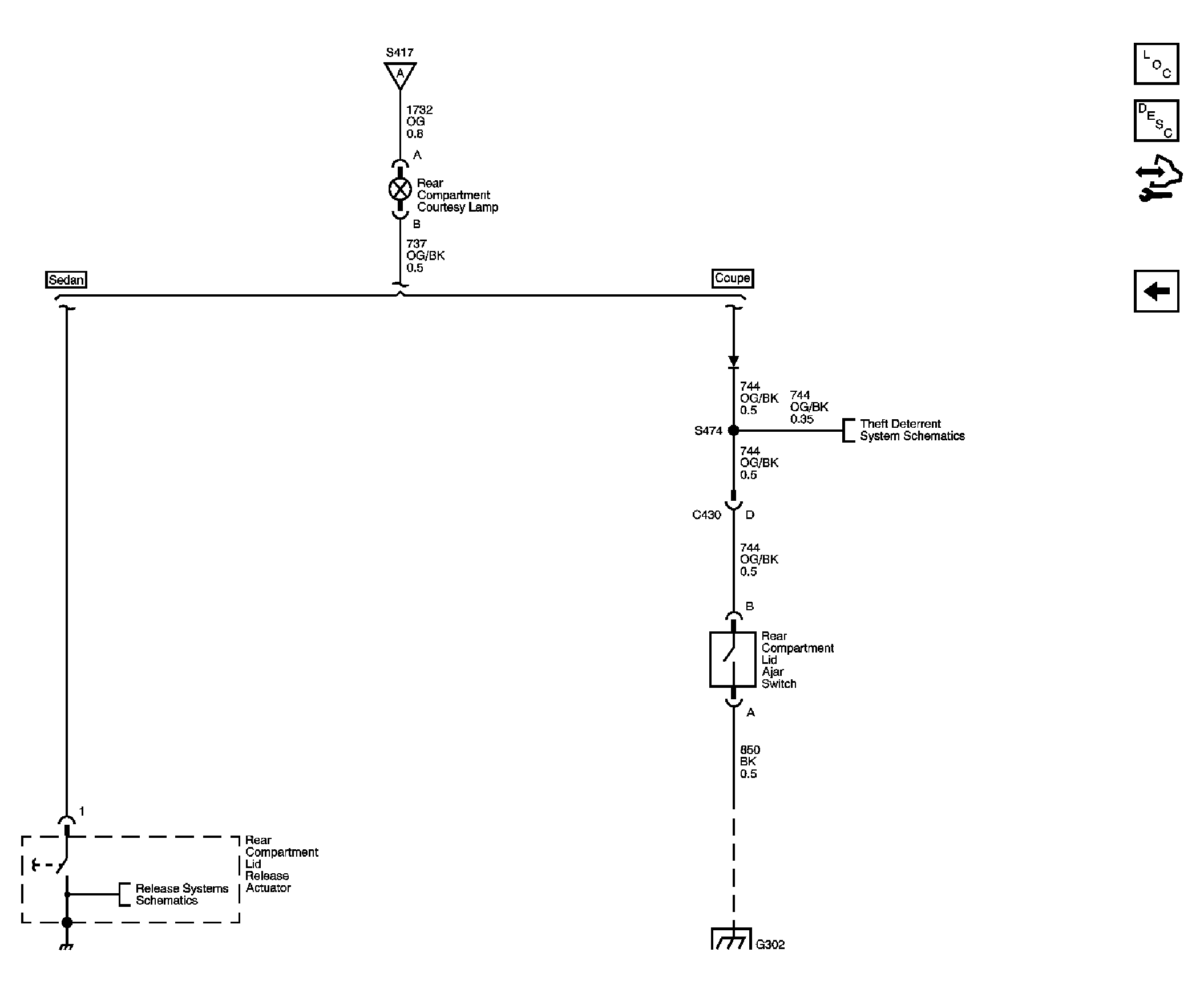

Fig 4: Rear Compartment Lights

Courtesy of GENERAL MOTORS CORP.
