Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. If you are replacing the sunroof sunshade, transfer the 4 sunshade guides from the original sunshade to the new part.
  2. When installing the guides into the track assembly, lightly push down on the guide's top spring feature, allowing the guide to seat in the track.
    3. Fig 1: Identifying Sunshade Retainers
    GM766124Courtesy of GENERAL MOTORS CORP.
  3. From the top of the vehicle, install the sunshade and the sunshade guides into the track assembly on the far side.
  4. Carefully arch the sunshade upward at the center of the rearward edge.
  5. Lift upward on the rearward edge of the sunshade until the rear sunshade guide can be positioned and seated into the track assembly.

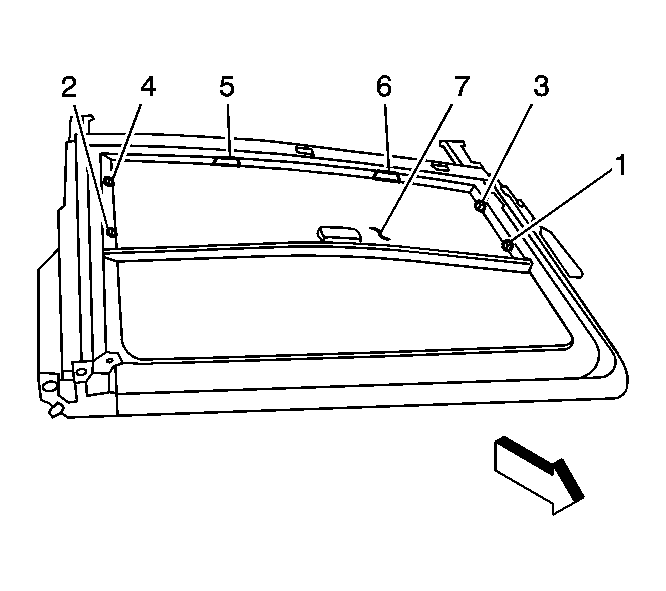

    6. Fig 2: Arching Sunshade Upward
    GM1222463Courtesy of GENERAL MOTORS CORP.
  6. Slightly rotate the sunshade forward. Carefully arch the sunshade upward at the center of the forward edge.
  7. Lift upward on the forward edge of the sunshade until the front sunshade guide can be positioned and seated into the track assembly.
  8. Inspect the sunshade for proper operation.
  9. Close the sunroof window.
