Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

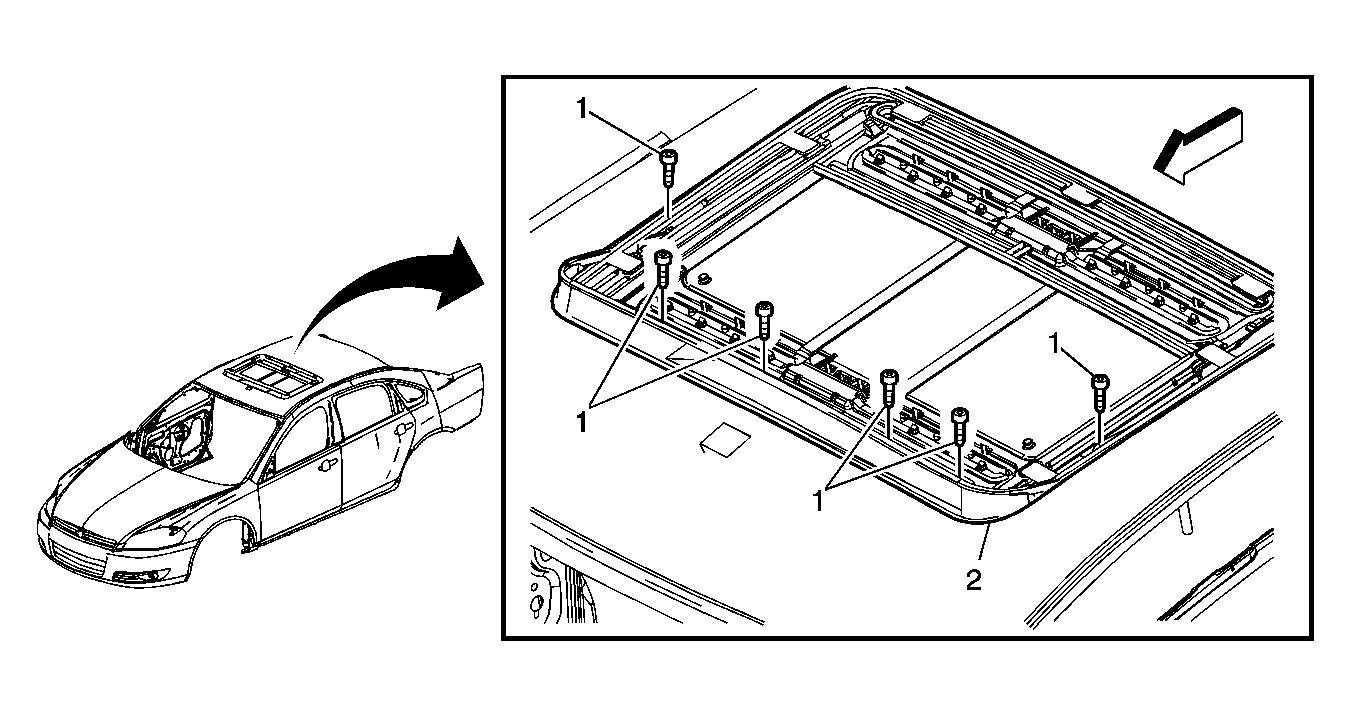

Fig 1: Replacing Sunroof Air Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement Power the sunroof window tracks to the full rear position. Remove the actuators locator at the front of each window track.
1	Screws, Deflector Air (Qty: 6) Tighten: 3N.m (26 lb in)
2	Deflector, Air Tip: Sliding the air deflector rearward working from side to side to release it from the sunroof module.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the sunroof window. Refer to Sunroof Window Replacement
Power the sunroof window tracks to the full rear position.
Remove the actuators locator at the front of each window track.

Screws, Deflector Air (Qty: 6)

Tighten: 3N.m (26 lb in)

Deflector, Air
Tip: Sliding the air deflector rearward working from side to side to release it from the sunroof module.
