Fog Lights Schematics

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

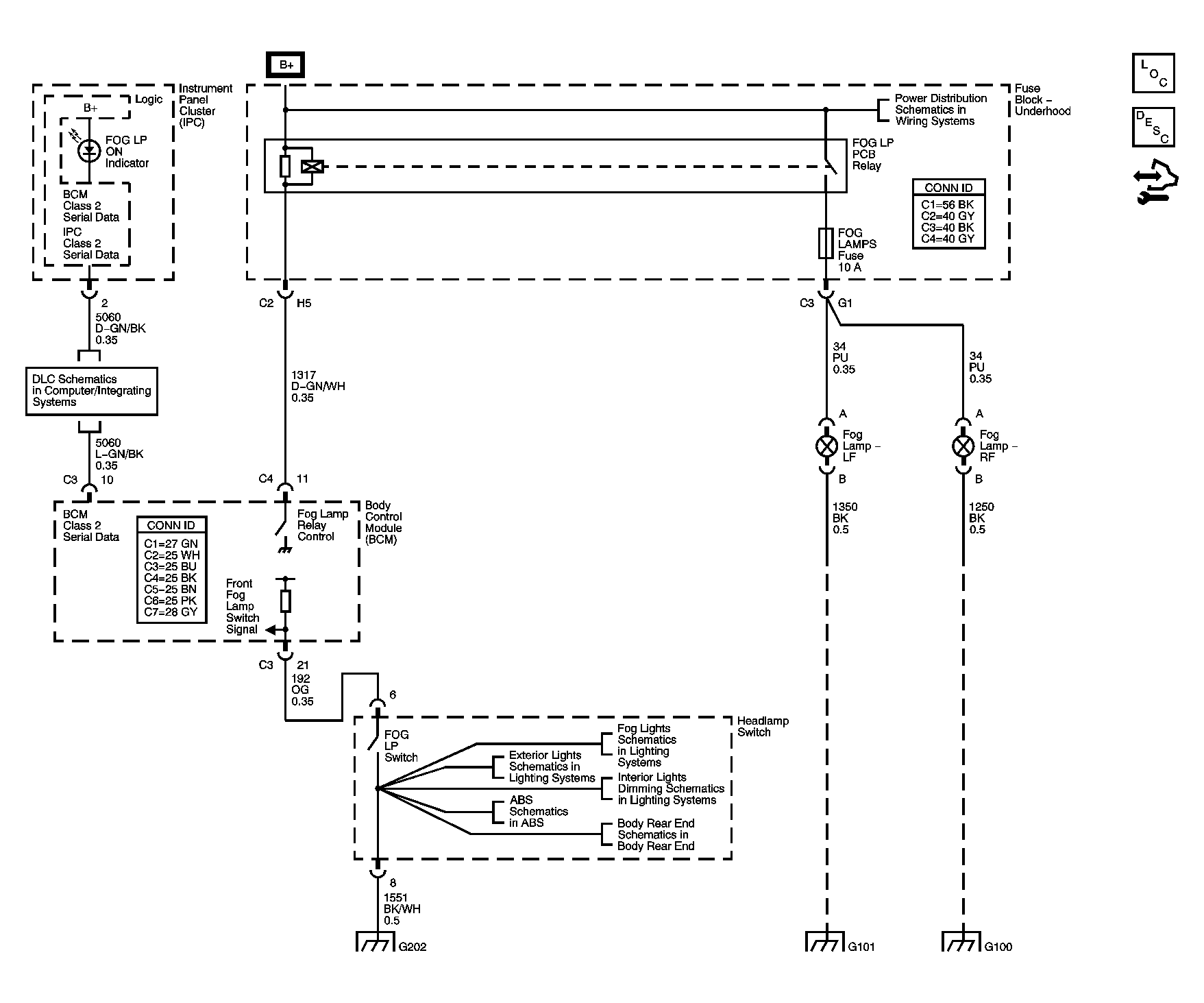

Fig 1: Fog Lights - Wiring Diagram
GM1657088Courtesy of GENERAL MOTORS CORP.
