Keyless Entry Wiring Schematics

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

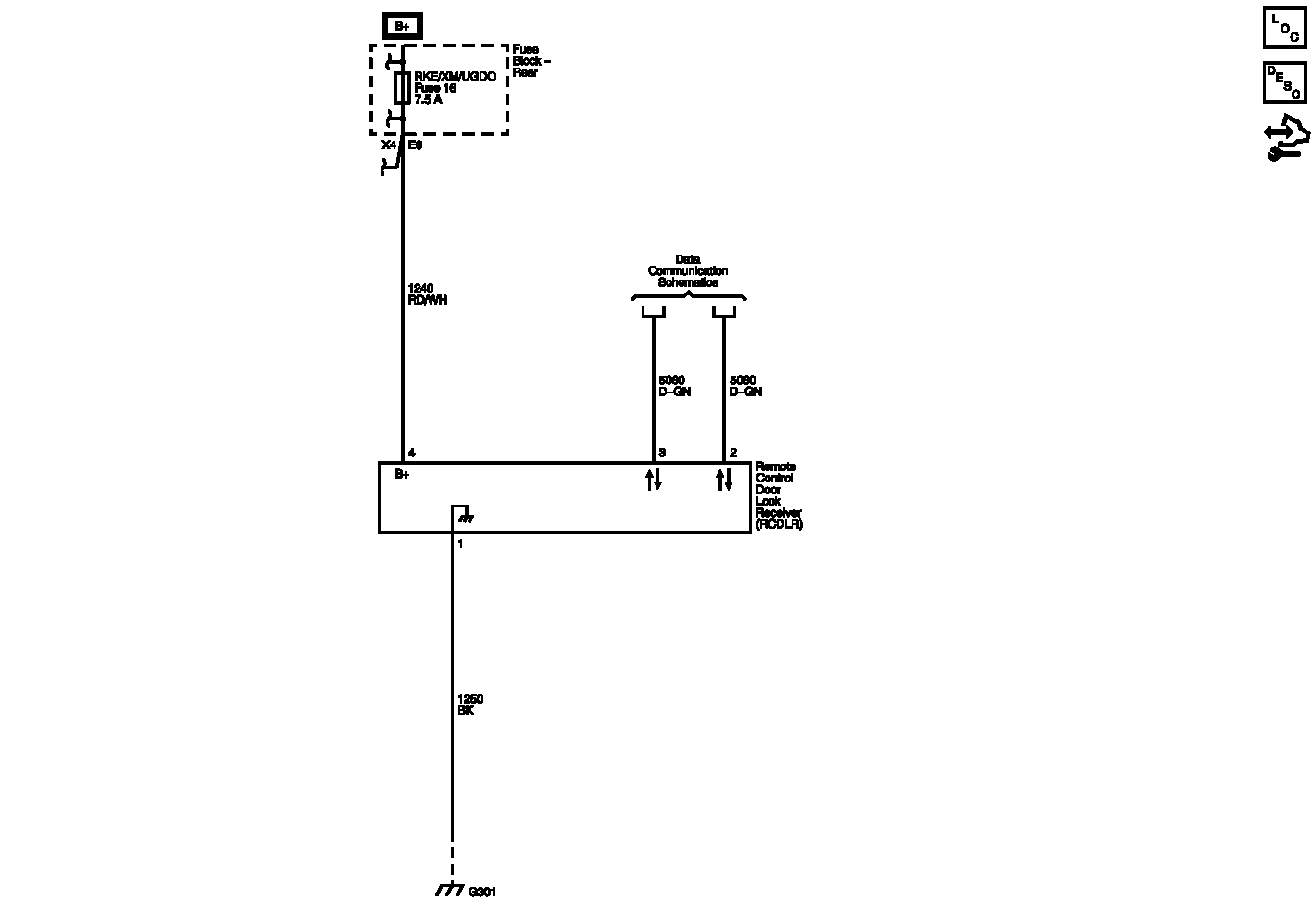

Fig 1: Keyless Entry Wiring Schematics
GM2582387Courtesy of GENERAL MOTORS COMPANY
