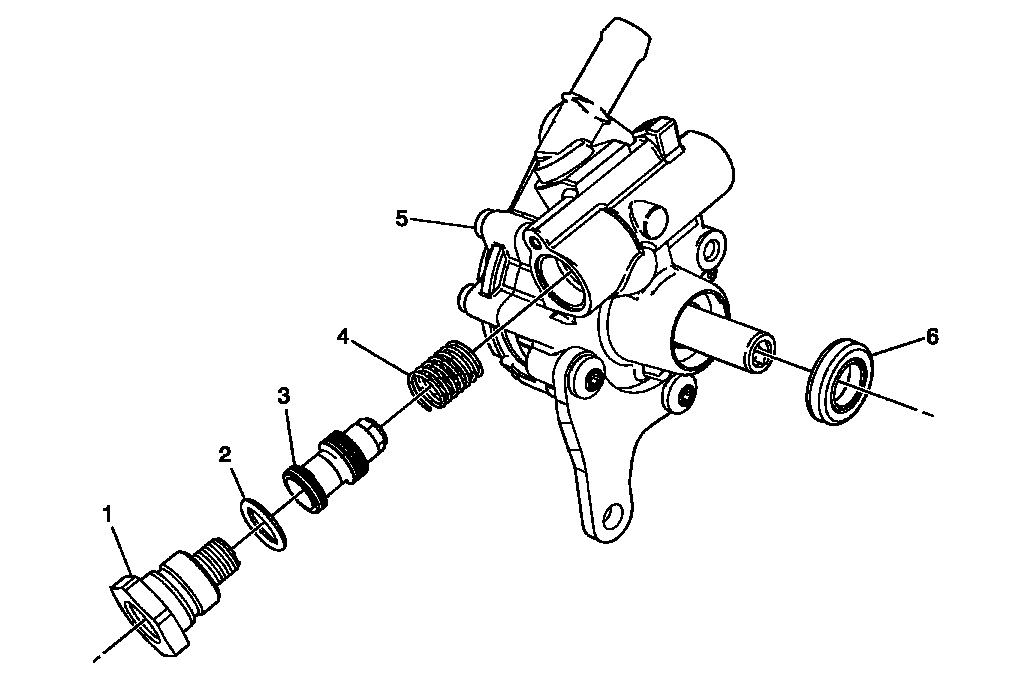

Power Steering Pump Disassembled View (LY7)
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Power Steering Pump Flow Control Valve Fitting |
| 2 |
Power Steering Pump Flow Control Valve Fitting O-ring Seal |
| 3 |
Power Steering Pump Flow Control Valve |
| 4 |
Power Steering Pump Flow Control Valve Spring |
| 5 |
Power Steering Pump Housing |
| 6 |
Power Steering Pump Shaft Seal |
