Section 1619 (Data Communications System)
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
Low Speed Serial Data Wiring Schematics
Low Speed Serial Data Wiring Schematics
WARNING:
This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

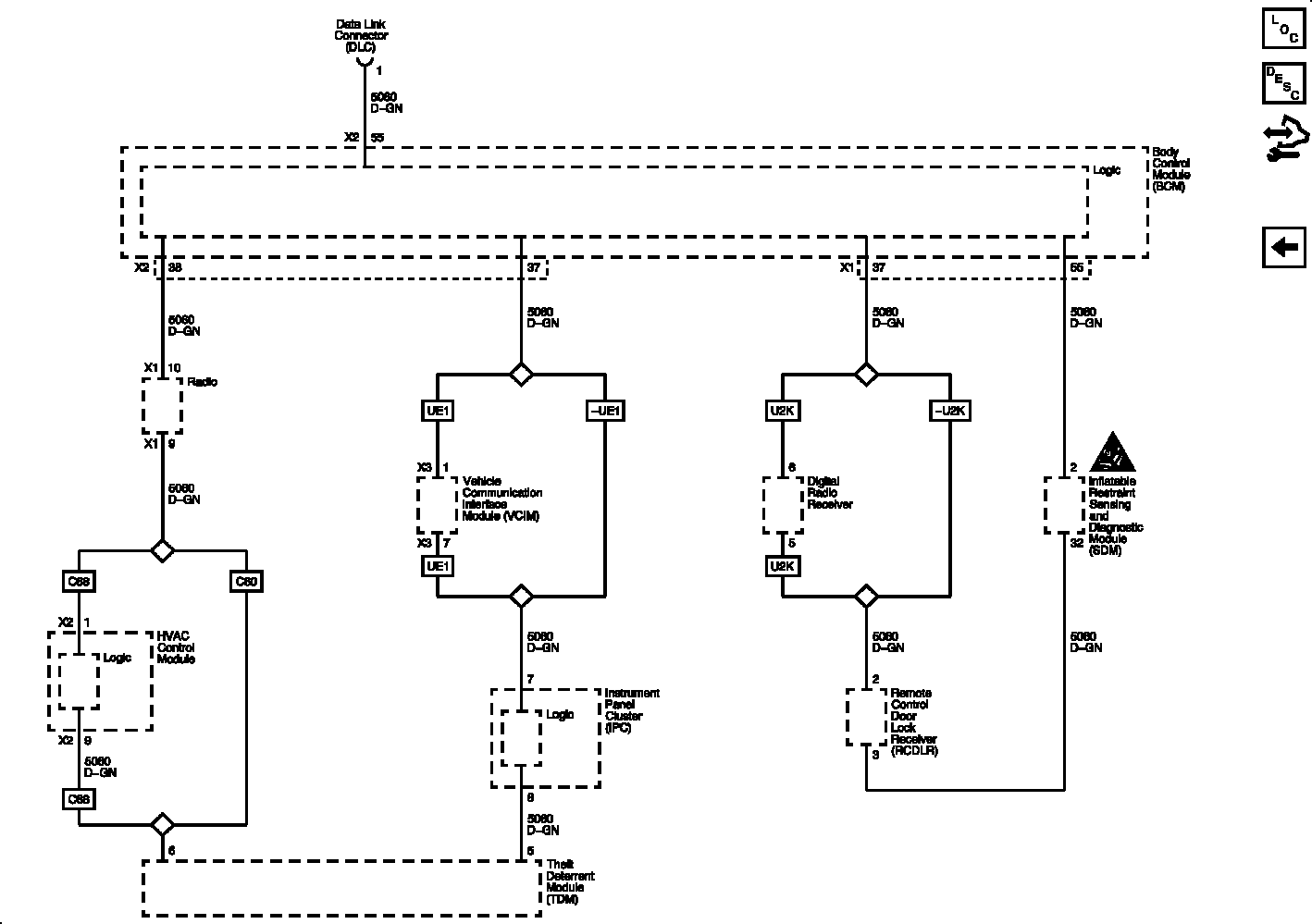

Fig 1: Low Speed Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
