Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering gear through the left front wheel opening.
    2. Fig 1: Identifying Steering Gear To Frame Bolts
    GM1229955Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
    IMPORTANT: Start all of the bolts and nuts by hand before finalizing any torques.
  2. Install the steering gear bolts, nuts, and washers to the steering gear.

    Tighten:  Tighten the bolts to 70 N.m (52 lb ft) plus an additional 90 degrees.

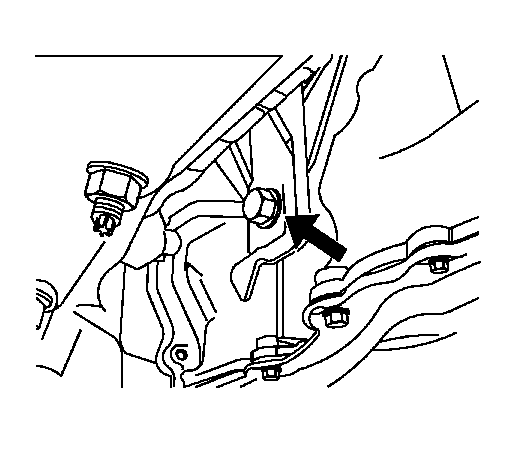

    3. Fig 2: Identifying Rear Transmission Mount-To-Transmission Bolt.
    GM1770184Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission rear mount bolt.

    Tighten:  Tighten the bolt to 90 N.m (66 lb ft).

  4. Install the intermediate steering shaft to the steering gear. Refer to Intermediate Steering Shaft Replacement .
  5. Install the steering linkage outer tie rods to the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement .
  6. Adjust the front toe. Refer to Front Toe Adjustment .
