Interior Lights Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

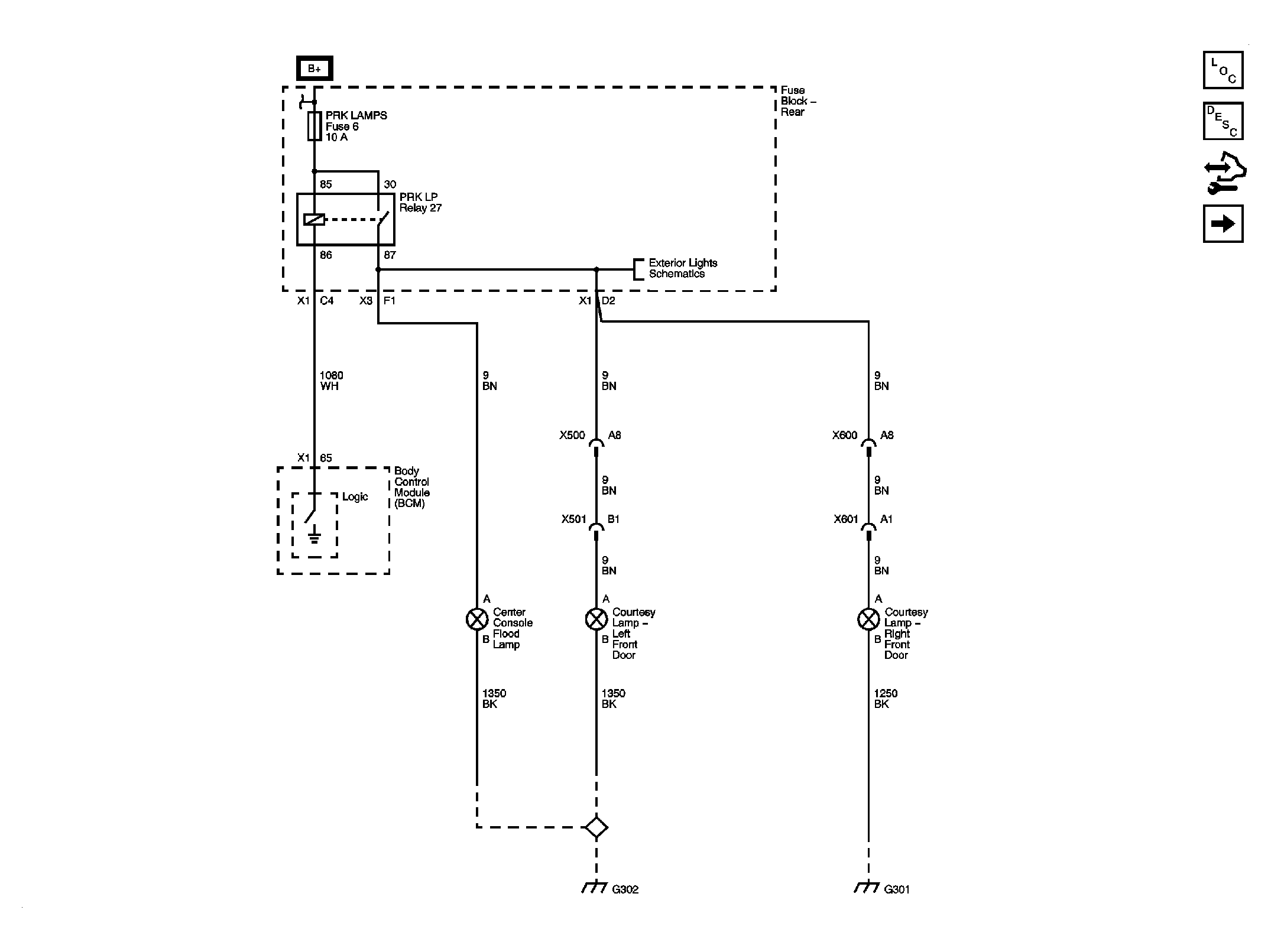

Fig 1: Door Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

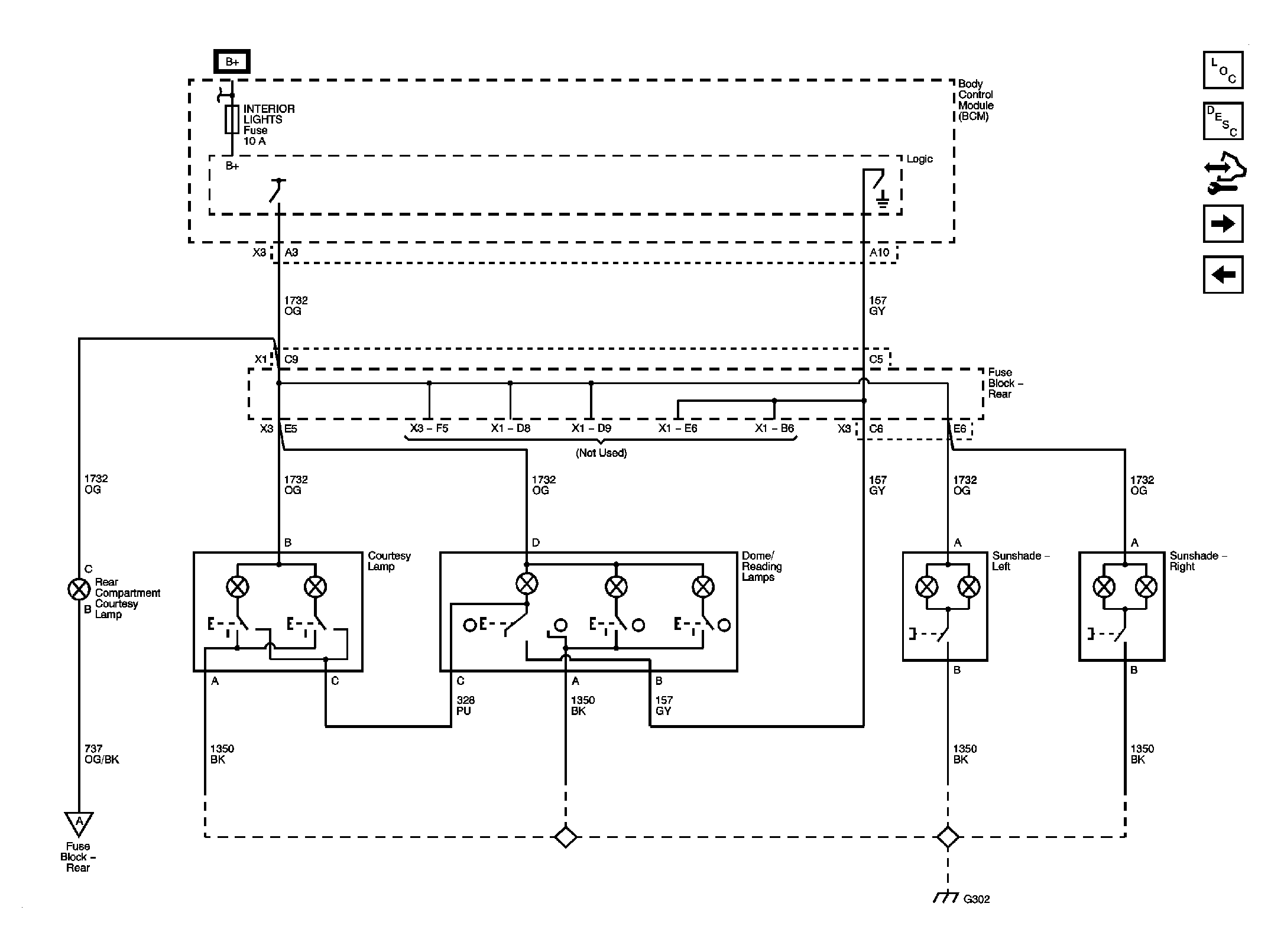

Fig 2: Roof & Rear Compartment Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

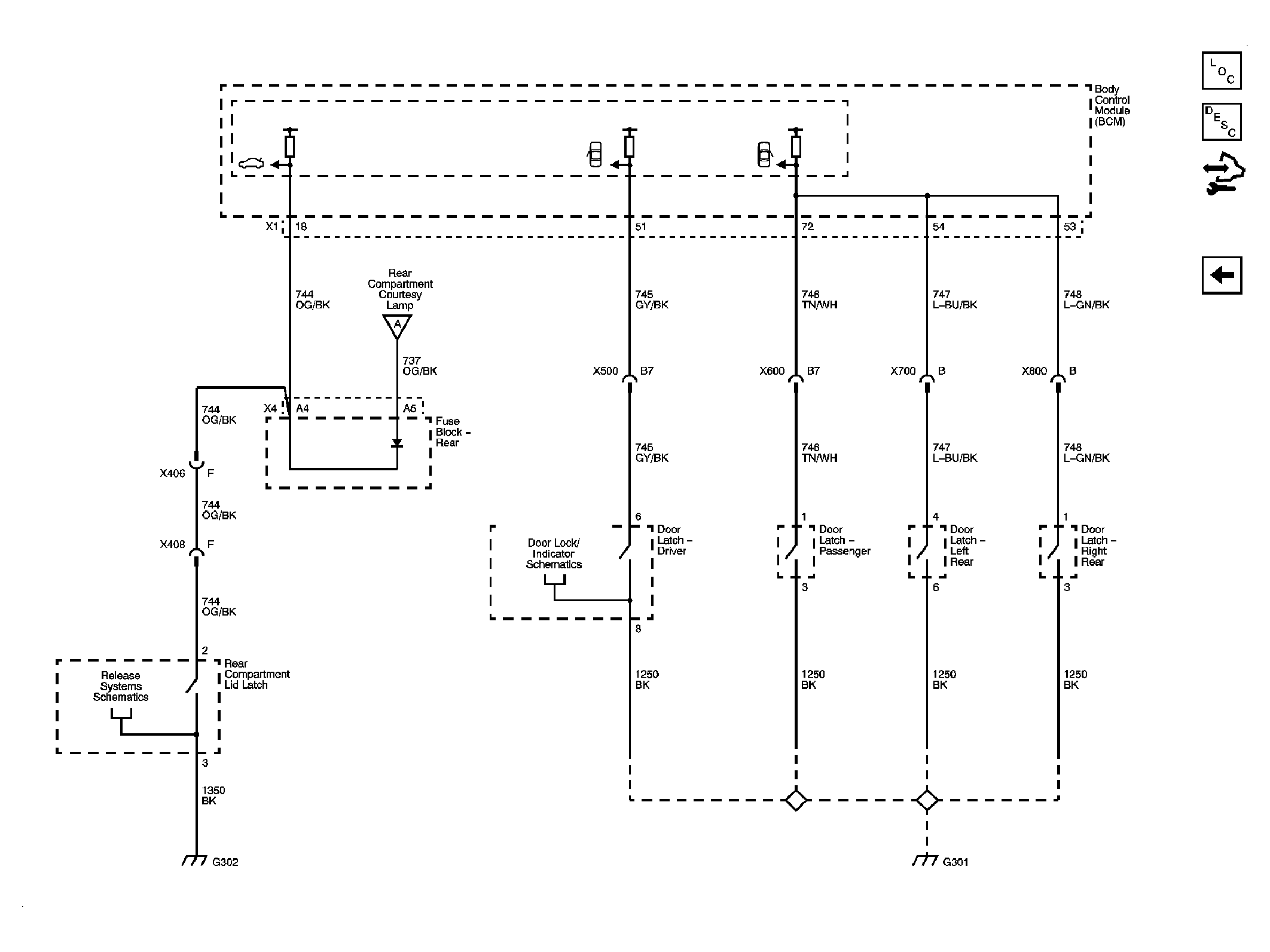

Fig 3: Ajar Switches Schematic

Courtesy of GENERAL MOTORS CORP.
