Instrument Panel Compartment Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

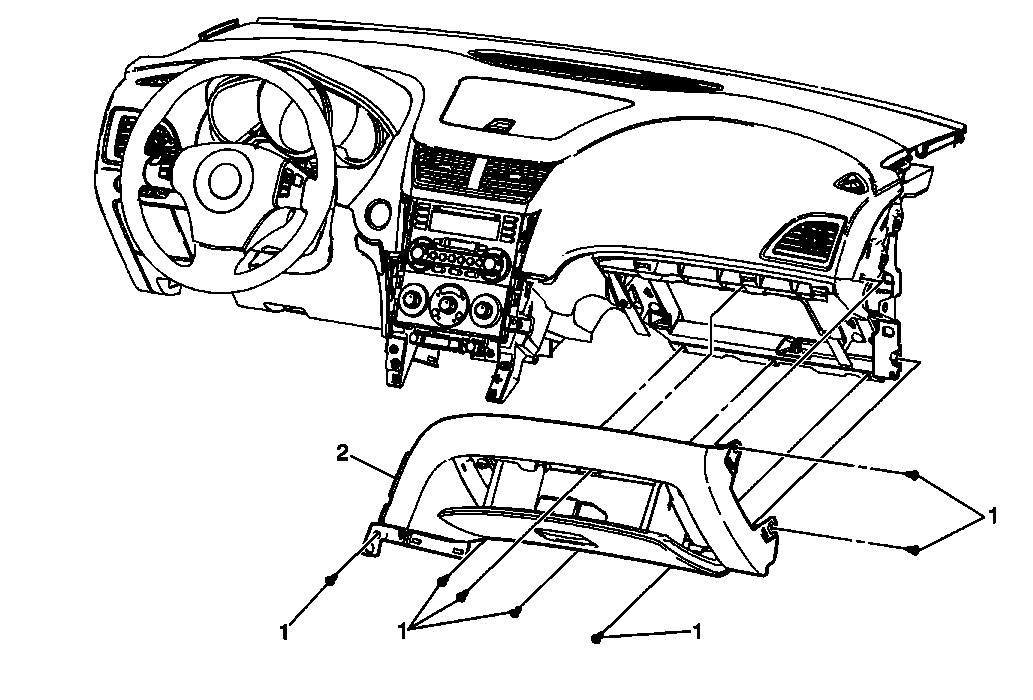

Fig 1: View Of Instrument Panel Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right instrument panel Insulator panel. Refer to Instrument Panel Insulator Replacement - Right Side . Remove the right outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement . Remove the console assembly. Refer to Front Floor Console Replacement .
1	Instrument Panel Compartment Assembly Screw (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Compartment Assembly

Callout

Component Name

Preliminary Procedures

Remove the right instrument panel Insulator panel. Refer to Instrument Panel Insulator Replacement - Right Side .
Remove the right outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
Remove the console assembly. Refer to Front Floor Console Replacement .

Instrument Panel Compartment Assembly Screw (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Compartment Assembly
