Installation Procedure

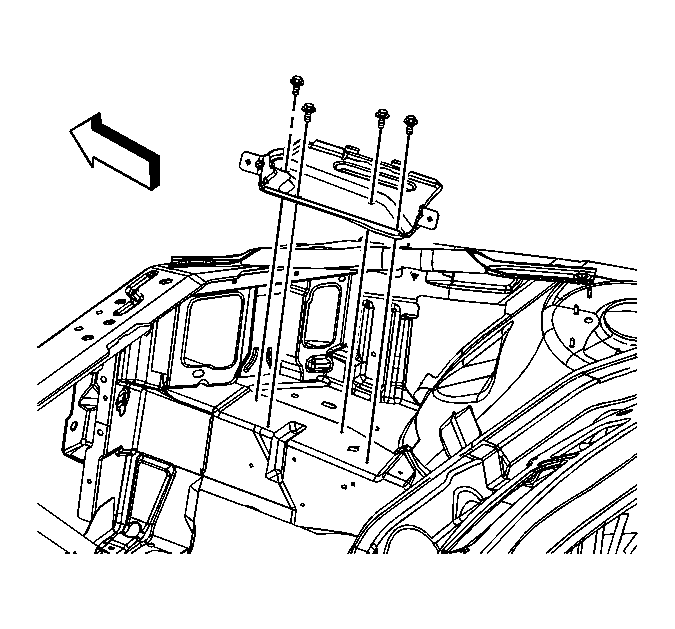

    Fig 1: Battery Tray & Bolts
    GM1552779Courtesy of GENERAL MOTORS CORP.
  1. Install the battery tray.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the battery tray bolts.

    Tighten:  Tighten the bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to Battery Replacement (RPOs LZE/LZ4/LZ8)  or Battery Replacement (RPO LS4) .
