Child Restraint Tether Anchor Replacement

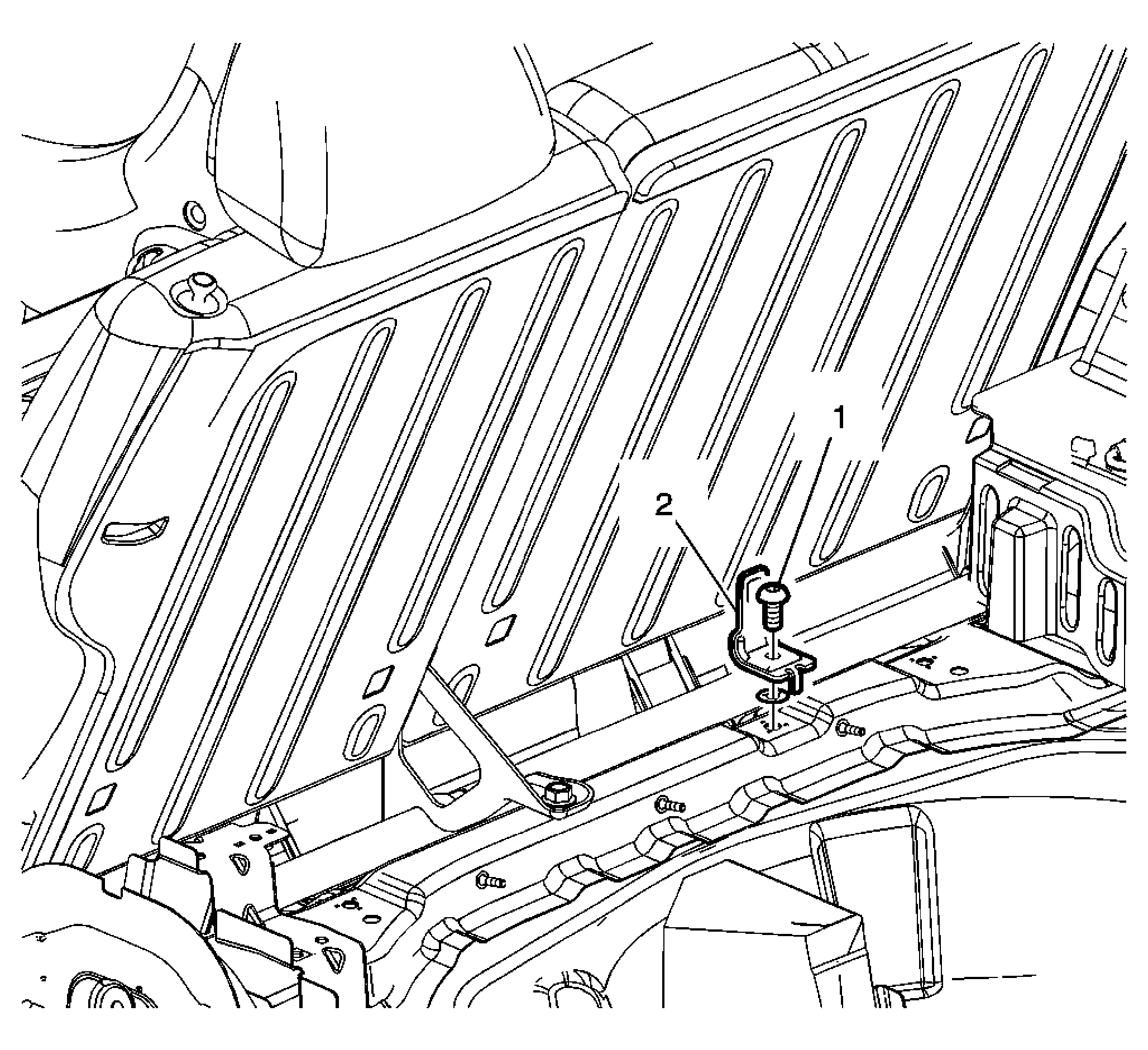

Fig 1: Identifying Child Restraint Tether Anchor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear floor trim plate. Refer to Rear Floor Trim Plate Replacement .
1	Child Seat Restraint System Bracket Bolt CAUTION: Refer to Fastener Caution . Tip:  Lean seat backs forward to allow easier access to fasteners. Tighten:  40 N.m (30 lb ft)
2	Child Seat Restraint System Bracket
