Yaw and Lateral Accelerometer Sensor (NP1) Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

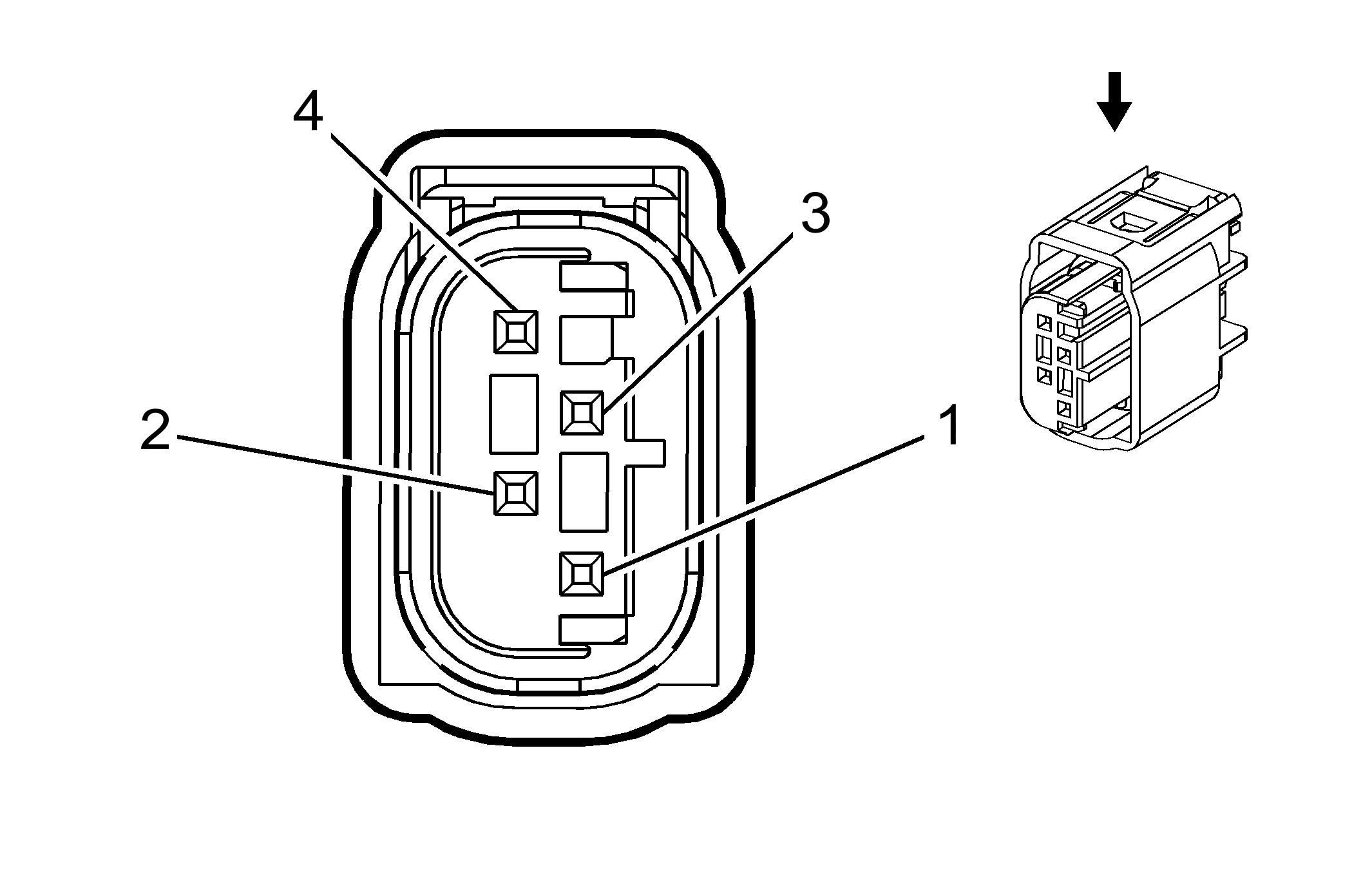

Fig 1: Yaw and Lateral Accelerometer Sensor (NP1) Connector End View
GM2368519Courtesy of GENERAL MOTORS CORP.
Yaw and Lateral Accelerometer Sensor (NP1)

Pin Wire Circuit Function
1 0.35 OR/BK 1057 Low Reference
2 0.35 L-BU 2088 CAN Bus Low Serial Data
3 1 D-BU 716 CAN Bus High Serial Data
4 0.35 GY/BK 1337 Ignition Voltage
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 10846910
  • Service Connector: 19178091
  • Description: 4-Way F 0.64 MQS Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 962885-5/15
  • Core/Insulation Crimp: 6/6
