Windshield Wiper Motor Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

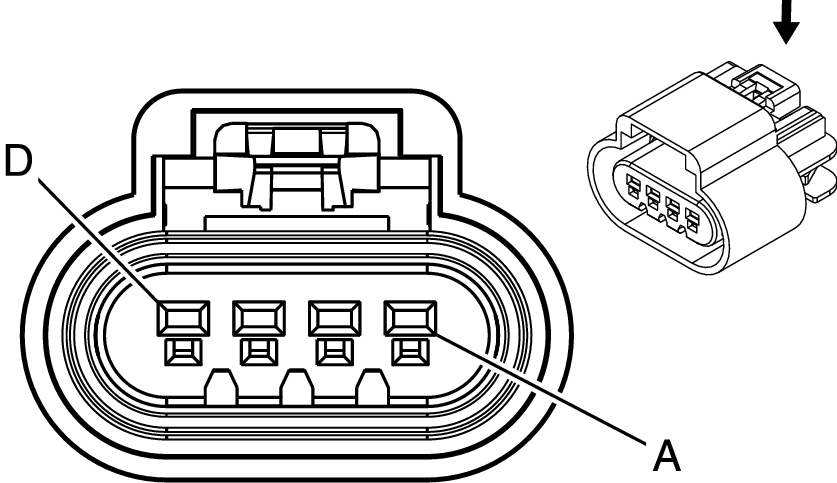

Fig 1: Windshield Wiper Motor Connector End View
GM646430Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor

Pin Wire Circuit Function
A 1 PU 92 Windshield Wiper Motor High Speed
B 1 D-GN 95 Windshield Wiper Motor Low Speed
C 0.35 YE 196 Windshield Wiper Motor Park Switch Signal
D 1 BK 850 Ground
Connector Part Information
  • Harness: Body
  • OEM: 15487756
  • Service: 19180287
  • Description: 4-Way F GT 150 Series Sealed 4.0 (BK)
Terminal Part Information
  • Terminated Lead: 13327113
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: Pins A, B, D - 2/1
  • Core/Insulation Crimp: Pins C - E/A
