Transfer Case Neutral Switch (NP1) Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

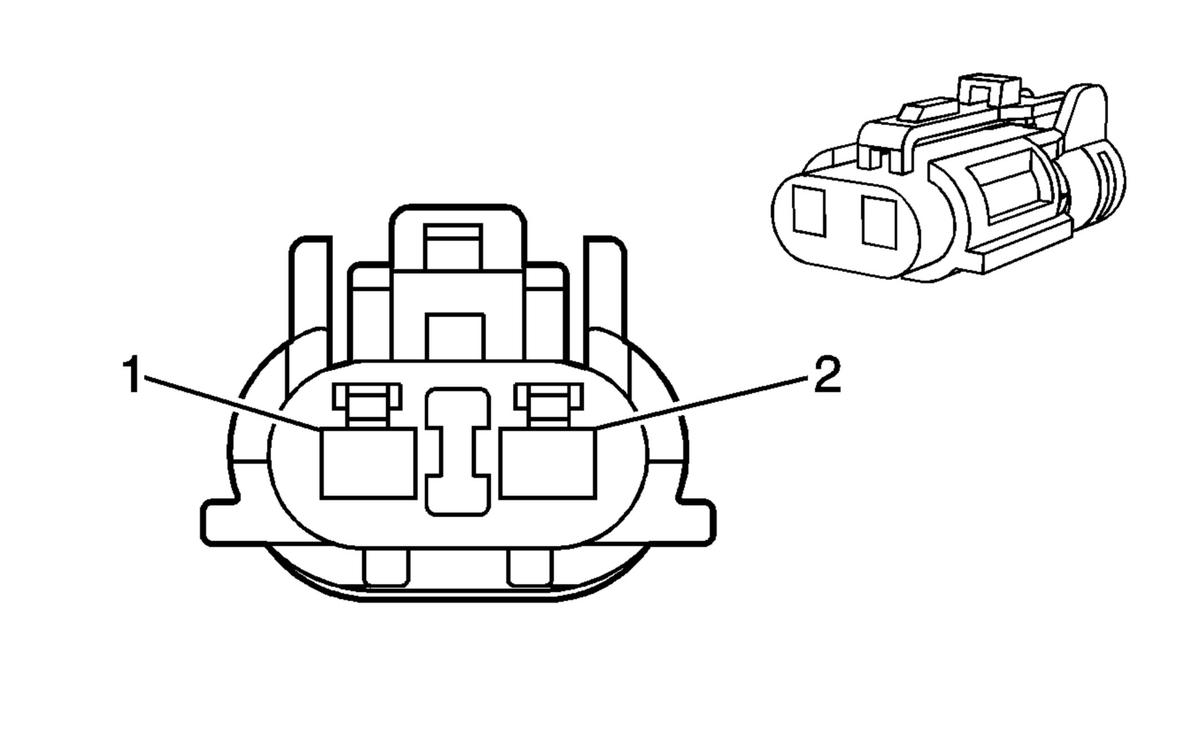

Fig 1: Transfer Case Neutral Switch (NP1) Connector End View
GM1334528Courtesy of GENERAL MOTORS CORP.
Transfer Case Neutral Switch (NP1)

Pin Wire Circuit Function
1 0.35 GY 2281 Neutral Switch Signal
2 0.35 BK 550 Ground
Connector Part Information
  • Harness: Engine
  • OEM: 10763359
  • Service: 88987929
  • Description: 2-Way F SWP 070 Series Sealed (BN)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-33 (YE)
  • Terminal/Tray: 7116-1471/12
  • Core/Insulation Crimp: E/1
