Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

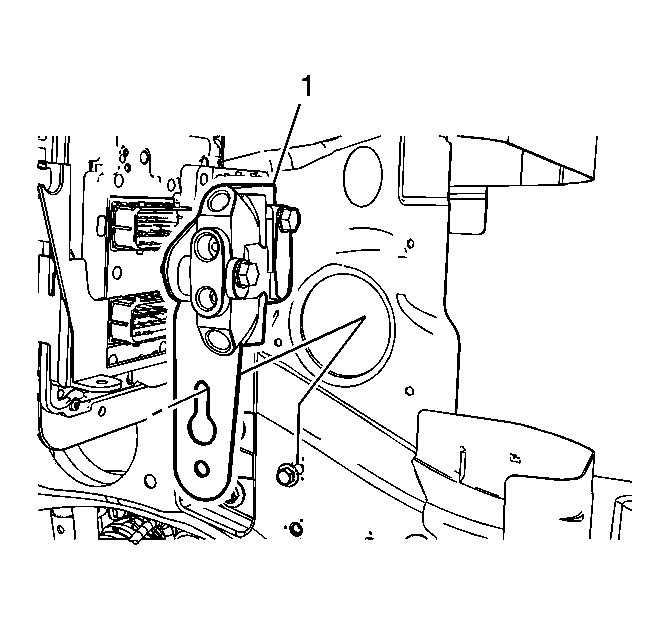

Fig 1: Proportioning Valve & Bracket Assembly

Courtesy of GENERAL MOTORS CORP.

Install the proportioning valve and bracket assembly (1) to the vehicle.

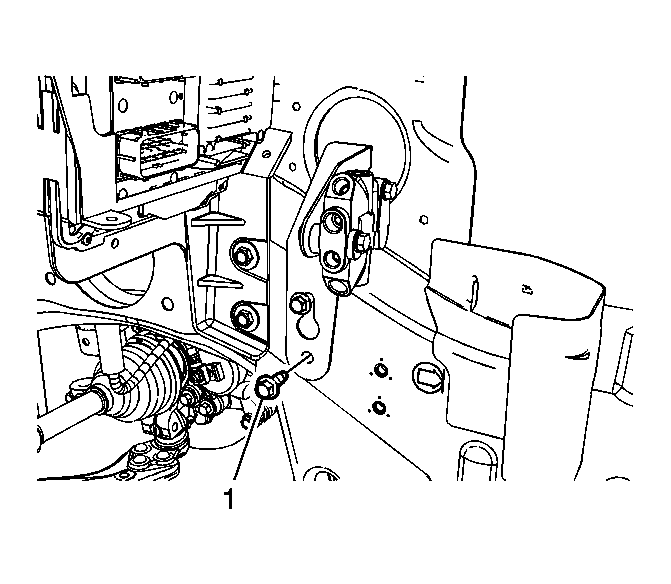

Fig 2: Lower Proportioning Valve Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the lower proportioning valve bracket bolt (1) and tighten to 25 N.m (18 lb ft).

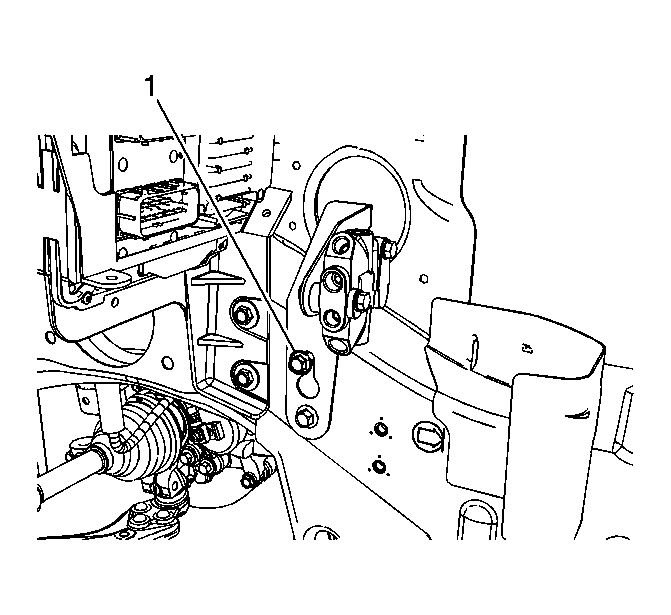

Fig 3: Upper Proportioning Valve Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

Tighten the upper proportioning valve bracket bolt (1) to 25 N.m (18 lb ft).

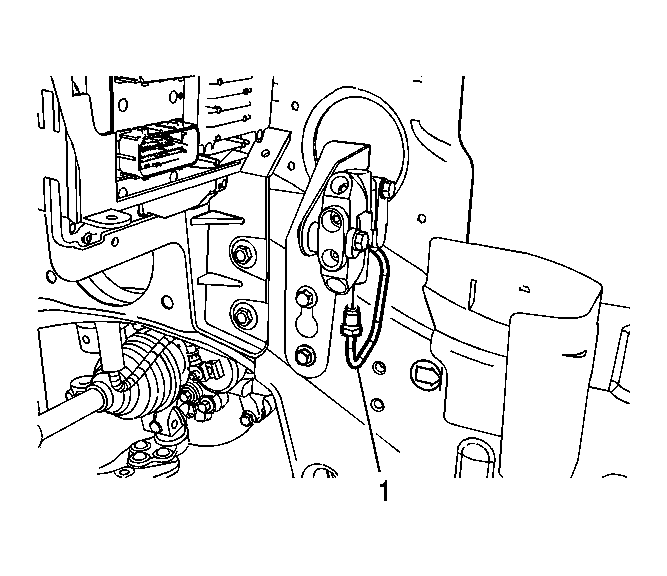

Fig 4: Brake Master Cylinder Primary Inlet Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the brake master cylinder primary inlet brake pipe fitting (1) and tighten to 21 N.m (15 lb ft).

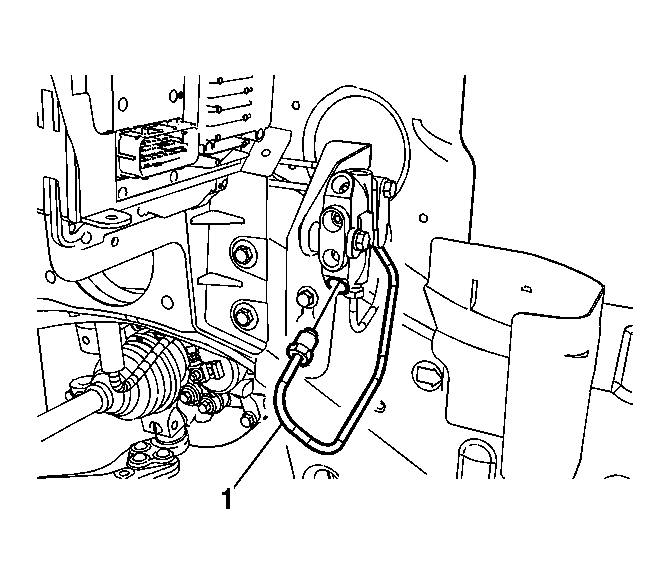

Fig 5: LF Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the LF brake pipe fitting (1) and tighten to 21 N.m (15 lb ft).

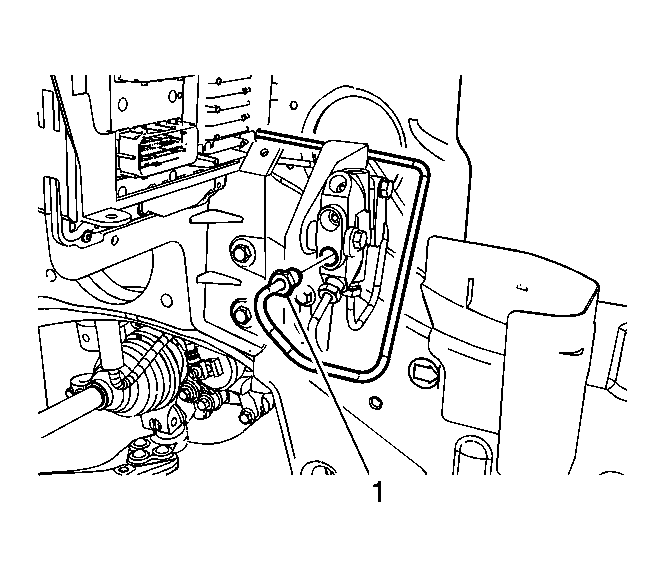

Fig 6: RR Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the RR brake pipe fitting (1) and tighten to 21 N.m (15 lb ft).

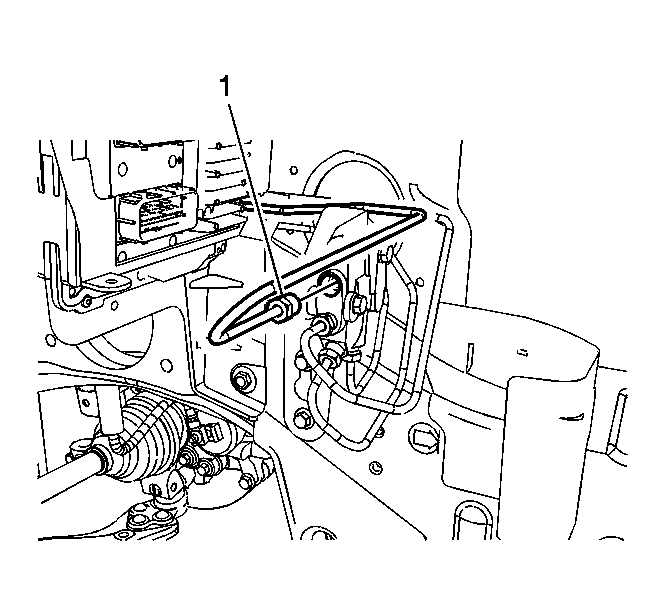

Fig 7: LR Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the LR brake pipe fitting (1) and tighten to 21 N.m (15 lb ft).

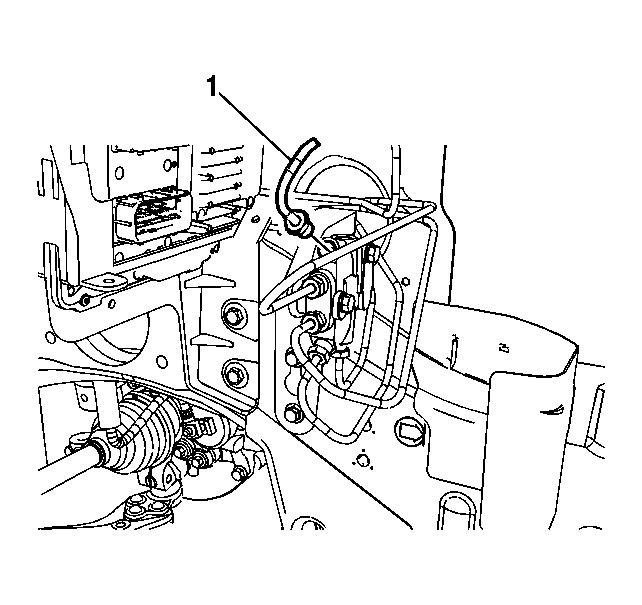

Fig 8: RF Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the RF brake pipe fitting (1) and tighten to 21 N.m (15 lb ft).

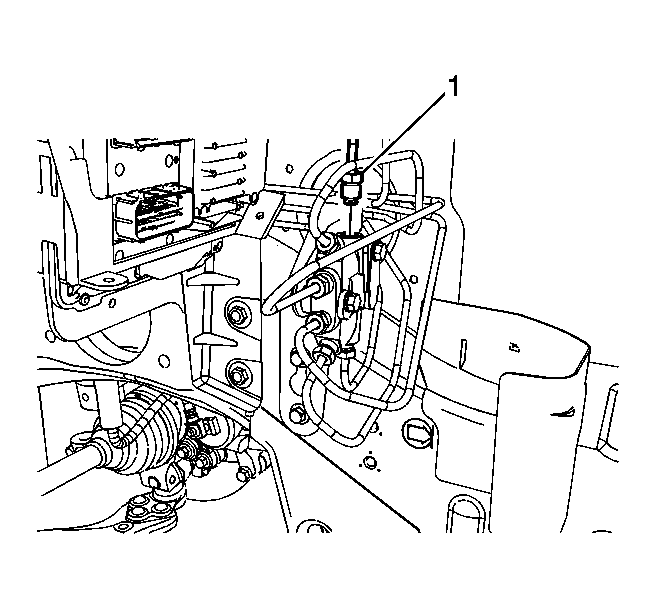

Fig 9: Brake Master Cylinder Secondary Inlet Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the brake master cylinder secondary inlet brake pipe fitting (1) and tighten to 21 N.m (15 lb ft).

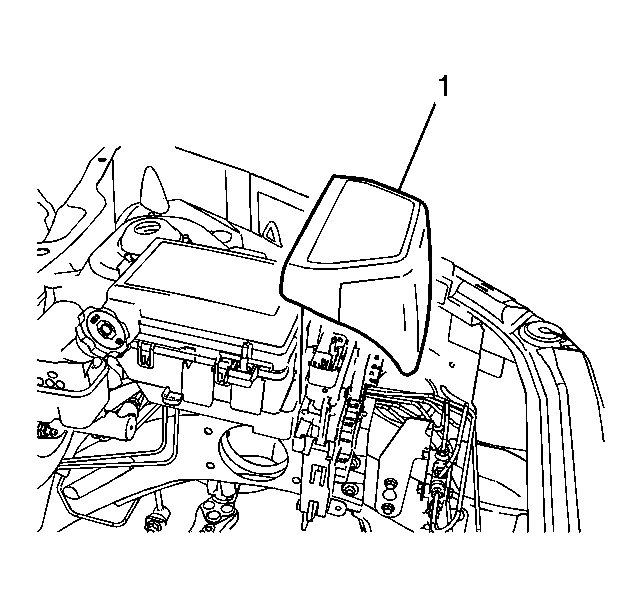

Fig 10: Engine Control Module Cover

Courtesy of GENERAL MOTORS CORP.

Install the ECM cover (1).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
