Tail Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

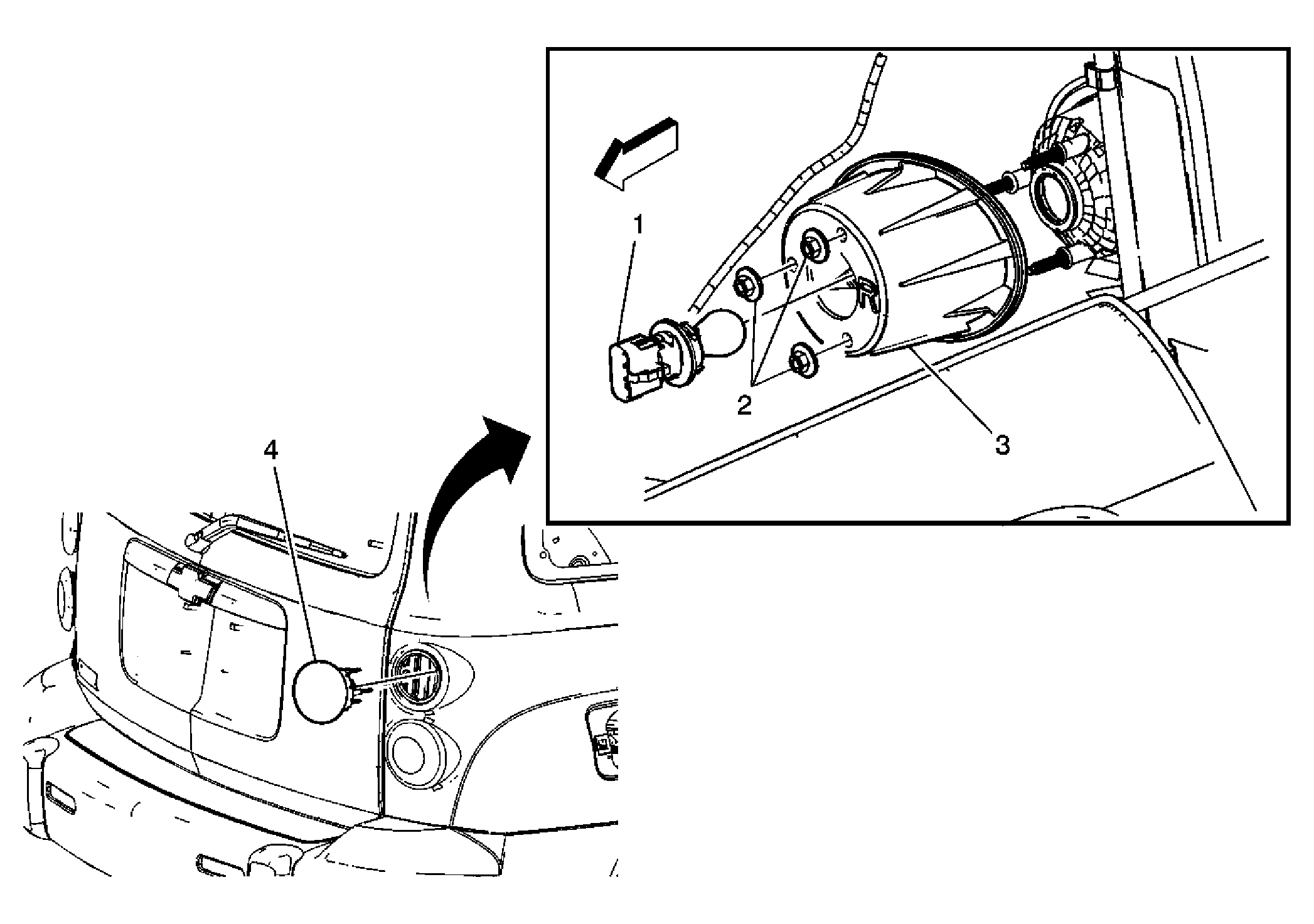

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the liftgate. Remove either the LR or RR quarter trim panel access hole cover in order to access the rear tail lamp connectors and fasteners. Disconnect the rear tail lamp bulb electrical connector.
1	Socket, Tail Lamp Bulb
2	Tail Lamp Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
3	Tail Lamp Bracket Tip: Pull the bracket forward in the vehicle to remove.
4	Tail Lamp Assembly Tip: Remove the tail lamp from the exterior side of the rear body panel.
