Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

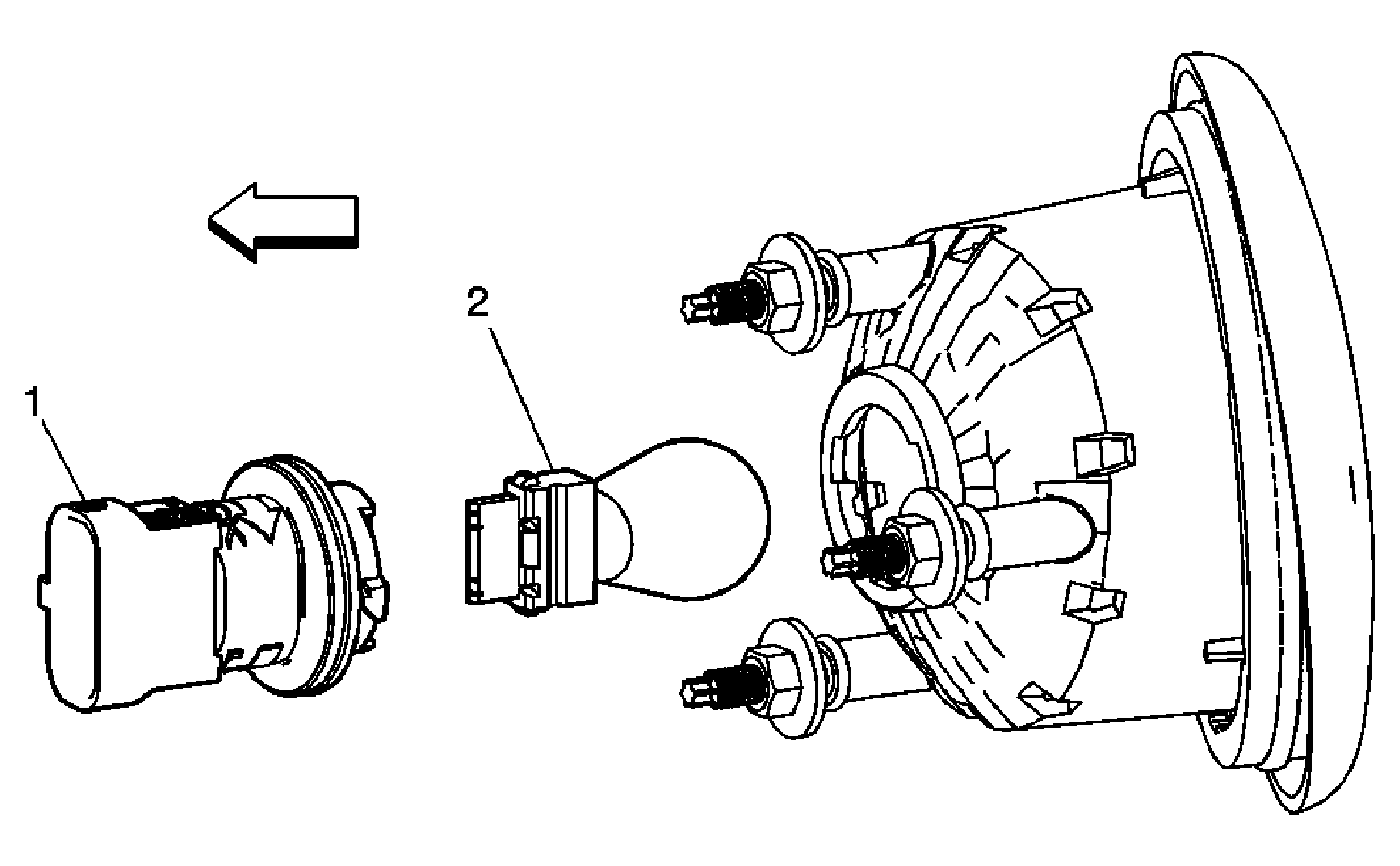

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the liftgate. Remove either the LR or RR quarter trim panel access hole cover in order to access the rear tail lamp electrical connector. Disconnect the rear tail lamp bulb electrical connector.
1	Tail Lamp Bulb Socket Tip: Turn the lamp socket a quarter turn counterclockwise to remove from the tail lamp bracket.
2	Tail Lamp Bulb Tip: Pull the tail lamp bulb straight from the socket.

Callout

Component Name

Preliminary Procedure

Open the liftgate.
Remove either the LR or RR quarter trim panel access hole cover in order to access the rear tail lamp electrical connector.
Disconnect the rear tail lamp bulb electrical connector.

Tail Lamp Bulb Socket
Tip: Turn the lamp socket a quarter turn counterclockwise to remove from the tail lamp bracket.

Tail Lamp Bulb
Tip: Pull the tail lamp bulb straight from the socket.
