High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

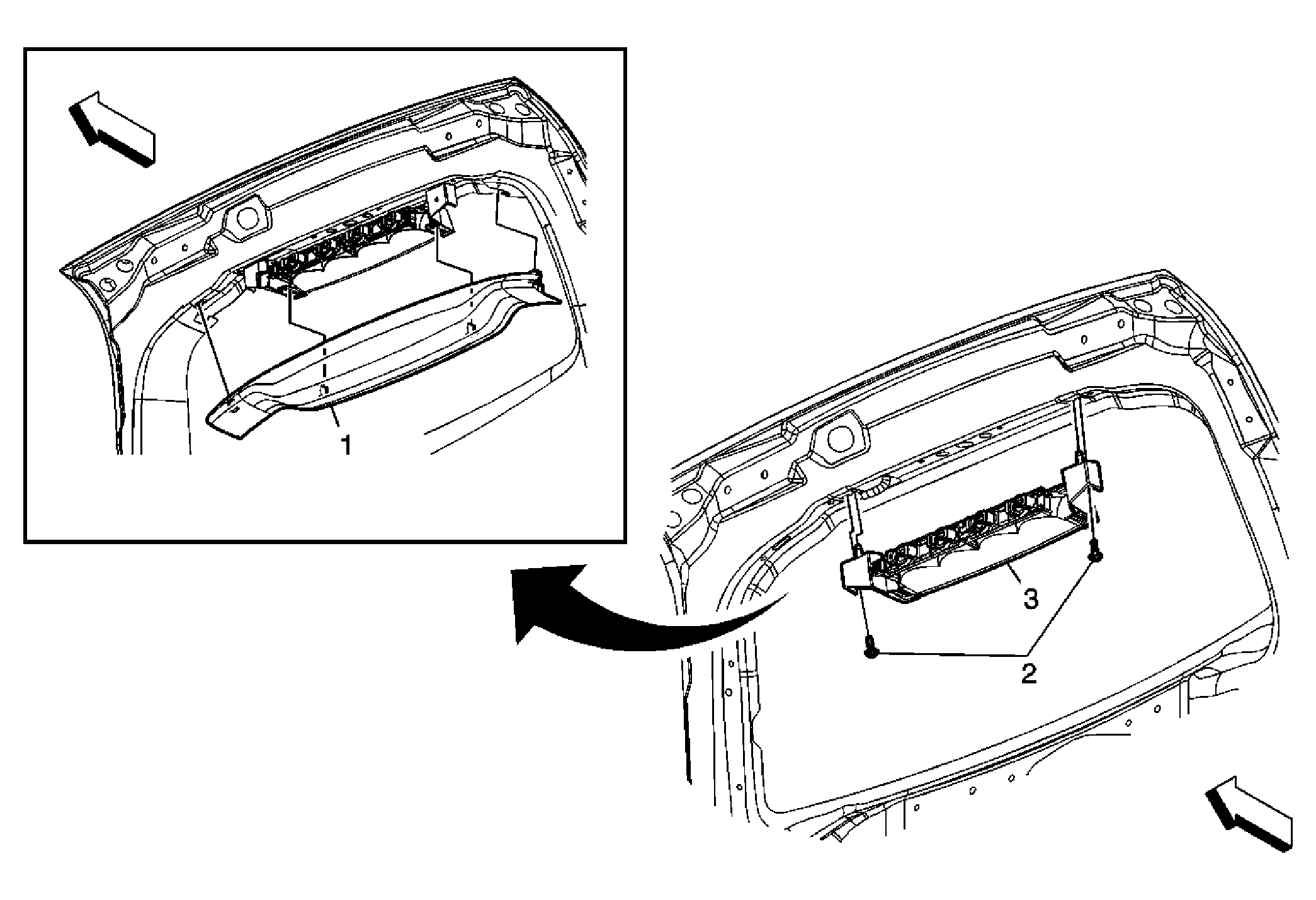

Fig 1: High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Trim Finish Panel
2	High Mounted Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (25 lb in)
3	Center High Mounted Stop Lamp Assembly Tip: The bulbs can be replaced by pulling the socket out of the rear of the lamp assembly then removing the bulb from the socket.
