Headlamp Capsule Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

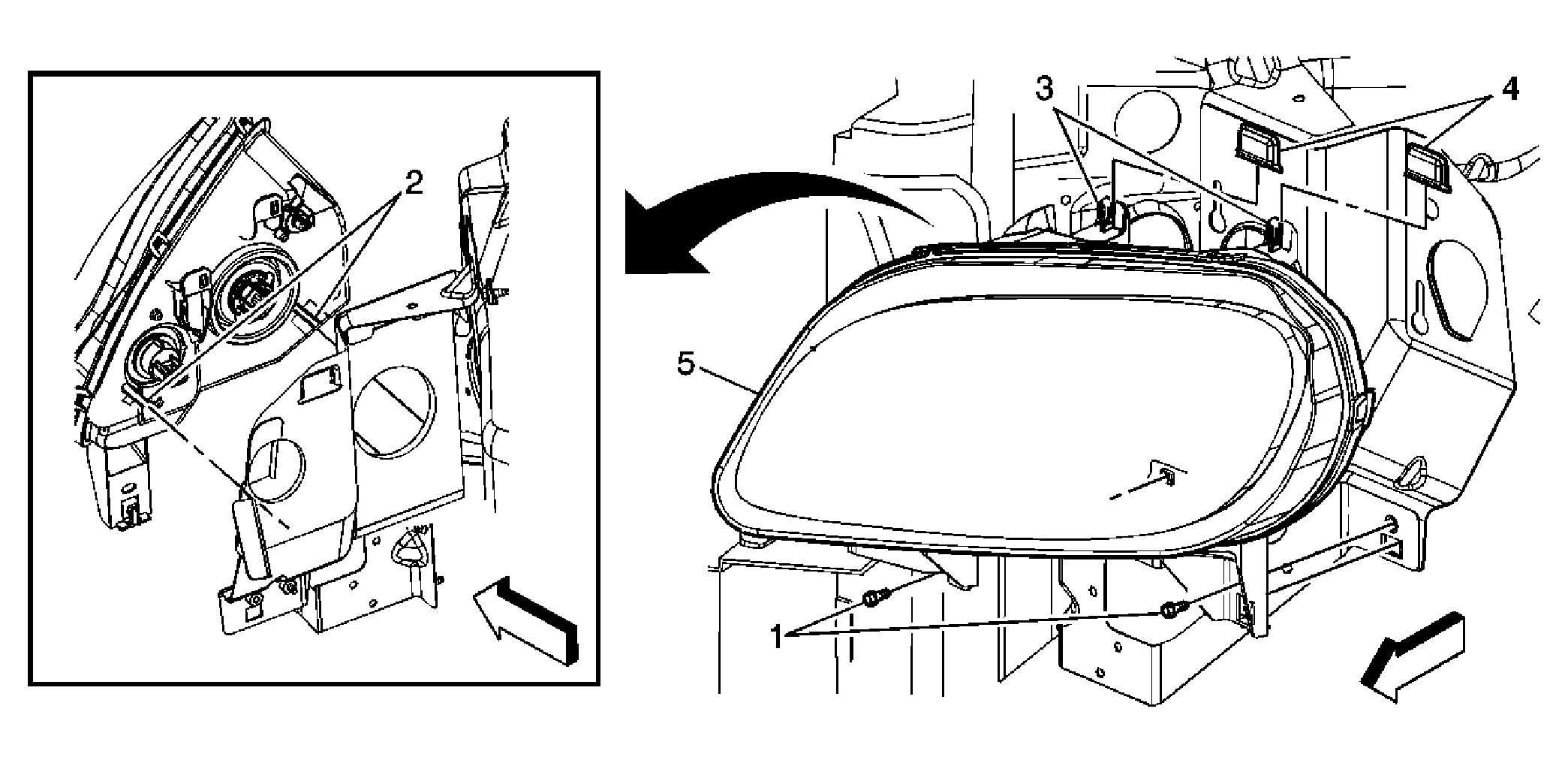

Fig 1: Headlamp Capsule

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the hood. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Standard) or Front Bumper Fascia Replacement (SS) . Disconnect the headlamp bulbs electrical connectors.
1	Lower Mounting Panel Bolts/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: The lower tab on the headlamp composite locks into the front end mounting panel. Release the tab prior to lifting the headlamp capsule from the mounting panel. Tighten: 4.5 N.m (40 lb in)
2	Locating Pin (Qty: 2)
3	Upper Headlamp Mounting Tab (Qty: 2) Tip: Upon reassembly of the headlamp capsule to the mounting panel, slide the tabs on the capsule up inside the locator holes then position the capsule downward.
4	Headlamp and Front End Mounting Panel
5	Headlamp Capsule Assembly Tip: Aim the headlamps after installation of a new capsule assembly. Refer to Headlamp Aiming .
