Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

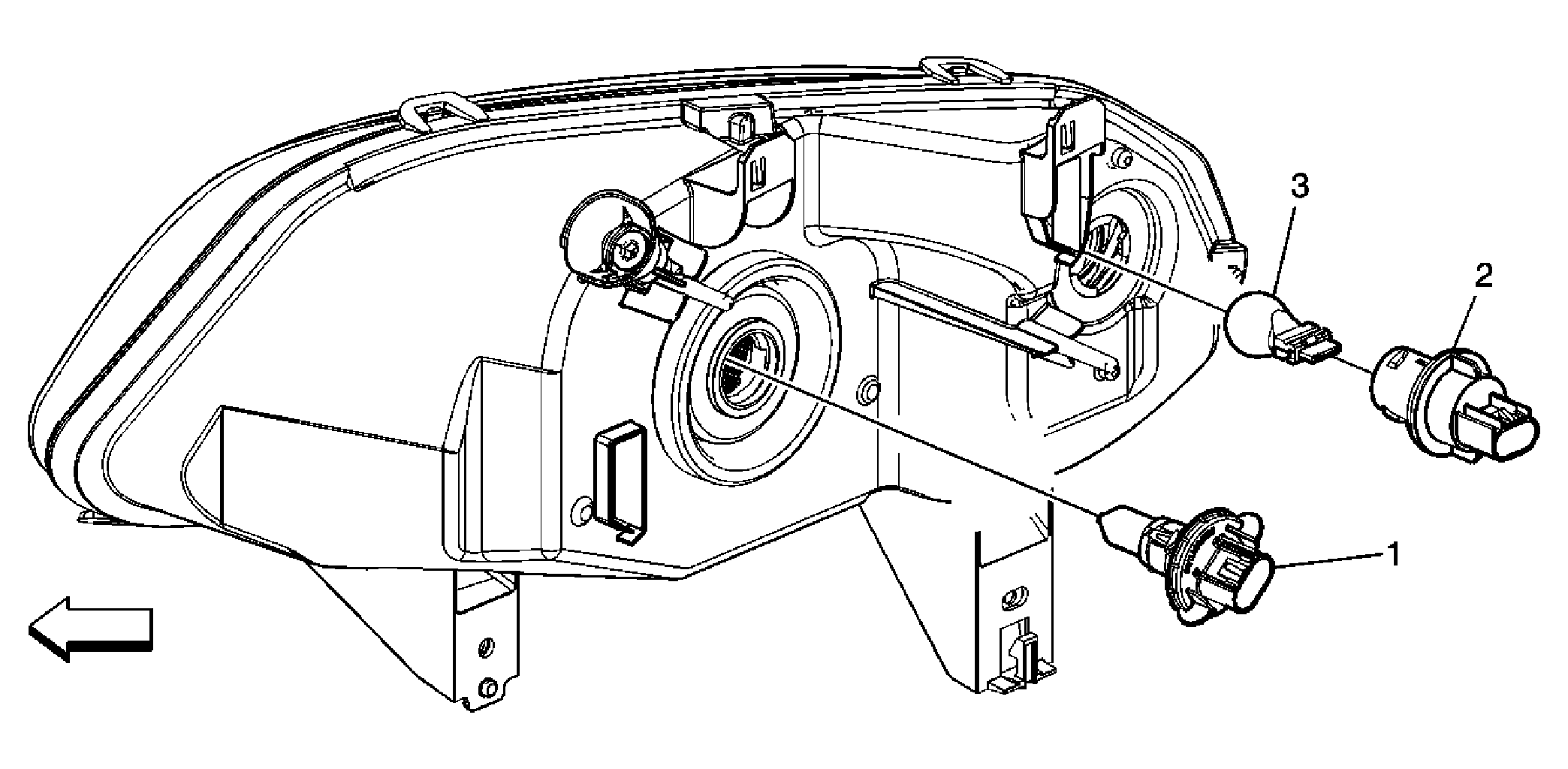

Fig 1: Headlamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Pull back the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Reach inside the front bumper fascia and disconnect the electrical connectors.
1	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Rotate the headlamp socket a quarter turn counterclockwise.
2	Park and Turn Signal Lamp Socket Tip: Turn the socket a quarter turn counterclockwise in order to remove.
3	Park and Turn Signal Lamp Bulb Tip: Pull the bulb straight outward from the lamp socket.
