Front Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

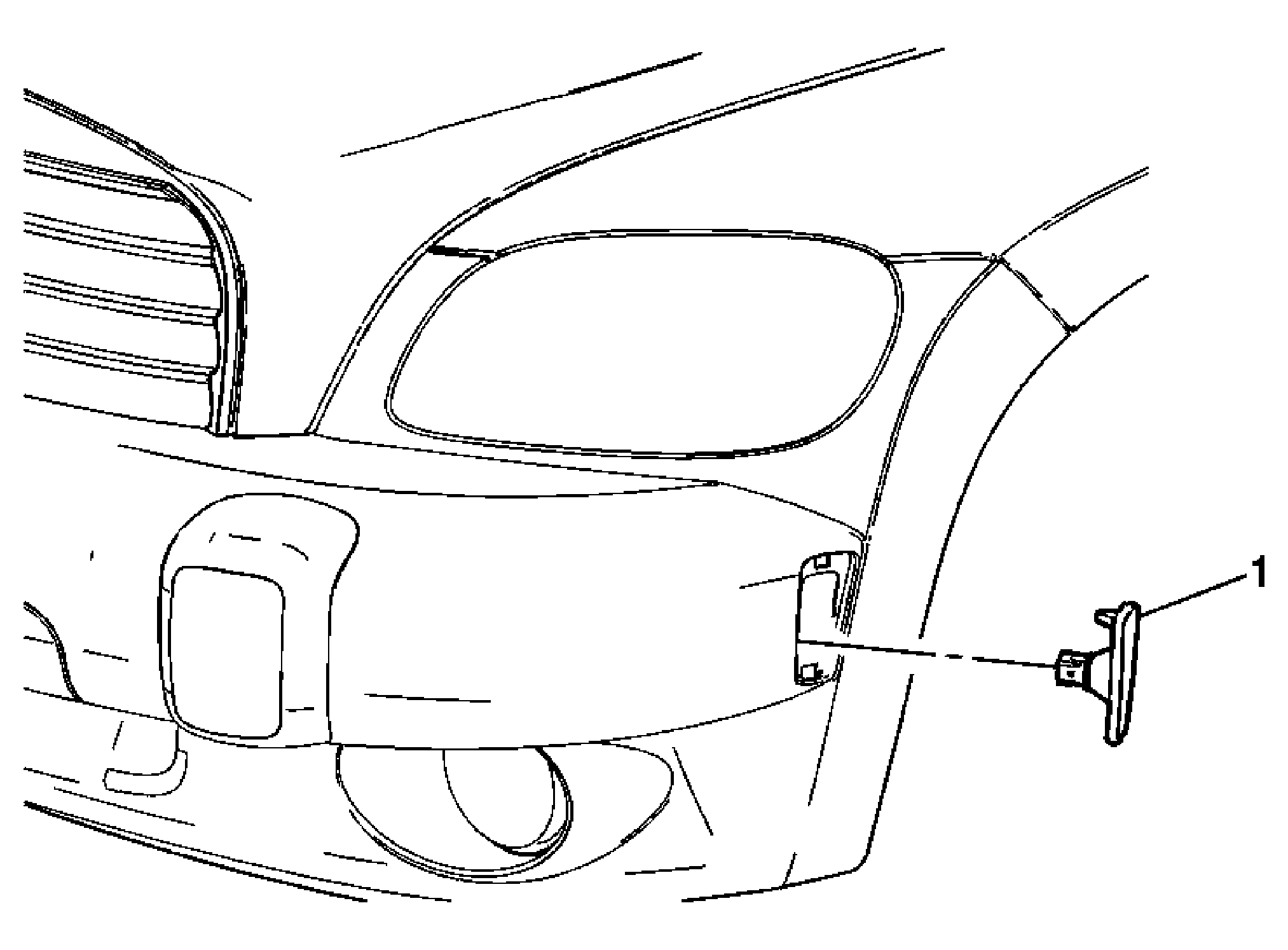

Fig 1: Front Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Reach inside the front bumper fascia and pinch the upper lamp tabs and push lamp outward from fascia then lift upward. Disconnect the electrical connector.
1	Lamp Assembly, Front Side Marker

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Reach inside the front bumper fascia and pinch the upper lamp tabs and push lamp outward from fascia then lift upward.
Disconnect the electrical connector.

Lamp Assembly, Front Side Marker
