Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

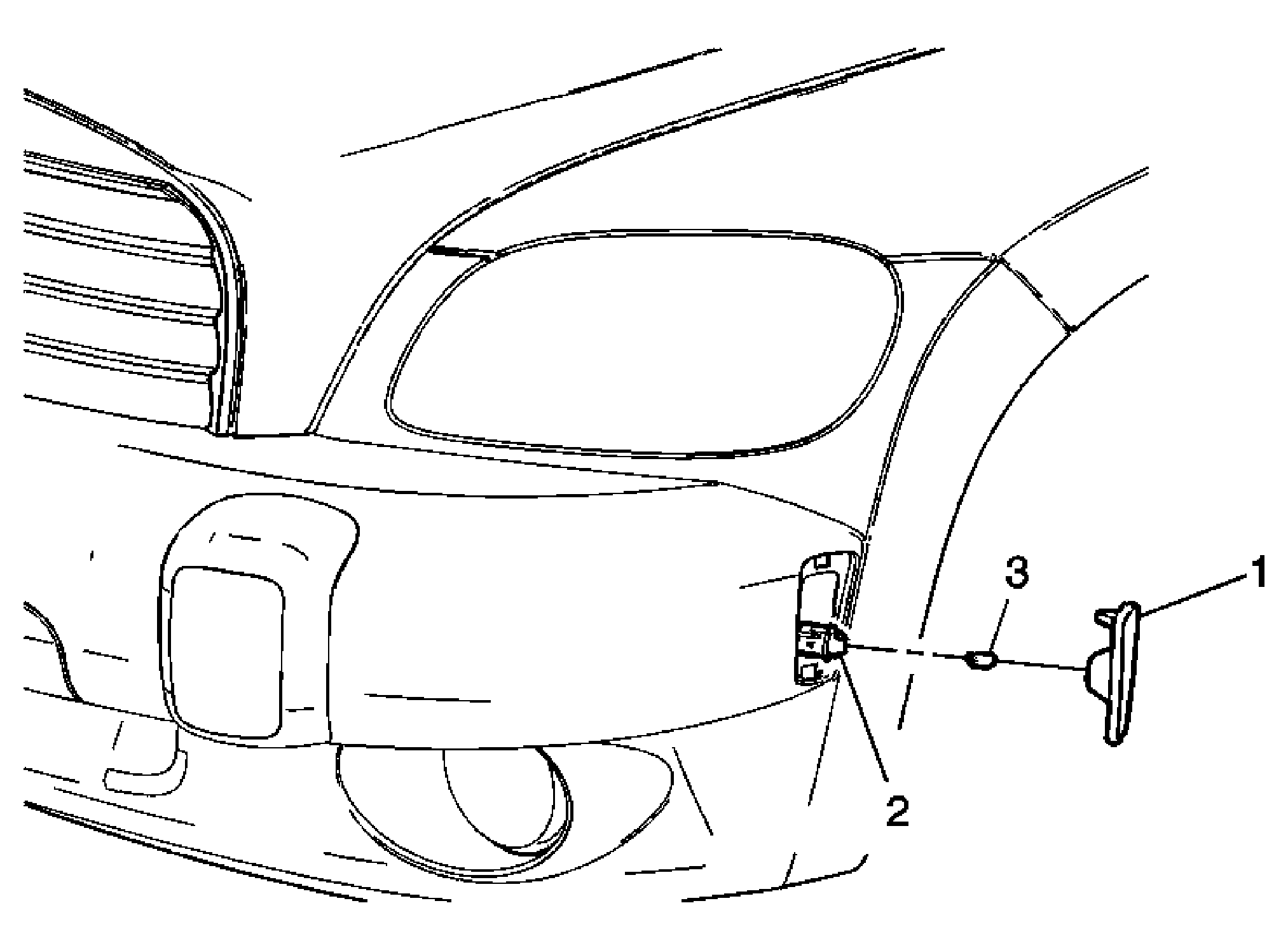

Fig 1: Front Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Reach inside the front bumper fascia and pinch the upper lamp tabs and push the lamp outward from the front bumper fascia then lift upward to remove. Disconnect the electrical connector.
1	Lamp Assembly, Front Side Marker
2	Socket, Front Side Marker Lamp Tip: Turn the socket a quarter turn counterclockwise in order to remove.
3	Bulb, Front Side Marker Lamp Tip: Pull the bulb straight outward from the lamp socket.
