Front Side Door Jamb Switch Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

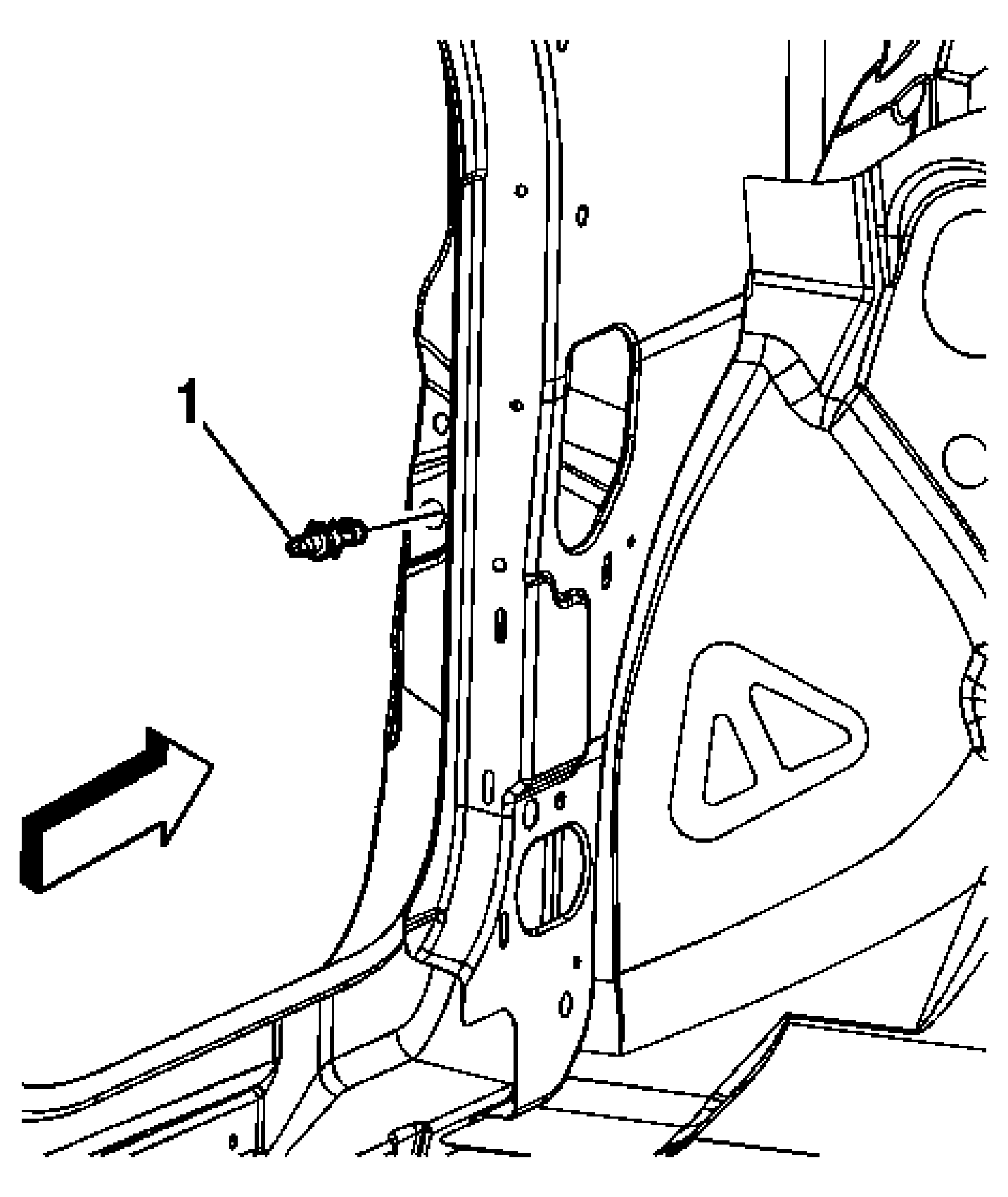

Fig 1: Front Side Door Jamb Switch
GM1617028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Switch, Front Door Jamb
Tip:
  1. Use a small bladed tool to press the tab on the side of the switch to remove.
  2. Disconnect the electrical connector.
