Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

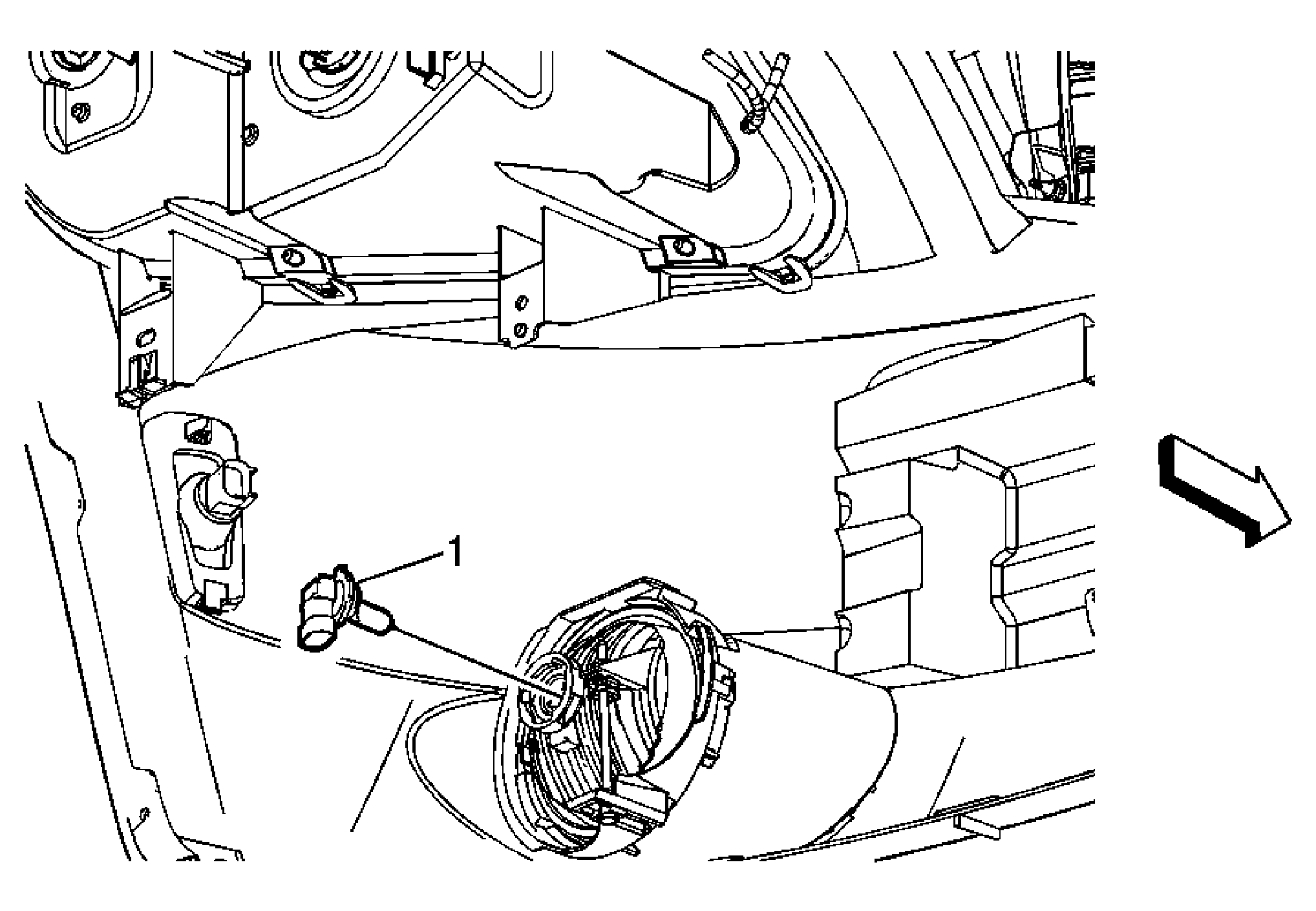

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the fog lamp bulb electrical connector.
1	Front Fog Lamp Bulb Assembly WARNING: Refer to Halogen Bulb Warning . Tip: Turn the bulb socket a quarter turn counterclockwise in order to remove.

Callout

Component Name

Preliminary Procedure

Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect the fog lamp bulb electrical connector.

Front Fog Lamp Bulb Assembly

WARNING: Refer to Halogen Bulb Warning .

Tip: Turn the bulb socket a quarter turn counterclockwise in order to remove.
