Liftgate Trim Panel Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

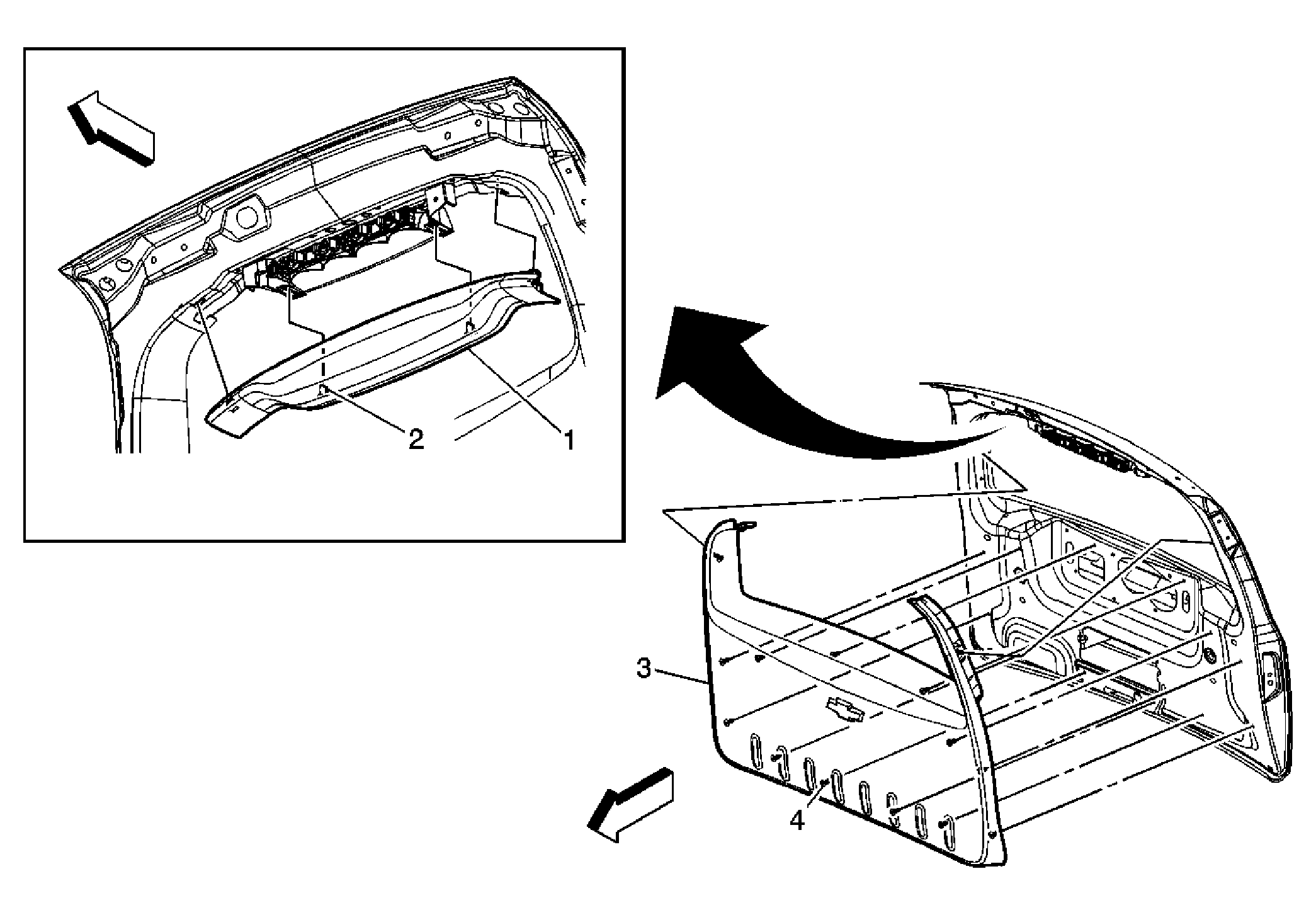

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate pull handle. Refer to Liftgate Inside Pull Handle Replacement . DO NOT attempt to remove the liftgate trim panel if there is a failure of the electric latch. Refer to Opening the Liftgate Without Electrical Power . |
|
| 1 | Liftgate Trim Finish Panel |
| 2 | Liftgate Trim Finish Retainer Clips (Qty: 2) |
| 3 | Liftgate Lower Trim Finish Panel |
| 4 | Liftgate Trim Finish Retainer Clips (Qty: 14) |
