Door Outside Handle Replacement

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

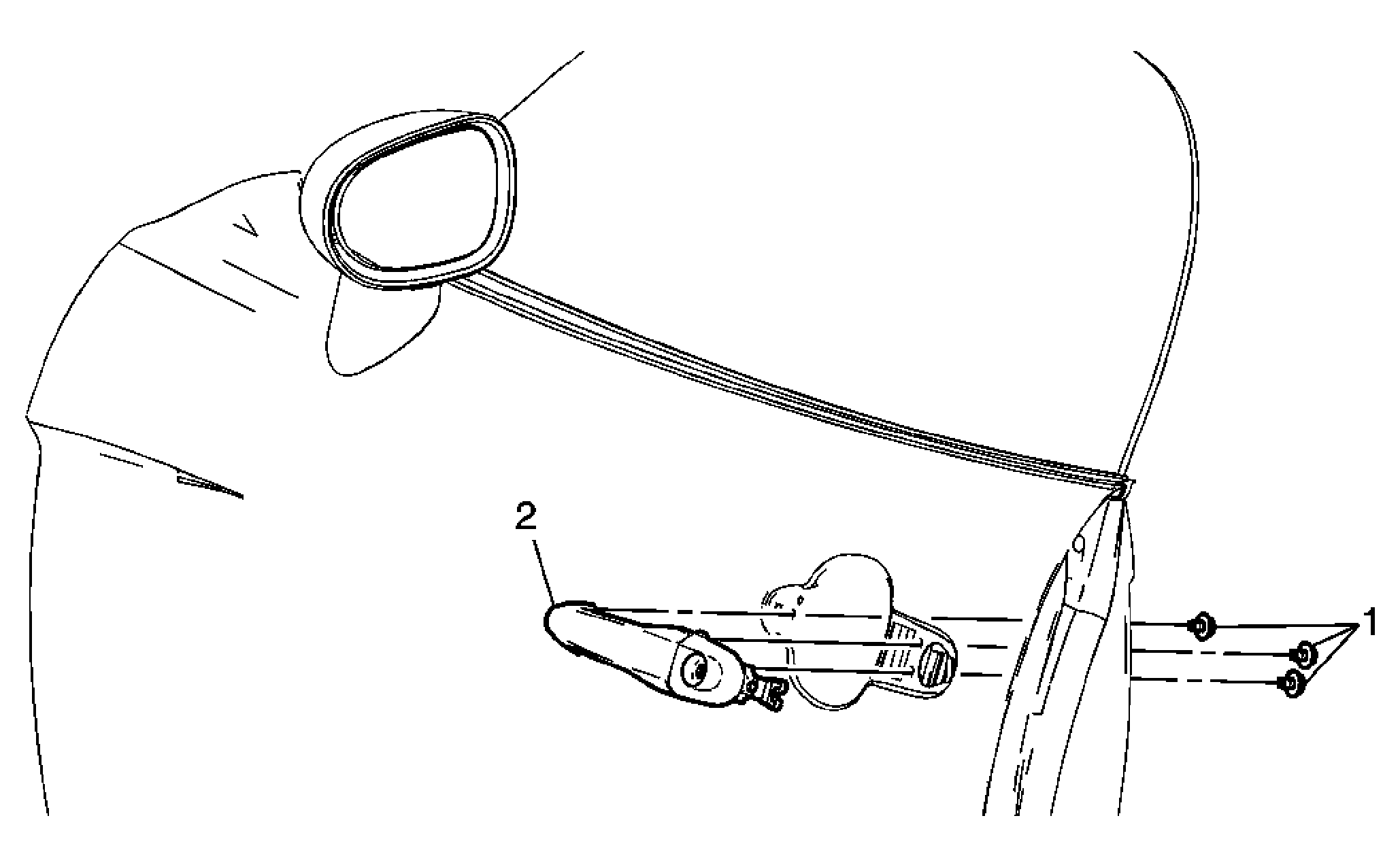

Fig 1: View Of Outside Door Handle & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the interior trim panel. Refer to Door Trim Panel Replacement .
1	Bolt, Outside Door Handle (Qty: 3) Tip: Pull the upper corner of the water deflector down to access the outside handle bolts. Release the lock rod from the lock cylinder. Tighten: 10 N.m (89 lb in)
2	Handle, Front Door Outside

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the interior trim panel. Refer to Door Trim Panel Replacement .

Bolt, Outside Door Handle (Qty: 3)
Tip:

Pull the upper corner of the water deflector down to access the outside handle bolts.
Release the lock rod from the lock cylinder.

Tighten: 10 N.m (89 lb in)

Handle, Front Door Outside
